Attributes
| Part Number | D2701-LN-S38-S38 |
|---|---|
| Is Series Page | 0 |
Description

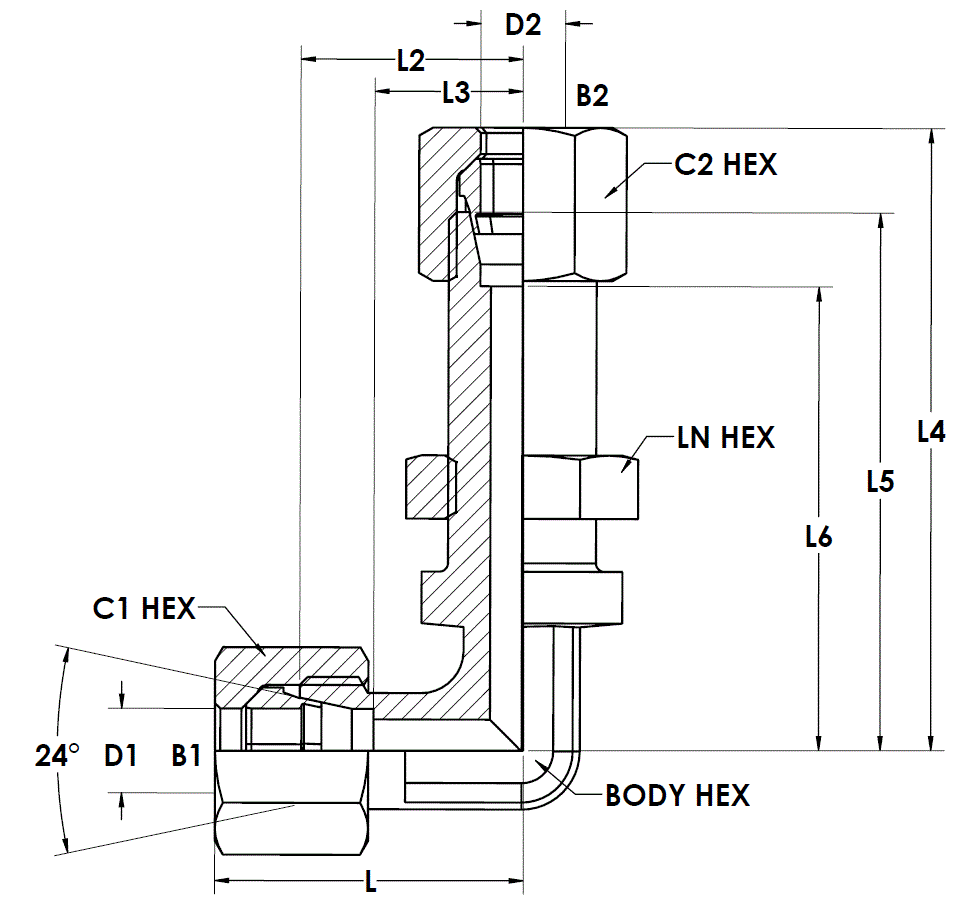

Steel, DIN 2353 90° Bulkhead Union Elbow, Heavy 38mm Tube OD
Specifications
| Connection Details | {"Side 1 Connection Type":"DIN Tube","Side 1 Tube OD":"38mm","Side 1 Thread Type":"M52X2.0","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Tube Connection","Side 1 DIN Pressure Series":"Heavy","Side 2 Connection Type":"DIN Tube","Side 2 Tube OD":"38mm","Side 2 Thread Type":"M52X2.0","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection","Side 2 DIN Pressure Series":"Heavy"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Bulkhead Elbow","Primary Material":"Steel","Material Grade":"11SMnPb30","Plating":"Zinc Nickel","Feature":"Bulkhead"} |
| Dimensions | {"Hex/Wrench":"50mm","Weight":"4.83 lb"} |
| Performance Specifications | {"Working Pressure":"4569 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"1,000 hrs no red rust per DIN ISO 9227","Burst Pressure":"18276 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker Hose Part Number":"WSV38SA3C","Parker TFD Part Number":"WSV38SCF"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | DIN Tube x DIN Tube Bulkhead, With Lock Nut |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x Flareless Bulkhead Tube 90° Elbow, With Lock Nut |
| Side 1 Connection Type | DIN Tube |
| Side 2 Connection Type | DIN Tube |
| Shape | 90° Elbow |
| Product Type | Fittings |
