Attributes
| Part Number | 9900-16 |
|---|---|
| Is Series Page | 0 |
Description

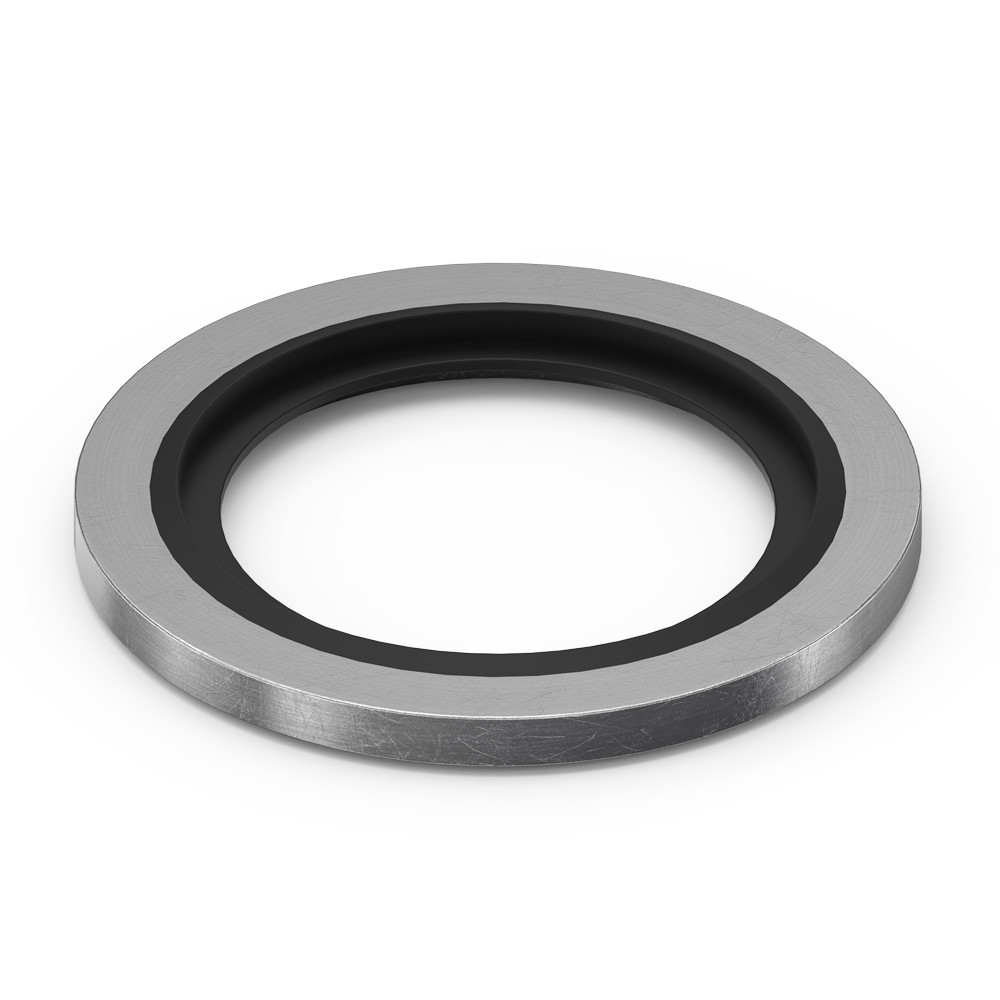

Steel/Nitrile, BSPP Bonded Seal Gasket for Dash Size -16 BSPP (Type D) Port
Specifications
| Specifications | {"Nominal OD":"1\"","Exact OD":"1.685\"","Exact ID":"1.193\"","Exact Width":"0.1\"","Color":"Black","Gasket Dash Size":"-16","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)","Temperature":"-40°F to 250°F","Seal Hardness":"85 Durometer"} |
|---|---|
| Application & Performance | {"Chemical Resistance":"Petroleum oils, mineral oils, fuels, diesel, gasoline, hydraulic fluids, aliphatic hydrocarbons, water (below 150°F), natural gas, air","Not Recommended For":"Phosphate ester fluids, glycol-based brake fluids, strong acids, ozone, weathering, ketones, esters, chlorinated hydrocarbons"} |
| Cross References | {"Aeroquip Part Number":"FF9895-16","Parker Hose Part Number":"D9DT-16","Parker TFD Part Number":"D9DT-16"} |
| Shape | Washer |
PDF Documents
No PDF documents.
