Attributes
| Part Number | 8900-14-VITON |
|---|---|
| Is Series Page | 0 |
Description

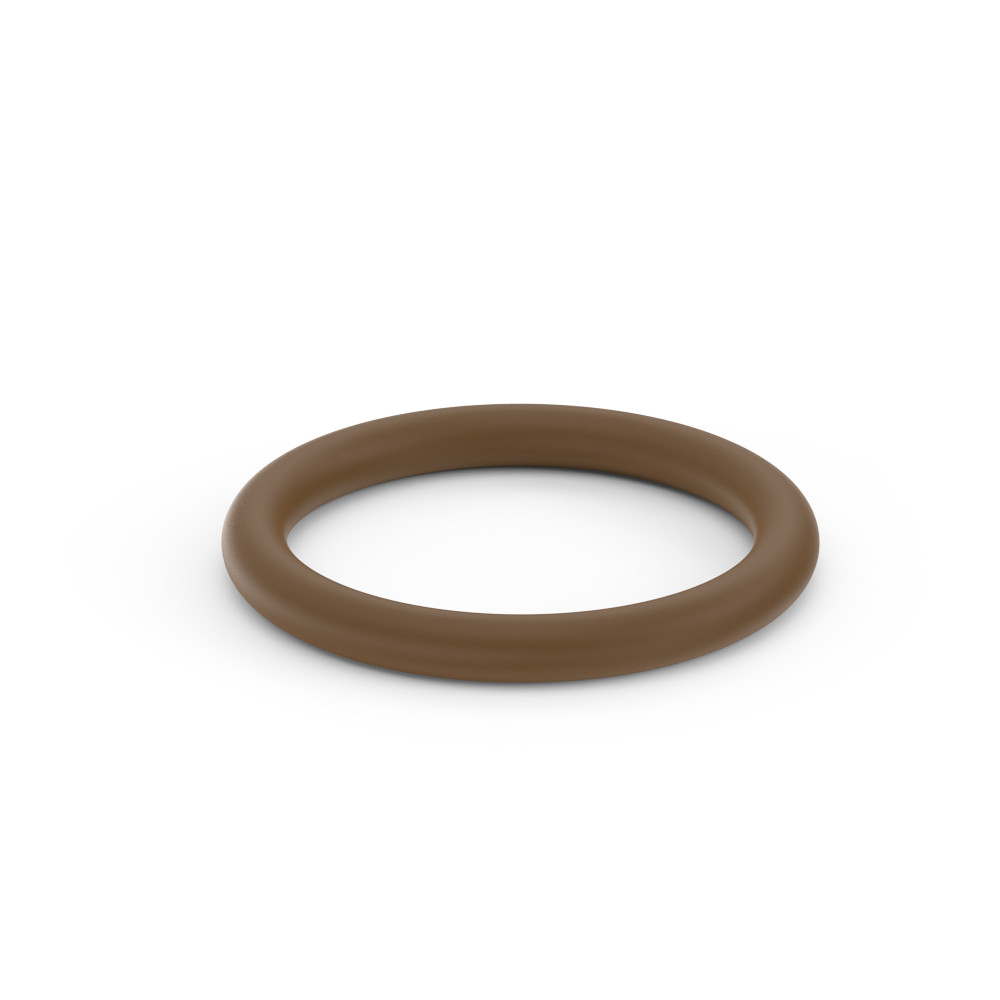

Fluorocarbon, ISO 6149 Metric Seal for 14mm Metric ORB Port
Specifications
| Specifications | {"Nominal OD":"14mm","Exact OD":"15.7mm","Exact ID":"11.3mm","Exact Width":"2.2mm","Color":"Brown","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)","Temperature":"-15°F to 400°F","Dash Size":"-M14","Seal Hardness":"90 Durometer"} |
|---|---|
| Application & Performance | {"Chemical Resistance":"Petroleum oils, mineral oils, synthetic lubricants, fuels, diesel, gasoline, hydraulic oils, phosphate ester fluids, silicone oils and greases, diester lubricants, aromatic hydrocarbons, many chlorinated hydrocarbons, mild acids","Not Recommended For":"Ketones, amines, low molecular weight esters and ethers, hot hydrofluoric acids, strong alkalis, steam, hot water, glycol-based brake fluids"} |
| Cross References | {"Parker TFD Part Number":"2-013 FKM"} |
| Shape | Washer |
