Attributes
| Part Number | 4003-42-VITON |
|---|---|
| Is Series Page | 0 |
Description

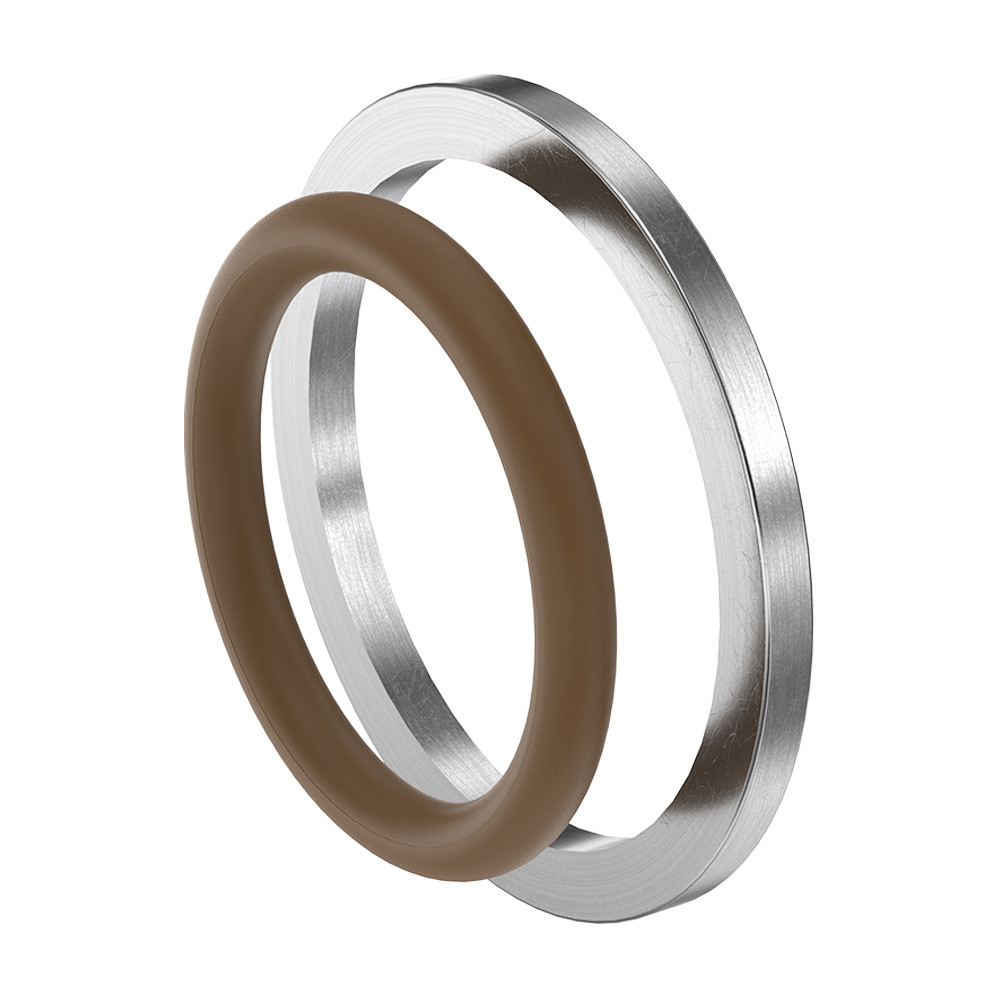

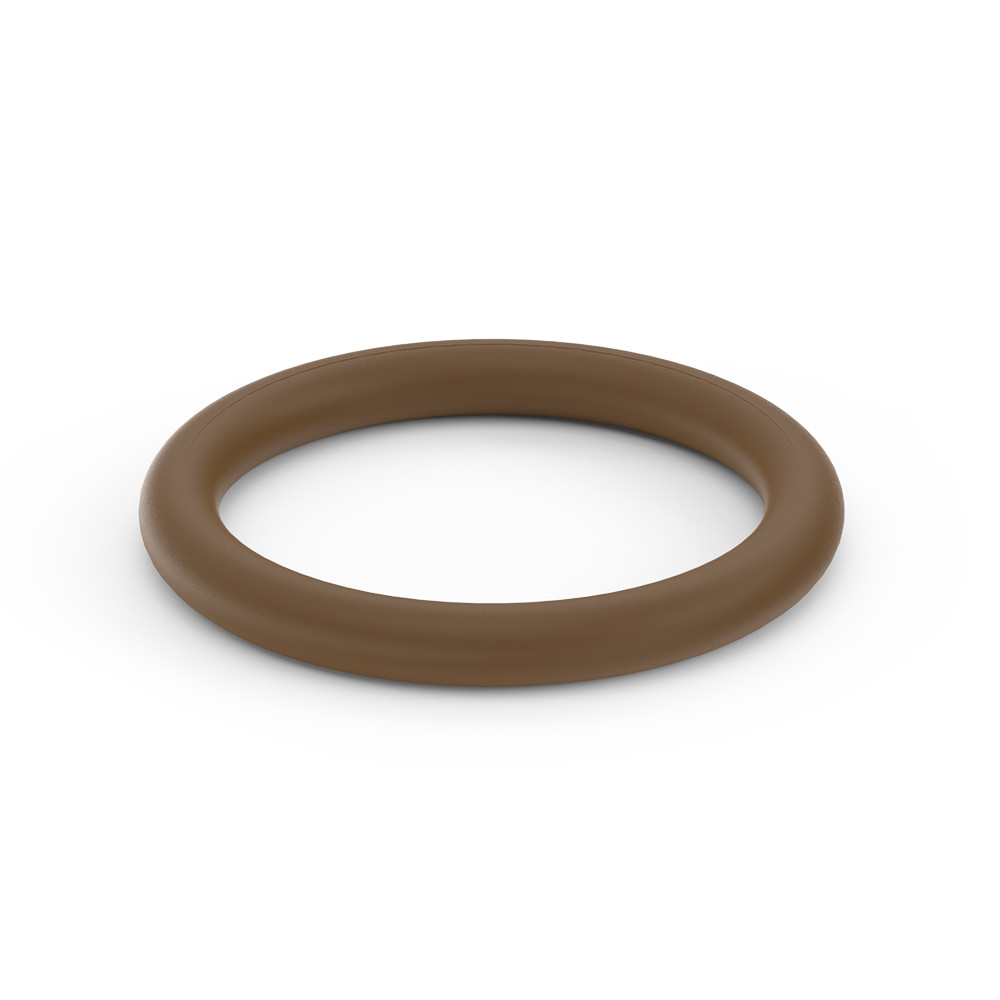

Fluorocarbon, Metric O-Ring Seal for 42mm Metric (Type G/H) Port
Specifications
| Specifications | {"Nominal OD":"45mm","Exact OD":"43mm","Exact ID":"37.77mm","Exact Width":"2.62mm","Color":"Brown","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)","Temperature":"-15°F to 400°F","Dash Size":"-M42","Seal Hardness":"90 Durometer"} |
|---|---|
| Application & Performance | {"Chemical Resistance":"Petroleum oils, mineral oils, synthetic lubricants, fuels, diesel, gasoline, hydraulic oils, phosphate ester fluids, silicone oils and greases, diester lubricants, aromatic hydrocarbons, many chlorinated hydrocarbons, mild acids","Not Recommended For":"Ketones, amines, low molecular weight esters and ethers, hot hydrofluoric acids, strong alkalis, steam, hot water, glycol-based brake fluids"} |
| Shape | O-Ring |
PDF Documents
No PDF documents.
