Attributes
| Part Number | 7003-04-02-SS |
|---|---|
| Is Series Page | 0 |
Description

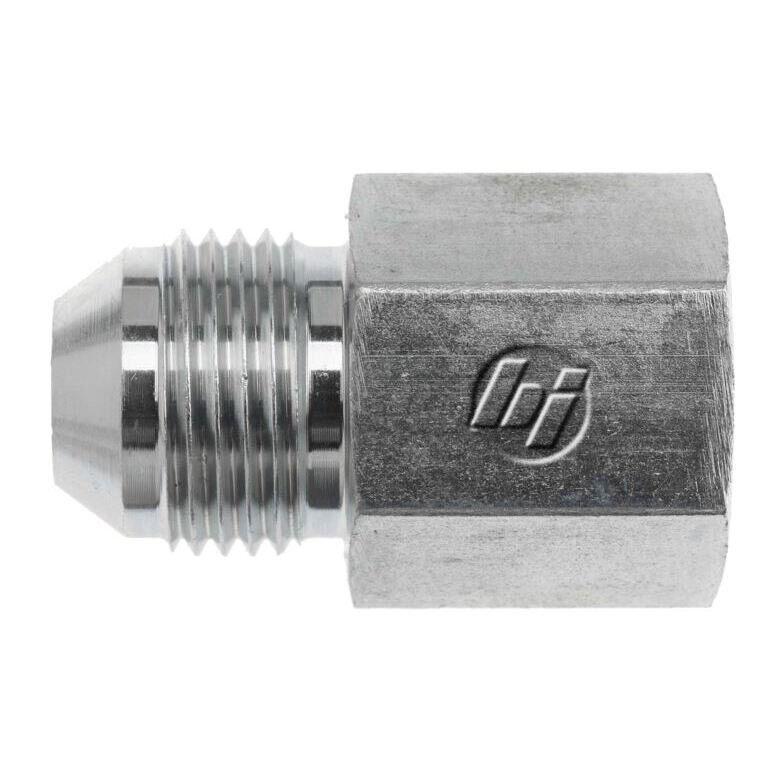

Stainless Steel, SAE J514 37° Flare Female BSPP Port Adapter, 1/4" Male JIC x 1/8-28 Female BSPP
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female BSPP","Side 2 Thread Type":"G - 1/8-28","Side 2 Standard":"ISO 1179","Side 2 Role":"Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Adapter","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"0.562","Weight":"0.05 lb"} |
| Performance Specifications | {"Working Pressure":"4500 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"18000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"4G4MXSS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Female BSPP |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 1179 Female BSPP Port |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Female BSPP |
| Shape | Straight |
| Product Type | Fittings |
