Description
BT-MJ
C2402

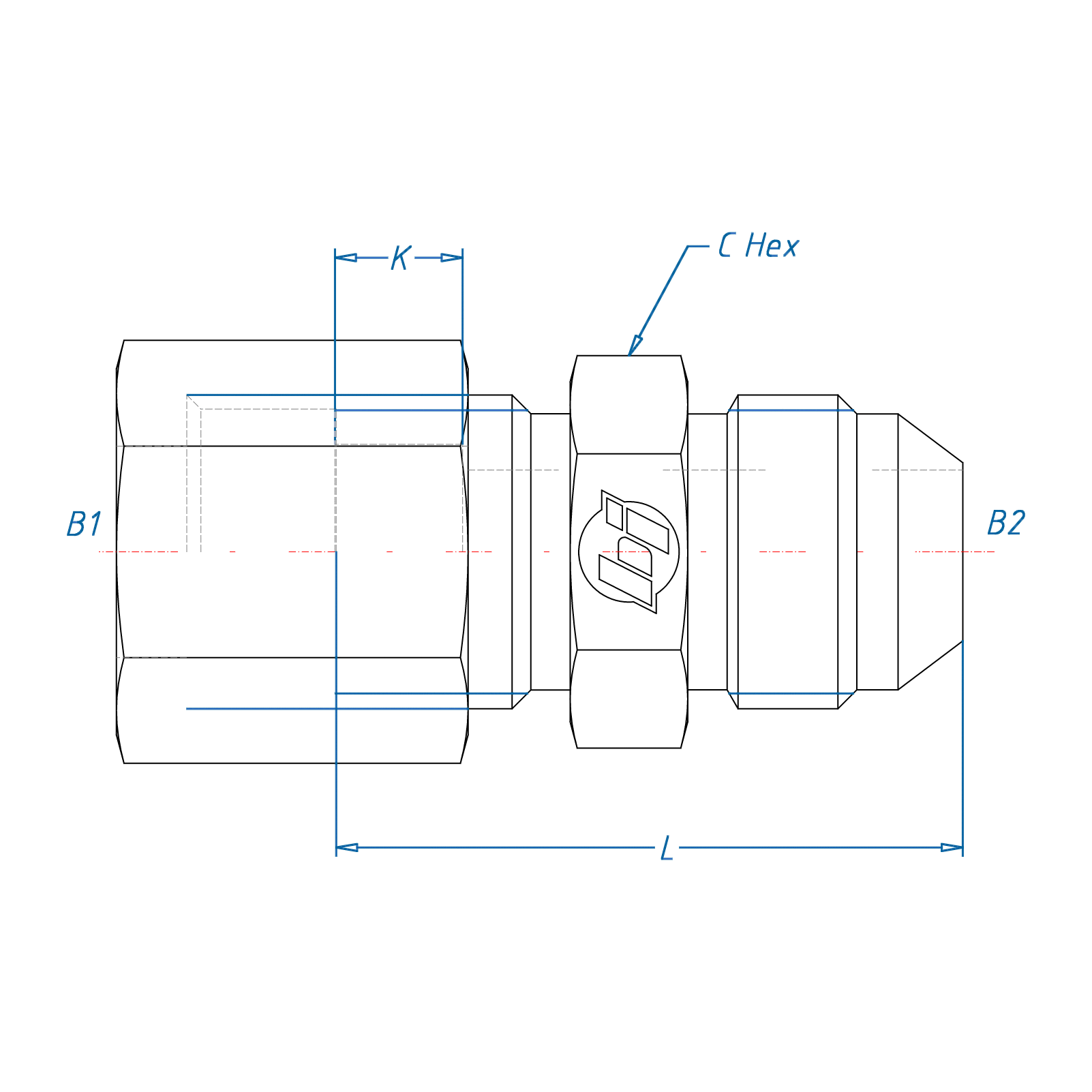

Flareless Bite TypeSpecifications
| Connections | JIC, Bite Type |
|---|---|
| Shape | Straight |
Available Variations
| SKU | Attribute | Price | Stock | Detailed Specs |
|---|---|---|---|---|
| C2402-04-04 | C2402-04-04 (04BT-04MJ Straight) | $35.34 | In Stock |
THREAD B1 TYPE: TUBE OD 1/4 THREAD B1 SIZE: 7/16-20 THREAD B1 DRILL MM: 0.203 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 7/16-20 THREAD B2 DRILL MM: 0.172 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 0.500 C HEX 1 MM: 0.234 OVERALL LENGTH L MM: 1.270 BODY MATERIAL: STEEL COMPRESSION RAW MATERIAL TYPE: STEEL PLATING: CR3 CALIFORNIA RESIDENTS: PROP-65 WARNING |
| C2402-04-04-SS | C2402-04-04-SS (04BT-04MJ Straig...) | $94.02 | In Stock |
THREAD B1 TYPE: TUBE OD 1/4 THREAD B1 SIZE: 7/16-20 THREAD B1 DRILL MM: 0.203 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 7/16-20 THREAD B2 DRILL MM: 0.172 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 0.500 C HEX 1 MM: 0.234 OVERALL LENGTH L MM: 1.23 BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL PLATING: CR3 CALIFORNIA RESIDENTS: PROP-65 WARNING |
| C2402-06-06 | C2402-06-06 (06BT-06MJ Straight) | $40.41 | In Stock |
THREAD B1 TYPE: TUBE OD 3/8 THREAD B1 SIZE: 9/16-18 THREAD B1 DRILL MM: 0.281 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 9/16-18 THREAD B2 DRILL MM: 0.281 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 0.625 C HEX 1 MM: 0.250 OVERALL LENGTH L MM: 1.28 BODY MATERIAL: STEEL COMPRESSION RAW MATERIAL TYPE: STEEL PLATING: CR3 CALIFORNIA RESIDENTS: PROP-65 WARNING |
| C2402-06-06-SS | C2402-06-06-SS (06BT-06MJ Straig...) | $100.32 | In Stock |
THREAD B1 TYPE: TUBE OD 3/8 THREAD B1 SIZE: 9/16-18 THREAD B1 DRILL MM: 0.281 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 9/16-18 THREAD B2 DRILL MM: 0.281 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 0.625 C HEX 1 MM: 0.250 OVERALL LENGTH L MM: 1.28 BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL PLATING: CR3 CALIFORNIA RESIDENTS: PROP-65 WARNING |
| C2402-08-08 | C2402-08-08 (08BT-08MJ Straight) | $61.92 | In Stock |
THREAD B1 TYPE: TUBE OD 1/2 THREAD B1 SIZE: 3/4-16 THREAD B1 DRILL MM: 0.422 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 3/4-16 THREAD B2 DRILL MM: 0.391 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 0.812 C HEX 1 MM: 0.305 OVERALL LENGTH L MM: 1.50 BODY MATERIAL: STEEL COMPRESSION RAW MATERIAL TYPE: STEEL PLATING: CR3 CALIFORNIA RESIDENTS: PROP-65 WARNING |
| C2402-08-08-SS | C2402-08-08-SS (08BT-08MJ Straig...) | $152.16 | In Stock |
THREAD B1 TYPE: TUBE OD 1/2 THREAD B1 SIZE: 3/4-16 THREAD B1 DRILL MM: 0.422 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 3/4-16 THREAD B2 DRILL MM: 0.391 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 0.812 C HEX 1 MM: 0.305 OVERALL LENGTH L MM: 1.50 BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL PLATING: CR3 CALIFORNIA RESIDENTS: PROP-65 WARNING |
| C2402-08-12-SS | C2402-08-12-SS (08BT-12MJ Straig...) | $293.42 | In Stock |
THREAD B1 TYPE: TUBE OD 1/2 THREAD B1 SIZE: 3/4-16 THREAD B1 DRILL MM: 0.422 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 1-1/16-12 THREAD B2 DRILL MM: 0.609 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 1.125 C HEX 1 MM: 0.305 OVERALL LENGTH L MM: 1.680 BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL PLATING: CR3 CALIFORNIA RESIDENTS: PROP-65 WARNING |
| C2402-10-10 | C2402-10-10 (10BT-10MJ Straight) | $92.00 | In Stock |
THREAD B1 TYPE: TUBE OD 5/8 THREAD B1 SIZE: 7/8-14 THREAD B1 DRILL MM: 0.539 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 7/8-14 THREAD B2 DRILL MM: 0.484 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 0.938 C HEX 1 MM: 0.310 OVERALL LENGTH L MM: 1.71 BODY MATERIAL: STEEL RAW MATERIAL TYPE: STEEL PLATING: CR3 MAXIMUM DYNAMIC PRESSURE PSI: 6000 CALIFORNIA RESIDENTS: PROP-65 WARNING |
| C2402-12-12 | C2402-12-12 (12BT-12MJ Straight) | $114.10 | In Stock |
THREAD B1 TYPE: TUBE OD 3/4 THREAD B1 SIZE: 1 1/16-12 THREAD B1 DRILL MM: 0.656 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 1 1/16-12 THREAD B2 DRILL MM: 0.609 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 1.125 C HEX 1 MM: 0.350 OVERALL LENGTH L MM: 1.98 BODY MATERIAL: STEEL COMPRESSION RAW MATERIAL TYPE: STEEL PLATING: CR3 CALIFORNIA RESIDENTS: PROP-65 WARNING |
| C2402-12-12-SS | C2402-12-12-SS (12BT-12MJ Straig...) | $246.96 | In Stock |
THREAD B1 TYPE: TUBE OD 3/4 THREAD B1 SIZE: 1 1/16-12 THREAD B1 DRILL MM: 0.656 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 1 1/16-12 THREAD B2 DRILL MM: 0.609 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 1.125 C HEX 1 MM: 0.350 OVERALL LENGTH L MM: 1.98 BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL PLATING: CR3 CALIFORNIA RESIDENTS: PROP-65 WARNING |
| C2402-16-16 | C2402-16-16 (16BT-16MJ Straight) | $171.00 | In Stock |
THREAD B1 TYPE: TUBE OD 1 THREAD B1 SIZE: 1 5/16-12 THREAD B1 DRILL MM: 0.875 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 1-5/16-12 THREAD B2 DRILL MM: 0.844 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 1.375 C HEX 1 MM: 0.415 OVERALL LENGTH L MM: 2.040 BODY MATERIAL: STEEL COMPRESSION RAW MATERIAL TYPE: STEEL PLATING: CR3 CALIFORNIA RESIDENTS: PROP-65 WARNING |
| C2402-16-16-SS | C2402-16-16-SS (16BT-16MJ Straig...) | $524.19 | In Stock |
THREAD B1 TYPE: TUBE OD 1 THREAD B1 SIZE: 1 5/16-12 THREAD B1 DRILL MM: 0.875 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 1-5/16-12 THREAD B2 DRILL MM: 0.844 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 1.375 C HEX 1 MM: 0.415 OVERALL LENGTH L MM: 1.98 BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL PLATING: CR3 CALIFORNIA RESIDENTS: PROP-65 WARNING |
| C2402-20-20 | C2402-20-20 (20BT-20MJ Straight) | $310.35 | In Stock |
THREAD B1 TYPE: TUBE OD 1 1/4 THREAD B1 SIZE: 1-5/8-12 THREAD B1 DRILL MM: 1.093 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 1-5/8-12 THREAD B2 DRILL MM: 1.078 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 1.688 C HEX 1 MM: 0.415 OVERALL LENGTH L MM: 2.110 BODY MATERIAL: STEEL COMPRESSION RAW MATERIAL TYPE: STEEL PLATING: CR3 CALIFORNIA RESIDENTS: PROP-65 WARNING |
| C2402-20-20-SS | C2402-20-20-SS (20BT-20MJ Straig...) | $913.80 | In Stock |
THREAD B1 TYPE: TUBE OD 1 1/4 THREAD B1 SIZE: 1 5/8-12 THREAD B1 DRILL MM: 1.093 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 1 5/8-12 THREAD B2 DRILL MM: 1.078 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 1.688 C HEX 1 MM: 0.415 OVERALL LENGTH L MM: 2.11 BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL PLATING: CR3 CALIFORNIA RESIDENTS: PROP-65 WARNING |
| C2402-24-24 | C2402-24-24 (24BT-24MJ Straight) | $501.84 | In Stock |
THREAD B1 TYPE: TUBE OD 1-1/2 THREAD B1 SIZE: 1-7/8-12 THREAD B1 DRILL MM: 1.344 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 1-7/8-12 THREAD B2 DRILL MM: 1.312 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 2.125 C HEX 1 MM: 0.485 OVERALL LENGTH L MM: 2.160 BODY MATERIAL: STEEL RAW MATERIAL TYPE: STEEL PLATING: CR3 CALIFORNIA RESIDENTS: PROP-65 WARNING |
| C2402-32-32 | C2402-32-32 (32BT-32MJ Straight) | $736.15 | In Stock |
THREAD B1 TYPE: TUBE OD 2 THREAD B1 SIZE: 2-1/2-12 THREAD B1 DRILL MM: 1.813 THREAD B2 TYPE: MALE JIC SAE 37 DEGREE FLARE THREAD B2 SIZE: 2-1/2-12 THREAD B2 DRILL MM: 1.781 THREAD B2 SPECIFICATION: SAE J514 BODY HEX MM: 2.625 C HEX 1 MM: 0.485 OVERALL LENGTH L MM: 2.760 BODY MATERIAL: STEEL RAW MATERIAL TYPE: STEEL PLATING: CR3 CALIFORNIA RESIDENTS: PROP-65 WARNING |
