Description

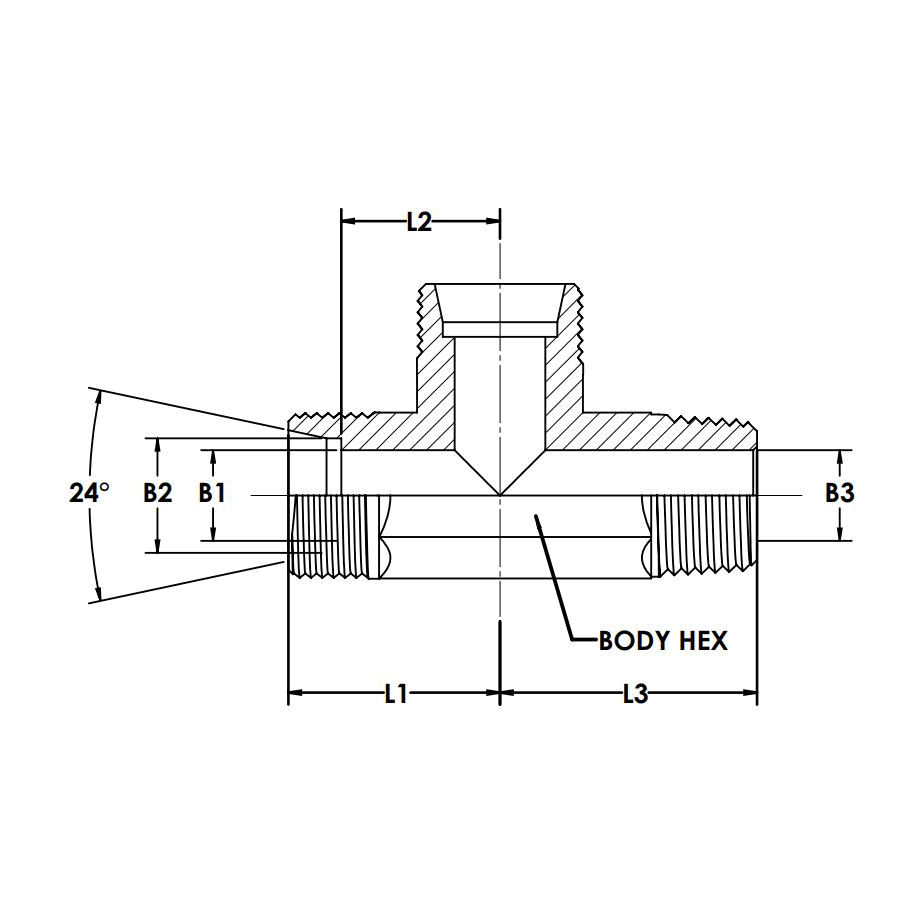

MBT-MMT-MBT TEE (BODY ONLY).
D8605-X
DIN Metric Tube Fittings
Available Variations
| SKU | Attribute | Price | Stock | Detailed Specs |
|---|---|---|---|---|
| D8605-E08-10-E08-SS-X | D8605-E08-10-E08-SS-X (E08MBT-10...) | $125.02 | In Stock |
CONNECTION 1 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 1 THREAD SIZE: M12X1.0 CONNECTION 1 TUBE SIZE: EXTRA LIGHT 08MM TUBE OD CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC TAPERED CONNECTION 2 THREAD SIZE: M10X1.0 CONNECTION 2 THREAD ID (MM): 6.0 CONNECTION 2 SPECIFICATION: DIN 158 CONNECTION 3 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 3 THREAD SIZE: M12X1.0 CONNECTION 3 TUBE SIZE: EXTRA LIGHT 08MM TUBE OD CONNECTION 3 SPECIFICATION: DIN 2353, ISO 8434-1 BODY HEX (MM): 12.0 CENTERLINE LENGTH M1 (MM): 17.0 CENTERLINE LENGTH M2 (MM): 20.0 CENTERLINE LENGHT L1 (MM): 11.5 CENTERLINE LENGTH L2 (MM): 8.0 CENTERLINE LENGTH L3 (MM): 17.0 CENTERLINE LENGTH L4 (MM): 11.5 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.053 MAXIMUM DYNAMIC PRESSURE (BAR): 100 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 0.623 |
| D8605-L10-14-L10-SS-X | D8605-L10-14-L10-SS-X (L10MBT-14...) | $130.36 | In Stock |
CONNECTION 1 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 1 THREAD SIZE: M16X1.5 CONNECTION 1 TUBE SIZE: LIGHT 10MM TUBE OD CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC TAPERED CONNECTION 2 THREAD SIZE: M14X1.5 CONNECTION 2 THREAD ID (MM): 7.0 CONNECTION 2 SPECIFICATION: DIN 158 CONNECTION 3 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 3 THREAD SIZE: M16X1.5 CONNECTION 3 TUBE SIZE: LIGHT 10MM TUBE OD CONNECTION 3 SPECIFICATION: DIN 2353, ISO 8434-1 BODY HEX (MM): 14.0 CENTERLINE LENGTH M1 (MM): 22.0 CENTERLINE LENGTH M2 (MM): 27.0 CENTERLINE LENGHT L1 (MM): 15.0 CENTERLINE LENGTH L2 (MM): 12.0 CENTERLINE LENGTH L3 (MM): 22.0 CENTERLINE LENGTH L4 (MM): 15.0 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.119 MAXIMUM DYNAMIC PRESSURE (BAR): 315 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 1.214 |
| D8605-L12-16-L12-SS-X | D8605-L12-16-L12-SS-X (L12MBT-16...) | $152.72 | In Stock |
CONNECTION 1 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 1 THREAD SIZE: M18X1.5 CONNECTION 1 TUBE SIZE: LIGHT 12MM TUBE OD CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC TAPERED CONNECTION 2 THREAD SIZE: M16X1.5 CONNECTION 2 THREAD ID (MM): 9.0 CONNECTION 2 SPECIFICATION: DIN 158 CONNECTION 3 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 3 THREAD SIZE: M18X1.5 CONNECTION 3 TUBE SIZE: LIGHT 12MM TUBE OD CONNECTION 3 SPECIFICATION: DIN 2353, ISO 8434-1 BODY HEX (MM): 17.0 CENTERLINE LENGTH M1 (MM): 24.0 CENTERLINE LENGTH M2 (MM): 28.0 CENTERLINE LENGHT L1 (MM): 17.0 CENTERLINE LENGTH L2 (MM): 12.0 CENTERLINE LENGTH L3 (MM): 24.0 CENTERLINE LENGTH L4 (MM): 17.0 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.152 MAXIMUM DYNAMIC PRESSURE (BAR): 315 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 1.753 |
| D8605-S14-20-S14-SS-X | D8605-S14-20-S14-SS-X (S14MBT-20...) | $211.70 | In Stock |
CONNECTION 1 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 1 THREAD SIZE: M22X1.5 CONNECTION 1 TUBE SIZE: HEAVY 14MM TUBE OD CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC TAPERED CONNECTION 2 THREAD SIZE: M20X1.5 CONNECTION 2 THREAD ID (MM): 10.0 CONNECTION 2 SPECIFICATION: DIN 158 CONNECTION 3 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 3 THREAD SIZE: M22X1.5 CONNECTION 3 TUBE SIZE: HEAVY 14MM TUBE OD CONNECTION 3 SPECIFICATION: DIN 2353, ISO 8434-1 BODY HEX (MM): 19.0 CENTERLINE LENGTH M1 (MM): 30.0 CENTERLINE LENGTH M2 (MM): 32.0 CENTERLINE LENGHT L1 (MM): 22.0 CENTERLINE LENGTH L2 (MM): 14.0 CENTERLINE LENGTH L3 (MM): 30.0 CENTERLINE LENGTH L4 (MM): 22.0 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.315 MAXIMUM DYNAMIC PRESSURE (BAR): 400 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 2.840 |
