Description

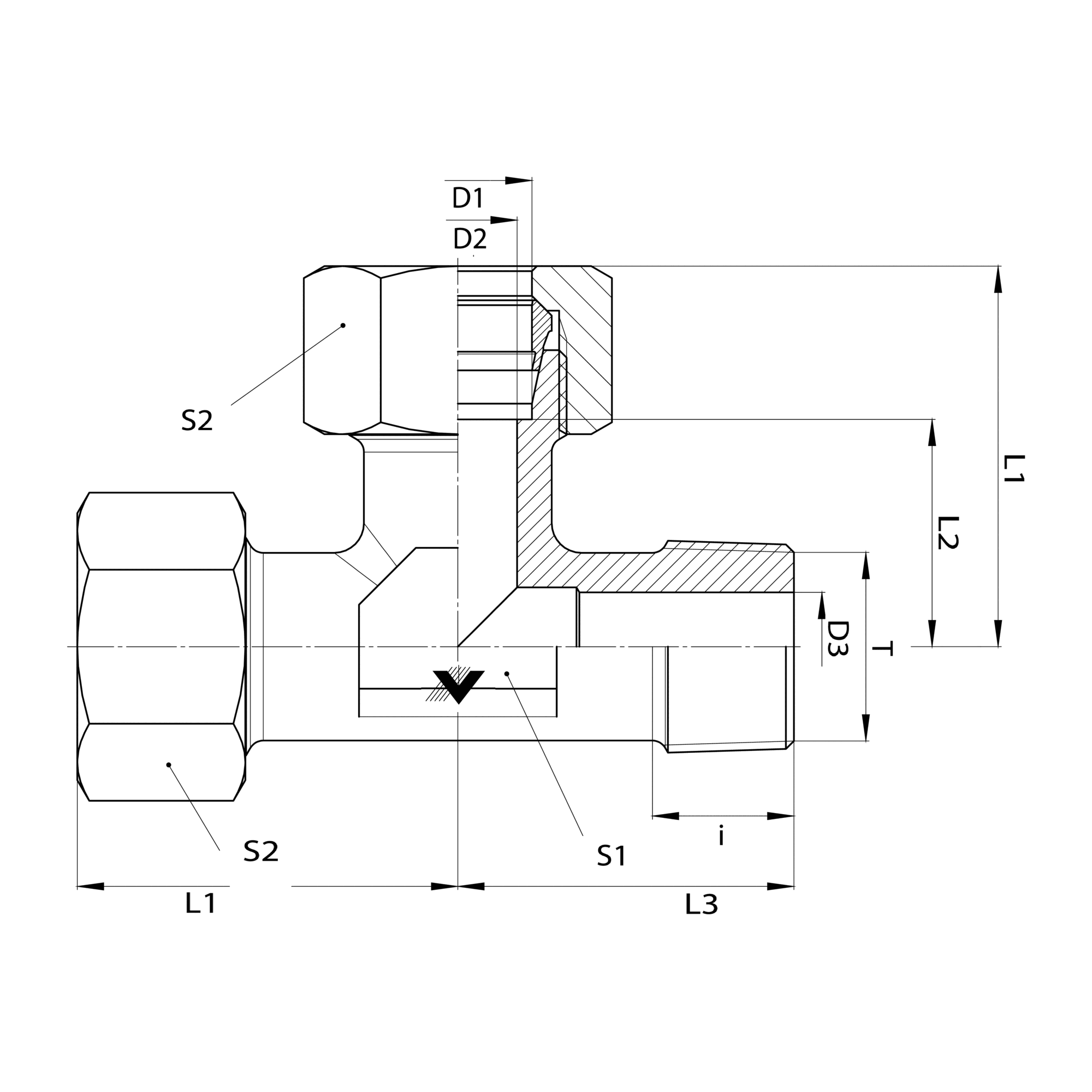

MBT-MMT-MBT TEE
D8605
DIN Metric Tube Fittings
Available Variations
| SKU | Attribute | Price | Stock | Detailed Specs |
|---|---|---|---|---|
| D8605-E06-10-E06 | D8605-E06-10-E06 (E06MBT-10MMT-E...) | $89.06 | In Stock |
CONNECTION 1 TYPE: DIN METRIC TUBE COMPRESSION CONNECTION 1 TUBE SIZE: EXTRA LIGHT 06MM TUBE OD CONNECTION 1 THREAD SIZE: M10X1.0 CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC TAPERED CONNECTION 2 THREAD SIZD: M10X1.0 CONNECTION 2 THREAD ID (MM): 4.5 CONNECTION 2 SPECIFICATION: DIN 158 CONNECTION 3 TYPE: DIN METRIC TUBE COMPRESSION CONNECTION 3 TUBE SIZE: EXTRA LIGHT 06MM TUBE OD CONNECTION 3 THREAD SIZE: M10X1.0 CONNECTION 3 SPECIFICATION: DIN 2353, ISO 8434-1 BODY HEX (MM): 9.0 HEX C 1 (MM): 12.0 HEX C 2 (MM): 12.0 CENTERLINE LENGTH M1 (MM): 21.0 CENTERLINE LENGTH M2 (MM): 17.0 CENTERLINE LENGHT M3 (MM): 15.0 CENTERLINE LENGTH L1 (MM): 9.5 CENTERLINE LENGTH L2 (MM): 8.0 CENTERLINE LENGTH L3 (MM): 21.0 SHAPE: TEE BODY MATERIAL: STEEL RAW MATERIAL TYPE: STEEL FORGING PLATING: ZINC NICKEL WEIGHT (LBS): 0.064 MAXIMUM DYNAMIC PRESSURE (BAR): 100 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 0.751 |
| D8605-E08-10-E08 | D8605-E08-10-E08 (E08MBT-10MMT-E...) | $47.20 | In Stock |
CONNECTION 1 TYPE: DIN METRIC TUBE COMPRESSION CONNECTION 1 TUBE SIZE: EXTRA LIGHT 08MM TUBE OD CONNECTION 1 THREAD SIZE: M12X1.0 CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC TAPERED CONNECTION 2 THREAD SIZD: M10X1.0 CONNECTION 2 THREAD ID (MM): 6.0 CONNECTION 2 SPECIFICATION: DIN 158 CONNECTION 3 TYPE: DIN METRIC TUBE COMPRESSION CONNECTION 3 TUBE SIZE: EXTRA LIGHT 08MM TUBE OD CONNECTION 3 THREAD SIZE: M12X1.0 CONNECTION 3 SPECIFICATION: DIN 2353, ISO 8434-1 BODY HEX (MM): 12.0 HEX C 1 (MM): 14.0 HEX C 2 (MM): 14.0 CENTERLINE LENGTH M1 (MM): 23.0 CENTERLINE LENGTH M2 (MM): 20.0 CENTERLINE LENGHT M3 (MM): 17.0 CENTERLINE LENGTH L1 (MM): 11.5 CENTERLINE LENGTH L2 (MM): 8.0 CENTERLINE LENGTH L3 (MM): 23.0 SHAPE: TEE BODY MATERIAL: STEEL RAW MATERIAL TYPE: STEEL FORGING PLATING: ZINC NICKEL WEIGHT (LBS): 0.089 MAXIMUM DYNAMIC PRESSURE (BAR): 100 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 1.102 |
| D8605-E08-10-E08-SS | D8605-E08-10-E08-SS (E08MBT-10MM...) | $139.28 | In Stock |
CONNECTION 1 TYPE: DIN METRIC TUBE COMPRESSION CONNECTION 1 TUBE SIZE: EXTRA LIGHT 08MM TUBE OD CONNECTION 1 THREAD SIZE: M12X1.0 CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC TAPERED CONNECTION 2 THREAD SIZD: M10X1.0 CONNECTION 2 THREAD ID (MM): 6.0 CONNECTION 2 SPECIFICATION: DIN 158 CONNECTION 3 TYPE: DIN METRIC TUBE COMPRESSION CONNECTION 3 TUBE SIZE: EXTRA LIGHT 08MM TUBE OD CONNECTION 3 THREAD SIZE: M12X1.0 CONNECTION 3 SPECIFICATION: DIN 2353, ISO 8434-1 BODY HEX (MM): 12.0 HEX C 1 (MM): 14.0 HEX C 2 (MM): 14.0 CENTERLINE LENGTH M1 (MM): 23.0 CENTERLINE LENGTH M2 (MM): 20.0 CENTERLINE LENGHT M3 (MM): 17.0 CENTERLINE LENGTH L1 (MM): 11.5 CENTERLINE LENGTH L2 (MM): 8.0 CENTERLINE LENGTH L3 (MM): 23.0 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.089 MAXIMUM DYNAMIC PRESSURE (BAR): 100 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 1.102 |
| D8605-L10-14-L10-SS | D8605-L10-14-L10-SS (L10MBT-14MM...) | $165.83 | In Stock |
CONNECTION 1 TYPE: DIN METRIC TUBE COMPRESSION CONNECTION 1 TUBE SIZE: LIGHT 10MM TUBE OD CONNECTION 1 THREAD SIZE: M16X1.5 CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC TAPERED CONNECTION 2 THREAD SIZD: M14X1.5 CONNECTION 2 THREAD ID (MM): 7.0 CONNECTION 2 SPECIFICATION: DIN 158 CONNECTION 3 TYPE: DIN METRIC TUBE COMPRESSION CONNECTION 3 TUBE SIZE: LIGHT 10MM TUBE OD CONNECTION 3 THREAD SIZE: M16X1.5 CONNECTION 3 SPECIFICATION: DIN 2353, ISO 8434-1 BODY HEX (MM): 14.0 HEX C 1 (MM): 19.0 HEX C 2 (MM): 19.0 CENTERLINE LENGTH M1 (MM): 30.0 CENTERLINE LENGTH M2 (MM): 27.0 CENTERLINE LENGHT M3 (MM): 22.0 CENTERLINE LENGTH L1 (MM): 15.0 CENTERLINE LENGTH L2 (MM): 12.0 CENTERLINE LENGTH L3 (MM): 30.0 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.221 MAXIMUM DYNAMIC PRESSURE (BAR): 315 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 2.611 |
| D8605-L12-16-L12-SS | D8605-L12-16-L12-SS (L12MBT-16MM...) | $193.64 | In Stock |
CONNECTION 1 TYPE: DIN METRIC TUBE COMPRESSION CONNECTION 1 TUBE SIZE: LIGHT 12MM TUBE OD CONNECTION 1 THREAD SIZE: M18X1.5 CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC TAPERED CONNECTION 2 THREAD SIZD: M16X1.5 CONNECTION 2 THREAD ID (MM): 9.0 CONNECTION 2 SPECIFICATION: DIN 158 CONNECTION 3 TYPE: DIN METRIC TUBE COMPRESSION CONNECTION 3 TUBE SIZE: LIGHT 12MM TUBE OD CONNECTION 3 THREAD SIZE: M18X1.5 CONNECTION 3 SPECIFICATION: DIN 2353, ISO 8434-1 BODY HEX (MM): 17.0 HEX C 1 (MM): 22.0 HEX C 2 (MM): 22.0 CENTERLINE LENGTH M1 (MM): 32.0 CENTERLINE LENGTH M2 (MM): 28.0 CENTERLINE LENGHT M3 (MM): 24.0 CENTERLINE LENGTH L1 (MM): 17.0 CENTERLINE LENGTH L2 (MM): 12.0 CENTERLINE LENGTH L3 (MM): 32.0 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.288 MAXIMUM DYNAMIC PRESSURE (BAR): 315 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 3.464 |
| D8605-S14-20-S14-SS | D8605-S14-20-S14-SS (S14MBT-20MM...) | $269.78 | In Stock |
CONNECTION 1 TYPE: DIN METRIC TUBE COMPRESSION CONNECTION 1 TUBE SIZE: HEAVY 14MM TUBE OD CONNECTION 1 THREAD SIZE: M22X1.5 CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC TAPERED CONNECTION 2 THREAD SIZD: M20X1.5 CONNECTION 2 THREAD ID (MM): 10.0 CONNECTION 2 SPECIFICATION: DIN 158 CONNECTION 3 TYPE: DIN METRIC TUBE COMPRESSION CONNECTION 3 TUBE SIZE: HEAVY 14MM TUBE OD CONNECTION 3 THREAD SIZE: M22X1.5 CONNECTION 3 SPECIFICATION: DIN 2353, ISO 8434-1 BODY HEX (MM): 19.0 HEX C 1 (MM): 27.0 HEX C 2 (MM): 27.0 CENTERLINE LENGTH M1 (MM): 40.0 CENTERLINE LENGTH M2 (MM): 32.0 CENTERLINE LENGHT M3 (MM): 30.0 CENTERLINE LENGTH L1 (MM): 22.0 CENTERLINE LENGTH L2 (MM): 14.0 CENTERLINE LENGTH L3 (MM): 40.0 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.585 MAXIMUM DYNAMIC PRESSURE (BAR): 400 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 6.347 |
