Description

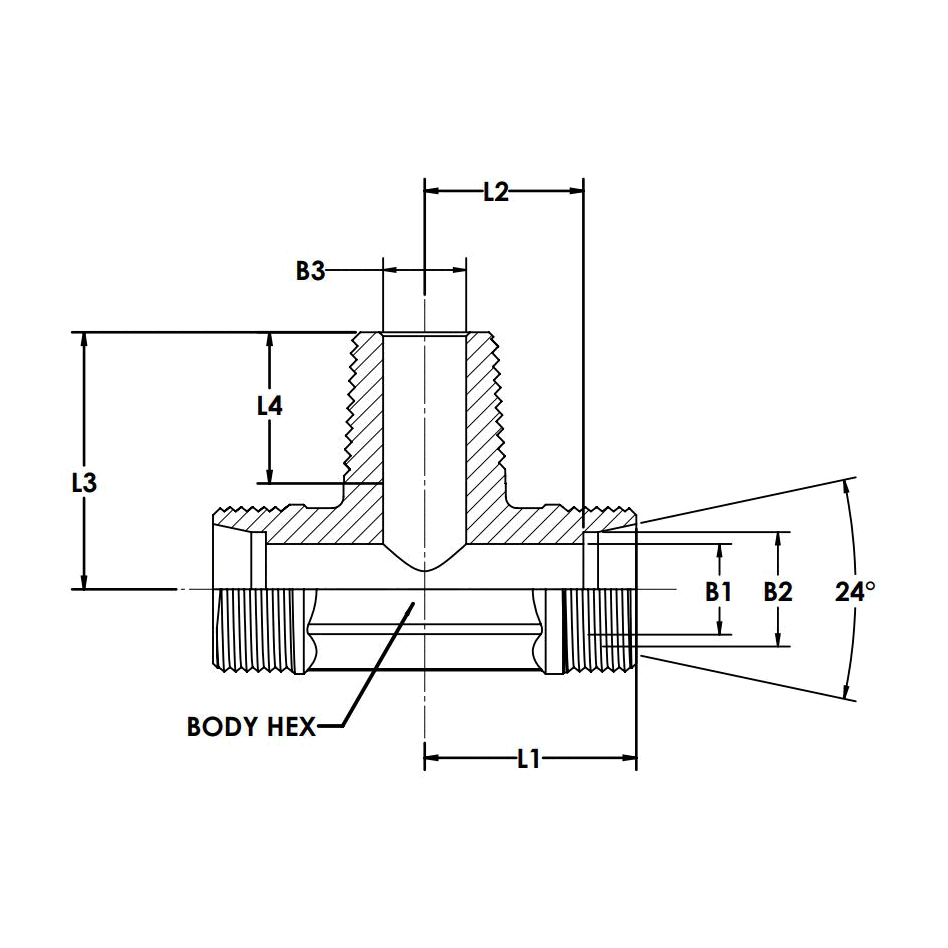

MBT-MBT-MMT TEE (BODY ONLY).
D8601-X
DIN Metric Tube Fittings
Available Variations
| SKU | Attribute | Price | Stock | Detailed Specs |
|---|---|---|---|---|
| D8601-E08-E08-10-SS-X | D8601-E08-E08-10-SS-X (E08MBT-E0...) | $130.23 | In Stock |
CONNECTION 1 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 1 THREAD SIZE: M12X1.0 CONNECTION 1 TUBE SIZE: EXTRA LIGHT 08MM TUBE OD CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 2 THREAD SIZE: M12X1.0 CONNECTION 2 TUBE SIZE: EXTRA LIGHT 08MM TUBE OD CONNECTION 2 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 3 TYPE: MALE METRIC TAPERED CONNECTION 3 THREAD SIZE: M10X1.0 CONNECTION 3 THREAD ID (MM): 6.0 CONNECTION 3 SPECIFICATION: DIN 158 BODY HEX (MM): 12.0 CENTERLINE LENGTH M1 (MM): 17.0 CENTERLINE LENGTH M2 (MM): 11.5 CENTERLINE LENGHT L1 (MM): 20.0 CENTERLINE LENGTH L2 (MM): 11.0 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.051 MAXIMUM DYNAMIC PRESSURE (BAR): 100 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 0.647 |
| D8601-L06-L06-10-SS-X | D8601-L06-L06-10-SS-X (L06MBT-L0...) | $114.62 | In Stock |
CONNECTION 1 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 1 THREAD SIZE: M12X1.5 CONNECTION 1 TUBE SIZE: LIGHT 06MM TUBE OD CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 2 THREAD SIZE: M12X1.5 CONNECTION 2 TUBE SIZE: LIGHT 06MM TUBE OD CONNECTION 2 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 3 TYPE: MALE METRIC TAPERED CONNECTION 3 THREAD SIZE: M10X1.0 CONNECTION 3 THREAD ID (MM): 4.0 CONNECTION 3 SPECIFICATION: DIN 158 BODY HEX (MM): 12.0 CENTERLINE LENGTH M1 (MM): 19.0 CENTERLINE LENGTH M2 (MM): 12.0 CENTERLINE LENGHT L1 (MM): 20.0 CENTERLINE LENGTH L2 (MM): 11.0 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.073 MAXIMUM DYNAMIC PRESSURE (BAR): 315 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 0.724 |
| D8601-L08-L08-12-SS-X | D8601-L08-L08-12-SS-X (L08MBT-L0...) | $119.44 | In Stock |
CONNECTION 1 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 1 THREAD SIZE: M14X1.5 CONNECTION 1 TUBE SIZE: LIGHT 08MM TUBE OD CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 2 THREAD SIZE: M14X1.5 CONNECTION 2 TUBE SIZE: LIGHT 08MM TUBE OD CONNECTION 2 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 3 TYPE: MALE METRIC TAPERED CONNECTION 3 THREAD SIZE: M12X1.5 CONNECTION 3 THREAD ID (MM): 6.0 CONNECTION 3 SPECIFICATION: DIN 158 BODY HEX (MM): 12.0 CENTERLINE LENGTH M1 (MM): 21.0 CENTERLINE LENGTH M2 (MM): 14.0 CENTERLINE LENGHT L1 (MM): 26.0 CENTERLINE LENGTH L2 (MM): 13.9 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.090 MAXIMUM DYNAMIC PRESSURE (BAR): 315 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 0.984 |
| D8601-L10-L10-14-SS-X | D8601-L10-L10-14-SS-X (L10MBT-L1...) | $129.00 | In Stock |
CONNECTION 1 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 1 THREAD SIZE: M16X1.5 CONNECTION 1 TUBE SIZE: LIGHT 10MM TUBE OD CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 2 THREAD SIZE: M16X1.5 CONNECTION 2 TUBE SIZE: LIGHT 10MM TUBE OD CONNECTION 2 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 3 TYPE: MALE METRIC TAPERED CONNECTION 3 THREAD SIZE: M14X1.5 CONNECTION 3 THREAD ID (MM): 7.0 CONNECTION 3 SPECIFICATION: DIN 158 BODY HEX (MM): 14.0 CENTERLINE LENGTH M1 (MM): 22.0 CENTERLINE LENGTH M2 (MM): 15.0 CENTERLINE LENGHT L1 (MM): 27.0 CENTERLINE LENGTH L2 (MM): 12.5 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.119 MAXIMUM DYNAMIC PRESSURE (BAR): 315 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 1.278 |
| D8601-L12-L12-16-SS-X | D8601-L12-L12-16-SS-X (L12MBT-L1...) | $152.72 | In Stock |
CONNECTION 1 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 1 THREAD SIZE: M18X1.5 CONNECTION 1 TUBE SIZE: LIGHT 12MM TUBE OD CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 2 THREAD SIZE: M18X1.5 CONNECTION 2 TUBE SIZE: LIGHT 12MM TUBE OD CONNECTION 2 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 3 TYPE: MALE METRIC TAPERED CONNECTION 3 THREAD SIZE: M16X1.5 CONNECTION 3 THREAD ID (MM): 9.0 CONNECTION 3 SPECIFICATION: DIN 158 BODY HEX (MM): 17.0 CENTERLINE LENGTH M1 (MM): 24.0 CENTERLINE LENGTH M2 (MM): 17.0 CENTERLINE LENGHT L1 (MM): 28.0 CENTERLINE LENGTH L2 (MM): 12.0 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.152 MAXIMUM DYNAMIC PRESSURE (BAR): 315 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 1.818 |
| D8601-L15-L15-18-SS-X | D8601-L15-L15-18-SS-X (L15MBT-L1...) | $210.88 | In Stock |
CONNECTION 1 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 1 THREAD SIZE: M22X1.5 CONNECTION 1 TUBE SIZE: LIGHT 15MM TUBE OD CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 2 THREAD SIZE: M22X1.5 CONNECTION 2 TUBE SIZE: LIGHT 15MM TUBE OD CONNECTION 2 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 3 TYPE: MALE METRIC TAPERED CONNECTION 3 THREAD SIZE: M18X1.5 CONNECTION 3 THREAD ID (MM): 11.0 CONNECTION 3 SPECIFICATION: DIN 158 BODY HEX (MM): 19.0 CENTERLINE LENGTH M1 (MM): 28.0 CENTERLINE LENGTH M2 (MM): 21.0 CENTERLINE LENGHT L1 (MM): 32.0 CENTERLINE LENGTH L2 (MM): 16.0 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.251 MAXIMUM DYNAMIC PRESSURE (BAR): 315 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 2.695 |
| D8601-L18-L18-22-SS-X | D8601-L18-L18-22-SS-X (L18MBT-L1...) | $336.81 | In Stock |
CONNECTION 1 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 1 THREAD SIZE: M26X1.5 CONNECTION 1 TUBE SIZE: LIGHT 18MM TUBE OD CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 2 THREAD SIZE: M26X1.5 CONNECTION 2 TUBE SIZE: LIGHT 18MM TUBE OD CONNECTION 2 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 3 TYPE: MALE METRIC TAPERED CONNECTION 3 THREAD SIZE: M22X1.5 CONNECTION 3 THREAD ID (MM): 14.0 CONNECTION 3 SPECIFICATION: DIN 158 BODY HEX (MM): 24.0 CENTERLINE LENGTH M1 (MM): 31.0 CENTERLINE LENGTH M2 (MM): 23.5 CENTERLINE LENGHT L1 (MM): 36.0 CENTERLINE LENGTH L2 (MM): 20.5 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.401 MAXIMUM DYNAMIC PRESSURE (BAR): 315 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 4.359 |
| D8601-S06-S06-12-SS-X | D8601-S06-S06-12-SS-X (S06MBT-S0...) | $118.12 | In Stock |
CONNECTION 1 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 1 THREAD SIZE: M14X1.5 CONNECTION 1 TUBE SIZE: HEAVY 06MM TUBE OD CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 2 THREAD SIZE: M14X1.5 CONNECTION 2 TUBE SIZE: HEAVY 06MM TUBE OD CONNECTION 2 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 3 TYPE: MALE METRIC TAPERED CONNECTION 3 THREAD SIZE: M12X1.5 CONNECTION 3 THREAD ID (MM): 4.0 CONNECTION 3 SPECIFICATION: DIN 158 BODY HEX (MM): 12.0 CENTERLINE LENGTH M1 (MM): 23.0 CENTERLINE LENGTH M2 (MM): 16.0 CENTERLINE LENGHT L1 (MM): 26.0 CENTERLINE LENGTH L2 (MM): 13.9 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.121 MAXIMUM DYNAMIC PRESSURE (BAR): 400 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 1.078 |
| D8601-S08-S08-14-SS-X | D8601-S08-S08-14-SS-X (S08MBT-S0...) | $129.34 | In Stock |
CONNECTION 1 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 1 THREAD SIZE: M16X1.5 CONNECTION 1 TUBE SIZE: HEAVY 08MM TUBE OD CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 2 THREAD SIZE: M16X1.5 CONNECTION 2 TUBE SIZE: HEAVY 08MM TUBE OD CONNECTION 2 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 3 TYPE: MALE METRIC TAPERED CONNECTION 3 THREAD SIZE: M14X1.5 CONNECTION 3 THREAD ID (MM): 5.0 CONNECTION 3 SPECIFICATION: DIN 158 BODY HEX (MM): 14.0 CENTERLINE LENGTH M1 (MM): 24.0 CENTERLINE LENGTH M2 (MM): 17.0 CENTERLINE LENGHT L1 (MM): 27.0 CENTERLINE LENGTH L2 (MM): 12.5 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.163 MAXIMUM DYNAMIC PRESSURE (BAR): 400 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 1.394 |
| D8601-S10-S10-16-SS-X | D8601-S10-S10-16-SS-X (S10MBT-S1...) | $151.62 | In Stock |
CONNECTION 1 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 1 THREAD SIZE: M18X1.5 CONNECTION 1 TUBE SIZE: HEAVY 10MM TUBE OD CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 2 THREAD SIZE: M18X1.5 CONNECTION 2 TUBE SIZE: HEAVY 10MM TUBE OD CONNECTION 2 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 3 TYPE: MALE METRIC TAPERED CONNECTION 3 THREAD SIZE: M16X1.5 CONNECTION 3 THREAD ID (MM): 7.0 CONNECTION 3 SPECIFICATION: DIN 158 BODY HEX (MM): 17.0 CENTERLINE LENGTH M1 (MM): 25.0 CENTERLINE LENGTH M2 (MM): 17.5 CENTERLINE LENGHT L1 (MM): 28.0 CENTERLINE LENGTH L2 (MM): 12.0 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.203 MAXIMUM DYNAMIC PRESSURE (BAR): 400 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 1.893 |
| D8601-S12-S12-18-SS-X | D8601-S12-S12-18-SS-X (S12MBT-S1...) | $171.89 | In Stock |
CONNECTION 1 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 1 THREAD SIZE: M20X1.5 CONNECTION 1 TUBE SIZE: HEAVY 12MM TUBE OD CONNECTION 1 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 2 TYPE: MALE METRIC 24 DEGREE DIN SEAT CONNECTION 2 THREAD SIZE: M20X1.5 CONNECTION 2 TUBE SIZE: HEAVY 12MM TUBE OD CONNECTION 2 SPECIFICATION: DIN 2353, ISO 8434-1 CONNECTION 3 TYPE: MALE METRIC TAPERED CONNECTION 3 THREAD SIZE: M18X1.5 CONNECTION 3 THREAD ID (MM): 8.0 CONNECTION 3 SPECIFICATION: DIN 158 BODY HEX (MM): 17.0 CENTERLINE LENGTH M1 (MM): 29.0 CENTERLINE LENGTH M2 (MM): 21.5 CENTERLINE LENGHT L1 (MM): 28.0 CENTERLINE LENGTH L2 (MM): 11.0 SHAPE: TEE BODY MATERIAL: STAINLESS STEEL RAW MATERIAL TYPE: STAINLESS STEEL FORGING WEIGHT (LBS): 0.269 MAXIMUM DYNAMIC PRESSURE (BAR): 400 CALIFORNIA RESIDENTS: PROP-65 WARNING CUBIC INCH SPACE (L X W X H): 2.196 |
