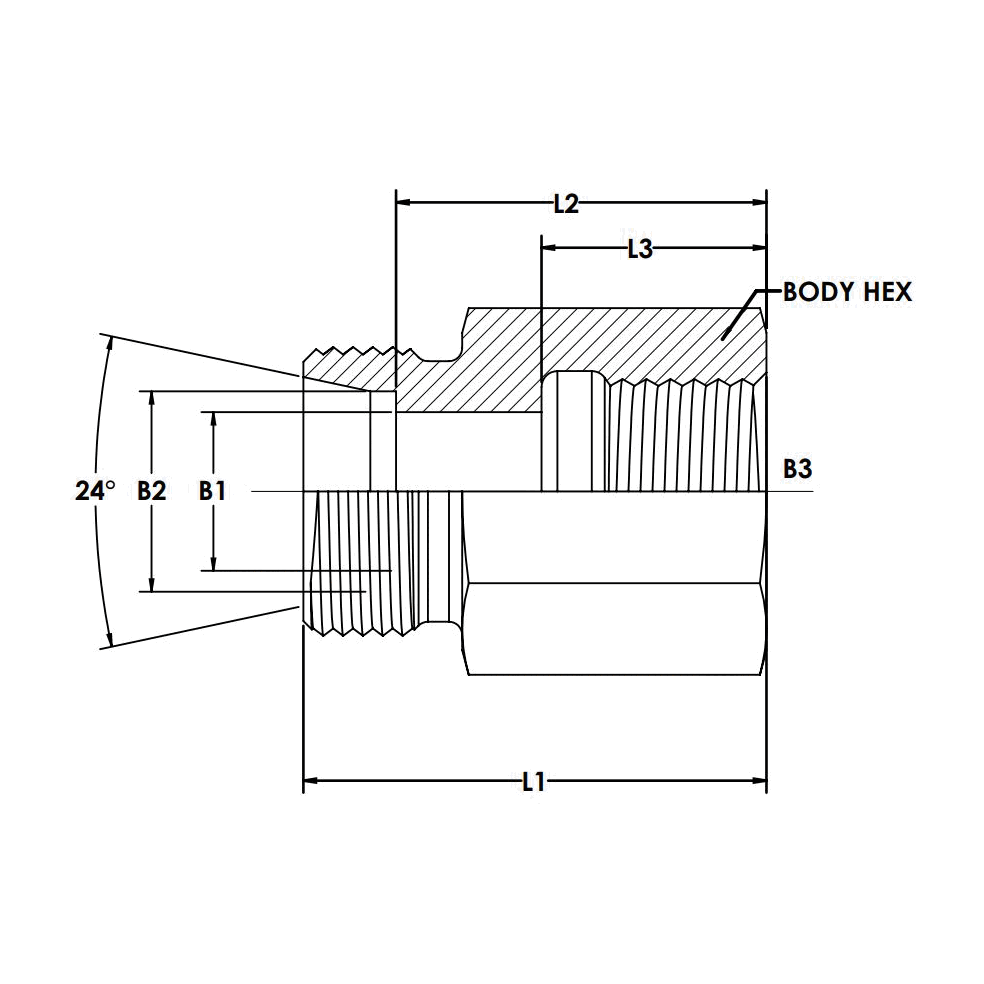

D8405-X

D8405-L06-10-SS-X

$63.71

Attribute: D8405-L06-10-SS-X (L06MBT-10FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	26.5
OVERALL LENGTH L2 (MM)	19.5
OVERALL LENGTH L3 (MM)	12.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.317

D8405-L06-10-X

$25.01

Attribute: D8405-L06-10-X (L06MBT-10FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	26.5
OVERALL LENGTH L2 (MM)	19.5
OVERALL LENGTH L3 (MM)	12.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.317

D8405-L08-12-SS-X

$74.67

Attribute: D8405-L08-12-SS-X (L08MBT-12FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.547

D8405-L08-12-X

$29.28

Attribute: D8405-L08-12-X (L08MBT-12FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.547

D8405-L10-14-SS-X

$83.98

Attribute: D8405-L10-14-SS-X (L10MBT-14FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.144
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D8405-L10-14-X

$25.48

Attribute: D8405-L10-14-X (L10MBT-14FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.144
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D8405-L12-16-SS-X

$101.95

Attribute: D8405-L12-16-SS-X (L12MBT-16FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.195
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.975

D8405-L12-16-X

$38.07

Attribute: D8405-L12-16-X (L12MBT-16FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.195
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.975

D8405-L15-18-SS-X

$151.10

Attribute: D8405-L15-18-SS-X (L15MBT-18FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	28.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.272
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.230

D8405-L15-18-X

$38.40

Attribute: D8405-L15-18-X (L15MBT-18FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	28.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.272
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.230

D8405-L18-22-SS-X

$140.73

Attribute: D8405-L18-22-SS-X (L18MBT-22FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	30.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.425
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.032

D8405-L18-22-X

$45.44

Attribute: D8405-L18-22-X (L18MBT-22FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	30.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.425
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.032

D8405-L22-26-SS-X

$165.74

Attribute: D8405-L22-26-SS-X (L22MBT-26FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.514
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.625

D8405-L22-26-X

$57.87

Attribute: D8405-L22-26-X (L22MBT-26FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.514
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.625

D8405-L28-33-SS-X

$242.59

Attribute: D8405-L28-33-SS-X (L28MBT-33FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	37.5
OVERALL LENGTH L3 (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.759
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.616

D8405-L28-33-X

$253.18

Attribute: D8405-L28-33-X (L28MBT-33FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	37.5
OVERALL LENGTH L3 (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.759
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.616

D8405-L35-42-SS-X

$431.21

Attribute: D8405-L35-42-SS-X (L35MBT-42FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	40.5
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.467
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.414

D8405-L35-42-X

$173.21

Attribute: D8405-L35-42-X (L35MBT-42FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	40.5
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.467
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.414

D8405-L42-48-SS-X

$575.18

Attribute: D8405-L42-48-SS-X (L42MBT-48FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	60.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	42.0
OVERALL LENGTH L3 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.819
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.643

D8405-L42-48-X

$212.21

Attribute: D8405-L42-48-X (L42MBT-48FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	60.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	42.0
OVERALL LENGTH L3 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.819
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.643

D8405-S06-12-SS-X

$73.27

Attribute: D8405-S06-12-SS-X (S06MBT-12FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.134
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.582

D8405-S06-12-X

$34.61

Attribute: D8405-S06-12-X (S06MBT-12FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.134
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.582

D8405-S08-14-SS-X

$83.30

Attribute: D8405-S08-14-SS-X (S08MBT-14FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.158
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.727

D8405-S08-14-X

$38.45

Attribute: D8405-S08-14-X (S08MBT-14FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.158
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.727

D8405-S10-16-SS-X

$101.18

Attribute: D8405-S10-16-SS-X (S10MBT-16FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.221
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.004

D8405-S10-16-X

$45.02

Attribute: D8405-S10-16-X (S10MBT-16FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.221
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.004

D8405-S12-18-SS-X

$120.59

Attribute: D8405-S12-18-SS-X (S12MBT-18FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	27.5
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.259
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.230

D8405-S12-18-X

$49.03

Attribute: D8405-S12-18-X (S12MBT-18FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	27.5
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.259
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.230

D8405-S14-20-SS-X

$146.03

Attribute: D8405-S14-20-SS-X (S14MBT-20FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.367
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D8405-S14-20-X

$77.96

Attribute: D8405-S14-20-X (S14MBT-20FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.367
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D8405-S16-22-SS-X

$151.62

Attribute: D8405-S16-22-SS-X (S16MBT-22FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	30.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	30.5
OVERALL LENGTH L3 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.446
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.142

D8405-S16-22-X

$62.43

Attribute: D8405-S16-22-X (S16MBT-22FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	30.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	30.5
OVERALL LENGTH L3 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.446
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.142

D8405-S20-27-SS-X

$190.19

Attribute: D8405-S20-27-SS-X (S20MBT-27FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M27X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	36.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.720
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.559

D8405-S20-27-X

$80.70

Attribute: D8405-S20-27-X (S20MBT-27FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M27X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	36.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.720
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.559

D8405-S25-33-SS-X

$246.94

Attribute: D8405-S25-33-SS-X (S25MBT-33FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.106
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.026

D8405-S25-33-X

$214.64

Attribute: D8405-S25-33-X (S25MBT-33FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.106
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.026

D8405-S30-42-SS-X

$443.03

Attribute: D8405-S30-42-SS-X (S30MBT-42FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	54.5
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.738
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.061

D8405-S30-42-X

$384.95

Attribute: D8405-S30-42-X (S30MBT-42FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	54.5
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.738
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.061

D8405-S38-48-SS-X

$564.68

Attribute: D8405-S38-48-SS-X (S38MBT-48FM S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	60.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.278
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.961

D8405-S38-48-X

$363.57

Attribute: D8405-S38-48-X (S38MBT-48FM Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	60.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.278
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.961

ID	10168679
Category	DIN Metric Tube Fittings

Description

Description

Variations (40)

D8405-L06-10-SS-X

D8405-L06-10-X

D8405-L08-12-SS-X

D8405-L08-12-X

D8405-L10-14-SS-X

D8405-L10-14-X

D8405-L12-16-SS-X

D8405-L12-16-X

D8405-L15-18-SS-X

D8405-L15-18-X

D8405-L18-22-SS-X

D8405-L18-22-X

D8405-L22-26-SS-X

D8405-L22-26-X

D8405-L28-33-SS-X

D8405-L28-33-X

D8405-L35-42-SS-X

D8405-L35-42-X

D8405-L42-48-SS-X

D8405-L42-48-X

D8405-S06-12-SS-X

D8405-S06-12-X

D8405-S08-14-SS-X

D8405-S08-14-X

D8405-S10-16-SS-X

D8405-S10-16-X

D8405-S12-18-SS-X

D8405-S12-18-X

D8405-S14-20-SS-X

D8405-S14-20-X

D8405-S16-22-SS-X

D8405-S16-22-X

D8405-S20-27-SS-X

D8405-S20-27-X

D8405-S25-33-SS-X

D8405-S25-33-X

D8405-S30-42-SS-X

D8405-S30-42-X

D8405-S38-48-SS-X

D8405-S38-48-X

General Attributes

PDF Documents
