D8405

D8405-L06-10

$28.04

Attribute: D8405-L06-10 (L06MBT-10FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0

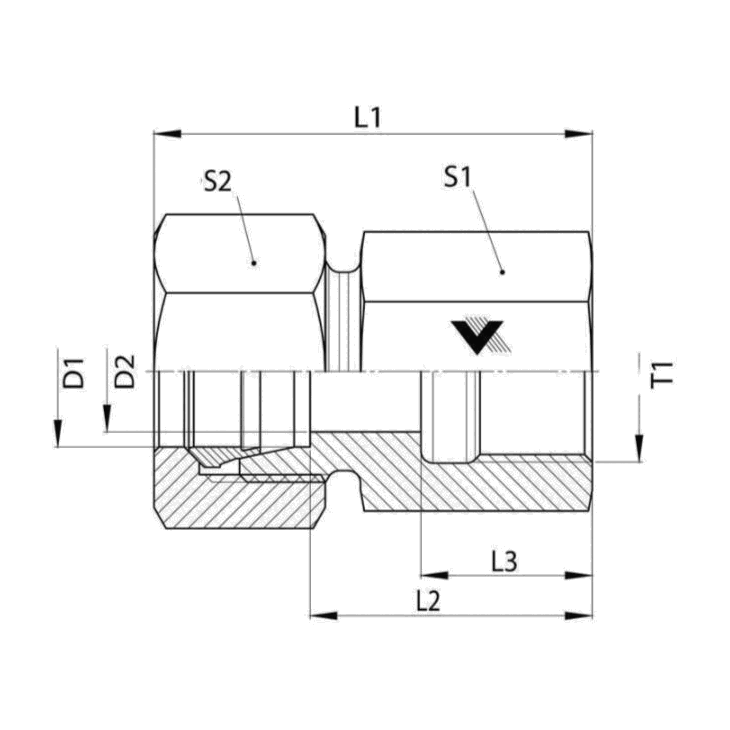

OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	19.5
OVERALL LENGTH L4 (MM)	12.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.413

D8405-L06-10-SS

$75.45

Attribute: D8405-L06-10-SS (L06MBT-10FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	19.5
OVERALL LENGTH L4 (MM)	12.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.413

D8405-L06-22

$32.68

Attribute: D8405-L06-22 (L06MBT-22FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D8405-L08-12

$33.29

Attribute: D8405-L08-12 (L08MBT-12FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	24.0
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.688

D8405-L08-12-SS

$92.64

Attribute: D8405-L08-12-SS (L08MBT-12FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	24.0
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.688

D8405-L08-22

$35.80

Attribute: D8405-L08-22 (L08MBT-22FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D8405-L10-12

$37.04

Attribute: D8405-L10-12 (L10MBT-12FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D8405-L10-14

$35.76

Attribute: D8405-L10-14 (L10MBT-14FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	25.0
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.144
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.881

D8405-L10-14-SS

$106.34

Attribute: D8405-L10-14-SS (L10MBT-14FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	25.0
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.144
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.881

D8405-L12-16

$43.52

Attribute: D8405-L12-16 (L12MBT-16FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.195
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.211

D8405-L12-16-SS

$126.82

Attribute: D8405-L12-16-SS (L12MBT-16FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.195
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.211

D8405-L15-18

$44.13

Attribute: D8405-L15-18 (L15MBT-18FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	28.0
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.272
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.935

D8405-L15-18-SS

$173.63

Attribute: D8405-L15-18-SS (L15MBT-18FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	28.0
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.272
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.935

D8405-L18-22

$55.90

Attribute: D8405-L18-22 (L18MBT-22FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	29.5
OVERALL LENGTH L4 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.425
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.906

D8405-L18-22-SS

$186.99

Attribute: D8405-L18-22-SS (L18MBT-22FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	29.5
OVERALL LENGTH L4 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.425
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.906

D8405-L22-26

$71.65

Attribute: D8405-L22-26 (L22MBT-26FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	52.5
OVERALL LENGTH L2 (MM)	42.0
OVERALL LENGTH L3 (MM)	34.5
OVERALL LENGTH L4 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.514
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.152

D8405-L22-26-SS

$221.04

Attribute: D8405-L22-26-SS (L22MBT-26FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	52.5
OVERALL LENGTH L2 (MM)	42.0
OVERALL LENGTH L3 (MM)	34.5
OVERALL LENGTH L4 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.514
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.152

D8405-L28-33

$287.52

Attribute: D8405-L28-33 (L28MBT-33FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	56.0
OVERALL LENGTH L2 (MM)	45.0
OVERALL LENGTH L3 (MM)	37.5
OVERALL LENGTH L4 (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.759
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.745

D8405-L28-33-SS

$320.98

Attribute: D8405-L28-33-SS (L28MBT-33FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	56.0
OVERALL LENGTH L2 (MM)	45.0
OVERALL LENGTH L3 (MM)	37.5
OVERALL LENGTH L4 (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.759
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.745

D8405-L35-42

$222.33

Attribute: D8405-L35-42 (L35MBT-42FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	55.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	63.0
OVERALL LENGTH L2 (MM)	51.0
OVERALL LENGTH L3 (MM)	40.5
OVERALL LENGTH L4 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.467
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.630

D8405-L35-42-SS

$542.45

Attribute: D8405-L35-42-SS (L35MBT-42FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	55.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	63.0
OVERALL LENGTH L2 (MM)	51.0
OVERALL LENGTH L3 (MM)	40.5
OVERALL LENGTH L4 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.467
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.630

D8405-L42-48

$273.87

Attribute: D8405-L42-48 (L42MBT-48FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	60.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	53.0
OVERALL LENGTH L3 (MM)	42.0
OVERALL LENGTH L4 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.819
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.280

D8405-L42-48-SS

$719.84

Attribute: D8405-L42-48-SS (L42MBT-48FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	60.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	53.0
OVERALL LENGTH L3 (MM)	42.0
OVERALL LENGTH L4 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.819
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.280

D8405-S06-12

$38.83

Attribute: D8405-S06-12 (S06MBT-12FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.134
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.723

D8405-S06-12-SS

$87.99

Attribute: D8405-S06-12-SS (S06MBT-12FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.134
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.723

D8405-S08-14

$43.02

Attribute: D8405-S08-14 (S08MBT-14FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.158
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.903

D8405-S08-14-SS

$100.15

Attribute: D8405-S08-14-SS (S08MBT-14FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.158
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.903

D8405-S10-16

$51.38

Attribute: D8405-S10-16 (S10MBT-16FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	26.5
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.221
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.270

D8405-S10-16-SS

$121.87

Attribute: D8405-S10-16-SS (S10MBT-16FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	26.5
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.221
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.270

D8405-S12-18

$55.65

Attribute: D8405-S12-18 (S12MBT-18FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	27.5
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.259
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.547

D8405-S12-18-SS

$147.77

Attribute: D8405-S12-18-SS (S12MBT-18FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	27.5
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.259
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.547

D8405-S14-20

$88.68

Attribute: D8405-S14-20 (S14MBT-20FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	39.0
OVERALL LENGTH L3 (MM)	31.0
OVERALL LENGTH L4 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.367
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.180

D8405-S14-20-SS

$175.08

Attribute: D8405-S14-20-SS (S14MBT-20FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	39.0
OVERALL LENGTH L3 (MM)	31.0
OVERALL LENGTH L4 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.367
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.180

D8405-S16-22

$72.46

Attribute: D8405-S16-22 (S16MBT-22FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	39.0
OVERALL LENGTH L3 (MM)	30.5
OVERALL LENGTH L4 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.446
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.691

D8405-S16-22-SS

$194.16

Attribute: D8405-S16-22-SS (S16MBT-22FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	39.0
OVERALL LENGTH L3 (MM)	30.5
OVERALL LENGTH L4 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.446
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.691

D8405-S20-27

$104.16

Attribute: D8405-S20-27 (S20MBT-27FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M27X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	45.0
OVERALL LENGTH L3 (MM)	34.5
OVERALL LENGTH L4 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.720
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.508

D8405-S20-27-SS

$245.97

Attribute: D8405-S20-27-SS (S20MBT-27FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M27X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	45.0
OVERALL LENGTH L3 (MM)	34.5
OVERALL LENGTH L4 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.720
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.508

D8405-S25-33

$242.17

Attribute: D8405-S25-33 (S25MBT-33FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	62.0
OVERALL LENGTH L2 (MM)	49.0
OVERALL LENGTH L3 (MM)	37.0
OVERALL LENGTH L4 (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.106
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.006

D8405-S25-33-SS

$345.05

Attribute: D8405-S25-33-SS (S25MBT-33FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	62.0
OVERALL LENGTH L2 (MM)	49.0
OVERALL LENGTH L3 (MM)	37.0
OVERALL LENGTH L4 (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.106
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.006

D8405-S30-42

$439.82

Attribute: D8405-S30-42 (S30MBT-42FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	55.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	68.7
OVERALL LENGTH L2 (MM)	54.5
OVERALL LENGTH L3 (MM)	41.0
OVERALL LENGTH L4 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.738
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.691

D8405-S30-42-SS

$566.69

Attribute: D8405-S30-42-SS (S30MBT-42FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	55.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	68.7
OVERALL LENGTH L2 (MM)	54.5
OVERALL LENGTH L3 (MM)	41.0
OVERALL LENGTH L4 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.738
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.691

D8405-S38-48

$425.70

Attribute: D8405-S38-48 (S38MBT-48FM Straig...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	60.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	74.5
OVERALL LENGTH L2 (MM)	59.0
OVERALL LENGTH L3 (MM)	43.0
OVERALL LENGTH L4 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.278
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.367

D8405-S38-48-SS

$732.43

Attribute: D8405-S38-48-SS (S38MBT-48FM Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 SPECIFICATION	ISO 9974-1
BODY HEX (MM)	60.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	74.5
OVERALL LENGTH L2 (MM)	59.0
OVERALL LENGTH L3 (MM)	43.0
OVERALL LENGTH L4 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.278
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.367

ID	10168633
Category	DIN Metric Tube Fittings

Description

Description

Variations (43)

D8405-L06-10

D8405-L06-10-SS

D8405-L06-22

D8405-L08-12

D8405-L08-12-SS

D8405-L08-22

D8405-L10-12

D8405-L10-14

D8405-L10-14-SS

D8405-L12-16

D8405-L12-16-SS

D8405-L15-18

D8405-L15-18-SS

D8405-L18-22

D8405-L18-22-SS

D8405-L22-26

D8405-L22-26-SS

D8405-L28-33

D8405-L28-33-SS

D8405-L35-42

D8405-L35-42-SS

D8405-L42-48

D8405-L42-48-SS

D8405-S06-12

D8405-S06-12-SS

D8405-S08-14

D8405-S08-14-SS

D8405-S10-16

D8405-S10-16-SS

D8405-S12-18

D8405-S12-18-SS

D8405-S14-20

D8405-S14-20-SS

D8405-S16-22

D8405-S16-22-SS

D8405-S20-27

D8405-S20-27-SS

D8405-S25-33

D8405-S25-33-SS

D8405-S30-42

D8405-S30-42-SS

D8405-S38-48

D8405-S38-48-SS

General Attributes

PDF Documents
