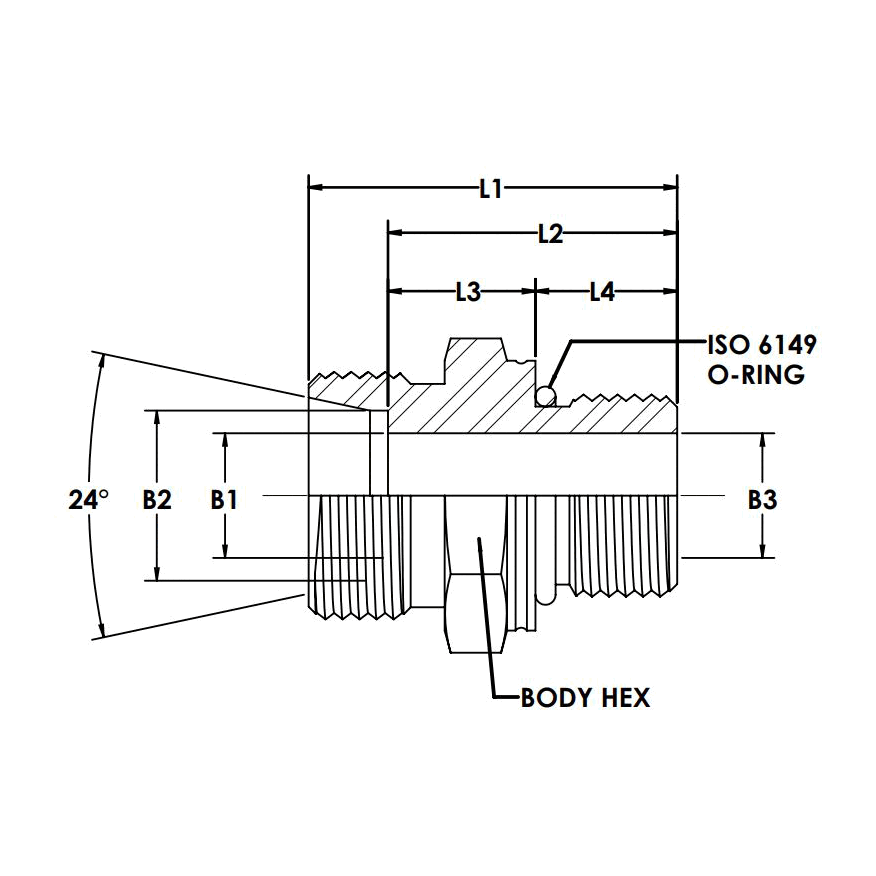

D8400-ISO 6149-X

D8400-L06-10-O-ISO 6149-X

$5.21

Attribute: D8400-L06-10-O-ISO 6149-X (L06MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 TUBE SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.5
CONNECTION 2 SPECIFICATION	ISO 6149
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	25.0
OVERALL LENGTH L2 (MM)	9.5
OVERALL LENGTH L3 (MM)	8.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.040
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.299

D8400-L06-12-V-ISO 6149-X

$5.54

Attribute: D8400-L06-12-V-ISO 6149-X (L06MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 TUBE SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	ISO 6149
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	VITON
CALIFORNIA RESIDENTS	PROP-65 WARNING

D8400-L06-14-V-ISO 6149-X

$6.01

Attribute: D8400-L06-14-V-ISO 6149-X (L06MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 TUBE SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	ISO 6149
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	VITON
CALIFORNIA RESIDENTS	PROP-65 WARNING

D8400-L10-12-O-ISO 6149-X

$12.59

Attribute: D8400-L10-12-O-ISO 6149-X (L10MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 TUBE SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	ISO 6149
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D8400-L10-14-O-ISO 6149-X

$22.62

Attribute: D8400-L10-14-O-ISO 6149-X (L10MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 TUBE SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	ISO 6149
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D8400-L12-16-O-ISO 6149-X

$35.76

Attribute: D8400-L12-16-O-ISO 6149-X (L12MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	ISO 6149
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D8400-L15-18-O-ISO 6149-X

$8.92

Attribute: D8400-L15-18-O-ISO 6149-X (L15MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 TUBE SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	ISO 6149
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D8400-L18-22-O-ISO 6149-SS-X

$216.27

Attribute: D8400-L18-22-O-ISO 6149-SS-X (L1...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 TUBE SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 6149
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.557

D8400-L18-22-O-ISO 6149-X

$12.59

Attribute: D8400-L18-22-O-ISO 6149-X (L18MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 TUBE SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 6149
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.557

D8400-L22-27-O-ISO 6149-CZ-X

$12.41

Attribute: D8400-L22-27-O-ISO 6149-CZ-X (L2...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M27X2.0
CONNECTION 2 SPECIFICATION	ISO 6149
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D8400-L28-33-O-ISO 6149-X

$85.68

Attribute: D8400-L28-33-O-ISO 6149-X (L28MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 TUBE SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 6149
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.412
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.206

D8400-L35-42-O-ISO 6149-X

$99.26

Attribute: D8400-L35-42-O-ISO 6149-X (L35MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 TUBE SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 6149
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.645
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.713

D8400-S06-12-O-ISO 6149-X

$60.93

Attribute: D8400-S06-12-O-ISO 6149-X (S06MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 TUBE SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 6149
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.547

D8400-S08-14-O-ISO 6149-X

$58.04

Attribute: D8400-S08-14-O-ISO 6149-X (S08MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 TUBE SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	ISO 6149
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D8400-S10-16-O-ISO 6149-X

$60.81

Attribute: D8400-S10-16-O-ISO 6149-X (S10MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 6149
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	12.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.137
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.034

D8400-S12-18-O-ISO 6149-X

$103.18

Attribute: D8400-S12-18-O-ISO 6149-X (S12MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 TUBE SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 6149
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	17.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.183
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.353

D8400-S16-22-O-ISO 6149-X

$111.12

Attribute: D8400-S16-22-O-ISO 6149-X (S16MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 TUBE SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	ISO 6149
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D8400-S20-27-O-ISO 6149-X

$64.52

Attribute: D8400-S20-27-O-ISO 6149-X (S20MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M27X2.0
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 6149
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	49.5
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	18.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.405
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.093

D8400-S25-33-O-ISO 6149-X

$100.41

Attribute: D8400-S25-33-O-ISO 6149-X (S25MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 TUBE SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC ISO 6149 O-RING
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 SPECIFICATION	ISO 6149
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

ID	10168611
Category	DIN Metric Tube Fittings

Description

Description

Variations (19)

D8400-L06-10-O-ISO 6149-X

D8400-L06-12-V-ISO 6149-X

D8400-L06-14-V-ISO 6149-X

D8400-L10-12-O-ISO 6149-X

D8400-L10-14-O-ISO 6149-X

D8400-L12-16-O-ISO 6149-X

D8400-L15-18-O-ISO 6149-X

D8400-L18-22-O-ISO 6149-SS-X

D8400-L18-22-O-ISO 6149-X

D8400-L22-27-O-ISO 6149-CZ-X

D8400-L28-33-O-ISO 6149-X

D8400-L35-42-O-ISO 6149-X

D8400-S06-12-O-ISO 6149-X

D8400-S08-14-O-ISO 6149-X

D8400-S10-16-O-ISO 6149-X

D8400-S12-18-O-ISO 6149-X

D8400-S16-22-O-ISO 6149-X

D8400-S20-27-O-ISO 6149-X

D8400-S25-33-O-ISO 6149-X

General Attributes

PDF Documents
