Description

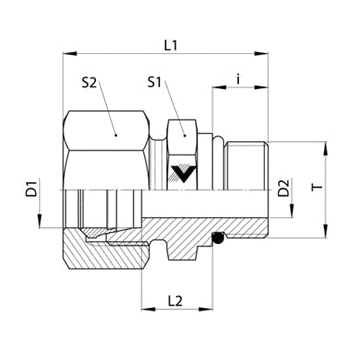

MBT-MM ISO 6149 STRAIGHT. METRIC ISO 6149 THREAD, ISO 3601 O-RING
Description
Variations (8)
D8400-L06-12-V-ISO 6149
$14.38Attribute: D8400-L06-12-V-ISO 6149 (L06MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M12X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC ISO 6149 O-RING |
| CONNECTION 2 THREAD SIZE | M12X1.5 |
| CONNECTION 2 SPECIFICATION | ISO 6149 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D8400-L06-14-V-ISO 6149
$14.76Attribute: D8400-L06-14-V-ISO 6149 (L06MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M12X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC ISO 6149 O-RING |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 SPECIFICATION | ISO 6149 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D8400-L10-14-O-ISO 6149
$22.62Attribute: D8400-L10-14-O-ISO 6149 (L10MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC ISO 6149 O-RING |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 SPECIFICATION | ISO 6149 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D8400-L12-16-O-ISO 6149
$12.38Attribute: D8400-L12-16-O-ISO 6149 (L12MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC ISO 6149 O-RING |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 SPECIFICATION | ISO 6149 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D8400-L15-18-O-ISO 6149
$23.90Attribute: D8400-L15-18-O-ISO 6149 (L15MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC ISO 6149 O-RING |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 SPECIFICATION | ISO 6149 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D8400-L18-18-O-ISO 6149
$18.61Attribute: D8400-L18-18-O-ISO 6149 (L18MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M26X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC ISO 6149 O-RING |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 SPECIFICATION | ISO 6149 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D8400-L22-27-O-ISO 6149
$52.45Attribute: D8400-L22-27-O-ISO 6149 (L22MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC ISO 6149 O-RING |
| CONNECTION 2 THREAD SIZE | M27X2.0 |
| CONNECTION 2 SPECIFICATION | ISO 6149 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D8400-S20-27-O-ISO 6149
$98.58Attribute: D8400-S20-27-O-ISO 6149 (S20MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC ISO 6149 O-RING |
| CONNECTION 2 THREAD SIZE | M27X2.0 |
| CONNECTION 2 THREAD ID (MM) | 16.0 |
| CONNECTION 2 SPECIFICATION | ISO 6149 |
| BODY HEX (MM) | 32.0 |
| HEX C 1 (MM) | 36.0 |
| OVERALL LENGTH L1 (MM) | 61.5 |
| OVERALL LENGTH L2 (MM) | 49.5 |
| OVERALL LENGTH L3 (MM) | 20.5 |
| OVERALL LENGTH L4 (MM) | 18.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.672 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.864 |
