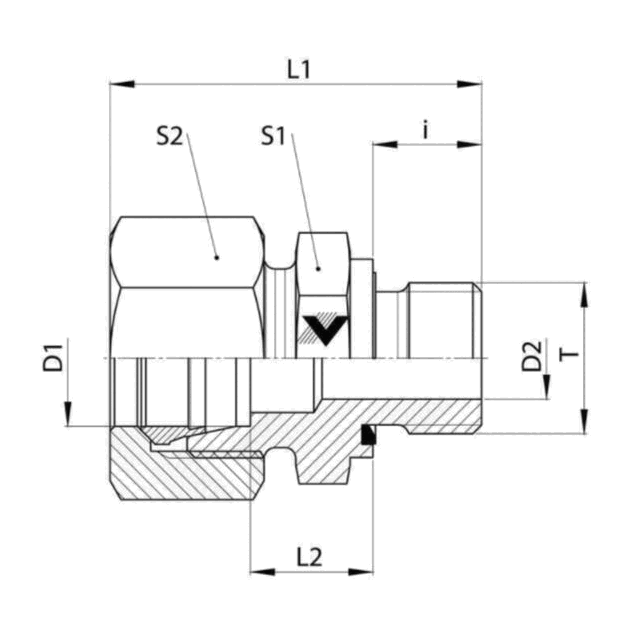

D8400-ED

D8400-L06-10-ED

$7.25

Attribute: D8400-L06-10-ED (L06MBT-10MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	8.5
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.377

D8400-L06-10-ED-SS

$46.13

Attribute: D8400-L06-10-ED-SS (L06MBT-10MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	8.5
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.377

D8400-L06-12-ED-SS

$55.90

Attribute: D8400-L06-12-ED-SS (L06MBT-12MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	17.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	10.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.083
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.653

D8400-L06-14-ED-SS

$57.31

Attribute: D8400-L06-14-ED-SS (L06MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	19.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	10.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.096
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.815

D8400-L08-10-ED-SS

$80.40

Attribute: D8400-L08-10-ED-SS (L08MBT-10MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	8.5
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.079
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.556

D8400-L08-12-ED

$9.26

Attribute: D8400-L08-12-ED (L08MBT-12MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	10.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.098
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.653

D8400-L08-12-ED-SS

$58.46

Attribute: D8400-L08-12-ED-SS (L08MBT-12MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	10.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.098
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.653

D8400-L08-14-ED

$36.70

Attribute: D8400-L08-14-ED (L08MBT-14MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	10.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.111
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.815

D8400-L08-14-ED-SS

$59.19

Attribute: D8400-L08-14-ED-SS (L08MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	10.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.111
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.815

D8400-L08-16-ED-SS

$73.22

Attribute: D8400-L08-16-ED-SS (L08MBT-16MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	22.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.142
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.122

D8400-L08-18-ED

$18.22

Attribute: D8400-L08-18-ED (L08MBT-18MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D8400-L08-22-ED

$31.58

Attribute: D8400-L08-22-ED (L08MBT-22MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D8400-L10-12-ED

$20.22

Attribute: D8400-L10-12-ED (L10MBT-12MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.837

D8400-L10-12-ED-SS

$77.75

Attribute: D8400-L10-12-ED-SS (L10MBT-12MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.837

D8400-L10-14-ED

$9.86

Attribute: D8400-L10-14-ED (L10MBT-14MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.126
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.837

D8400-L10-14-ED-SS

$66.74

Attribute: D8400-L10-14-ED-SS (L10MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.126
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.837

D8400-L10-16-ED

$23.86

Attribute: D8400-L10-16-ED (L10MBT-16MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	22.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.149
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.167

D8400-L10-16-ED-SS

$85.89

Attribute: D8400-L10-16-ED-SS (L10MBT-16MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	22.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.149
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.167

D8400-L10-18-ED

$28.97

Attribute: D8400-L10-18-ED (L10MBT-18MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	24.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.388

D8400-L10-18-ED-SS

$88.89

Attribute: D8400-L10-18-ED-SS (L10MBT-18MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	24.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.388

D8400-L10-22-ED

$48.09

Attribute: D8400-L10-22-ED (L10MBT-22MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	13.0
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.204
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

D8400-L10-22-ED-SS

$123.40

Attribute: D8400-L10-22-ED-SS (L10MBT-22MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	13.0
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.204
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

D8400-L12-12-ED

$37.68

Attribute: D8400-L12-12-ED (L12MBT-12MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.137
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.122

D8400-L12-12-ED-SS

$83.94

Attribute: D8400-L12-12-ED-SS (L12MBT-12MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.137
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.122

D8400-L12-14-ED

$31.62

Attribute: D8400-L12-14-ED (L12MBT-14MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.143
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.122

D8400-L12-14-ED-SS

$83.56

Attribute: D8400-L12-14-ED-SS (L12MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.143
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.122

D8400-L12-16-ED

$12.34

Attribute: D8400-L12-16-ED (L12MBT-16MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.168
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.167

D8400-L12-16-ED-SS

$94.05

Attribute: D8400-L12-16-ED-SS (L12MBT-16MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.168
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.167

D8400-L12-18-ED

$20.95

Attribute: D8400-L12-18-ED (L12MBT-18MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.184
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.388

D8400-L12-18-ED-SS

$91.45

Attribute: D8400-L12-18-ED-SS (L12MBT-18MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.184
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.388

D8400-L12-22-ED

$25.31

Attribute: D8400-L12-22-ED (L12MBT-22MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	39.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.295
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.091

D8400-L12-22-ED-SS

$127.38

Attribute: D8400-L12-22-ED-SS (L12MBT-22MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	39.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.295
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.091

D8400-L15-16-ED

$37.42

Attribute: D8400-L15-16-ED (L15MBT-16MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	13.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.229
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.802

D8400-L15-16-ED-SS

$97.29

Attribute: D8400-L15-16-ED-SS (L15MBT-16MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	13.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.229
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.802

D8400-L15-18-ED

$14.50

Attribute: D8400-L15-18-ED (L15MBT-18MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	32.5
OVERALL LENGTH L3 (MM)	13.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D8400-L15-18-ED-SS

$93.46

Attribute: D8400-L15-18-ED-SS (L15MBT-18MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	32.5
OVERALL LENGTH L3 (MM)	13.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D8400-L15-22-ED

$27.70

Attribute: D8400-L15-22-ED (L15MBT-22MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.285
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.980

D8400-L15-22-ED-SS

$126.73

Attribute: D8400-L15-22-ED-SS (L15MBT-22MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.285
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.980

D8400-L18-12-ED

$116.66

Attribute: D8400-L18-12-ED (L18MBT-12MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D8400-L18-18-ED

$22.36

Attribute: D8400-L18-18-ED (L18MBT-18MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	33.5
OVERALL LENGTH L3 (MM)	14.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.319
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.687

D8400-L18-18-ED-SS

$125.67

Attribute: D8400-L18-18-ED-SS (L18MBT-18MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	33.5
OVERALL LENGTH L3 (MM)	14.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.319
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.687

D8400-L18-22-ED

$20.48

Attribute: D8400-L18-22-ED (L18MBT-22MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	14.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.348
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.843

D8400-L18-22-ED-SS

$131.05

Attribute: D8400-L18-22-ED-SS (L18MBT-22MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	14.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.348
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.843

D8400-L22-22-ED

$63.97

Attribute: D8400-L22-22-ED (L22MBT-22MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	16.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.445
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.836

D8400-L22-26-ED

$29.44

Attribute: D8400-L22-26-ED (L22MBT-26MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	16.5
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.471
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.994

D8400-L22-26-ED-SS

$202.18

Attribute: D8400-L22-26-ED-SS (L22MBT-26MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	16.5
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.471
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.994

D8400-L28-33-ED

$51.50

Attribute: D8400-L28-33-ED (L28MBT-33MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	54.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.659
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.539

D8400-L28-33-ED-SS

$273.31

Attribute: D8400-L28-33-ED-SS (L28MBT-33MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	54.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.659
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.539

D8400-L35-42-ED

$82.91

Attribute: D8400-L35-42-ED (L35MBT-42MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	48.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.069
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.154

D8400-L35-42-ED-SS

$372.61

Attribute: D8400-L35-42-ED-SS (L35MBT-42MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	48.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.069
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.154

D8400-L42-48-ED

$94.82

Attribute: D8400-L42-48-ED (L42MBT-48MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 THREAD ID (MM)	36.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	64.0
OVERALL LENGTH L2 (MM)	52.0
OVERALL LENGTH L3 (MM)	19.0
OVERALL LENGTH L4 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.450
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.060

D8400-L42-48-ED-SS

$401.54

Attribute: D8400-L42-48-ED-SS (L42MBT-48MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 THREAD ID (MM)	36.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	64.0
OVERALL LENGTH L2 (MM)	52.0
OVERALL LENGTH L3 (MM)	19.0
OVERALL LENGTH L4 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.450
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.060

D8400-S06-12-ED

$9.73

Attribute: D8400-S06-12-ED (S06MBT-12MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	13.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.121
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D8400-S06-12-ED-SS

$65.17

Attribute: D8400-S06-12-ED-SS (S06MBT-12MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	13.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.121
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D8400-S06-14-ED-SS

$176.96

Attribute: D8400-S06-14-ED-SS (S06MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	13.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.138
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.881

D8400-S08-12-ED-SS

$110.69

Attribute: D8400-S08-12-ED-SS (S08MBT-12MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	13.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.135
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.881

D8400-S08-14-ED

$11.26

Attribute: D8400-S08-14-ED (S08MBT-14MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.159
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.925

D8400-S08-14-ED-SS

$88.98

Attribute: D8400-S08-14-ED-SS (S08MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.159
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.925

D8400-S08-16-ED-SS

$85.60

Attribute: D8400-S08-16-ED-SS (S08MBT-16MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	22.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.241

D8400-S10-14-ED-SS

$133.95

Attribute: D8400-S10-14-ED-SS (S10MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.191
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.285

D8400-S10-16-ED

$14.64

Attribute: D8400-S10-16-ED (S10MBT-16MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.213
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.285

D8400-S10-16-ED-SS

$80.65

Attribute: D8400-S10-16-ED-SS (S10MBT-16MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.213
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.285

D8400-S12-12-ED-SS

$92.85

Attribute: D8400-S12-12-ED-SS (S12MBT-12MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	17.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.229
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.599

D8400-S12-14-ED-SS

$90.63

Attribute: D8400-S12-14-ED-SS (S12MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	17.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.237
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.599

D8400-S12-16-ED-SS

$95.88

Attribute: D8400-S12-16-ED-SS (S12MBT-16MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	41.5
OVERALL LENGTH L2 (MM)	32.5
OVERALL LENGTH L3 (MM)	13.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.215
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.459

D8400-S12-18-ED

$15.11

Attribute: D8400-S12-18-ED (S12MBT-18MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	17.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.265
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.599

D8400-S12-18-ED-SS

$88.75

Attribute: D8400-S12-18-ED-SS (S12MBT-18MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	17.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.265
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.599

D8400-S12-22-ED

$19.07

Attribute: D8400-S12-22-ED (S12MBT-22MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	39.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.317
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.135

D8400-S12-22-ED-SS

$111.20

Attribute: D8400-S12-22-ED-SS (S12MBT-22MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	39.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.317
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.135

D8400-S14-20-ED

$25.01

Attribute: D8400-S14-20-ED (S14MBT-20MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	19.0
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.365
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.269

D8400-S14-20-ED-SS

$115.35

Attribute: D8400-S14-20-ED-SS (S14MBT-20MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	19.0
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.365
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.269

D8400-S16-18-ED

$37.86

Attribute: D8400-S16-18-ED (S16MBT-18MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	38.5
OVERALL LENGTH L3 (MM)	18.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.360
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.664

D8400-S16-18-ED-SS

$134.71

Attribute: D8400-S16-18-ED-SS (S16MBT-18MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	38.5
OVERALL LENGTH L3 (MM)	18.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.360
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.664

D8400-S16-22-ED

$22.19

Attribute: D8400-S16-22-ED (S16MBT-22MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	18.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.403
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.801

D8400-S16-22-ED-SS

$153.66

Attribute: D8400-S16-22-ED-SS (S16MBT-22MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	18.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.403
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.801

D8400-S20-22-ED-SS

$363.57

Attribute: D8400-S20-22-ED-SS (S20MBT-22MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	47.0
OVERALL LENGTH L3 (MM)	22.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.644
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.666

D8400-S20-27-ED

$33.03

Attribute: D8400-S20-27-ED (S20MBT-27MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M27X2.0
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	47.0
OVERALL LENGTH L3 (MM)	20.5
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.642
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.666

D8400-S20-27-ED-SS

$192.11

Attribute: D8400-S20-27-ED-SS (S20MBT-27MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M27X2.0
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	47.0
OVERALL LENGTH L3 (MM)	20.5
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.642
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.666

D8400-S25-33-ED

$64.05

Attribute: D8400-S25-33-ED (S25MBT-33MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	53.0
OVERALL LENGTH L3 (MM)	23.0
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.167
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.522

D8400-S25-33-ED-SS

$343.73

Attribute: D8400-S25-33-ED-SS (S25MBT-33MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	53.0
OVERALL LENGTH L3 (MM)	23.0
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.167
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.522

D8400-S30-42-ED

$88.04

Attribute: D8400-S30-42-ED (S30MBT-42MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	71.2
OVERALL LENGTH L2 (MM)	57.0
OVERALL LENGTH L3 (MM)	23.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.593
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.870

D8400-S30-42-ED-SS

$328.49

Attribute: D8400-S30-42-ED-SS (S30MBT-42MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	71.2
OVERALL LENGTH L2 (MM)	57.0
OVERALL LENGTH L3 (MM)	23.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.593
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.870

D8400-S38-48-ED

$111.72

Attribute: D8400-S38-48-ED (S38MBT-48MM ED ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 THREAD ID (MM)	32.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	79.5
OVERALL LENGTH L2 (MM)	64.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.201
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.465

D8400-S38-48-ED-SS

$413.75

Attribute: D8400-S38-48-ED-SS (S38MBT-48MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM E CAPTIVESEAL
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 THREAD ID (MM)	32.0
CONNECTION 2 SPECIFICATION	ISO 9974, ISO 6149, DIN 7631
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	79.5
OVERALL LENGTH L2 (MM)	64.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.201
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.465

Description

Description

Variations (84)

D8400-L06-10-ED

D8400-L06-10-ED-SS

D8400-L06-12-ED-SS

D8400-L06-14-ED-SS

D8400-L08-10-ED-SS

D8400-L08-12-ED

D8400-L08-12-ED-SS

D8400-L08-14-ED

D8400-L08-14-ED-SS

D8400-L08-16-ED-SS

D8400-L08-18-ED

D8400-L08-22-ED

D8400-L10-12-ED

D8400-L10-12-ED-SS

D8400-L10-14-ED

D8400-L10-14-ED-SS

D8400-L10-16-ED

D8400-L10-16-ED-SS

D8400-L10-18-ED

D8400-L10-18-ED-SS

D8400-L10-22-ED

D8400-L10-22-ED-SS

D8400-L12-12-ED

D8400-L12-12-ED-SS

D8400-L12-14-ED

D8400-L12-14-ED-SS

D8400-L12-16-ED

D8400-L12-16-ED-SS

D8400-L12-18-ED

D8400-L12-18-ED-SS

D8400-L12-22-ED

D8400-L12-22-ED-SS

D8400-L15-16-ED

D8400-L15-16-ED-SS

D8400-L15-18-ED

D8400-L15-18-ED-SS

D8400-L15-22-ED

D8400-L15-22-ED-SS

D8400-L18-12-ED

D8400-L18-18-ED

D8400-L18-18-ED-SS

D8400-L18-22-ED

D8400-L18-22-ED-SS

D8400-L22-22-ED

D8400-L22-26-ED

D8400-L22-26-ED-SS

D8400-L28-33-ED

D8400-L28-33-ED-SS

D8400-L35-42-ED

D8400-L35-42-ED-SS

D8400-L42-48-ED

D8400-L42-48-ED-SS

D8400-S06-12-ED

D8400-S06-12-ED-SS

D8400-S06-14-ED-SS

D8400-S08-12-ED-SS

D8400-S08-14-ED

D8400-S08-14-ED-SS

D8400-S08-16-ED-SS

D8400-S10-14-ED-SS

D8400-S10-16-ED

D8400-S10-16-ED-SS

D8400-S12-12-ED-SS

D8400-S12-14-ED-SS

D8400-S12-16-ED-SS

D8400-S12-18-ED

D8400-S12-18-ED-SS

D8400-S12-22-ED

D8400-S12-22-ED-SS

D8400-S14-20-ED

D8400-S14-20-ED-SS

D8400-S16-18-ED

D8400-S16-18-ED-SS

D8400-S16-22-ED

D8400-S16-22-ED-SS

D8400-S20-22-ED-SS
