D8400-CF-X

D8400-E04-08-CF-SS-X

$84.24

Attribute: D8400-E04-08-CF-SS-X (E04MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ISO 9974

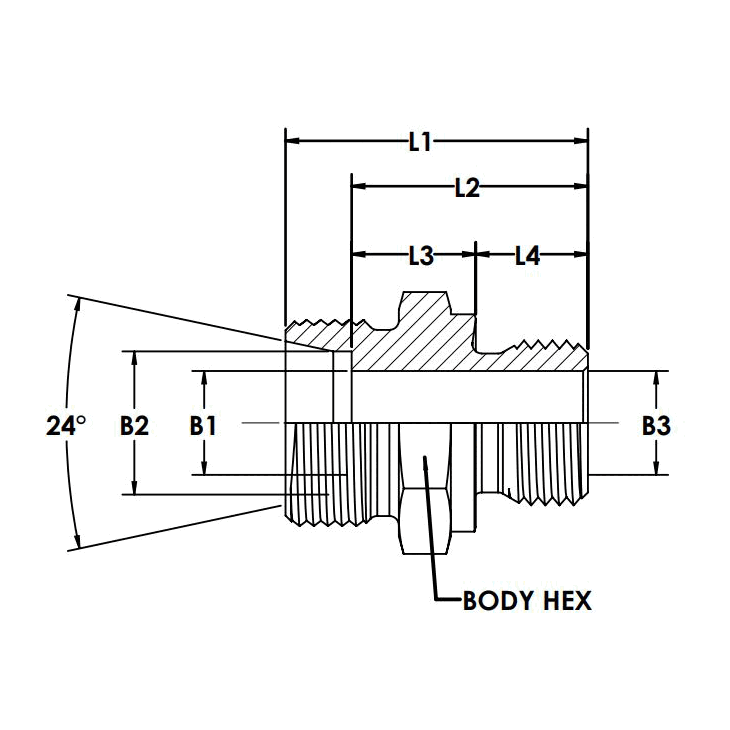

BODY HEX (MM)	12.0
OVERALL LENGTH L1 (MM)	21.5
OVERALL LENGTH L2 (MM)	9.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.022
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.189

D8400-E06-10-CF-SS-X

$39.39

Attribute: D8400-E06-10-CF-SS-X (E06MBT-10M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	21.5
OVERALL LENGTH L2 (MM)	8.0
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.029
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.257

D8400-E08-10-CF-SS-X

$48.77

Attribute: D8400-E08-10-CF-SS-X (E08MBT-10M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	22.5
OVERALL LENGTH L2 (MM)	9.0
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.269

D8400-L06-08-CF-SS-X

$127.64

Attribute: D8400-L06-08-CF-SS-X (L06MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	23.5
OVERALL LENGTH L2 (MM)	8.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.033
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.281

D8400-L06-10-CF-SS-X

$19.21

Attribute: D8400-L06-10-CF-SS-X (L06MBT-10M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	23.5
OVERALL LENGTH L2 (MM)	8.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.035
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.281

D8400-L06-10-CF-X

$7.04

Attribute: D8400-L06-10-CF-X (L06MBT-10MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	23.5
OVERALL LENGTH L2 (MM)	8.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.035
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.281

D8400-L06-12-CF-X

$36.46

Attribute: D8400-L06-12-CF-X (L06MBT-12MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.059
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.511

D8400-L06-14-CF-SS-X

$36.48

Attribute: D8400-L06-14-CF-SS-X (L06MBT-14M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.081
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D8400-L08-10-CF-SS-X

$30.43

Attribute: D8400-L08-10-CF-SS-X (L08MBT-10M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	23.5
OVERALL LENGTH L2 (MM)	8.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.040
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.281

D8400-L08-12-CF-SS-X

$27.96

Attribute: D8400-L08-12-CF-SS-X (L08MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.057
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.511

D8400-L08-12-CF-X

$4.27

Attribute: D8400-L08-12-CF-X (L08MBT-12MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.057
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.511

D8400-L08-14-CF-SS-X

$34.18

Attribute: D8400-L08-14-CF-SS-X (L08MBT-14M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.077
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D8400-L08-14-CF-X

$19.86

Attribute: D8400-L08-14-CF-X (L08MBT-14MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.077
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D8400-L08-16-CF-SS-X

$46.77

Attribute: D8400-L08-16-CF-SS-X (L08MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	30.5
OVERALL LENGTH L2 (MM)	11.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.104
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.901

D8400-L08-16-CF-X

$20.75

Attribute: D8400-L08-16-CF-X (L08MBT-16MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	30.5
OVERALL LENGTH L2 (MM)	11.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.104
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.901

D8400-L08-18-CF-SS-X

$63.15

Attribute: D8400-L08-18-CF-SS-X (L08MBT-18M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	30.5
OVERALL LENGTH L2 (MM)	11.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.072

D8400-L08-18-CF-X

$13.65

Attribute: D8400-L08-18-CF-X (L08MBT-18MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	30.5
OVERALL LENGTH L2 (MM)	11.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.072

D8400-L10-10-CF-SS-X

$42.37

Attribute: D8400-L10-10-CF-SS-X (L10MBT-10M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	25.5
OVERALL LENGTH L2 (MM)	10.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.053
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.450

D8400-L10-10-CF-X

$34.27

Attribute: D8400-L10-10-CF-X (L10MBT-10MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	25.5
OVERALL LENGTH L2 (MM)	10.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.053
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.450

D8400-L10-12-CF-SS-X

$38.54

Attribute: D8400-L10-12-CF-SS-X (L10MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.062
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.529

D8400-L10-12-CF-X

$20.44

Attribute: D8400-L10-12-CF-X (L10MBT-12MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.062
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.529

D8400-L10-14-CF-SS-X

$29.02

Attribute: D8400-L10-14-CF-SS-X (L10MBT-14M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D8400-L10-14-CF-X

$4.78

Attribute: D8400-L10-14-CF-X (L10MBT-14MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D8400-L10-16-CF-SS-X

$46.64

Attribute: D8400-L10-16-CF-SS-X (L10MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

D8400-L10-16-CF-X

$12.25

Attribute: D8400-L10-16-CF-X (L10MBT-16MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

D8400-L10-18-CF-SS-X

$60.25

Attribute: D8400-L10-18-CF-SS-X (L10MBT-18M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.123
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.107

D8400-L10-18-CF-X

$17.67

Attribute: D8400-L10-18-CF-X (L10MBT-18MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.123
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.107

D8400-L10-22-CF-SS-X

$91.79

Attribute: D8400-L10-22-CF-SS-X (L10MBT-22M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.196
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.557

D8400-L10-22-CF-X

$35.16

Attribute: D8400-L10-22-CF-X (L10MBT-22MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.196
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.557

D8400-L12-12-CF-SS-X

$40.96

Attribute: D8400-L12-12-CF-SS-X (L12MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.070
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D8400-L12-14-CF-SS-X

$40.42

Attribute: D8400-L12-14-CF-SS-X (L12MBT-14M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.077
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D8400-L12-14-CF-X

$27.73

Attribute: D8400-L12-14-CF-X (L12MBT-14MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.077
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D8400-L12-16-CF-SS-X

$37.94

Attribute: D8400-L12-16-CF-SS-X (L12MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

D8400-L12-16-CF-X

$6.78

Attribute: D8400-L12-16-CF-X (L12MBT-16MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

D8400-L12-18-CF-SS-X

$57.35

Attribute: D8400-L12-18-CF-SS-X (L12MBT-18M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.117
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.107

D8400-L12-18-CF-X

$15.36

Attribute: D8400-L12-18-CF-X (L12MBT-18MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.117
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.107

D8400-L12-22-CF-SS-X

$90.37

Attribute: D8400-L12-22-CF-SS-X (L12MBT-22M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.557

D8400-L12-22-CF-X

$17.62

Attribute: D8400-L12-22-CF-X (L12MBT-22MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.557

D8400-L15-16-CF-SS-X

$51.89

Attribute: D8400-L15-16-CF-SS-X (L15MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.123
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.125

D8400-L15-16-CF-X

$26.72

Attribute: D8400-L15-16-CF-X (L15MBT-16MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.123
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.125

D8400-L15-18-CF-SS-X

$52.79

Attribute: D8400-L15-18-CF-SS-X (L15MBT-18M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	32.5
OVERALL LENGTH L2 (MM)	13.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.128
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.142

D8400-L15-18-CF-X

$7.39

Attribute: D8400-L15-18-CF-X (L15MBT-18MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	32.5
OVERALL LENGTH L2 (MM)	13.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.128
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.142

D8400-L15-22-CF-SS-X

$83.68

Attribute: D8400-L15-22-CF-SS-X (L15MBT-22M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.192
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.602

D8400-L15-22-CF-X

$17.88

Attribute: D8400-L15-22-CF-X (L15MBT-22MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.192
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.602

D8400-L18-18-CF-SS-X

$68.57

Attribute: D8400-L18-18-CF-SS-X (L18MBT-18M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	33.5
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.165
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.490

D8400-L18-18-CF-X

$11.82

Attribute: D8400-L18-18-CF-X (L18MBT-18MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	33.5
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.165
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.490

D8400-L18-22-CF-SS-X

$64.77

Attribute: D8400-L18-22-CF-SS-X (L18MBT-22M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.602

D8400-L18-22-CF-X

$9.94

Attribute: D8400-L18-22-CF-X (L18MBT-22MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.602

D8400-L22-22-CF-SS-X

$116.20

Attribute: D8400-L22-22-CF-SS-X (L22MBT-22M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.240
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.375

D8400-L22-22-CF-X

$28.59

Attribute: D8400-L22-22-CF-X (L22MBT-22MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.240
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.375

D8400-L22-26-CF-SS-X

$90.72

Attribute: D8400-L22-26-CF-SS-X (L22MBT-26M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.253
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.500

D8400-L22-26-CF-X

$14.76

Attribute: D8400-L22-26-CF-X (L22MBT-26MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.253
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.500

D8400-L28-33-CF-SS-X

$152.21

Attribute: D8400-L28-33-CF-SS-X (L28MBT-33M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.414
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.411

D8400-L28-33-CF-X

$28.59

Attribute: D8400-L28-33-CF-X (L28MBT-33MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.414
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.411

D8400-L35-42-CF-SS-X

$174.91

Attribute: D8400-L35-42-CF-SS-X (L35MBT-42M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.689
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.323

D8400-L35-42-CF-X

$43.05

Attribute: D8400-L35-42-CF-X (L35MBT-42MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.689
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.323

D8400-L42-48-CF-SS-X

$237.04

Attribute: D8400-L42-48-CF-SS-X (L42MBT-48M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 THREAD ID (MM)	36.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.877
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.599

D8400-L42-48-CF-X

$55.95

Attribute: D8400-L42-48-CF-X (L42MBT-48MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 THREAD ID (MM)	36.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.877
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.599

D8400-S06-12-CF-SS-X

$38.33

Attribute: D8400-S06-12-CF-SS-X (S06MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.556

D8400-S06-12-CF-X

$5.33

Attribute: D8400-S06-12-CF-X (S06MBT-12MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.556

D8400-S06-14-CF-SS-X

$42.08

Attribute: D8400-S06-14-CF-SS-X (S06MBT-14M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.104
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

D8400-S08-12-CF-SS-X

$68.95

Attribute: D8400-S08-12-CF-SS-X (S08MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.081
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.564

D8400-S08-14-CF-SS-X

$45.49

Attribute: D8400-S08-14-CF-SS-X (S08MBT-14M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

D8400-S08-14-CF-X

$5.68

Attribute: D8400-S08-14-CF-X (S08MBT-14MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

D8400-S10-14-CF-SS-X

$75.61

Attribute: D8400-S10-14-CF-SS-X (S10MBT-14M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.115
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.760

D8400-S10-16-CF-SS-X

$48.05

Attribute: D8400-S10-16-CF-SS-X (S10MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.134
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.019

D8400-S10-16-CF-X

$7.34

Attribute: D8400-S10-16-CF-X (S10MBT-16MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.134
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.019

D8400-S10-18-CF-SS-X

$71.22

Attribute: D8400-S10-18-CF-SS-X (S10MBT-18M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	36.5
OVERALL LENGTH L2 (MM)	17.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.174
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.283

D8400-S12-12-CF-SS-X

$67.30

Attribute: D8400-S12-12-CF-SS-X (S12MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.063

D8400-S12-14-CF-SS-X

$59.36

Attribute: D8400-S12-14-CF-SS-X (S12MBT-14M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.145
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.063

D8400-S12-16-CF-SS-X

$59.36

Attribute: D8400-S12-16-CF-SS-X (S12MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.063

D8400-S12-18-CF-SS-X

$52.83

Attribute: D8400-S12-18-CF-SS-X (S12MBT-18M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	36.5
OVERALL LENGTH L2 (MM)	17.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.176
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.283

D8400-S12-18-CF-X

$7.81

Attribute: D8400-S12-18-CF-X (S12MBT-18MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	36.5
OVERALL LENGTH L2 (MM)	17.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.176
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.283

D8400-S12-22-CF-SS-X

$64.14

Attribute: D8400-S12-22-CF-SS-X (S12MBT-22M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.247
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D8400-S14-20-CF-SS-X

$68.41

Attribute: D8400-S14-20-CF-SS-X (S14MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.231
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D8400-S14-20-CF-X

$14.97

Attribute: D8400-S14-20-CF-X (S14MBT-20MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.231
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D8400-S16-18-CF-SS-X

$84.50

Attribute: D8400-S16-18-CF-SS-X (S16MBT-18M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.220
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.713

D8400-S16-18-CF-X

$31.28

Attribute: D8400-S16-18-CF-X (S16MBT-18MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.220
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.713

D8400-S16-22-CF-SS-X

$75.61

Attribute: D8400-S16-22-CF-SS-X (S16MBT-22M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	18.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.240
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D8400-S16-22-CF-X

$11.43

Attribute: D8400-S16-22-CF-X (S16MBT-22MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	18.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.240
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D8400-S20-27-CF-SS-X

$97.76

Attribute: D8400-S20-27-CF-SS-X (S20MBT-27M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M27X2.0
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.377
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.937

D8400-S20-27-CF-X

$18.18

Attribute: D8400-S20-27-CF-X (S20MBT-27MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M27X2.0
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.377
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.937

D8400-S25-33-CF-SS-X

$165.57

Attribute: D8400-S25-33-CF-SS-X (S25MBT-33M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.654
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D8400-S25-33-CF-X

$31.15

Attribute: D8400-S25-33-CF-X (S25MBT-33MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.654
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D8400-S30-42-CF-SS-X

$182.94

Attribute: D8400-S30-42-CF-SS-X (S30MBT-42M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.024
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.696

D8400-S30-42-CF-X

$51.21

Attribute: D8400-S30-42-CF-X (S30MBT-42MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.024
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.696

D8400-S38-48-CF-SS-X

$229.92

Attribute: D8400-S38-48-CF-SS-X (S38MBT-48M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 THREAD ID (MM)	32.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	64.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.383
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.814

D8400-S38-48-CF-X

$59.28

Attribute: D8400-S38-48-CF-X (S38MBT-48MM C...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 THREAD ID (MM)	32.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	64.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.383
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.814

Description

Description

Variations (88)

D8400-E04-08-CF-SS-X

D8400-E06-10-CF-SS-X

D8400-E08-10-CF-SS-X

D8400-L06-08-CF-SS-X

D8400-L06-10-CF-SS-X

D8400-L06-10-CF-X

D8400-L06-12-CF-X

D8400-L06-14-CF-SS-X

D8400-L08-10-CF-SS-X

D8400-L08-12-CF-SS-X

D8400-L08-12-CF-X

D8400-L08-14-CF-SS-X

D8400-L08-14-CF-X

D8400-L08-16-CF-SS-X

D8400-L08-16-CF-X

D8400-L08-18-CF-SS-X

D8400-L08-18-CF-X

D8400-L10-10-CF-SS-X

D8400-L10-10-CF-X

D8400-L10-12-CF-SS-X

D8400-L10-12-CF-X

D8400-L10-14-CF-SS-X

D8400-L10-14-CF-X

D8400-L10-16-CF-SS-X

D8400-L10-16-CF-X

D8400-L10-18-CF-SS-X

D8400-L10-18-CF-X

D8400-L10-22-CF-SS-X

D8400-L10-22-CF-X

D8400-L12-12-CF-SS-X

D8400-L12-14-CF-SS-X

D8400-L12-14-CF-X

D8400-L12-16-CF-SS-X

D8400-L12-16-CF-X

D8400-L12-18-CF-SS-X

D8400-L12-18-CF-X

D8400-L12-22-CF-SS-X

D8400-L12-22-CF-X

D8400-L15-16-CF-SS-X

D8400-L15-16-CF-X

D8400-L15-18-CF-SS-X

D8400-L15-18-CF-X

D8400-L15-22-CF-SS-X

D8400-L15-22-CF-X

D8400-L18-18-CF-SS-X

D8400-L18-18-CF-X

D8400-L18-22-CF-SS-X

D8400-L18-22-CF-X

D8400-L22-22-CF-SS-X

D8400-L22-22-CF-X

D8400-L22-26-CF-SS-X

D8400-L22-26-CF-X

D8400-L28-33-CF-SS-X

D8400-L28-33-CF-X

D8400-L35-42-CF-SS-X

D8400-L35-42-CF-X

D8400-L42-48-CF-SS-X

D8400-L42-48-CF-X

D8400-S06-12-CF-SS-X

D8400-S06-12-CF-X

D8400-S06-14-CF-SS-X

D8400-S08-12-CF-SS-X

D8400-S08-14-CF-SS-X

D8400-S08-14-CF-X

D8400-S10-14-CF-SS-X

D8400-S10-16-CF-SS-X

D8400-S10-16-CF-X

D8400-S10-18-CF-SS-X

D8400-S12-12-CF-SS-X

D8400-S12-14-CF-SS-X

D8400-S12-16-CF-SS-X

D8400-S12-18-CF-SS-X

D8400-S12-18-CF-X

D8400-S12-22-CF-SS-X

D8400-S14-20-CF-SS-X

D8400-S14-20-CF-X
