Description

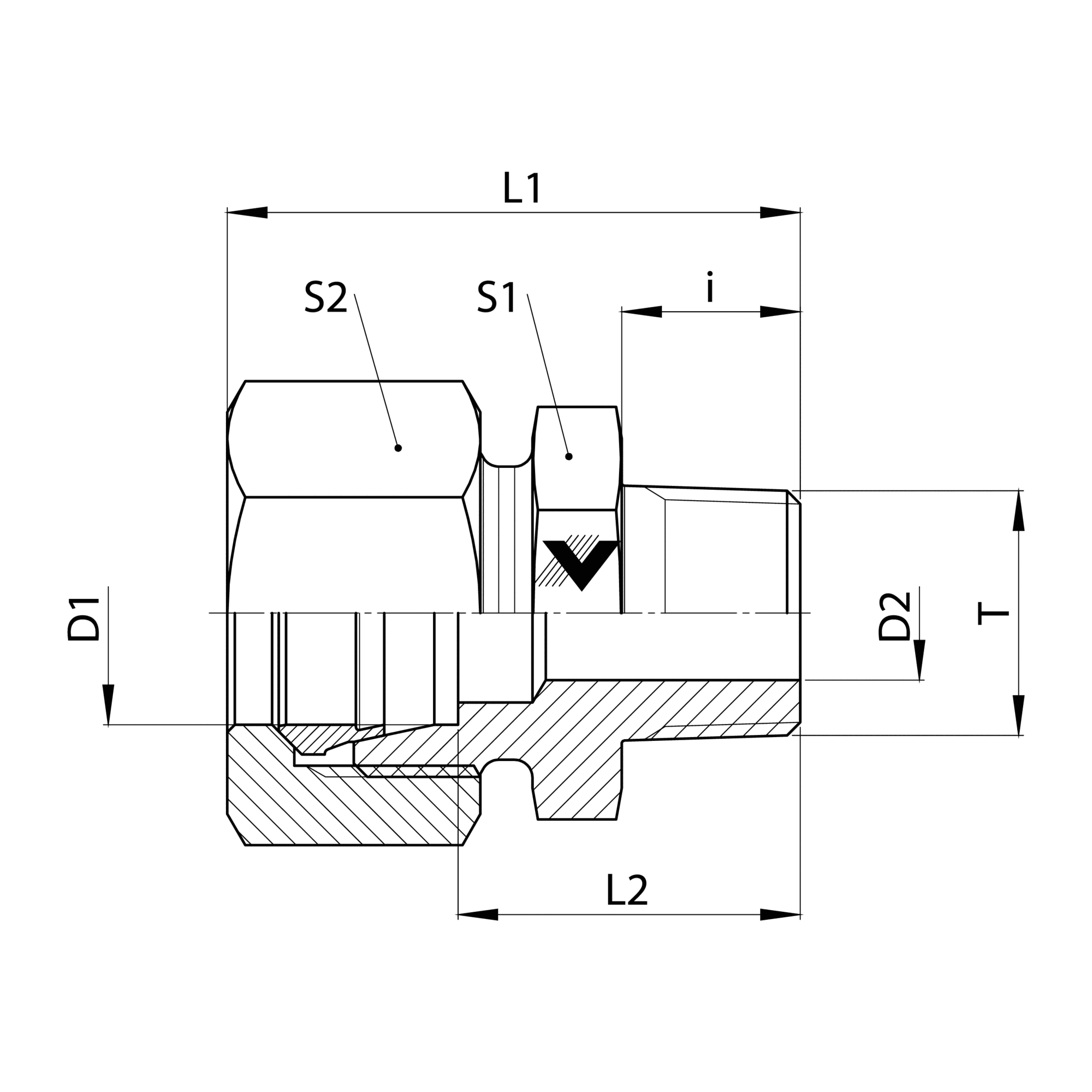

MBT-MMT STRAIGHT. MMT (MALE METRIC TAPERED)
Description
Variations (23)
D8404-E04-06
$14.47Attribute: D8404-E04-06 (E04MBT-06MMT Strai...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 04MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M08X1.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M06X1.0 |
| CONNECTION 2 THREAD (MM) | 2.5 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 9.0 |
| HEX C 1 (MM) | 10.0 |
| OVERALL LENGTH L1 (MM) | 26.0 |
| OVERALL LENGTH L2 (MM) | 20.0 |
| OVERALL LENGTH L3 (MM) | 16.0 |
| OVERALL LENGTH L4 (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.024 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.159 |
D8404-E04-06-SS
$50.56Attribute: D8404-E04-06-SS (E04MBT-06MMT St...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 04MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M08X1.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M06X1.0 |
| CONNECTION 2 THREAD (MM) | 2.5 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 9.0 |
| HEX C 1 (MM) | 10.0 |
| OVERALL LENGTH L1 (MM) | 26.0 |
| OVERALL LENGTH L2 (MM) | 20.0 |
| OVERALL LENGTH L3 (MM) | 16.0 |
| OVERALL LENGTH L4 (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.024 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.159 |
D8404-E04-08
$3.63Attribute: D8404-E04-08 (E04MBT-08MMT Strai...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 04MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M08X1.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M08X1.0 |
| CONNECTION 2 THREAD (MM) | 3.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 10.0 |
| HEX C 1 (MM) | 10.0 |
| OVERALL LENGTH L1 (MM) | 26.0 |
| OVERALL LENGTH L2 (MM) | 20.0 |
| OVERALL LENGTH L3 (MM) | 16.0 |
| OVERALL LENGTH L4 (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.028 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.159 |
D8404-E04-08-SS
$45.96Attribute: D8404-E04-08-SS (E04MBT-08MMT St...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 04MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M08X1.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M08X1.0 |
| CONNECTION 2 THREAD (MM) | 3.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 10.0 |
| HEX C 1 (MM) | 10.0 |
| OVERALL LENGTH L1 (MM) | 26.0 |
| OVERALL LENGTH L2 (MM) | 20.0 |
| OVERALL LENGTH L3 (MM) | 16.0 |
| OVERALL LENGTH L4 (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.028 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.159 |
D8404-E04-10-SS
$47.84Attribute: D8404-E04-10-SS (E04MBT-10MMT St...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 04MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M08X1.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M10X1.0 |
| CONNECTION 2 THREAD (MM) | 3.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 11.0 |
| HEX C 1 (MM) | 10.0 |
| OVERALL LENGTH L1 (MM) | 26.0 |
| OVERALL LENGTH L2 (MM) | 20.0 |
| OVERALL LENGTH L3 (MM) | 16.0 |
| OVERALL LENGTH L4 (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.033 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.192 |
D8404-E06-06
$5.25Attribute: D8404-E06-06 (E06MBT-06MMT Strai...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M10X1.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M06X1.0 |
| CONNECTION 2 THREAD (MM) | 2.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 11.0 |
| HEX C 1 (MM) | 12.0 |
| OVERALL LENGTH L1 (MM) | 26.0 |
| OVERALL LENGTH L2 (MM) | 20.0 |
| OVERALL LENGTH L3 (MM) | 14.5 |
| OVERALL LENGTH L4 (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.033 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.228 |
D8404-E06-06-SS
$50.14Attribute: D8404-E06-06-SS (E06MBT-06MMT St...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M10X1.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M06X1.0 |
| CONNECTION 2 THREAD (MM) | 2.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 11.0 |
| HEX C 1 (MM) | 12.0 |
| OVERALL LENGTH L1 (MM) | 26.0 |
| OVERALL LENGTH L2 (MM) | 20.0 |
| OVERALL LENGTH L3 (MM) | 14.5 |
| OVERALL LENGTH L4 (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.033 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.228 |
D8404-E06-08
$9.52Attribute: D8404-E06-08 (E06MBT-08MMT Strai...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M10X1.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M08X1.0 |
| CONNECTION 2 THREAD (MM) | 4.5 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 11.0 |
| HEX C 1 (MM) | 12.0 |
| OVERALL LENGTH L1 (MM) | 26.0 |
| OVERALL LENGTH L2 (MM) | 20.0 |
| OVERALL LENGTH L3 (MM) | 14.5 |
| OVERALL LENGTH L4 (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.033 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.228 |
D8404-E06-08-SS
$50.14Attribute: D8404-E06-08-SS (E06MBT-08MMT St...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M10X1.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M08X1.0 |
| CONNECTION 2 THREAD (MM) | 4.5 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 11.0 |
| HEX C 1 (MM) | 12.0 |
| OVERALL LENGTH L1 (MM) | 26.0 |
| OVERALL LENGTH L2 (MM) | 20.0 |
| OVERALL LENGTH L3 (MM) | 14.5 |
| OVERALL LENGTH L4 (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.033 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.228 |
D8404-E06-10
$3.84Attribute: D8404-E06-10 (E06MBT-10MMT Strai...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M10X1.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M10X1.0 |
| CONNECTION 2 THREAD (MM) | 4.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 11.0 |
| HEX C 1 (MM) | 12.0 |
| OVERALL LENGTH L1 (MM) | 26.0 |
| OVERALL LENGTH L2 (MM) | 20.0 |
| OVERALL LENGTH L3 (MM) | 14.5 |
| OVERALL LENGTH L4 (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.038 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.228 |
D8404-E06-10-SS
$50.14Attribute: D8404-E06-10-SS (E06MBT-10MMT St...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M10X1.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M10X1.0 |
| CONNECTION 2 THREAD (MM) | 4.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 11.0 |
| HEX C 1 (MM) | 12.0 |
| OVERALL LENGTH L1 (MM) | 26.0 |
| OVERALL LENGTH L2 (MM) | 20.0 |
| OVERALL LENGTH L3 (MM) | 14.5 |
| OVERALL LENGTH L4 (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.038 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.228 |
D8404-E08-08-SS
$55.60Attribute: D8404-E08-08-SS (E08MBT-08MMT St...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M12X1.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M08X1.0 |
| CONNECTION 2 THREAD (MM) | 3.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 12.0 |
| HEX C 1 (MM) | 14.0 |
| OVERALL LENGTH L1 (MM) | 28.0 |
| OVERALL LENGTH L2 (MM) | 22.0 |
| OVERALL LENGTH L3 (MM) | 16.5 |
| OVERALL LENGTH L4 (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.045 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.335 |
D8404-E08-10
$7.72Attribute: D8404-E08-10 (E08MBT-10MMT Strai...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M12X1.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M10X1.0 |
| CONNECTION 2 THREAD (MM) | 6.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 12.0 |
| HEX C 1 (MM) | 14.0 |
| OVERALL LENGTH L1 (MM) | 28.0 |
| OVERALL LENGTH L2 (MM) | 22.0 |
| OVERALL LENGTH L3 (MM) | 16.5 |
| OVERALL LENGTH L4 (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.045 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.335 |
D8404-E08-10-SS
$54.75Attribute: D8404-E08-10-SS (E08MBT-10MMT St...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M12X1.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M10X1.0 |
| CONNECTION 2 THREAD (MM) | 6.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 12.0 |
| HEX C 1 (MM) | 14.0 |
| OVERALL LENGTH L1 (MM) | 28.0 |
| OVERALL LENGTH L2 (MM) | 22.0 |
| OVERALL LENGTH L3 (MM) | 16.5 |
| OVERALL LENGTH L4 (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.045 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.335 |
D8404-L06-10-SS
$52.48Attribute: D8404-L06-10-SS (L06MBT-10MMT St...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M12X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M10X1.0 |
| CONNECTION 2 THREAD (MM) | 4.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 14.0 |
| HEX C 1 (MM) | 14.0 |
| OVERALL LENGTH L1 (MM) | 31.0 |
| OVERALL LENGTH L2 (MM) | 23.0 |
| OVERALL LENGTH L3 (MM) | 16.0 |
| OVERALL LENGTH L4 (MM) | 8.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.065 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.371 |
D8404-L08-12-SS
$56.16Attribute: D8404-L08-12-SS (L08MBT-12MMT St...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M12X1.5 |
| CONNECTION 2 THREAD (MM) | 6.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 14.0 |
| HEX C 1 (MM) | 17.0 |
| OVERALL LENGTH L1 (MM) | 35.0 |
| OVERALL LENGTH L2 (MM) | 27.0 |
| OVERALL LENGTH L3 (MM) | 20.0 |
| OVERALL LENGTH L4 (MM) | 12.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.088 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.617 |
D8404-L10-14
$6.10Attribute: D8404-L10-14 (L10MBT-14MMT Strai...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 THREAD (MM) | 7.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 36.0 |
| OVERALL LENGTH L2 (MM) | 28.0 |
| OVERALL LENGTH L3 (MM) | 21.0 |
| OVERALL LENGTH L4 (MM) | 12.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.116 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.793 |
D8404-L10-14-SS
$65.88Attribute: D8404-L10-14-SS (L10MBT-14MMT St...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 THREAD (MM) | 7.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 36.0 |
| OVERALL LENGTH L2 (MM) | 28.0 |
| OVERALL LENGTH L3 (MM) | 21.0 |
| OVERALL LENGTH L4 (MM) | 12.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.116 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.793 |
D8404-L12-16
$19.71Attribute: D8404-L12-16 (L12MBT-16MMT Strai...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 THREAD (MM) | 9.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 37.0 |
| OVERALL LENGTH L2 (MM) | 29.0 |
| OVERALL LENGTH L3 (MM) | 22.0 |
| OVERALL LENGTH L4 (MM) | 12.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.149 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.093 |
D8404-L12-16-SS
$78.52Attribute: D8404-L12-16-SS (L12MBT-16MMT St...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 THREAD (MM) | 9.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 37.0 |
| OVERALL LENGTH L2 (MM) | 29.0 |
| OVERALL LENGTH L3 (MM) | 22.0 |
| OVERALL LENGTH L4 (MM) | 12.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.149 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.093 |
D8404-L12-18-SS
$120.63Attribute: D8404-L12-18-SS (L12MBT-18MMT St...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 THREAD (MM) | 10.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 37.0 |
| OVERALL LENGTH L2 (MM) | 29.0 |
| OVERALL LENGTH L3 (MM) | 22.0 |
| OVERALL LENGTH L4 (MM) | 12.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.155 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.093 |
D8404-L15-18-SS
$83.30Attribute: D8404-L15-18-SS (L15MBT-18MMT St...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 THREAD (MM) | 11.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 24.0 |
| HEX C 1 (MM) | 27.0 |
| OVERALL LENGTH L1 (MM) | 38.5 |
| OVERALL LENGTH L2 (MM) | 30.0 |
| OVERALL LENGTH L3 (MM) | 23.0 |
| OVERALL LENGTH L4 (MM) | 12.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.227 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.713 |
D8404-L18-22-SS
$138.34Attribute: D8404-L18-22-SS (L18MBT-22MMT St...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M26X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC TAPERED |
| C0NNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 THREAD (MM) | 14.0 |
| CONNECTION 2 SPECIFICATION | DIN 158 |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 32.0 |
| OVERALL LENGTH L1 (MM) | 42.5 |
| OVERALL LENGTH L2 (MM) | 33.0 |
| OVERALL LENGTH L3 (MM) | 25.5 |
| OVERALL LENGTH L4 (MM) | 14.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.333 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.656 |
General Attributes
No general attributes scraped.
PDF Documents
No PDF documents scraped.
