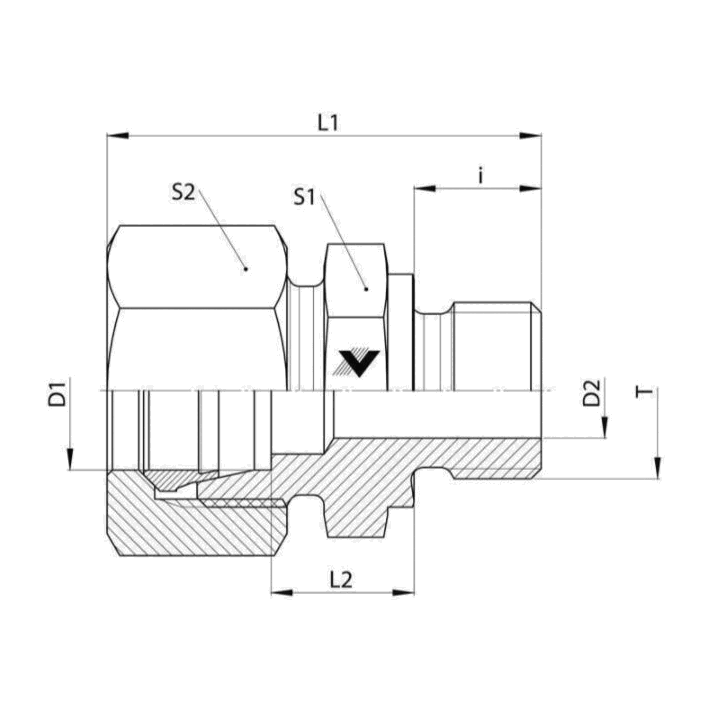

D8400-CF

D8400-E04-06-CF

$8.58

Attribute: D8400-E04-06-CF (E04MBT-06MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M06X1.0
CONNECTION 2 THREAD ID (MM)	2.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	11.0
HEX C 1 (MM)	10.0
OVERALL LENGTH L1 (MM)	27.5
OVERALL LENGTH L2 (MM)	21.5
OVERALL LENGTH L3 (MM)	9.5
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.029
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.203

D8400-E04-08-CF

$5.12

Attribute: D8400-E04-08-CF (E04MBT-08MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	12.0
HEX C 1 (MM)	10.0
OVERALL LENGTH L1 (MM)	27.5
OVERALL LENGTH L2 (MM)	21.5
OVERALL LENGTH L3 (MM)	9.5
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.033
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.242

D8400-E04-08-CF-SS

$98.23

Attribute: D8400-E04-08-CF-SS (E04MBT-08MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	12.0
HEX C 1 (MM)	10.0
OVERALL LENGTH L1 (MM)	27.5
OVERALL LENGTH L2 (MM)	21.5
OVERALL LENGTH L3 (MM)	9.5
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.033
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.242

D8400-E06-06-CF

$6.57

Attribute: D8400-E06-06-CF (E06MBT-06MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M06X1.0
CONNECTION 2 THREAD ID (MM)	2.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	11.0
HEX C 1 (MM)	12.0
OVERALL LENGTH L1 (MM)	27.5
OVERALL LENGTH L2 (MM)	21.5
OVERALL LENGTH L3 (MM)	8.0
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.034
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.242

D8400-E06-08-CF

$12.72

Attribute: D8400-E06-08-CF (E06MBT-08MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	12.0
HEX C 1 (MM)	12.0
OVERALL LENGTH L1 (MM)	27.5
OVERALL LENGTH L2 (MM)	21.5
OVERALL LENGTH L3 (MM)	8.0
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.038
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.242

D8400-E06-10-CF

$6.66

Attribute: D8400-E06-10-CF (E06MBT-10MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	14.0
HEX C 1 (MM)	12.0
OVERALL LENGTH L1 (MM)	27.5
OVERALL LENGTH L2 (MM)	21.5
OVERALL LENGTH L3 (MM)	8.0
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.045
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.329

D8400-E06-10-CF-SS

$55.90

Attribute: D8400-E06-10-CF-SS (E06MBT-10MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	14.0
HEX C 1 (MM)	12.0
OVERALL LENGTH L1 (MM)	27.5
OVERALL LENGTH L2 (MM)	21.5
OVERALL LENGTH L3 (MM)	8.0
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.045
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.329

D8400-E08-10-CF

$27.78

Attribute: D8400-E08-10-CF (E08MBT-10MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	28.5
OVERALL LENGTH L2 (MM)	22.5
OVERALL LENGTH L3 (MM)	9.0
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.051
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.341

D8400-E08-10-CF-SS

$67.42

Attribute: D8400-E08-10-CF-SS (E08MBT-10MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	28.5
OVERALL LENGTH L2 (MM)	22.5
OVERALL LENGTH L3 (MM)	9.0
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.051
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.341

D8400-L06-08-CF-SS

$139.75

Attribute: D8400-L06-08-CF-SS (L06MBT-08MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	8.5
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.061
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.377

D8400-L06-10-CF

$5.68

Attribute: D8400-L06-10-CF (L06MBT-10MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	8.5
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.377

D8400-L06-10-CF-SS

$32.43

Attribute: D8400-L06-10-CF-SS (L06MBT-10MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	8.5
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.377

D8400-L06-12-CF

$34.91

Attribute: D8400-L06-12-CF (L06MBT-12MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	10.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.653

D8400-L06-14-CF-SS

$48.65

Attribute: D8400-L06-14-CF-SS (L06MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.109
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.837

D8400-L08-10-CF-SS

$45.40

Attribute: D8400-L08-10-CF-SS (L08MBT-10MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	8.5
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.080
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.556

D8400-L08-12-CF

$6.95

Attribute: D8400-L08-12-CF (L08MBT-12MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	10.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.099
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.653

D8400-L08-12-CF-SS

$43.73

Attribute: D8400-L08-12-CF-SS (L08MBT-12MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	10.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.099
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.653

D8400-L08-14-CF

$22.78

Attribute: D8400-L08-14-CF (L08MBT-14MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.120
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.837

D8400-L08-14-CF-SS

$49.03

Attribute: D8400-L08-14-CF-SS (L08MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.120
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.837

D8400-L08-16-CF

$24.11

Attribute: D8400-L08-16-CF (L08MBT-16MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	30.5
OVERALL LENGTH L3 (MM)	11.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.146
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.137

D8400-L08-16-CF-SS

$61.84

Attribute: D8400-L08-16-CF-SS (L08MBT-16MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	30.5
OVERALL LENGTH L3 (MM)	11.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.146
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.137

D8400-L08-18-CF

$17.07

Attribute: D8400-L08-18-CF (L08MBT-18MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	30.5
OVERALL LENGTH L3 (MM)	11.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.162
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.353

D8400-L10-10-CF

$34.77

Attribute: D8400-L10-10-CF (L10MBT-10MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	33.5
OVERALL LENGTH L2 (MM)	25.5
OVERALL LENGTH L3 (MM)	10.5
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.105
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.738

D8400-L10-10-CF-SS

$60.13

Attribute: D8400-L10-10-CF-SS (L10MBT-10MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	33.5
OVERALL LENGTH L2 (MM)	25.5
OVERALL LENGTH L3 (MM)	10.5
OVERALL LENGTH L4 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.105
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.738

D8400-L10-12-CF

$23.90

Attribute: D8400-L10-12-CF (L10MBT-12MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.114
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.837

D8400-L10-12-CF-SS

$56.24

Attribute: D8400-L10-12-CF-SS (L10MBT-12MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.114
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.837

D8400-L10-14-CF

$7.98

Attribute: D8400-L10-14-CF (L10MBT-14MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.126
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.837

D8400-L10-14-CF-SS

$49.20

Attribute: D8400-L10-14-CF-SS (L10MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.126
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.837

D8400-L10-16-CF

$17.71

Attribute: D8400-L10-16-CF (L10MBT-16MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.153
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.167

D8400-L10-16-CF-SS

$67.64

Attribute: D8400-L10-16-CF-SS (L10MBT-16MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.153
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.167

D8400-L10-18-CF

$21.04

Attribute: D8400-L10-18-CF (L10MBT-18MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.388

D8400-L10-18-CF-SS

$78.31

Attribute: D8400-L10-18-CF-SS (L10MBT-18MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.388

D8400-L10-22-CF

$39.18

Attribute: D8400-L10-22-CF (L10MBT-22MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	14.0
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.248
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.913

D8400-L10-22-CF-SS

$109.54

Attribute: D8400-L10-22-CF-SS (L10MBT-22MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	14.0
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.248
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.913

D8400-L12-12-CF-SS

$61.70

Attribute: D8400-L12-12-CF-SS (L12MBT-12MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.122

D8400-L12-14-CF

$32.43

Attribute: D8400-L12-14-CF (L12MBT-14MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.146
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.122

D8400-L12-14-CF-SS

$60.93

Attribute: D8400-L12-14-CF-SS (L12MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.146
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.122

D8400-L12-16-CF

$10.41

Attribute: D8400-L12-16-CF (L12MBT-16MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.169
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.167

D8400-L12-16-CF-SS

$64.94

Attribute: D8400-L12-16-CF-SS (L12MBT-16MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.169
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.167

D8400-L12-18-CF

$19.45

Attribute: D8400-L12-18-CF (L12MBT-18MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.185
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.388

D8400-L12-18-CF-SS

$82.36

Attribute: D8400-L12-18-CF-SS (L12MBT-18MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.185
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.388

D8400-L12-22-CF

$21.51

Attribute: D8400-L12-22-CF (L12MBT-22MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	14.0
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.256
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.913

D8400-L12-22-CF-SS

$110.95

Attribute: D8400-L12-22-CF-SS (L12MBT-22MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	14.0
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.256
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.913

D8400-L15-16-CF

$31.96

Attribute: D8400-L15-16-CF (L15MBT-16MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	13.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.232
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.802

D8400-L15-16-CF-SS

$89.27

Attribute: D8400-L15-16-CF-SS (L15MBT-16MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	13.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.232
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.802

D8400-L15-18-CF

$12.34

Attribute: D8400-L15-18-CF (L15MBT-18MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	32.5
OVERALL LENGTH L3 (MM)	13.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.237
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D8400-L15-18-CF-SS

$86.07

Attribute: D8400-L15-18-CF-SS (L15MBT-18MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	32.5
OVERALL LENGTH L3 (MM)	13.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.237
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D8400-L15-22-CF

$25.31

Attribute: D8400-L15-22-CF (L15MBT-22MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.300
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.980

D8400-L15-22-CF-SS

$111.29

Attribute: D8400-L15-22-CF-SS (L15MBT-22MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.300
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.980

D8400-L18-18-CF

$20.18

Attribute: D8400-L18-18-CF (L18MBT-18MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	33.5
OVERALL LENGTH L3 (MM)	14.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.326
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.687

D8400-L18-18-CF-SS

$114.49

Attribute: D8400-L18-18-CF-SS (L18MBT-18MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	33.5
OVERALL LENGTH L3 (MM)	14.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.326
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.687

D8400-L18-22-CF

$18.14

Attribute: D8400-L18-22-CF (L18MBT-22MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	14.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.349
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.843

D8400-L18-22-CF-SS

$124.05

Attribute: D8400-L18-22-CF-SS (L18MBT-22MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	14.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.349
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.843

D8400-L22-22-CF

$44.97

Attribute: D8400-L22-22-CF (L22MBT-22MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	16.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.454
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.836

D8400-L22-22-CF-SS

$170.52

Attribute: D8400-L22-22-CF-SS (L22MBT-22MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	16.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.454
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.836

D8400-L22-26-CF

$27.31

Attribute: D8400-L22-26-CF (L22MBT-26MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	16.5
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.469
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.994

D8400-L22-26-CF-SS

$145.17

Attribute: D8400-L22-26-CF-SS (L22MBT-26MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	16.5
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.469
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.994

D8400-L28-33-CF

$47.41

Attribute: D8400-L28-33-CF (L28MBT-33MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	54.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.666
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.539

D8400-L28-33-CF-SS

$231.59

Attribute: D8400-L28-33-CF-SS (L28MBT-33MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	54.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.666
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.539

D8400-L35-42-CF

$57.31

Attribute: D8400-L35-42-CF (L35MBT-42MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	48.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.072
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.154

D8400-L35-42-CF-SS

$286.21

Attribute: D8400-L35-42-CF-SS (L35MBT-42MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	48.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.072
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.154

D8400-L42-48-CF

$64.18

Attribute: D8400-L42-48-CF (L42MBT-48MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 THREAD ID (MM)	36.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	64.0
OVERALL LENGTH L2 (MM)	52.0
OVERALL LENGTH L3 (MM)	19.0
OVERALL LENGTH L4 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.458
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.060

D8400-L42-48-CF-SS

$381.57

Attribute: D8400-L42-48-CF-SS (L42MBT-48MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 THREAD ID (MM)	36.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	64.0
OVERALL LENGTH L2 (MM)	52.0
OVERALL LENGTH L3 (MM)	19.0
OVERALL LENGTH L4 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.458
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.060

D8400-S06-12-CF

$8.02

Attribute: D8400-S06-12-CF (S06MBT-12MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.120
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.697

D8400-S06-12-CF-SS

$53.21

Attribute: D8400-S06-12-CF-SS (S06MBT-12MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	12.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.120
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.697

D8400-S06-14-CF-SS

$57.66

Attribute: D8400-S06-14-CF-SS (S06MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.925

D8400-S08-12-CF-SS

$85.89

Attribute: D8400-S08-12-CF-SS (S08MBT-12MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	13.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.135
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.881

D8400-S08-14-CF

$8.84

Attribute: D8400-S08-14-CF (S08MBT-14MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.160
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.925

D8400-S08-14-CF-SS

$62.85

Attribute: D8400-S08-14-CF-SS (S08MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.160
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.925

D8400-S10-14-CF-SS

$94.87

Attribute: D8400-S10-14-CF-SS (S10MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.194
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.285

D8400-S10-16-CF

$11.48

Attribute: D8400-S10-16-CF (S10MBT-16MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.214
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.285

D8400-S10-16-CF-SS

$73.10

Attribute: D8400-S10-16-CF-SS (S10MBT-16MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.214
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.285

D8400-S10-18-CF-SS

$91.96

Attribute: D8400-S10-18-CF-SS (S10MBT-18MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	17.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.254
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.599

D8400-S12-12-CF-SS

$90.72

Attribute: D8400-S12-12-CF-SS (S12MBT-12MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	16.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.229
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.582

D8400-S12-14-CF-SS

$89.10

Attribute: D8400-S12-14-CF-SS (S12MBT-14MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	16.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.582

D8400-S12-16-CF-SS

$87.69

Attribute: D8400-S12-16-CF-SS (S12MBT-16MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	16.5
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.240
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.582

D8400-S12-18-CF

$12.20

Attribute: D8400-S12-18-CF (S12MBT-18MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	17.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.265
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.599

D8400-S12-18-CF-SS

$82.02

Attribute: D8400-S12-18-CF-SS (S12MBT-18MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	17.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.265
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.599

D8400-S12-22-CF-SS

$87.60

Attribute: D8400-S12-22-CF-SS (S12MBT-22MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	39.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.337
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.135

D8400-S14-20-CF

$22.83

Attribute: D8400-S14-20-CF (S14MBT-20MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	19.0
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.366
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.269

D8400-S14-20-CF-SS

$106.04

Attribute: D8400-S14-20-CF-SS (S14MBT-20MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	19.0
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.366
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.269

D8400-S16-18-CF

$41.26

Attribute: D8400-S16-18-CF (S16MBT-18MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	38.5
OVERALL LENGTH L3 (MM)	18.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.386
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.664

D8400-S16-18-CF-SS

$124.73

Attribute: D8400-S16-18-CF-SS (S16MBT-18MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	38.5
OVERALL LENGTH L3 (MM)	18.0
OVERALL LENGTH L4 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.386
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.664

D8400-S16-22-CF

$20.27

Attribute: D8400-S16-22-CF (S16MBT-22MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	18.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.406
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.801

D8400-S16-22-CF-SS

$128.61

Attribute: D8400-S16-22-CF-SS (S16MBT-22MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	18.5
OVERALL LENGTH L4 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.406
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.801

D8400-S20-27-CF

$32.86

Attribute: D8400-S20-27-CF (S20MBT-27MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M27X2.0
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	47.0
OVERALL LENGTH L3 (MM)	20.5
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.644
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.666

D8400-S20-27-CF-SS

$153.62

Attribute: D8400-S20-27-CF-SS (S20MBT-27MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M27X2.0
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	47.0
OVERALL LENGTH L3 (MM)	20.5
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.644
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.666

D8400-S25-33-CF

$52.71

Attribute: D8400-S25-33-CF (S25MBT-33MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	53.0
OVERALL LENGTH L3 (MM)	23.0
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.169
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.522

D8400-S25-33-CF-SS

$263.88

Attribute: D8400-S25-33-CF-SS (S25MBT-33MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M33X2.0
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	53.0
OVERALL LENGTH L3 (MM)	23.0
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.169
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.522

D8400-S30-42-CF

$91.19

Attribute: D8400-S30-42-CF (S30MBT-42MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	71.2
OVERALL LENGTH L2 (MM)	57.0
OVERALL LENGTH L3 (MM)	23.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.597
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.870

D8400-S30-42-CF-SS

$306.55

Attribute: D8400-S30-42-CF-SS (S30MBT-42MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	71.2
OVERALL LENGTH L2 (MM)	57.0
OVERALL LENGTH L3 (MM)	23.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.597
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.870

D8400-S38-48-CF

$115.90

Attribute: D8400-S38-48-CF (S38MBT-48MM CF ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 THREAD ID (MM)	32.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	79.5
OVERALL LENGTH L2 (MM)	64.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.209
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.465

D8400-S38-48-CF-SS

$397.66

Attribute: D8400-S38-48-CF-SS (S38MBT-48MM ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC FORM B
CONNECTION 2 THREAD SIZE	M48X2.0
CONNECTION 2 THREAD ID (MM)	32.0
CONNECTION 2 SPECIFICATION	ISO 9974
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	79.5
OVERALL LENGTH L2 (MM)	64.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.209
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.465

Description

Description

Variations (93)

D8400-E04-06-CF

D8400-E04-08-CF

D8400-E04-08-CF-SS

D8400-E06-06-CF

D8400-E06-08-CF

D8400-E06-10-CF

D8400-E06-10-CF-SS

D8400-E08-10-CF

D8400-E08-10-CF-SS

D8400-L06-08-CF-SS

D8400-L06-10-CF

D8400-L06-10-CF-SS

D8400-L06-12-CF

D8400-L06-14-CF-SS

D8400-L08-10-CF-SS

D8400-L08-12-CF

D8400-L08-12-CF-SS

D8400-L08-14-CF

D8400-L08-14-CF-SS

D8400-L08-16-CF

D8400-L08-16-CF-SS

D8400-L08-18-CF

D8400-L10-10-CF

D8400-L10-10-CF-SS

D8400-L10-12-CF

D8400-L10-12-CF-SS

D8400-L10-14-CF

D8400-L10-14-CF-SS

D8400-L10-16-CF

D8400-L10-16-CF-SS

D8400-L10-18-CF

D8400-L10-18-CF-SS

D8400-L10-22-CF

D8400-L10-22-CF-SS

D8400-L12-12-CF-SS

D8400-L12-14-CF

D8400-L12-14-CF-SS

D8400-L12-16-CF

D8400-L12-16-CF-SS

D8400-L12-18-CF

D8400-L12-18-CF-SS

D8400-L12-22-CF

D8400-L12-22-CF-SS

D8400-L15-16-CF

D8400-L15-16-CF-SS

D8400-L15-18-CF

D8400-L15-18-CF-SS

D8400-L15-22-CF

D8400-L15-22-CF-SS

D8400-L18-18-CF

D8400-L18-18-CF-SS

D8400-L18-22-CF

D8400-L18-22-CF-SS

D8400-L22-22-CF

D8400-L22-22-CF-SS

D8400-L22-26-CF

D8400-L22-26-CF-SS

D8400-L28-33-CF

D8400-L28-33-CF-SS

D8400-L35-42-CF

D8400-L35-42-CF-SS

D8400-L42-48-CF

D8400-L42-48-CF-SS

D8400-S06-12-CF

D8400-S06-12-CF-SS

D8400-S06-14-CF-SS

D8400-S08-12-CF-SS

D8400-S08-14-CF

D8400-S08-14-CF-SS

D8400-S10-14-CF-SS

D8400-S10-16-CF

D8400-S10-16-CF-SS

D8400-S10-18-CF-SS

D8400-S12-12-CF-SS

D8400-S12-14-CF-SS

D8400-S12-16-CF-SS
