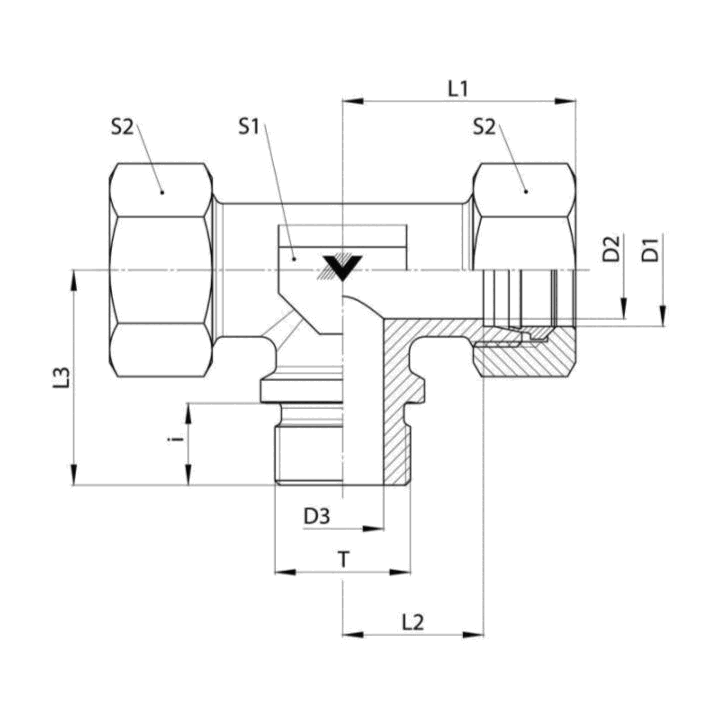

MBT-MBT-MBSPP CF TEE
Description
Variations (10)
D7803-L22-L22-12-CF-SS
$428.43Attribute: D7803-L22-L22-12-CF-SS (L22MBT-L...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION |
| CONNECTION 2 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE BSPP FORM B |
| CONNECTION 3 THREAD SIZE | 3/4-14 |
| CONNECTION 3 THREAD ID (MM) | 18.0 |
| CONNECTION 3 SPECIFICATION | DIN 3852-2 FORM B |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 36.0 |
| HEX C 2 (MM) | 36.0 |
| CENTERLINE LENGTH M1 (MM) | 45.5 |
| CENTERLINE LENGTH M2 (MM) | 35.0 |
| CENTERLINE LENGHT M3 (MM) | 27.5 |
| CENTERLINE LENGTH L1 (MM) | 42.0 |
| CENTERLINE LENGTH L2 (MM) | 16.0 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.989 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 11.995 |
D7803-L28-L28-16-CF
$289.79Attribute: D7803-L28-L28-16-CF (L28MBT-L28M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION |
| CONNECTION 2 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE BSPP FORM B |
| CONNECTION 3 THREAD SIZE | 1-11 |
| CONNECTION 3 THREAD ID (MM) | 23.0 |
| CONNECTION 3 SPECIFICATION | DIN 3852-2 FORM B |
| BODY HEX (MM) | 36.0 |
| HEX C 1 (MM) | 41.0 |
| HEX C 2 (MM) | 41.0 |
| CENTERLINE LENGTH M1 (MM) | 49.0 |
| CENTERLINE LENGTH M2 (MM) | 38.0 |
| CENTERLINE LENGHT M3 (MM) | 30.5 |
| CENTERLINE LENGTH L1 (MM) | 48.0 |
| CENTERLINE LENGTH L2 (MM) | 18.0 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 1.366 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 16.796 |
D7803-L28-L28-16-CF-SS
$681.39Attribute: D7803-L28-L28-16-CF-SS (L28MBT-L...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION |
| CONNECTION 2 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE BSPP FORM B |
| CONNECTION 3 THREAD SIZE | 1-11 |
| CONNECTION 3 THREAD ID (MM) | 23.0 |
| CONNECTION 3 SPECIFICATION | DIN 3852-2 FORM B |
| BODY HEX (MM) | 36.0 |
| HEX C 1 (MM) | 41.0 |
| HEX C 2 (MM) | 41.0 |
| CENTERLINE LENGTH M1 (MM) | 49.0 |
| CENTERLINE LENGTH M2 (MM) | 38.0 |
| CENTERLINE LENGHT M3 (MM) | 30.5 |
| CENTERLINE LENGTH L1 (MM) | 48.0 |
| CENTERLINE LENGTH L2 (MM) | 18.0 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 1.366 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 16.796 |
D7803-L35-L35-20-CF-SS
$1,319.14Attribute: D7803-L35-L35-20-CF-SS (L35MBT-L...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M45X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION |
| CONNECTION 2 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M45X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE BSPP FORM B |
| CONNECTION 3 THREAD SIZE | 1-1/4-11 |
| CONNECTION 3 THREAD ID (MM) | 30.0 |
| CONNECTION 3 SPECIFICATION | DIN 3852-2 FORM B |
| BODY HEX (MM) | 41.0 |
| HEX C 1 (MM) | 50.0 |
| HEX C 2 (MM) | 50.0 |
| CENTERLINE LENGTH M1 (MM) | 57.0 |
| CENTERLINE LENGTH M2 (MM) | 45.0 |
| CENTERLINE LENGHT M3 (MM) | 34.5 |
| CENTERLINE LENGTH L1 (MM) | 54.0 |
| CENTERLINE LENGTH L2 (MM) | 20.0 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 2.059 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 27.479 |
D7803-L42-L42-24-CF-SS
$1,347.76Attribute: D7803-L42-L42-24-CF-SS (L42MBT-L...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION |
| CONNECTION 2 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE BSPP FORM B |
| CONNECTION 3 THREAD SIZE | 1-1/2-11 |
| CONNECTION 3 THREAD ID (MM) | 36.0 |
| CONNECTION 3 SPECIFICATION | DIN 3852-2 FORM B |
| BODY HEX (MM) | 50.0 |
| HEX C 1 (MM) | 60.0 |
| HEX C 2 (MM) | 60.0 |
| CENTERLINE LENGTH M1 (MM) | 63.0 |
| CENTERLINE LENGTH M2 (MM) | 51.0 |
| CENTERLINE LENGHT M3 (MM) | 40.0 |
| CENTERLINE LENGTH L1 (MM) | 61.0 |
| CENTERLINE LENGTH L2 (MM) | 22.0 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 3.024 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 41.982 |
D7803-S20-S20-12-CF-SS
$457.14Attribute: D7803-S20-S20-12-CF-SS (S20MBT-S...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION |
| CONNECTION 2 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE BSPP FORM B |
| CONNECTION 3 THREAD SIZE | 3/4-14 |
| CONNECTION 3 THREAD ID (MM) | 16.0 |
| CONNECTION 3 SPECIFICATION | DIN 3852-2 FORM B |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 36.0 |
| HEX C 2 (MM) | 36.0 |
| CENTERLINE LENGTH M1 (MM) | 49.0 |
| CENTERLINE LENGTH M2 (MM) | 37.0 |
| CENTERLINE LENGHT M3 (MM) | 26.5 |
| CENTERLINE LENGTH L1 (MM) | 42.0 |
| CENTERLINE LENGTH L2 (MM) | 16.0 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 1.236 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 12.917 |
D7803-S25-S25-16-CF
$316.50Attribute: D7803-S25-S25-16-CF (S25MBT-S25M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION |
| CONNECTION 2 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE BSPP FORM B |
| CONNECTION 3 THREAD SIZE | 1-11 |
| CONNECTION 3 THREAD ID (MM) | 20.0 |
| CONNECTION 3 SPECIFICATION | DIN 3852-2 FORM B |
| BODY HEX (MM) | 36.0 |
| HEX C 1 (MM) | 46.0 |
| HEX C 2 (MM) | 46.0 |
| CENTERLINE LENGTH M1 (MM) | 55.0 |
| CENTERLINE LENGTH M2 (MM) | 42.0 |
| CENTERLINE LENGHT M3 (MM) | 30.0 |
| CENTERLINE LENGTH L1 (MM) | 48.0 |
| CENTERLINE LENGTH L2 (MM) | 18.0 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 2.200 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 21.923 |
D7803-S25-S25-16-CF-SS
$799.43Attribute: D7803-S25-S25-16-CF-SS (S25MBT-S...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION |
| CONNECTION 2 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE BSPP FORM B |
| CONNECTION 3 THREAD SIZE | 1-11 |
| CONNECTION 3 THREAD ID (MM) | 20.0 |
| CONNECTION 3 SPECIFICATION | DIN 3852-2 FORM B |
| BODY HEX (MM) | 36.0 |
| HEX C 1 (MM) | 46.0 |
| HEX C 2 (MM) | 46.0 |
| CENTERLINE LENGTH M1 (MM) | 55.0 |
| CENTERLINE LENGTH M2 (MM) | 42.0 |
| CENTERLINE LENGHT M3 (MM) | 30.0 |
| CENTERLINE LENGTH L1 (MM) | 48.0 |
| CENTERLINE LENGTH L2 (MM) | 18.0 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 2.200 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 21.923 |
D7803-S30-S30-20-CF-SS
$1,069.24Attribute: D7803-S30-S30-20-CF-SS (S30MBT-S...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M42X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION |
| CONNECTION 2 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M42X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE BSPP FORM B |
| CONNECTION 3 THREAD SIZE | 1-1/4-11 |
| CONNECTION 3 THREAD ID (MM) | 25.0 |
| CONNECTION 3 SPECIFICATION | DIN 3852-2 FORM B |
| BODY HEX (MM) | 41.0 |
| HEX C 1 (MM) | 50.0 |
| HEX C 2 (MM) | 50.0 |
| CENTERLINE LENGTH M1 (MM) | 63.2 |
| CENTERLINE LENGTH M2 (MM) | 49.0 |
| CENTERLINE LENGHT M3 (MM) | 35.5 |
| CENTERLINE LENGTH L1 (MM) | 54.0 |
| CENTERLINE LENGTH L2 (MM) | 20.0 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 2.949 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 30.492 |
D7803-S38-S38-24-CF-SS
$1,965.03Attribute: D7803-S38-S38-24-CF-SS (S38MBT-S...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION |
| CONNECTION 2 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE BSPP FORM B |
| CONNECTION 3 THREAD SIZE | 1-1/2-11 |
| CONNECTION 3 THREAD ID (MM) | 32.0 |
| CONNECTION 3 SPECIFICATION | DIN 3852-2 FORM B |
| BODY HEX (MM) | 50.0 |
| HEX C 1 (MM) | 60.0 |
| HEX C 2 (MM) | 60.0 |
| CENTERLINE LENGTH M1 (MM) | 72.5 |
| CENTERLINE LENGTH M2 (MM) | 57.0 |
| CENTERLINE LENGHT M3 (MM) | 41.0 |
| CENTERLINE LENGTH L1 (MM) | 61.0 |
| CENTERLINE LENGTH L2 (MM) | 22.0 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 4.286 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 48.313 |
General Attributes
No general attributes scraped.
PDF Documents
No PDF documents scraped.
