Description

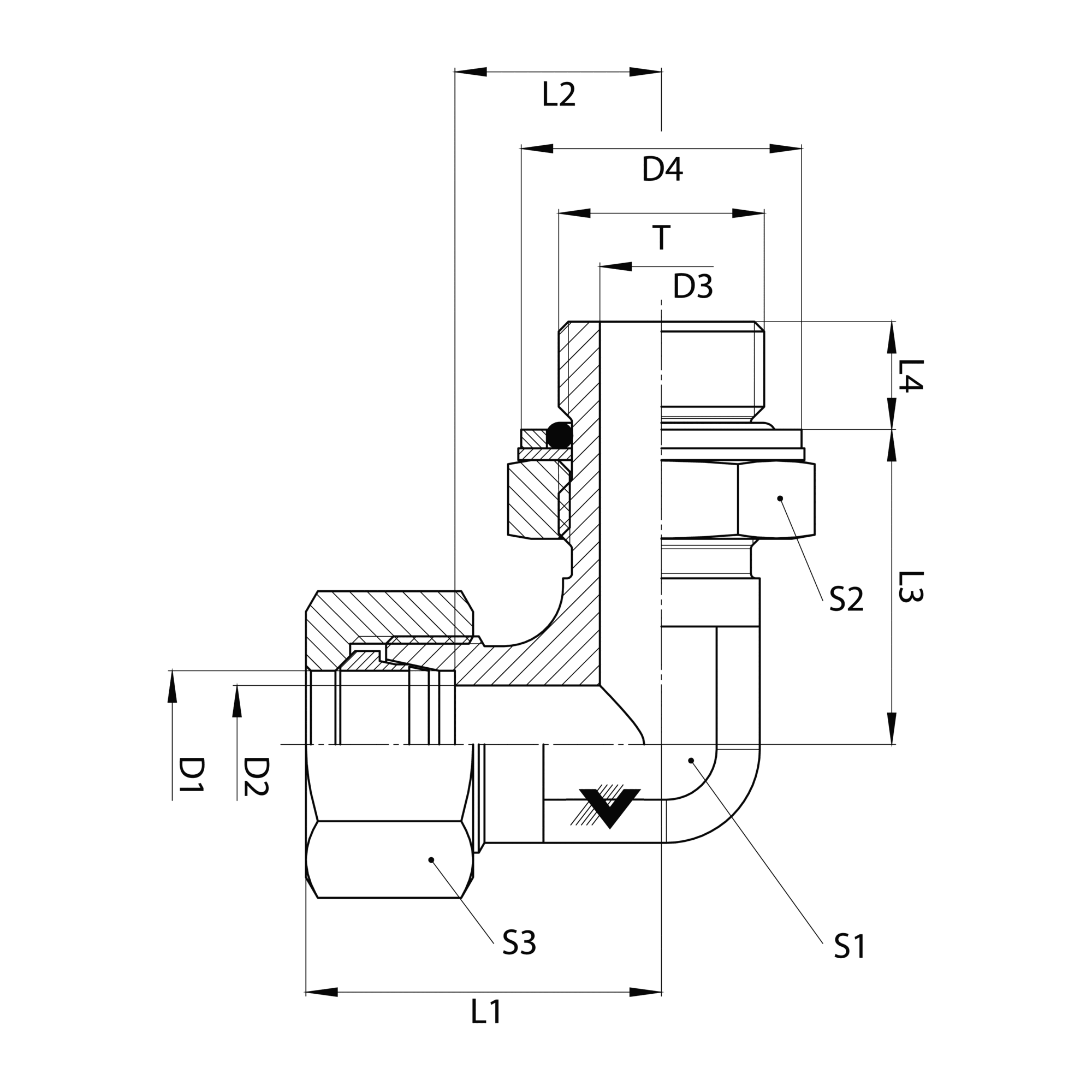

MBT-MBSPPAORB RR 90 ELBOW.
Description
Variations (29)
D7801-L06-02-NWO-RR
$32.52Attribute: D7801-L06-02-NWO-RR (L06MBT-02MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M12X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1/8-28 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L06-02-NWO-RR-SS
$402.45Attribute: D7801-L06-02-NWO-RR-SS (L06MBT-0...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M12X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1/8-28 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L08-04-NWO-RR-SS
$416.44Attribute: D7801-L08-04-NWO-RR-SS (L08MBT-0...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1/4-19 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L10-04-NWO-RR-SS
$429.24Attribute: D7801-L10-04-NWO-RR-SS (L10MBT-0...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1/4-19 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L10-06-NWO-RR
$54.43Attribute: D7801-L10-06-NWO-RR (L10MBT-06MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 3/8-19 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L12-06-NWO-RR-SS
$455.40Attribute: D7801-L12-06-NWO-RR-SS (L12MBT-0...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 3/8-19 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L15-08-NWO-RR
$57.99Attribute: D7801-L15-08-NWO-RR (L15MBT-08MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1/2-14 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L15-08-NWO-RR-SS
$507.88Attribute: D7801-L15-08-NWO-RR-SS (L15MBT-0...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1/2-14 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L18-08-NWO-RR
$58.84Attribute: D7801-L18-08-NWO-RR (L18MBT-08MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M26X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1/2-14 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L18-08-NWO-RR-SS
$733.24Attribute: D7801-L18-08-NWO-RR-SS (L18MBT-0...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M26X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1/2-14 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L22-12-NWO-RR
$68.24Attribute: D7801-L22-12-NWO-RR (L22MBT-12MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 3/4-14 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L22-12-NWO-RR-SS
$1,158.77Attribute: D7801-L22-12-NWO-RR-SS (L22MBT-1...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 3/4-14 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L28-16-NWO-RR
$124.95Attribute: D7801-L28-16-NWO-RR (L28MBT-16MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1-11 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L28-16-NWO-RR-SS
$1,689.06Attribute: D7801-L28-16-NWO-RR-SS (L28MBT-1...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1-11 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L35-20-NWO-RR
$212.55Attribute: D7801-L35-20-NWO-RR (L35MBT-20MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M45X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1-1/4-11 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L35-20-NWO-RR-SS
$1,905.28Attribute: D7801-L35-20-NWO-RR-SS (L35MBT-2...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M45X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1-1/4-11 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L42-24-NWO-RR
$312.41Attribute: D7801-L42-24-NWO-RR (L42MBT-24MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1-1/2-11 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-L42-24-NWO-RR-SS
$2,625.59Attribute: D7801-L42-24-NWO-RR-SS (L42MBT-2...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1-1/2-11 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-S06-04-NWO-RR
$65.29Attribute: D7801-S06-04-NWO-RR (S06MBT-04MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1/4-19 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-S08-04-NWO-RR-SS
$410.59Attribute: D7801-S08-04-NWO-RR-SS (S08MBT-0...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1/4-19 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-S10-06-NWO-RR
$70.50Attribute: D7801-S10-06-NWO-RR (S10MBT-06MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 3/8-19 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-S12-06-NWO-RR
$49.67Attribute: D7801-S12-06-NWO-RR (S12MBT-06MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M20X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 3/8-19 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-S12-06-NWO-RR-SS
$507.59Attribute: D7801-S12-06-NWO-RR-SS (S12MBT-0...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M20X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 3/8-19 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-S16-08-NWO-RR
$100.50Attribute: D7801-S16-08-NWO-RR (S16MBT-08MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M24X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1/2-14 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-S16-08-NWO-RR-SS
$744.00Attribute: D7801-S16-08-NWO-RR-SS (S16MBT-0...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M24X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1/2-14 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| O-RING / SEAL MATERIAL | VITON |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-S20-12-NWO-RR
$76.64Attribute: D7801-S20-12-NWO-RR (S20MBT-12MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 3/4-14 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-S25-16-NWO-RR
$153.66Attribute: D7801-S25-16-NWO-RR (S25MBT-16MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1-11 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-S30-20-NWO-RR
$253.95Attribute: D7801-S30-20-NWO-RR (S30MBT-20MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M42X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1-1/4-11 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D7801-S38-24-NWO-RR
$340.35Attribute: D7801-S38-24-NWO-RR (S38MBT-24MB...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE MBSPP ADJUSTABLE ORR |
| CONNECTION 2 THREAD SIZE | 1-1/2-11 |
| CONNECTION 2 SPECIFICATION | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
No general attributes scraped.
PDF Documents
No PDF documents scraped.
