D7601

D7601-E04-E04-02-SS

$136.94

Attribute: D7601-E04-E04-02-SS (E04MBT-E04M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/8-28
CONNECTION 3 THREAD ID (MM)	3.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1

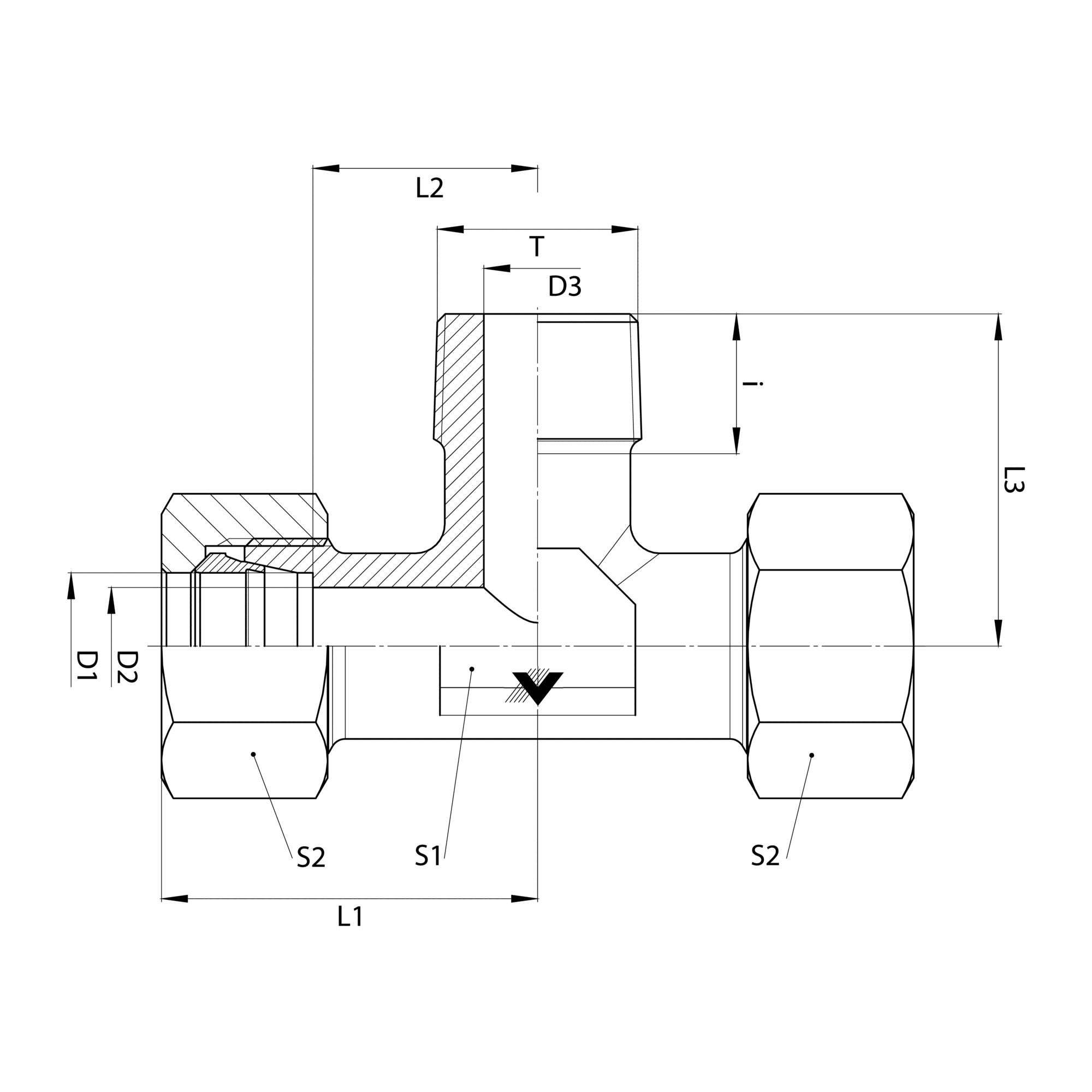

BODY HEX (MM)	9.0
HEX C 1 (MM)	10.0
HEX C 2 (MM)	10.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT M3 (MM)	11.0
CENTERLINE LENGTH L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.058
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.564

D7601-E06-E06-02

$35.68

Attribute: D7601-E06-E06-02 (E06MBT-E06MBT-...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/8-28
CONNECTION 3 THREAD ID (MM)	4.5
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	9.0
HEX C 1 (MM)	12.0
HEX C 2 (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT M3 (MM)	9.5
CENTERLINE LENGTH L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.707

D7601-E06-E06-02-SS

$139.16

Attribute: D7601-E06-E06-02-SS (E06MBT-E06M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/8-28
CONNECTION 3 THREAD ID (MM)	4.5
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	9.0
HEX C 1 (MM)	12.0
HEX C 2 (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT M3 (MM)	9.5
CENTERLINE LENGTH L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.707

D7601-E08-E08-02

$26.46

Attribute: D7601-E08-E08-02 (E08MBT-E08MBT-...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/8-28
CONNECTION 3 THREAD ID (MM)	6.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT M3 (MM)	11.5
CENTERLINE LENGTH L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.089
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.061

D7601-E08-E08-02-SS

$153.87

Attribute: D7601-E08-E08-02-SS (E08MBT-E08M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/8-28
CONNECTION 3 THREAD ID (MM)	6.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT M3 (MM)	11.5
CENTERLINE LENGTH L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.089
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.061

D7601-L06-L06-02

$44.81

Attribute: D7601-L06-L06-02 (L06MBT-L06MBT-...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/8-28
CONNECTION 3 THREAD ID (MM)	4.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	19.0
CENTERLINE LENGHT M3 (MM)	12.0
CENTERLINE LENGTH L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.124
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.246

D7601-L06-L06-02-SS

$127.59

Attribute: D7601-L06-L06-02-SS (L06MBT-L06M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/8-28
CONNECTION 3 THREAD ID (MM)	4.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	19.0
CENTERLINE LENGHT M3 (MM)	12.0
CENTERLINE LENGTH L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.124
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.246

D7601-L06-L06-04-SS

$138.43

Attribute: D7601-L06-L06-04-SS (L06MBT-L06M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/4-19
CONNECTION 3 THREAD ID (MM)	4.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	19.0
CENTERLINE LENGHT M3 (MM)	12.0
CENTERLINE LENGTH L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.144
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.522

D7601-L08-L08-04

$51.16

Attribute: D7601-L08-L08-04 (L08MBT-L08MBT-...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/4-19
CONNECTION 3 THREAD ID (MM)	6.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT M3 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.178
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.076

D7601-L08-L08-04-SS

$150.63

Attribute: D7601-L08-L08-04-SS (L08MBT-L08M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/4-19
CONNECTION 3 THREAD ID (MM)	6.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT M3 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.178
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.076

D7601-L10-L10-04

$55.56

Attribute: D7601-L10-L10-04 (L10MBT-L10MBT-...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/4-19
CONNECTION 3 THREAD ID (MM)	7.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGHT M3 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.217
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.539

D7601-L10-L10-04-SS

$170.90

Attribute: D7601-L10-L10-04-SS (L10MBT-L10M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/4-19
CONNECTION 3 THREAD ID (MM)	7.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGHT M3 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.217
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.539

D7601-L10-L10-06-SS

$166.85

Attribute: D7601-L10-L10-06-SS (L10MBT-L10M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	3/8-19
CONNECTION 3 THREAD ID (MM)	8.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGHT M3 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.609

D7601-L10-L10-08-SS

$170.60

Attribute: D7601-L10-L10-08-SS (L10MBT-L10M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/2-14
CONNECTION 3 THREAD ID (MM)	8.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGHT M3 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.409
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.631

D7601-L12-L12-04-SS

$167.79

Attribute: D7601-L12-L12-04-SS (L12MBT-L12M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/4-19
CONNECTION 3 THREAD ID (MM)	7.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGHT M3 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.284
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.351

D7601-L12-L12-06

$67.04

Attribute: D7601-L12-L12-06 (L12MBT-L12MBT-...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	3/8-19
CONNECTION 3 THREAD ID (MM)	9.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGHT M3 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.292
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.351

D7601-L12-L12-06-SS

$187.07

Attribute: D7601-L12-L12-06-SS (L12MBT-L12M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	3/8-19
CONNECTION 3 THREAD ID (MM)	9.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGHT M3 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.292
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.351

D7601-L12-L12-08-SS

$183.11

Attribute: D7601-L12-L12-08-SS (L12MBT-L12M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/2-14
CONNECTION 3 THREAD ID (MM)	10.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGHT M3 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.419
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.350

D7601-L15-L15-06-SS

$237.30

Attribute: D7601-L15-L15-06-SS (L15MBT-L15M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	3/8-19
CONNECTION 3 THREAD ID (MM)	9.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGHT M3 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.480
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.713

D7601-L15-L15-08

$109.54

Attribute: D7601-L15-L15-08 (L15MBT-L15MBT-...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/2-14
CONNECTION 3 THREAD ID (MM)	11.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGHT M3 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.499
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.713

D7601-L15-L15-08-SS

$268.24

Attribute: D7601-L15-L15-08-SS (L15MBT-L15M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/2-14
CONNECTION 3 THREAD ID (MM)	11.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGHT M3 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.499
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.713

D7601-L18-L18-08

$136.94

Attribute: D7601-L18-L18-08 (L18MBT-L18MBT-...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/2-14
CONNECTION 3 THREAD ID (MM)	14.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGHT M3 (MM)	25.5
CENTERLINE LENGTH L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.700
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.225

D7601-L18-L18-08-SS

$385.98

Attribute: D7601-L18-L18-08-SS (L18MBT-L18M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/2-14
CONNECTION 3 THREAD ID (MM)	14.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGHT M3 (MM)	25.5
CENTERLINE LENGTH L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.700
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.225

D7601-S06-S06-04

$54.54

Attribute: D7601-S06-S06-04 (S06MBT-S06MBT-...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/4-19
CONNECTION 3 THREAD ID (MM)	4.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	25.0
CENTERLINE LENGHT M3 (MM)	16.0
CENTERLINE LENGTH L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.218
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.219

D7601-S06-S06-04-SS

$149.74

Attribute: D7601-S06-S06-04-SS (S06MBT-S06M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/4-19
CONNECTION 3 THREAD ID (MM)	4.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	25.0
CENTERLINE LENGHT M3 (MM)	16.0
CENTERLINE LENGTH L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.218
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.219

D7601-S08-S08-04

$121.66

Attribute: D7601-S08-S08-04 (S08MBT-S08MBT-...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/4-19
CONNECTION 3 THREAD ID (MM)	5.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGHT M3 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.267
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.709

D7601-S08-S08-04-SS

$162.50

Attribute: D7601-S08-S08-04-SS (S08MBT-S08M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/4-19
CONNECTION 3 THREAD ID (MM)	5.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGHT M3 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.267
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.709

D7601-S10-S10-06

$85.81

Attribute: D7601-S10-S10-06 (S10MBT-S10MBT-...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	3/8-19
CONNECTION 3 THREAD ID (MM)	7.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	25.0
CENTERLINE LENGHT M3 (MM)	17.5
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.365
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.560

D7601-S10-S10-06-SS

$217.38

Attribute: D7601-S10-S10-06-SS (S10MBT-S10M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	3/8-19
CONNECTION 3 THREAD ID (MM)	7.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	25.0
CENTERLINE LENGHT M3 (MM)	17.5
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.365
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.560

D7601-S12-S12-06

$62.77

Attribute: D7601-S12-S12-06 (S12MBT-S12MBT-...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	3/8-19
CONNECTION 3 THREAD ID (MM)	8.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGHT M3 (MM)	21.5
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.434
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.452

D7601-S12-S12-06-SS

$233.29

Attribute: D7601-S12-S12-06-SS (S12MBT-S12M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	3/8-19
CONNECTION 3 THREAD ID (MM)	8.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGHT M3 (MM)	21.5
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.434
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.452

D7601-S14-S14-08-SS

$261.08

Attribute: D7601-S14-S14-08-SS (S14MBT-S14M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/2-14
CONNECTION 3 THREAD ID (MM)	10.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGHT M3 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.592
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.998

D7601-S16-S16-08

$139.80

Attribute: D7601-S16-S16-08 (S16MBT-S16MBT-...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/2-14
CONNECTION 3 THREAD ID (MM)	12.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGHT M3 (MM)	24.5
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.757
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.715

D7601-S16-S16-08-SS

$361.05

Attribute: D7601-S16-S16-08-SS (S16MBT-S16M...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE BSPT (R)
CONNECTION 3 THREAD SIZE	1/2-14
CONNECTION 3 THREAD ID (MM)	12.0
CONNECTION 3 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGHT M3 (MM)	24.5
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.757
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.715

ID	10167961
Category	DIN Metric Tube Fittings

Description

Description

Variations (34)

D7601-E04-E04-02-SS

D7601-E06-E06-02

D7601-E06-E06-02-SS

D7601-E08-E08-02

D7601-E08-E08-02-SS

D7601-L06-L06-02

D7601-L06-L06-02-SS

D7601-L06-L06-04-SS

D7601-L08-L08-04

D7601-L08-L08-04-SS

D7601-L10-L10-04

D7601-L10-L10-04-SS

D7601-L10-L10-06-SS

D7601-L10-L10-08-SS

D7601-L12-L12-04-SS

D7601-L12-L12-06

D7601-L12-L12-06-SS

D7601-L12-L12-08-SS

D7601-L15-L15-06-SS

D7601-L15-L15-08

D7601-L15-L15-08-SS

D7601-L18-L18-08

D7601-L18-L18-08-SS

D7601-S06-S06-04

D7601-S06-S06-04-SS

D7601-S08-S08-04

D7601-S08-S08-04-SS

D7601-S10-S10-06

D7601-S10-S10-06-SS

D7601-S12-S12-06

D7601-S12-S12-06-SS

D7601-S14-S14-08-SS

D7601-S16-S16-08

D7601-S16-S16-08-SS

General Attributes

PDF Documents
