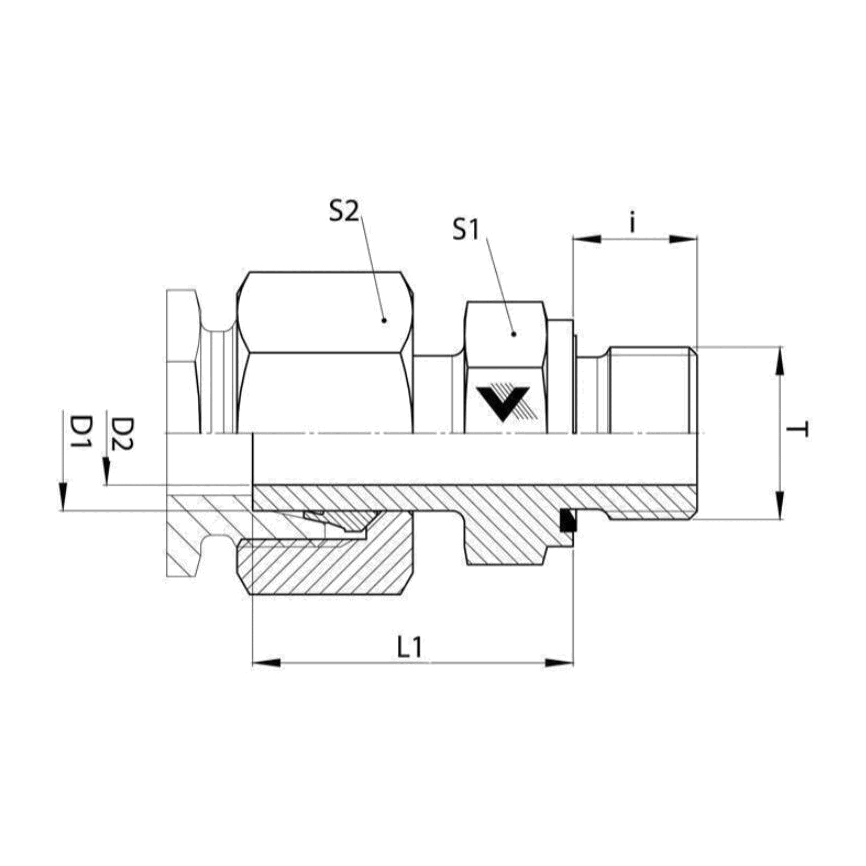

D7505-SP-ED

D7505-SP-L06-02-ED

$12.97

Attribute: D7505-SP-L06-02-ED (L06FMSP-02MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M12X1.5
CONNECTION 1 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	3.3
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	32.5
OVERALL LENGTH L2 (MM)	24.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.093
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.389

D7505-SP-L06-02-ED-SS

$72.16

Attribute: D7505-SP-L06-02-ED-SS (L06FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M12X1.5
CONNECTION 1 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	3.3
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	32.5
OVERALL LENGTH L2 (MM)	24.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.093
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.389

D7505-SP-L08-04-ED

$14.76

Attribute: D7505-SP-L08-04-ED (L08FMSP-04MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M14X1.5
CONNECTION 1 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	41.5
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.818

D7505-SP-L08-04-ED-SS

$79.88

Attribute: D7505-SP-L08-04-ED-SS (L08FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M14X1.5
CONNECTION 1 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	41.5
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.818

D7505-SP-L10-04-ED

$14.81

Attribute: D7505-SP-L10-04-ED (L10FMSP-04MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M16X1.5
CONNECTION 1 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	27.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.178
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.870

D7505-SP-L10-04-ED-SS

$90.46

Attribute: D7505-SP-L10-04-ED-SS (L10FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M16X1.5
CONNECTION 1 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	27.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.178
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.870

D7505-SP-L12-04-ED-SS

$87.01

Attribute: D7505-SP-L12-04-ED-SS (L12FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.5
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.218
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.226

D7505-SP-L12-06-ED

$16.12

Attribute: D7505-SP-L12-06-ED (L12FMSP-06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.290
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.359

D7505-SP-L12-06-ED-SS

$98.58

Attribute: D7505-SP-L12-06-ED-SS (L12FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.290
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.359

D7505-SP-L12-08-ED

$41.95

Attribute: D7505-SP-L12-08-ED (L12FMSP-08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.377
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.758

D7505-SP-L12-08-ED-SS

$115.56

Attribute: D7505-SP-L12-08-ED-SS (L12FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.377
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.758

D7505-SP-L15-08-ED

$21.46

Attribute: D7505-SP-L15-08-ED (L15FMSP-08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M22X1.5
CONNECTION 1 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.423
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002

D7505-SP-L15-08-ED-SS

$128.11

Attribute: D7505-SP-L15-08-ED-SS (L15FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M22X1.5
CONNECTION 1 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.423
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002

D7505-SP-L18-08-ED

$30.85

Attribute: D7505-SP-L18-08-ED (L18FMSP-08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M26X1.5
CONNECTION 1 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	13.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.501
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.874

D7505-SP-L18-08-ED-SS

$174.31

Attribute: D7505-SP-L18-08-ED-SS (L18FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M26X1.5
CONNECTION 1 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	13.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.501
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.874

D7505-SP-L22-12-ED

$42.04

Attribute: D7505-SP-L22-12-ED (L22FMSP-12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	32.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.696
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.836

D7505-SP-L22-12-ED-SS

$225.35

Attribute: D7505-SP-L22-12-ED-SS (L22FMSP-1...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	32.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.696
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.836

D7505-SP-L22-16-ED-SS

$249.59

Attribute: D7505-SP-L22-16-ED-SS (L22FMSP-1...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	16.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	57.5
OVERALL LENGTH L2 (MM)	39.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.033
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.179

D7505-SP-L28-16-ED

$83.94

Attribute: D7505-SP-L28-16-ED (L28FMSP-16MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M36X2.0
CONNECTION 1 THREAD SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	22.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.025
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D7505-SP-L28-16-ED-SS

$348.72

Attribute: D7505-SP-L28-16-ED-SS (L28FMSP-1...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M36X2.0
CONNECTION 1 THREAD SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	22.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.025
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D7505-SP-L35-20-ED

$142.91

Attribute: D7505-SP-L35-20-ED (L35FMSP-20MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M45X2.0
CONNECTION 1 THREAD SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	28.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	42.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.693
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.535

D7505-SP-L35-20-ED-SS

$573.61

Attribute: D7505-SP-L35-20-ED-SS (L35FMSP-2...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M45X2.0
CONNECTION 1 THREAD SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	28.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	42.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.693
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.535

D7505-SP-L42-24-ED

$156.78

Attribute: D7505-SP-L42-24-ED (L42FMSP-24MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M52X2.0
CONNECTION 1 THREAD SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	34.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	68.5
OVERALL LENGTH L2 (MM)	46.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.348
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.049

D7505-SP-L42-24-ED-SS

$686.69

Attribute: D7505-SP-L42-24-ED-SS (L42FMSP-2...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M52X2.0
CONNECTION 1 THREAD SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	34.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	68.5
OVERALL LENGTH L2 (MM)	46.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.348
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.049

D7505-SP-S06-04-ED

$14.29

Attribute: D7505-SP-S06-04-ED (S06FMSP-04MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M14X1.5
CONNECTION 1 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	27.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.190
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.769

D7505-SP-S06-04-ED-SS

$79.50

Attribute: D7505-SP-S06-04-ED-SS (S06FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M14X1.5
CONNECTION 1 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	27.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.190
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.769

D7505-SP-S08-04-ED

$14.50

Attribute: D7505-SP-S08-04-ED (S08FMSP-04MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M16X1.5
CONNECTION 1 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.3
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	41.5
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.243
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.914

D7505-SP-S08-04-ED-SS

$80.09

Attribute: D7505-SP-S08-04-ED-SS (S08FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M16X1.5
CONNECTION 1 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.3
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	41.5
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.243
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.914

D7505-SP-S10-06-ED

$15.91

Attribute: D7505-SP-S10-06-ED (S10FMSP-06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.316
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.300

D7505-SP-S10-06-ED-SS

$93.46

Attribute: D7505-SP-S10-06-ED-SS (S10FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.316
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.300

D7505-SP-S12-06-ED

$16.77

Attribute: D7505-SP-S12-06-ED (S12FMSP-06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M20X1.5
CONNECTION 1 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.3
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.381
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.617

D7505-SP-S12-06-ED-SS

$105.15

Attribute: D7505-SP-S12-06-ED-SS (S12FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M20X1.5
CONNECTION 1 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.3
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.381
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.617

D7505-SP-S12-08-ED-SS

$132.41

Attribute: D7505-SP-S12-08-ED-SS (S12FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M20X1.5
CONNECTION 1 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	7.3
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.465
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.918

D7505-SP-S14-08-ED

$23.88

Attribute: D7505-SP-S14-08-ED (S14FMSP-08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M22X1.5
CONNECTION 1 THREAD SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.598
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.247

D7505-SP-S14-08-ED-SS

$145.26

Attribute: D7505-SP-S14-08-ED-SS (S14FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M22X1.5
CONNECTION 1 THREAD SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.598
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.247

D7505-SP-S16-08-ED

$30.05

Attribute: D7505-SP-S16-08-ED (S16FMSP-08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M24X1.5
CONNECTION 1 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.664
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.801

D7505-SP-S16-08-ED-SS

$187.98

Attribute: D7505-SP-S16-08-ED-SS (S16FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M24X1.5
CONNECTION 1 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.664
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.801

D7505-SP-S16-12-ED-SS

$218.39

Attribute: D7505-SP-S16-12-ED-SS (S16FMSP-1...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M24X1.5
CONNECTION 1 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	10.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	39.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.762
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.222

D7505-SP-S20-12-ED

$62.30

Attribute: D7505-SP-S20-12-ED (S20FMSP-12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 THREAD SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	13.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.985
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.666

D7505-SP-S20-12-ED-SS

$257.28

Attribute: D7505-SP-S20-12-ED-SS (S20FMSP-1...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 THREAD SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	13.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.985
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.666

D7505-SP-S25-16-ED

$118.38

Attribute: D7505-SP-S25-16-ED (S25FMSP-16MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M36X2.0
CONNECTION 1 THREAD SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	17.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	48.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.774
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.522

D7505-SP-S25-16-ED-SS

$359.99

Attribute: D7505-SP-S25-16-ED-SS (S25FMSP-1...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M36X2.0
CONNECTION 1 THREAD SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	17.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	48.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.774
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.522

D7505-SP-S30-20-ED

$117.56

Attribute: D7505-SP-S30-20-ED (S30FMSP-20MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M42X2.0
CONNECTION 1 THREAD SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	22.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	71.0
OVERALL LENGTH L2 (MM)	51.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.432
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.832

D7505-SP-S30-20-ED-SS

$439.05

Attribute: D7505-SP-S30-20-ED-SS (S30FMSP-2...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M42X2.0
CONNECTION 1 THREAD SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	22.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	71.0
OVERALL LENGTH L2 (MM)	51.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.432
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.832

D7505-SP-S38-24-ED

$158.05

Attribute: D7505-SP-S38-24-ED (S38FMSP-24MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M52X2.0
CONNECTION 1 THREAD SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	28.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	82.0
OVERALL LENGTH L2 (MM)	60.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	3.664
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.014

D7505-SP-S38-24-ED-SS

$610.59

Attribute: D7505-SP-S38-24-ED-SS (S38FMSP-2...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 TUBE SIZE	M52X2.0
CONNECTION 1 THREAD SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	28.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	82.0
OVERALL LENGTH L2 (MM)	60.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	3.664
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.014

ID	10167904
Category	DIN Metric Tube Fittings

Description

Description

Variations (46)

D7505-SP-L06-02-ED

D7505-SP-L06-02-ED-SS

D7505-SP-L08-04-ED

D7505-SP-L08-04-ED-SS

D7505-SP-L10-04-ED

D7505-SP-L10-04-ED-SS

D7505-SP-L12-04-ED-SS

D7505-SP-L12-06-ED

D7505-SP-L12-06-ED-SS

D7505-SP-L12-08-ED

D7505-SP-L12-08-ED-SS

D7505-SP-L15-08-ED

D7505-SP-L15-08-ED-SS

D7505-SP-L18-08-ED

D7505-SP-L18-08-ED-SS

D7505-SP-L22-12-ED

D7505-SP-L22-12-ED-SS

D7505-SP-L22-16-ED-SS

D7505-SP-L28-16-ED

D7505-SP-L28-16-ED-SS

D7505-SP-L35-20-ED

D7505-SP-L35-20-ED-SS

D7505-SP-L42-24-ED

D7505-SP-L42-24-ED-SS

D7505-SP-S06-04-ED

D7505-SP-S06-04-ED-SS

D7505-SP-S08-04-ED

D7505-SP-S08-04-ED-SS

D7505-SP-S10-06-ED

D7505-SP-S10-06-ED-SS

D7505-SP-S12-06-ED

D7505-SP-S12-06-ED-SS

D7505-SP-S12-08-ED-SS

D7505-SP-S14-08-ED

D7505-SP-S14-08-ED-SS

D7505-SP-S16-08-ED

D7505-SP-S16-08-ED-SS

D7505-SP-S16-12-ED-SS

D7505-SP-S20-12-ED

D7505-SP-S20-12-ED-SS

D7505-SP-S25-16-ED

D7505-SP-S25-16-ED-SS

D7505-SP-S30-20-ED

D7505-SP-S30-20-ED-SS

D7505-SP-S38-24-ED

D7505-SP-S38-24-ED-SS

General Attributes

PDF Documents
