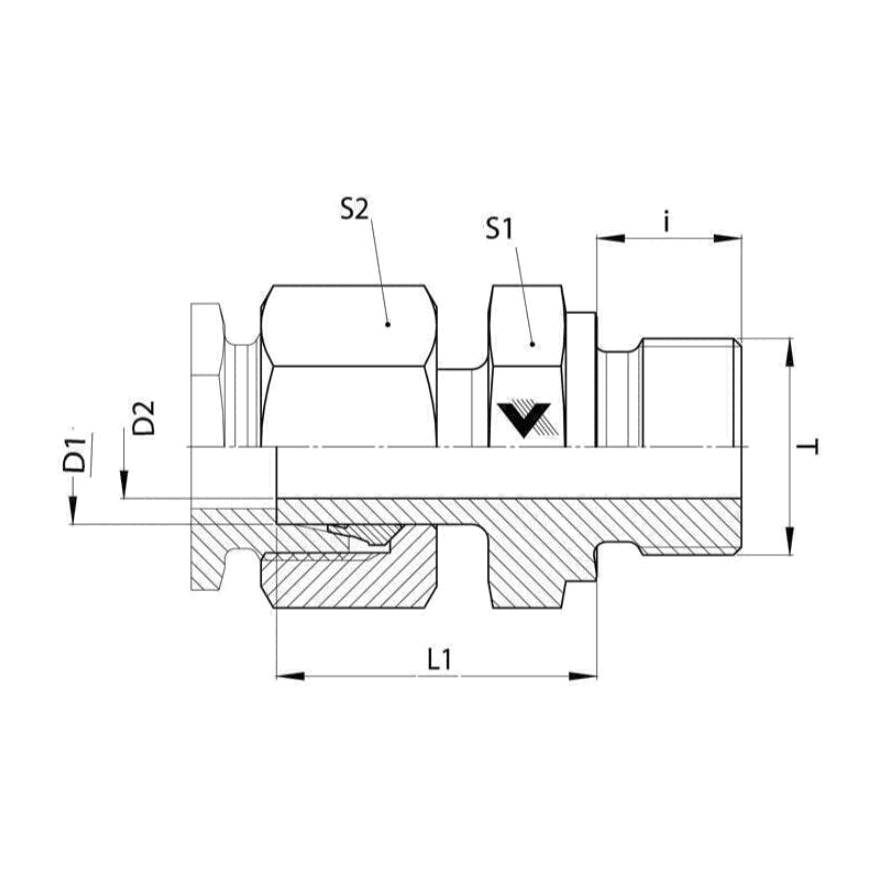

D7505-SP-CF

D7505-SP-L06-02-CF

$13.06

Attribute: D7505-SP-L06-02-CF (L06FMSP-02MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	3.3
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	32.5
OVERALL LENGTH L2 (MM)	24.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.060
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.389

D7505-SP-L06-02-CF-SS

$73.66

Attribute: D7505-SP-L06-02-CF-SS (L06FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	3.3
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	32.5
OVERALL LENGTH L2 (MM)	24.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.060
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.389

D7505-SP-L08-04-CF

$14.21

Attribute: D7505-SP-L08-04-CF (L08FMSP-04MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	41.5
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.818

D7505-SP-L08-04-CF-SS

$76.76

Attribute: D7505-SP-L08-04-CF-SS (L08FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	41.5
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.818

D7505-SP-L10-04-CF

$18.74

Attribute: D7505-SP-L10-04-CF (L10FMSP-04MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.5
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	27.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.179
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.870

D7505-SP-L10-04-CF-SS

$73.22

Attribute: D7505-SP-L10-04-CF-SS (L10FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.5
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	27.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.179
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.870

D7505-SP-L12-04-CF-SS

$96.27

Attribute: D7505-SP-L12-04-CF-SS (L12FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	28.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.223
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.196

D7505-SP-L12-06-CF

$17.71

Attribute: D7505-SP-L12-06-CF (L12FMSP-06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.268
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.359

D7505-SP-L12-06-CF-SS

$90.16

Attribute: D7505-SP-L12-06-CF-SS (L12FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.268
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.359

D7505-SP-L15-08-CF

$23.55

Attribute: D7505-SP-L15-08-CF (L15FMSP-08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.424
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002

D7505-SP-L15-08-CF-SS

$145.99

Attribute: D7505-SP-L15-08-CF-SS (L15FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.424
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002

D7505-SP-L18-08-CF

$28.17

Attribute: D7505-SP-L18-08-CF (L18FMSP-08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	13.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.496
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.843

D7505-SP-L18-08-CF-SS

$166.21

Attribute: D7505-SP-L18-08-CF-SS (L18FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	13.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.496
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.843

D7505-SP-L22-08-CF-SS

$259.58

Attribute: D7505-SP-L22-08-CF-SS (L22FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	16.5
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	32.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.622
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.678

D7505-SP-L22-12-CF

$41.60

Attribute: D7505-SP-L22-12-CF (L22FMSP-12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.5
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	32.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.701
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.836

D7505-SP-L22-12-CF-SS

$217.29

Attribute: D7505-SP-L22-12-CF-SS (L22FMSP-1...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.5
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	32.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.701
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.836

D7505-SP-L28-16-CF

$85.81

Attribute: D7505-SP-L28-16-CF (L28FMSP-16MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	22.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.030
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D7505-SP-L28-16-CF-SS

$350.42

Attribute: D7505-SP-L28-16-CF-SS (L28FMSP-1...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	22.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.030
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D7505-SP-L35-20-CF

$108.08

Attribute: D7505-SP-L35-20-CF (L35FMSP-20MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	28.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	42.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.695
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.535

D7505-SP-L35-20-CF-SS

$576.64

Attribute: D7505-SP-L35-20-CF-SS (L35FMSP-2...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	28.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	42.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.695
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.535

D7505-SP-L42-24-CF

$91.75

Attribute: D7505-SP-L42-24-CF (L42FMSP-24MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	34.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	68.5
OVERALL LENGTH L2 (MM)	46.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.358
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.049

D7505-SP-L42-24-CF-SS

$563.41

Attribute: D7505-SP-L42-24-CF-SS (L42FMSP-2...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	34.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	68.5
OVERALL LENGTH L2 (MM)	46.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.358
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.049

D7505-SP-S06-04-CF

$20.57

Attribute: D7505-SP-S06-04-CF (S06FMSP-04MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	3.3
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	27.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.122
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.769

D7505-SP-S08-04-CF

$11.82

Attribute: D7505-SP-S08-04-CF (S08FMSP-04MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.3
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	41.5
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.914

D7505-SP-S08-04-CF-SS

$88.59

Attribute: D7505-SP-S08-04-CF-SS (S08FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.3
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	41.5
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.914

D7505-SP-S10-06-CF

$23.25

Attribute: D7505-SP-S10-06-CF (S10FMSP-06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.318
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.300

D7505-SP-S10-06-CF-SS

$103.22

Attribute: D7505-SP-S10-06-CF-SS (S10FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.318
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.300

D7505-SP-S12-06-CF

$16.59

Attribute: D7505-SP-S12-06-CF (S12FMSP-06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.3
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.361
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.617

D7505-SP-S12-06-CF-SS

$93.70

Attribute: D7505-SP-S12-06-CF-SS (S12FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.3
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.361
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.617

D7505-SP-S12-08-CF-SS

$153.36

Attribute: D7505-SP-S12-08-CF-SS (S12FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	7.3
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	27.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.466
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.918

D7505-SP-S14-08-CF

$48.61

Attribute: D7505-SP-S14-08-CF (S14FMSP-08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.560
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.247

D7505-SP-S14-08-CF-SS

$147.94

Attribute: D7505-SP-S14-08-CF-SS (S14FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.560
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.247

D7505-SP-S16-08-CF

$27.10

Attribute: D7505-SP-S16-08-CF (S16FMSP-08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.5
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.612
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.801

D7505-SP-S16-08-CF-SS

$177.38

Attribute: D7505-SP-S16-08-CF-SS (S16FMSP-0...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.5
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.612
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.801

D7505-SP-S20-12-CF

$51.94

Attribute: D7505-SP-S20-12-CF (S20FMSP-12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	13.5
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.990
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.666

D7505-SP-S20-12-CF-SS

$259.11

Attribute: D7505-SP-S20-12-CF-SS (S20FMSP-1...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	13.5
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.990
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.666

D7505-SP-S25-12-CF-SS

$576.42

Attribute: D7505-SP-S25-12-CF-SS (S25FMSP-1...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	17.5
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	32.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	64.0
OVERALL LENGTH L2 (MM)	48.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.526
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.264

D7505-SP-S25-16-CF

$59.10

Attribute: D7505-SP-S25-16-CF (S25FMSP-16MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	17.5
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	48.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.779
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.522

D7505-SP-S25-16-CF-SS

$453.22

Attribute: D7505-SP-S25-16-CF-SS (S25FMSP-1...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	17.5
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	48.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.779
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.522

D7505-SP-S30-20-CF

$100.11

Attribute: D7505-SP-S30-20-CF (S30FMSP-20MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	22.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	71.0
OVERALL LENGTH L2 (MM)	51.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.438
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.832

D7505-SP-S30-20-CF-SS

$520.43

Attribute: D7505-SP-S30-20-CF-SS (S30FMSP-2...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	22.0
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	71.0
OVERALL LENGTH L2 (MM)	51.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.438
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.832

D7505-SP-S38-24-CF

$129.26

Attribute: D7505-SP-S38-24-CF (S38FMSP-24MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	28.5
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	82.0
OVERALL LENGTH L2 (MM)	60.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	3.675
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.014

D7505-SP-S38-24-CF-SS

$674.99

Attribute: D7505-SP-S38-24-CF-SS (S38FMSP-2...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	28.5
CONNECTION 2 SPECIFICATION	ISO 9974-3 FORM B
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	82.0
OVERALL LENGTH L2 (MM)	60.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	3.675
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.014

ID	10167858
Category	DIN Metric Tube Fittings

Description

Description

Variations (43)

D7505-SP-L06-02-CF

D7505-SP-L06-02-CF-SS

D7505-SP-L08-04-CF

D7505-SP-L08-04-CF-SS

D7505-SP-L10-04-CF

D7505-SP-L10-04-CF-SS

D7505-SP-L12-04-CF-SS

D7505-SP-L12-06-CF

D7505-SP-L12-06-CF-SS

D7505-SP-L15-08-CF

D7505-SP-L15-08-CF-SS

D7505-SP-L18-08-CF

D7505-SP-L18-08-CF-SS

D7505-SP-L22-08-CF-SS

D7505-SP-L22-12-CF

D7505-SP-L22-12-CF-SS

D7505-SP-L28-16-CF

D7505-SP-L28-16-CF-SS

D7505-SP-L35-20-CF

D7505-SP-L35-20-CF-SS

D7505-SP-L42-24-CF

D7505-SP-L42-24-CF-SS

D7505-SP-S06-04-CF

D7505-SP-S08-04-CF

D7505-SP-S08-04-CF-SS

D7505-SP-S10-06-CF

D7505-SP-S10-06-CF-SS

D7505-SP-S12-06-CF

D7505-SP-S12-06-CF-SS

D7505-SP-S12-08-CF-SS

D7505-SP-S14-08-CF

D7505-SP-S14-08-CF-SS

D7505-SP-S16-08-CF

D7505-SP-S16-08-CF-SS

D7505-SP-S20-12-CF

D7505-SP-S20-12-CF-SS

D7505-SP-S25-12-CF-SS

D7505-SP-S25-16-CF

D7505-SP-S25-16-CF-SS

D7505-SP-S30-20-CF

D7505-SP-S30-20-CF-SS

D7505-SP-S38-24-CF

D7505-SP-S38-24-CF-SS

General Attributes

PDF Documents
