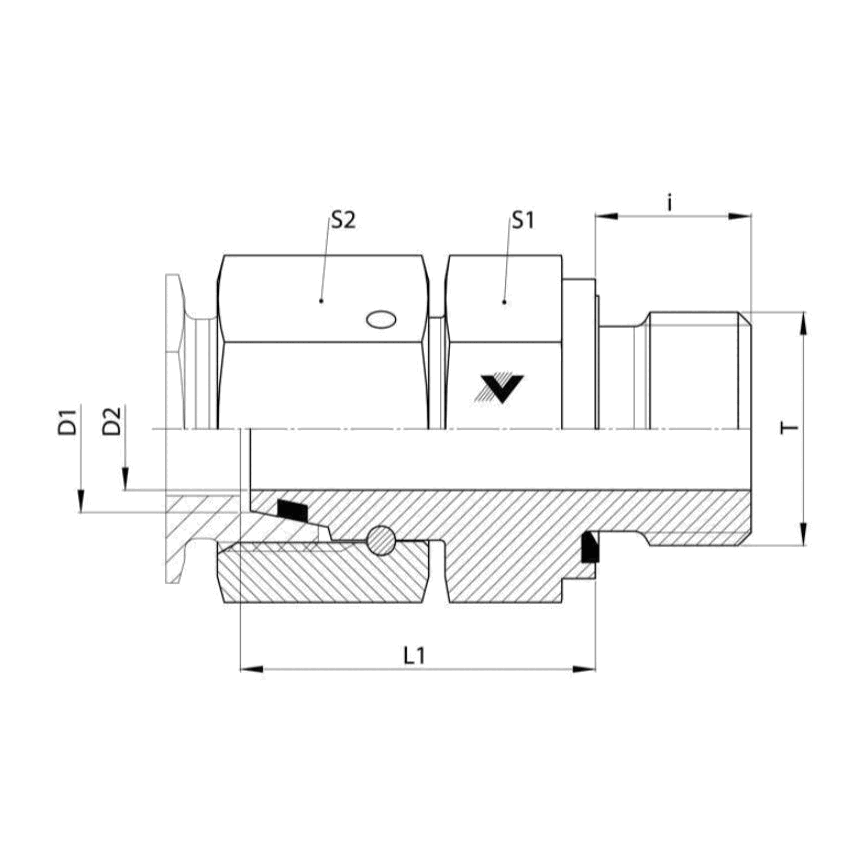

D7505-ED

D7505-L12-06-ED-SS

$144.44

Attribute: D7505-L12-06-ED-SS (L12MBT-06MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	33.9
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.301
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.373

D7505-L12-08-ED

$40.45

Attribute: D7505-L12-08-ED (L12FMS-08MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.5
OVERALL LENGTH L2 (MM)	26.9
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.321
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.846

D7505-L12-08-ED-SS

$155.28

Attribute: D7505-L12-08-ED-SS (L12MBT-08MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.5
OVERALL LENGTH L2 (MM)	26.9
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.321
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.846

D7505-L15-06-ED-SS

$175.90

Attribute: D7505-L15-06-ED-SS (L15MBT-06MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M22X1.5
CONNECTION 1 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	29.4
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.376
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.935

D7505-L15-08-ED-SS

$177.61

Attribute: D7505-L15-08-ED-SS (L15MBT-08MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M22X1.5
CONNECTION 1 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	31.9
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.449
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.135

D7505-L18-08-ED

$33.50

Attribute: D7505-L18-08-ED (L18FMS-08MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M26X1.5
CONNECTION 1 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	13.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	31.4
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.512
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.812

D7505-L18-12-ED

$77.15

Attribute: D7505-L18-12-ED (L18FMS-12MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M26X1.5
CONNECTION 1 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	29.4
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.560
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.812

D7505-L22-08-ED-SS

$287.19

Attribute: D7505-L22-08-ED-SS (L22MBT-08MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	31.9
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.636
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.796

D7505-L22-12-ED-SS

$318.46

Attribute: D7505-L22-12-ED-SS (L22MBT-12MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	17.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	32.4
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.718
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.994

D7505-L22-16-ED

$122.30

Attribute: D7505-L22-16-ED (L22FMS-16MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	34.9
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.975
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.642

D7505-L28-12-ED

$135.15

Attribute: D7505-L28-12-ED (L28FMS-12MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M36X2.0
CONNECTION 1 THREAD SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7505-L28-16-ED-SS

$481.35

Attribute: D7505-L28-16-ED-SS (L28MBT-16MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M36X2.0
CONNECTION 1 THREAD SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	56.0
OVERALL LENGTH L2 (MM)	34.9
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.034
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.745

D7505-L35-20-ED-SS

$754.28

Attribute: D7505-L35-20-ED-SS (L35MBT-20MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M45X2.0
CONNECTION 1 THREAD SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	28.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	63.5
OVERALL LENGTH L2 (MM)	42.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.760
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.688

D7505-L42-24-ED

$141.55

Attribute: D7505-L42-24-ED (L42FMS-24MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M52X2.0
CONNECTION 1 THREAD SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	35.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	69.0
OVERALL LENGTH L2 (MM)	46.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.378
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.158

D7505-S06-04-ED

$14.45

Attribute: D7505-S06-04-ED (S06FMS-04MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M14X1.5
CONNECTION 1 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	26.9
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.197
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.870

D7505-S08-04-ED

$20.48

Attribute: D7505-S08-04-ED (S08FMS-04MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M16X1.5
CONNECTION 1 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	29.4
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.242
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.925

D7505-S10-04-ED

$26.20

Attribute: D7505-S10-04-ED (S10FMS-04MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7505-S10-06-ED-SS

$149.65

Attribute: D7505-S10-06-ED-SS (S10MBT-06MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	6.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	31.9
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.328
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.300

D7505-S12-04-ED

$34.06

Attribute: D7505-S12-04-ED (S12FMS-04MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M20X1.5
CONNECTION 1 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	31.4
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.350
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.582

D7505-S12-06-ED

$16.90

Attribute: D7505-S12-06-ED (S12FMS-06MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M20X1.5
CONNECTION 1 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	33.9
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.394
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.670

D7505-S12-08-ED

$30.34

Attribute: D7505-S12-08-ED (S12FMS-08MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M20X1.5
CONNECTION 1 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	34.4
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.488
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.224

D7505-S14-08-ED

$42.84

Attribute: D7505-S14-08-ED (S14FMS-08MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M22X1.5
CONNECTION 1 THREAD SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	51.5
OVERALL LENGTH L2 (MM)	36.4
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.570
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.291

D7505-S16-06-ED-SS

$220.83

Attribute: D7505-S16-06-ED-SS (S16MBT-06MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M24X1.5
CONNECTION 1 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	49.5
OVERALL LENGTH L2 (MM)	36.9
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.614
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.719

D7505-S16-08-ED-SS

$238.16

Attribute: D7505-S16-08-ED-SS (S16MBT-08MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M24X1.5
CONNECTION 1 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	51.5
OVERALL LENGTH L2 (MM)	36.9
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.616
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.828

D7505-S20-08-ED

$75.75

Attribute: D7505-S20-08-ED (S20FMS-08MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 THREAD SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	54.5
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.876
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.310

D7505-S20-12-ED

$37.42

Attribute: D7505-S20-12-ED (S20FMS-12MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 THREAD SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	58.5
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.002
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.627

D7505-S20-16-ED-SS

$391.87

Attribute: D7505-S20-16-ED-SS (S20MBT-16MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 THREAD SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	60.5
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.220
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.206

D7505-S25-12-ED-SS

$465.39

Attribute: D7505-S25-12-ED-SS (S25MBT-12MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M36X2.0
CONNECTION 1 THREAD SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	63.5
OVERALL LENGTH L2 (MM)	48.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.554
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.200

D7505-S25-16-ED-SS

$550.98

Attribute: D7505-S25-16-ED-SS (S25MBT-16MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M36X2.0
CONNECTION 1 THREAD SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	48.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.783
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.393

D7505-S30-20-ED

$104.68

Attribute: D7505-S30-20-ED (S30FMS-20MBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M42X2.0
CONNECTION 1 THREAD SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	22.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	68.5
OVERALL LENGTH L2 (MM)	51.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.458
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.450

D7505-S30-20-ED-SS

$627.80

Attribute: D7505-S30-20-ED-SS (S30MBT-20MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M42X2.0
CONNECTION 1 THREAD SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	22.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	68.5
OVERALL LENGTH L2 (MM)	51.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.458
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.450

D7505-S38-20-ED-SS

$846.71

Attribute: D7505-S38-20-ED-SS (S38MBT-20MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M52X2.0
CONNECTION 1 THREAD SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	76.0
OVERALL LENGTH L2 (MM)	60.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	3.238
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.696

D7505-S38-24-ED-SS

$997.93

Attribute: D7505-S38-24-ED-SS (S38MBT-24MBS...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 TUBE SIZE	M52X2.0
CONNECTION 1 THREAD SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	78.0
OVERALL LENGTH L2 (MM)	60.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	3.491
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.136

ID	10167780
Category	DIN Metric Tube Fittings

Description

Description

Variations (33)

D7505-L12-06-ED-SS

D7505-L12-08-ED

D7505-L12-08-ED-SS

D7505-L15-06-ED-SS

D7505-L15-08-ED-SS

D7505-L18-08-ED

D7505-L18-12-ED

D7505-L22-08-ED-SS

D7505-L22-12-ED-SS

D7505-L22-16-ED

D7505-L28-12-ED

D7505-L28-16-ED-SS

D7505-L35-20-ED-SS

D7505-L42-24-ED

D7505-S06-04-ED

D7505-S08-04-ED

D7505-S10-04-ED

D7505-S10-06-ED-SS

D7505-S12-04-ED

D7505-S12-06-ED

D7505-S12-08-ED

D7505-S14-08-ED

D7505-S16-06-ED-SS

D7505-S16-08-ED-SS

D7505-S20-08-ED

D7505-S20-12-ED

D7505-S20-16-ED-SS

D7505-S25-12-ED-SS

D7505-S25-16-ED-SS

D7505-S30-20-ED

D7505-S30-20-ED-SS

D7505-S38-20-ED-SS

D7505-S38-24-ED-SS

General Attributes

PDF Documents
