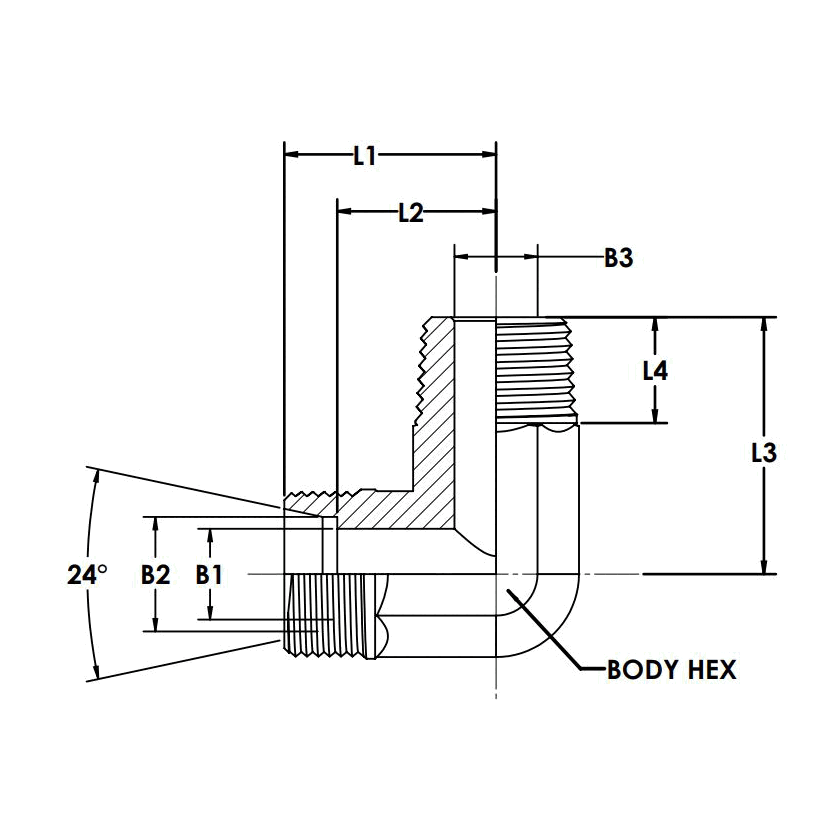

D7501-X

D7501-E04-02-SS-X

$77.79

Attribute: D7501-E04-02-SS-X (E04MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	9.0
CENTERLINE LENGTH M1 (MM)	15.0
CENTERLINE LENGTH M2 (MM)	11.0
CENTERLINE LENGHT L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.026
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.230

D7501-E04-02-X

$59.05

Attribute: D7501-E04-02-X (E04MBT-02MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	9.0
CENTERLINE LENGTH M1 (MM)	15.0
CENTERLINE LENGTH M2 (MM)	11.0
CENTERLINE LENGHT L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.026
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.230

D7501-E06-02-SS-X

$78.09

Attribute: D7501-E06-02-SS-X (E06MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.5
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	9.0
CENTERLINE LENGTH M1 (MM)	15.0
CENTERLINE LENGTH M2 (MM)	9.5
CENTERLINE LENGHT L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.024
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.230

D7501-E08-02-SS-X

$80.18

Attribute: D7501-E08-02-SS-X (E08MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	11.5
CENTERLINE LENGHT L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.035
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.438

D7501-E08-02-X

$10.54

Attribute: D7501-E08-02-X (E08MBT-02MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	11.5
CENTERLINE LENGHT L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.035
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.438

D7501-E10-04-SS-X

$130.53

Attribute: D7501-E10-04-SS-X (E10MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	15.5
CENTERLINE LENGHT L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.077
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.789

D7501-L06-02-SS-X

$55.77

Attribute: D7501-L06-02-SS-X (L06MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	19.0
CENTERLINE LENGTH M2 (MM)	12.0
CENTERLINE LENGHT L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	10.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.048
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.476

D7501-L06-02-X

$16.47

Attribute: D7501-L06-02-X (L06MBT-02MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	19.0
CENTERLINE LENGTH M2 (MM)	12.0
CENTERLINE LENGHT L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	10.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.048
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.476

D7501-L06-04-SS-X

$75.02

Attribute: D7501-L06-04-SS-X (L06MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGHT L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.633

D7501-L06-04-X

$18.39

Attribute: D7501-L06-04-X (L06MBT-04MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGHT L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.633

D7501-L06-06-SS-X

$96.44

Attribute: D7501-L06-06-SS-X (L06MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L06-08-SS-X

$136.00

Attribute: D7501-L06-08-SS-X (L06MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L08-02-SS-X

$97.68

Attribute: D7501-L08-02-SS-X (L08MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGHT L1 (MM)	24.0
CENTERLINE LENGTH L2 (MM)	9.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.062
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.593

D7501-L08-02-X

$51.42

Attribute: D7501-L08-02-X (L08MBT-02MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGHT L1 (MM)	24.0
CENTERLINE LENGTH L2 (MM)	9.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.062
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.593

D7501-L08-04-SS-X

$71.27

Attribute: D7501-L08-04-SS-X (L08MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGHT L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.633

D7501-L08-04-X

$17.24

Attribute: D7501-L08-04-X (L08MBT-04MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGHT L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.633

D7501-L08-06-SS-X

$88.37

Attribute: D7501-L08-06-SS-X (L08MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.123
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.867

D7501-L08-06-X

$57.18

Attribute: D7501-L08-06-X (L08MBT-06MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.123
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.867

D7501-L08-08-SS-X

$136.04

Attribute: D7501-L08-08-SS-X (L08MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L10-02-SS-X

$94.90

Attribute: D7501-L10-02-SS-X (L10MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L10-04-SS-X

$76.38

Attribute: D7501-L10-04-SS-X (L10MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.086
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.842

D7501-L10-04-X

$19.03

Attribute: D7501-L10-04-X (L10MBT-04MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.086
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.842

D7501-L10-06-SS-X

$94.99

Attribute: D7501-L10-06-SS-X (L10MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.842

D7501-L10-06-X

$44.43

Attribute: D7501-L10-06-X (L10MBT-06MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.842

D7501-L10-08-SS-X

$131.86

Attribute: D7501-L10-08-SS-X (L10MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L12-02-SS-X

$92.13

Attribute: D7501-L12-02-SS-X (L12MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L12-04-SS-X

$85.21

Attribute: D7501-L12-04-SS-X (L12MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.110
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.231

D7501-L12-04-X

$30.55

Attribute: D7501-L12-04-X (L12MBT-04MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.110
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.231

D7501-L12-06-SS-X

$82.41

Attribute: D7501-L12-06-SS-X (L12MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.121
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.231

D7501-L12-06-X

$23.01

Attribute: D7501-L12-06-X (L12MBT-06MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.121
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.231

D7501-L12-08-SS-X

$129.85

Attribute: D7501-L12-08-SS-X (L12MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	28.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.238
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.891

D7501-L12-08-X

$55.27

Attribute: D7501-L12-08-X (L12MBT-08MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	28.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.238
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.891

D7501-L15-04-SS-X

$136.25

Attribute: D7501-L15-04-SS-X (L15MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L15-06-SS-X

$133.82

Attribute: D7501-L15-06-SS-X (L15MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L15-06-X

$38.24

Attribute: D7501-L15-06-X (L15MBT-06MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L15-08-SS-X

$112.70

Attribute: D7501-L15-08-SS-X (L15MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	28.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.247
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.891

D7501-L15-08-X

$27.57

Attribute: D7501-L15-08-X (L15MBT-08MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	28.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.247
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.891

D7501-L15-12-SS-X

$258.38

Attribute: D7501-L15-12-SS-X (L15MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L18-06-SS-X

$148.50

Attribute: D7501-L18-06-SS-X (L18MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L18-08-SS-X

$148.76

Attribute: D7501-L18-08-SS-X (L18MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	24.0
CENTERLINE LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	23.5
CENTERLINE LENGHT L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.271
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.023

D7501-L18-08-X

$34.27

Attribute: D7501-L18-08-X (L18MBT-08MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	24.0
CENTERLINE LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	23.5
CENTERLINE LENGHT L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.271
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.023

D7501-L18-12-SS-X

$258.38

Attribute: D7501-L18-12-SS-X (L18MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L18-12-X

$97.94

Attribute: D7501-L18-12-X (L18MBT-12MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L22-08-SS-X

$251.21

Attribute: D7501-L22-08-SS-X (L22MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L22-12-X

$106.81

Attribute: D7501-L22-12-X (L22MBT-12MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L28-16-SS-X

$499.99

Attribute: D7501-L28-16-SS-X (L28MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L28-16-X

$150.38

Attribute: D7501-L28-16-X (L28MBT-16MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L35-20-SS-X

$788.03

Attribute: D7501-L35-20-SS-X (L35MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S06-02-SS-X

$86.84

Attribute: D7501-S06-02-SS-X (S06MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S06-04-SS-X

$78.14

Attribute: D7501-S06-04-SS-X (S06MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	16.0
CENTERLINE LENGHT L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.093
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.680

D7501-S06-04-X

$18.22

Attribute: D7501-S06-04-X (S06MBT-04MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	16.0
CENTERLINE LENGHT L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.093
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.680

D7501-S06-06-SS-X

$98.11

Attribute: D7501-S06-06-SS-X (S06MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.132
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.900

D7501-S06-08-SS-X

$150.76

Attribute: D7501-S06-08-SS-X (S06MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S08-04-SS-X

$93.79

Attribute: D7501-S08-04-SS-X (S08MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.115
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.900

D7501-S08-04-X

$21.38

Attribute: D7501-S08-04-X (S08MBT-04MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.115
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.900

D7501-S08-06-SS-X

$92.73

Attribute: D7501-S08-06-SS-X (S08MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.927

D7501-S08-08-SS-X

$138.43

Attribute: D7501-S08-08-SS-X (S08MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S10-04-SS-X

$91.96

Attribute: D7501-S10-04-SS-X (S10MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	25.0
CENTERLINE LENGTH M2 (MM)	17.5
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.141
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.268

D7501-S10-06-SS-X

$85.35

Attribute: D7501-S10-06-SS-X (S10MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	25.0
CENTERLINE LENGTH M2 (MM)	17.5
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.152
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.268

D7501-S10-06-X

$24.37

Attribute: D7501-S10-06-X (S10MBT-06MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	25.0
CENTERLINE LENGTH M2 (MM)	17.5
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.152
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.268

D7501-S10-08-SS-X

$135.36

Attribute: D7501-S10-08-SS-X (S10MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	28.0
CENTERLINE LENGTH M2 (MM)	20.5
CENTERLINE LENGHT L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.267
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.804

D7501-S12-04-SS-X

$139.45

Attribute: D7501-S12-04-SS-X (S12MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S12-04-X

$76.13

Attribute: D7501-S12-04-X (S12MBT-04MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S12-06-SS-X

$102.03

Attribute: D7501-S12-06-SS-X (S12MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.5
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.420

D7501-S12-06-X

$26.67

Attribute: D7501-S12-06-X (S12MBT-06MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.5
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.420

D7501-S12-08-SS-X

$133.69

Attribute: D7501-S12-08-SS-X (S12MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.5
CENTERLINE LENGHT L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.267
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.853

D7501-S14-06-SS-X

$140.65

Attribute: D7501-S14-06-SS-X (S14MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S14-08-SS-X

$143.93

Attribute: D7501-S14-08-SS-X (S14MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGHT L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.253
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.901

D7501-S14-08-X

$48.44

Attribute: D7501-S14-08-X (S14MBT-08MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGHT L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.253
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.901

D7501-S16-06-SS-X

$201.37

Attribute: D7501-S16-06-SS-X (S16MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S16-08-SS-X

$198.51

Attribute: D7501-S16-08-SS-X (S16MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	24.0
CENTERLINE LENGTH M1 (MM)	33.0
CENTERLINE LENGTH M2 (MM)	24.5
CENTERLINE LENGHT L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	16.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.328
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.900

D7501-S16-08-X

$36.39

Attribute: D7501-S16-08-X (S16MBT-08MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	24.0
CENTERLINE LENGTH M1 (MM)	33.0
CENTERLINE LENGTH M2 (MM)	24.5
CENTERLINE LENGHT L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	16.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.328
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.900

D7501-S20-08-SS-X

$261.03

Attribute: D7501-S20-08-SS-X (S20MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S20-08-X

$157.84

Attribute: D7501-S20-08-X (S20MBT-08MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S25-16-X

$150.24

Attribute: D7501-S25-16-X (S25MBT-16MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S30-20-X

$165.57

Attribute: D7501-S30-20-X (S30MBT-20MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S38-24-X

$240.20

Attribute: D7501-S38-24-X (S38MBT-24MBSPT 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

Description

Description

Variations (77)

D7501-E04-02-SS-X

D7501-E04-02-X

D7501-E06-02-SS-X

D7501-E08-02-SS-X

D7501-E08-02-X

D7501-E10-04-SS-X

D7501-L06-02-SS-X

D7501-L06-02-X

D7501-L06-04-SS-X

D7501-L06-04-X

D7501-L06-06-SS-X

D7501-L06-08-SS-X

D7501-L08-02-SS-X

D7501-L08-02-X

D7501-L08-04-SS-X

D7501-L08-04-X

D7501-L08-06-SS-X

D7501-L08-06-X

D7501-L08-08-SS-X

D7501-L10-02-SS-X

D7501-L10-04-SS-X

D7501-L10-04-X

D7501-L10-06-SS-X

D7501-L10-06-X

D7501-L10-08-SS-X

D7501-L12-02-SS-X

D7501-L12-04-SS-X

D7501-L12-04-X

D7501-L12-06-SS-X

D7501-L12-06-X

D7501-L12-08-SS-X

D7501-L12-08-X

D7501-L15-04-SS-X

D7501-L15-06-SS-X

D7501-L15-06-X

D7501-L15-08-SS-X

D7501-L15-08-X

D7501-L15-12-SS-X

D7501-L18-06-SS-X

D7501-L18-08-SS-X

D7501-L18-08-X

D7501-L18-12-SS-X

D7501-L18-12-X

D7501-L22-08-SS-X

D7501-L22-12-X

D7501-L28-16-SS-X

D7501-L28-16-X

D7501-L35-20-SS-X

D7501-S06-02-SS-X

D7501-S06-04-SS-X

D7501-S06-04-X

D7501-S06-06-SS-X

D7501-S06-08-SS-X

D7501-S08-04-SS-X

D7501-S08-04-X

D7501-S08-06-SS-X

D7501-S08-08-SS-X

D7501-S10-04-SS-X

D7501-S10-06-SS-X

D7501-S10-06-X

D7501-S10-08-SS-X

D7501-S12-04-SS-X

D7501-S12-04-X

D7501-S12-06-SS-X

D7501-S12-06-X

D7501-S12-08-SS-X

D7501-S14-06-SS-X

D7501-S14-08-SS-X

D7501-S14-08-X

D7501-S16-06-SS-X

D7501-S16-08-SS-X

D7501-S16-08-X

D7501-S20-08-SS-X

D7501-S20-08-X

D7501-S25-16-X

D7501-S30-20-X
