D7501

D7501-E04-02

$36.70

Attribute: D7501-E04-02 (E04MBT-02MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1

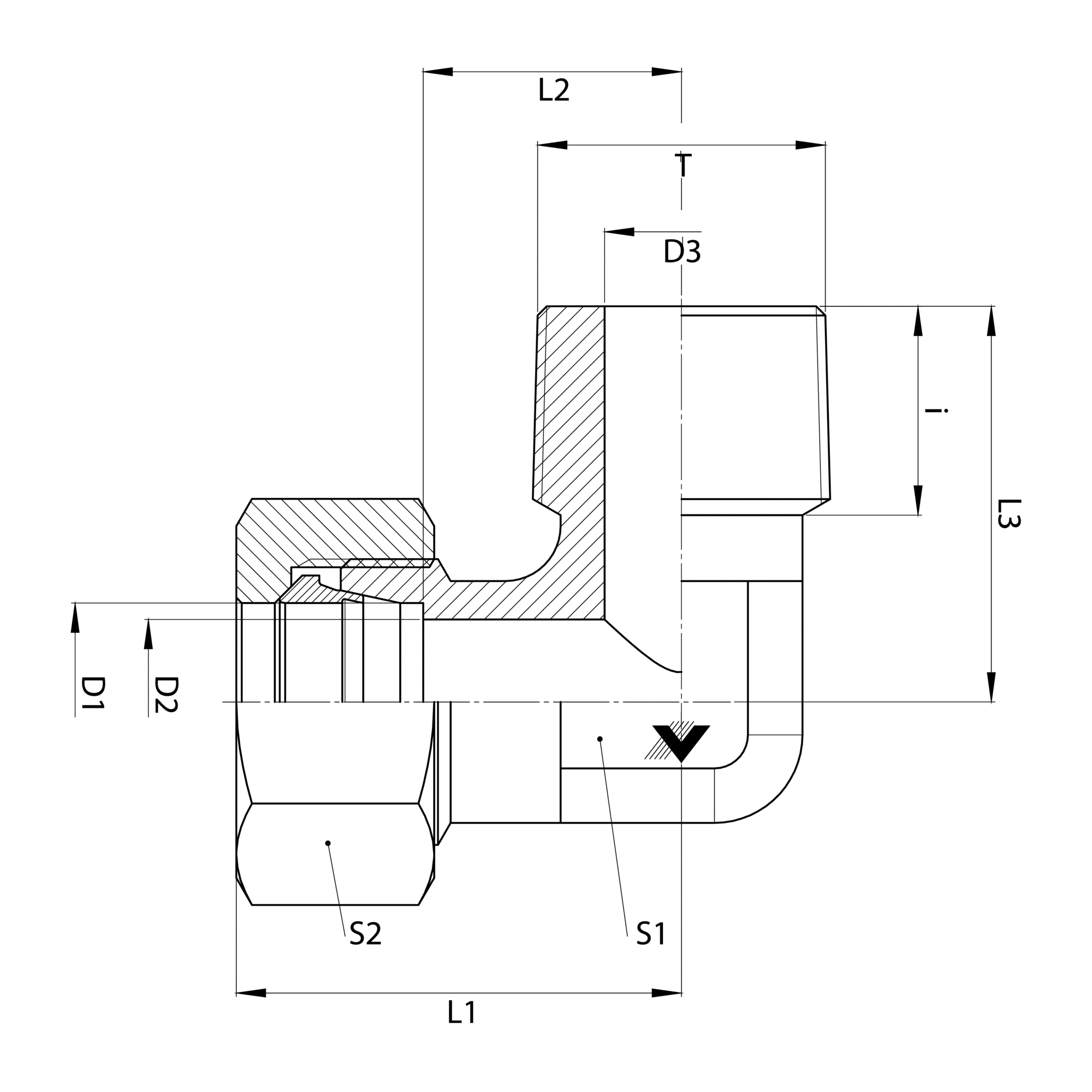

BODY HEX (MM)	9.0
HEX C 1 (MM)	10.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT M3 (MM)	11.0
CENTERLINE LENGTH L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.039
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.342

D7501-E04-02-SS

$92.13

Attribute: D7501-E04-02-SS (E04MBT-02MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	9.0
HEX C 1 (MM)	10.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT M3 (MM)	11.0
CENTERLINE LENGTH L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.039
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.342

D7501-E06-02

$38.15

Attribute: D7501-E06-02 (E06MBT-02MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.5
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	9.0
HEX C 1 (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT M3 (MM)	9.5
CENTERLINE LENGTH L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.041
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.429

D7501-E06-02-SS

$96.91

Attribute: D7501-E06-02-SS (E06MBT-02MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.5
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	9.0
HEX C 1 (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT M3 (MM)	9.5
CENTERLINE LENGTH L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.041
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.429

D7501-E08-02

$44.29

Attribute: D7501-E08-02 (E08MBT-02MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT M3 (MM)	11.5
CENTERLINE LENGTH L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.056
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.669

D7501-E08-02-SS

$100.15

Attribute: D7501-E08-02-SS (E08MBT-02MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT M3 (MM)	11.5
CENTERLINE LENGTH L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	8.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.056
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.669

D7501-E10-04-SS

$148.20

Attribute: D7501-E10-04-SS (E10MBT-04MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	26.8
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT M3 (MM)	15.5
CENTERLINE LENGTH L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.108
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.211

D7501-L06-02

$18.65

Attribute: D7501-L06-02 (L06MBT-02MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	19.0
CENTERLINE LENGHT M3 (MM)	12.0
CENTERLINE LENGTH L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	10.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.077
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.761

D7501-L06-02-SS

$69.65

Attribute: D7501-L06-02-SS (L06MBT-02MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	19.0
CENTERLINE LENGHT M3 (MM)	12.0
CENTERLINE LENGTH L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	10.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.077
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.761

D7501-L06-04

$21.30

Attribute: D7501-L06-04 (L06MBT-04MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT M3 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.987

D7501-L06-04-SS

$88.93

Attribute: D7501-L06-04-SS (L06MBT-04MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT M3 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.987

D7501-L08-02

$54.41

Attribute: D7501-L08-02 (L08MBT-02MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT M3 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	24.0
CENTERLINE LENGTH L2 (MM)	9.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.103
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.180

D7501-L08-02-SS

$111.20

Attribute: D7501-L08-02-SS (L08MBT-02MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT M3 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	24.0
CENTERLINE LENGTH L2 (MM)	9.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.103
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.180

D7501-L08-04

$21.89

Attribute: D7501-L08-04 (L08MBT-04MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT M3 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.114
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.253

D7501-L08-04-SS

$84.66

Attribute: D7501-L08-04-SS (L08MBT-04MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT M3 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.114
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.253

D7501-L08-06

$66.86

Attribute: D7501-L08-06 (L08MBT-06MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGHT M3 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.160
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.401

D7501-L08-06-SS

$102.80

Attribute: D7501-L08-06-SS (L08MBT-06MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGHT M3 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.160
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.401

D7501-L10-04

$23.93

Attribute: D7501-L10-04 (L10MBT-04MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGHT M3 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.137
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.566

D7501-L10-04-SS

$92.60

Attribute: D7501-L10-04-SS (L10MBT-04MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGHT M3 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.137
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.566

D7501-L10-06

$51.33

Attribute: D7501-L10-06 (L10MBT-06MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGHT M3 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.152
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.566

D7501-L10-06-SS

$111.38

Attribute: D7501-L10-06-SS (L10MBT-06MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGHT M3 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.152
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.566

D7501-L12-04

$35.42

Attribute: D7501-L12-04 (L12MBT-04MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGHT M3 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.179
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.121

D7501-L12-04-SS

$109.16

Attribute: D7501-L12-04-SS (L12MBT-04MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGHT M3 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.179
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.121

D7501-L12-06

$26.49

Attribute: D7501-L12-06 (L12MBT-06MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGHT M3 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.189
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.121

D7501-L12-06-SS

$106.34

Attribute: D7501-L12-06-SS (L12MBT-06MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGHT M3 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.189
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.121

D7501-L12-08

$58.16

Attribute: D7501-L12-08 (L12MBT-08MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGHT M3 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.305
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.749

D7501-L12-08-SS

$149.35

Attribute: D7501-L12-08-SS (L12MBT-08MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGHT M3 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.305
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.749

D7501-L15-06

$45.32

Attribute: D7501-L15-06 (L15MBT-06MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L15-08

$32.18

Attribute: D7501-L15-08 (L15MBT-08MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGHT M3 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.327
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.600

D7501-L15-08-SS

$140.82

Attribute: D7501-L15-08-SS (L15MBT-08MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGHT M3 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.327
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.600

D7501-L18-08

$42.11

Attribute: D7501-L18-08 (L18MBT-08MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGHT M3 (MM)	23.5
CENTERLINE LENGTH L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.431
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.331

D7501-L18-08-SS

$202.91

Attribute: D7501-L18-08-SS (L18MBT-08MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGHT M3 (MM)	23.5
CENTERLINE LENGTH L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.431
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.331

D7501-L18-12

$111.85

Attribute: D7501-L18-12 (L18MBT-12MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L22-12

$123.19

Attribute: D7501-L22-12 (L22MBT-12MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-L28-16

$173.55

Attribute: D7501-L28-16 (L28MBT-16MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S06-04

$22.06

Attribute: D7501-S06-04 (S06MBT-04MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	23.0
CENTERLINE LENGHT M3 (MM)	16.0
CENTERLINE LENGTH L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.138
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.324

D7501-S06-04-SS

$61.19

Attribute: D7501-S06-04-SS (S06MBT-04MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	23.0
CENTERLINE LENGHT M3 (MM)	16.0
CENTERLINE LENGTH L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.138
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.324

D7501-S06-06-SS

$115.68

Attribute: D7501-S06-06-SS (S06MBT-06MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGHT M3 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.180
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.436

D7501-S08-04

$25.22

Attribute: D7501-S08-04 (S08MBT-04MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGHT M3 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.168
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.651

D7501-S08-04-SS

$114.27

Attribute: D7501-S08-04-SS (S08MBT-04MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGHT M3 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.168
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.651

D7501-S08-06-SS

$109.67

Attribute: D7501-S08-06-SS (S08MBT-06MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGHT M3 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.193
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.696

D7501-S10-04-SS

$115.77

Attribute: D7501-S10-04-SS (S10MBT-04MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	25.0
CENTERLINE LENGHT M3 (MM)	17.5
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.220
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.225

D7501-S10-06

$28.25

Attribute: D7501-S10-06 (S10MBT-06MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	25.0
CENTERLINE LENGHT M3 (MM)	17.5
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.225

D7501-S10-06-SS

$108.64

Attribute: D7501-S10-06-SS (S10MBT-06MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	25.0
CENTERLINE LENGHT M3 (MM)	17.5
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.225

D7501-S10-08-SS

$156.74

Attribute: D7501-S10-08-SS (S10MBT-08MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	37.0
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGHT M3 (MM)	20.5
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.347
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.684

D7501-S12-04

$83.85

Attribute: D7501-S12-04 (S12MBT-04MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S12-06

$31.53

Attribute: D7501-S12-06 (S12MBT-06MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
CENTERLINE LENGTH M1 (MM)	43.7
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGHT M3 (MM)	21.5
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.273
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.058

D7501-S12-06-SS

$130.83

Attribute: D7501-S12-06-SS (S12MBT-06MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
CENTERLINE LENGTH M1 (MM)	43.7
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGHT M3 (MM)	21.5
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.273
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.058

D7501-S12-08-SS

$160.84

Attribute: D7501-S12-08-SS (S12MBT-08MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	39.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGHT M3 (MM)	21.5
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.347
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.800

D7501-S14-08

$67.00

Attribute: D7501-S14-08 (S14MBT-08MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGHT M3 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.387
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.711

D7501-S14-08-SS

$181.53

Attribute: D7501-S14-08-SS (S14MBT-08MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGHT M3 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.387
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.711

D7501-S16-08

$45.70

Attribute: D7501-S16-08 (S16MBT-08MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGHT M3 (MM)	24.5
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	16.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.476
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.732

D7501-S16-08-SS

$245.88

Attribute: D7501-S16-08-SS (S16MBT-08MBSPT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGHT M3 (MM)	24.5
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	16.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.476
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.732

D7501-S20-08

$176.37

Attribute: D7501-S20-08 (S20MBT-08MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S25-16

$187.04

Attribute: D7501-S25-16 (S25MBT-16MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S30-20

$277.08

Attribute: D7501-S30-20 (S30MBT-20MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7501-S38-24

$315.60

Attribute: D7501-S38-24 (S38MBT-24MBSPT 90)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT (R)
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 SPECIFICATION	ISO 7-1, DIN EN 10226-1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

Description

Description

Variations (57)

D7501-E04-02

D7501-E04-02-SS

D7501-E06-02

D7501-E06-02-SS

D7501-E08-02

D7501-E08-02-SS

D7501-E10-04-SS

D7501-L06-02

D7501-L06-02-SS

D7501-L06-04

D7501-L06-04-SS

D7501-L08-02

D7501-L08-02-SS

D7501-L08-04

D7501-L08-04-SS

D7501-L08-06

D7501-L08-06-SS

D7501-L10-04

D7501-L10-04-SS

D7501-L10-06

D7501-L10-06-SS

D7501-L12-04

D7501-L12-04-SS

D7501-L12-06

D7501-L12-06-SS

D7501-L12-08

D7501-L12-08-SS

D7501-L15-06

D7501-L15-08

D7501-L15-08-SS

D7501-L18-08

D7501-L18-08-SS

D7501-L18-12

D7501-L22-12

D7501-L28-16

D7501-S06-04

D7501-S06-04-SS

D7501-S06-06-SS

D7501-S08-04

D7501-S08-04-SS

D7501-S08-06-SS

D7501-S10-04-SS

D7501-S10-06

D7501-S10-06-SS

D7501-S10-08-SS

D7501-S12-04

D7501-S12-06

D7501-S12-06-SS

D7501-S12-08-SS

D7501-S14-08

D7501-S14-08-SS

D7501-S16-08

D7501-S16-08-SS

D7501-S20-08

D7501-S25-16

D7501-S30-20

D7501-S38-24

General Attributes

PDF Documents
