D7405

D7405-L06-02

$10.11

Attribute: D7405-L06-02 (L06MBT-02FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0

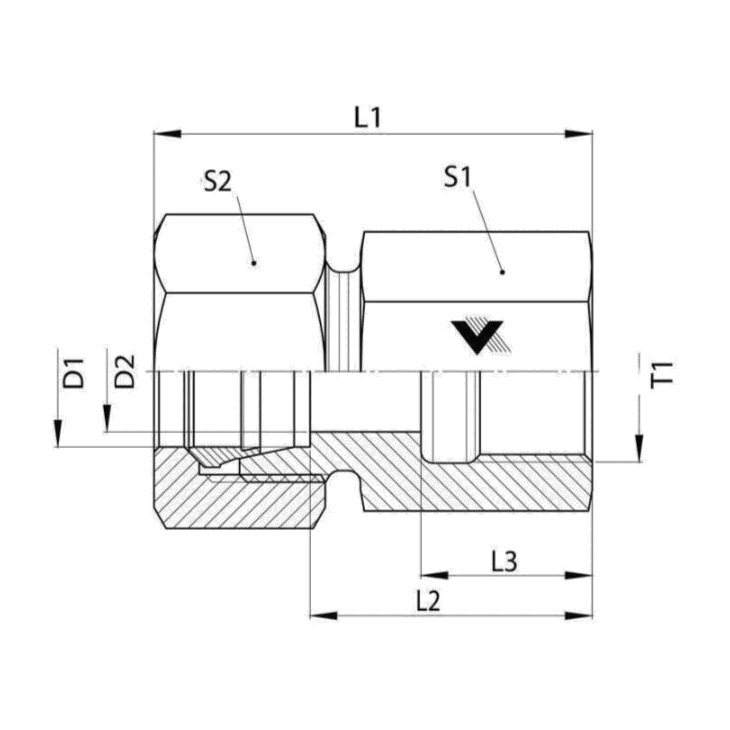

OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	19.0
OVERALL LENGTH L4 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.076
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.407

D7405-L06-02-SS

$64.26

Attribute: D7405-L06-02-SS (L06MBT-02FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	19.0
OVERALL LENGTH L4 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.076
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.407

D7405-L06-04

$27.31

Attribute: D7405-L06-04 (L06MBT-04FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	24.0
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.120
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.859

D7405-L06-04-SS

$76.34

Attribute: D7405-L06-04-SS (L06MBT-04FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	24.0
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.120
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.859

D7405-L06-06

$40.80

Attribute: D7405-L06-06 (L06MBT-06FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	24.0
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.171
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.371

D7405-L06-06-SS

$99.98

Attribute: D7405-L06-06-SS (L06MBT-06FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	24.0
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.171
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.371

D7405-L06-08-SS

$119.15

Attribute: D7405-L06-08-SS (L06MBT-08FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	29.0
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.223
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.957

D7405-L08-02-SS

$87.01

Attribute: D7405-L08-02-SS (L08MBT-02FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	19.0
OVERALL LENGTH L4 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.090
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.600

D7405-L08-04

$10.96

Attribute: D7405-L08-04 (L08MBT-04FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	24.0
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.136
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.859

D7405-L08-04-SS

$84.62

Attribute: D7405-L08-04-SS (L08MBT-04FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	24.0
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.136
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.859

D7405-L08-06

$32.86

Attribute: D7405-L08-06 (L08MBT-06FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	24.0
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.186
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.371

D7405-L08-06-SS

$96.70

Attribute: D7405-L08-06-SS (L08MBT-06FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	24.0
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.186
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.371

D7405-L08-08

$75.70

Attribute: D7405-L08-08 (L08MBT-08FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	29.0
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.237
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.957

D7405-L08-08-SS

$124.43

Attribute: D7405-L08-08-SS (L08MBT-08FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	29.0
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.237
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.957

D7405-L10-04

$11.01

Attribute: D7405-L10-04 (L10MBT-04FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	25.0
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.881

D7405-L10-04-SS

$82.23

Attribute: D7405-L10-04-SS (L10MBT-04FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	25.0
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.881

D7405-L10-06

$51.21

Attribute: D7405-L10-06 (L10MBT-06FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	25.0
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.199
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.406

D7405-L10-06-SS

$103.27

Attribute: D7405-L10-06-SS (L10MBT-06FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	25.0
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.199
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.406

D7405-L10-08

$81.85

Attribute: D7405-L10-08 (L10MBT-08FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	30.0
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.250
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002

D7405-L10-08-SS

$129.00

Attribute: D7405-L10-08-SS (L10MBT-08FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	30.0
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.250
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002

D7405-L12-04

$15.74

Attribute: D7405-L12-04 (L12MBT-04FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.178
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.211

D7405-L12-04-SS

$98.27

Attribute: D7405-L12-04-SS (L12MBT-04FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.178
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.211

D7405-L12-06

$13.44

Attribute: D7405-L12-06 (L12MBT-06FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.224
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.441

D7405-L12-06-SS

$97.00

Attribute: D7405-L12-06-SS (L12MBT-06FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.224
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.441

D7405-L12-08

$43.82

Attribute: D7405-L12-08 (L12MBT-08FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	30.0
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.268
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002

D7405-L12-08-SS

$114.58

Attribute: D7405-L12-08-SS (L12MBT-08FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	30.0
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.268
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002

D7405-L15-06

$40.87

Attribute: D7405-L15-06 (L15MBT-06FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7405-L15-08

$18.18

Attribute: D7405-L15-08 (L15MBT-08FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	31.0
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.322
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.069

D7405-L15-08-SS

$131.30

Attribute: D7405-L15-08-SS (L15MBT-08FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	31.0
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.322
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.069

D7405-L18-06

$72.84

Attribute: D7405-L18-06 (L18MBT-06FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	27.5
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.410
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.781

D7405-L18-06-SS

$156.82

Attribute: D7405-L18-06-SS (L18MBT-06FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	27.5
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.410
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.781

D7405-L18-08

$24.16

Attribute: D7405-L18-08 (L18MBT-08FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	30.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.276
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.968

D7405-L18-08-SS

$158.96

Attribute: D7405-L18-08-SS (L18MBT-08FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	30.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.276
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.968

D7405-L22-12

$35.85

Attribute: D7405-L22-12 (L22MBT-12FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	36.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	35.5
OVERALL LENGTH L4 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.641
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.231

D7405-L22-12-SS

$288.13

Attribute: D7405-L22-12-SS (L22MBT-12FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	36.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	35.5
OVERALL LENGTH L4 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.641
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.231

D7405-L22-16

$183.83

Attribute: D7405-L22-16 (L22MBT-16FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7405-L28-16

$91.96

Attribute: D7405-L28-16 (L28MBT-16FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	46.0
OVERALL LENGTH L3 (MM)	38.5
OVERALL LENGTH L4 (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.778
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.847

D7405-L28-16-SS

$308.14

Attribute: D7405-L28-16-SS (L28MBT-16FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	46.0
OVERALL LENGTH L3 (MM)	38.5
OVERALL LENGTH L4 (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.778
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.847

D7405-L35-20

$147.77

Attribute: D7405-L35-20 (L35MBT-20FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	64.0
OVERALL LENGTH L2 (MM)	52.0
OVERALL LENGTH L3 (MM)	41.5
OVERALL LENGTH L4 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.498
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.814

D7405-L35-20-SS

$544.46

Attribute: D7405-L35-20-SS (L35MBT-20FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	64.0
OVERALL LENGTH L2 (MM)	52.0
OVERALL LENGTH L3 (MM)	41.5
OVERALL LENGTH L4 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.498
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.814

D7405-L42-24

$161.99

Attribute: D7405-L42-24 (L42MBT-24FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	60.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	54.0
OVERALL LENGTH L3 (MM)	43.0
OVERALL LENGTH L4 (MM)	30.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.858
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.499

D7405-L42-24-SS

$692.74

Attribute: D7405-L42-24-SS (L42MBT-24FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	60.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	54.0
OVERALL LENGTH L3 (MM)	43.0
OVERALL LENGTH L4 (MM)	30.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.858
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.499

D7405-S06-04

$18.60

Attribute: D7405-S06-04 (S06MBT-04FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.151
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.903

D7405-S06-04-SS

$84.53

Attribute: D7405-S06-04-SS (S06MBT-04FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.151
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.903

D7405-S08-04

$19.45

Attribute: D7405-S08-04 (S08MBT-04FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.903

D7405-S08-04-SS

$86.59

Attribute: D7405-S08-04-SS (S08MBT-04FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.903

D7405-S08-06-SS

$117.14

Attribute: D7405-S08-06-SS (S08MBT-06FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	27.0
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.222
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.476

D7405-S10-04-SS

$233.71

Attribute: D7405-S10-04-SS (S10MBT-04FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	25.5
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.194
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.240

D7405-S10-06

$54.75

Attribute: D7405-S10-06 (S10MBT-06FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	26.5
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.251
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.511

D7405-S10-06-SS

$116.20

Attribute: D7405-S10-06-SS (S10MBT-06FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	26.5
OVERALL LENGTH L4 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.251
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.511

D7405-S10-08

$47.84

Attribute: D7405-S10-08 (S10MBT-08FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	30.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.294
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.091

D7405-S10-08-SS

$123.54

Attribute: D7405-S10-08-SS (S10MBT-08FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	30.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.294
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.091

D7405-S12-04-SS

$120.93

Attribute: D7405-S12-04-SS (S12MBT-04FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	25.5
OVERALL LENGTH L4 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.248
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.476

D7405-S12-06

$25.26

Attribute: D7405-S12-06 (S12MBT-06FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	26.5
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.264
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.511

D7405-S12-06-SS

$122.22

Attribute: D7405-S12-06-SS (S12MBT-06FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	26.5
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.264
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.511

D7405-S12-08

$68.92

Attribute: D7405-S12-08 (S12MBT-08FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	30.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.309
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.091

D7405-S12-08-SS

$126.48

Attribute: D7405-S12-08-SS (S12MBT-08FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	30.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.309
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.091

D7405-S14-08

$47.71

Attribute: D7405-S14-08 (S14MBT-08FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	32.0
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.435
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.746

D7405-S14-08-SS

$157.51

Attribute: D7405-S14-08-SS (S14MBT-08FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	32.0
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.435
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.746

D7405-S16-06-SS

$159.55

Attribute: D7405-S16-06-SS (S16MBT-06FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	27.5
OVERALL LENGTH L4 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.408
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.526

D7405-S16-08

$33.50

Attribute: D7405-S16-08 (S16MBT-08FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	31.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.401
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.746

D7405-S16-08-SS

$158.91

Attribute: D7405-S16-08-SS (S16MBT-08FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	31.5
OVERALL LENGTH L4 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.401
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.746

D7405-S16-12-SS

$190.45

Attribute: D7405-S16-12-SS (S16MBT-12FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	36.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	34.5
OVERALL LENGTH L4 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.599
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.192

D7405-S20-12

$55.30

Attribute: D7405-S20-12 (S20MBT-12FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	36.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	45.0
OVERALL LENGTH L3 (MM)	34.5
OVERALL LENGTH L4 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.731
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.508

D7405-S20-12-SS

$247.08

Attribute: D7405-S20-12-SS (S20MBT-12FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	36.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	45.0
OVERALL LENGTH L3 (MM)	34.5
OVERALL LENGTH L4 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.731
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.508

D7405-S25-16

$107.79

Attribute: D7405-S25-16 (S25MBT-16FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	49.5
OVERALL LENGTH L3 (MM)	37.5
OVERALL LENGTH L4 (MM)	24.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.114
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.070

D7405-S25-16-SS

$457.45

Attribute: D7405-S25-16-SS (S25MBT-16FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	49.5
OVERALL LENGTH L3 (MM)	37.5
OVERALL LENGTH L4 (MM)	24.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.114
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.070

D7405-S30-20

$150.08

Attribute: D7405-S30-20 (S30MBT-20FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	69.7
OVERALL LENGTH L2 (MM)	55.5
OVERALL LENGTH L3 (MM)	42.0
OVERALL LENGTH L4 (MM)	26.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.783
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.876

D7405-S30-20-SS

$618.37

Attribute: D7405-S30-20-SS (S30MBT-20FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	69.7
OVERALL LENGTH L2 (MM)	55.5
OVERALL LENGTH L3 (MM)	42.0
OVERALL LENGTH L4 (MM)	26.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.783
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.876

D7405-S38-16-SS

$601.68

Attribute: D7405-S38-16-SS (S38MBT-16FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	60.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	69.5
OVERALL LENGTH L2 (MM)	54.0
OVERALL LENGTH L3 (MM)	38.0
OVERALL LENGTH L4 (MM)	24.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.505
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.268

D7405-S38-24

$178.03

Attribute: D7405-S38-24 (S38MBT-24FBSPP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	60.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	75.0
OVERALL LENGTH L2 (MM)	59.5
OVERALL LENGTH L3 (MM)	43.5
OVERALL LENGTH L4 (MM)	28.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.292
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.476

D7405-S38-24-SS

$766.87

Attribute: D7405-S38-24-SS (S38MBT-24FBSPP ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE BSPP (G)
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	60.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	75.0
OVERALL LENGTH L2 (MM)	59.5
OVERALL LENGTH L3 (MM)	43.5
OVERALL LENGTH L4 (MM)	28.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.292
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.476

Description

Description

Variations (72)

D7405-L06-02

D7405-L06-02-SS

D7405-L06-04

D7405-L06-04-SS

D7405-L06-06

D7405-L06-06-SS

D7405-L06-08-SS

D7405-L08-02-SS

D7405-L08-04

D7405-L08-04-SS

D7405-L08-06

D7405-L08-06-SS

D7405-L08-08

D7405-L08-08-SS

D7405-L10-04

D7405-L10-04-SS

D7405-L10-06

D7405-L10-06-SS

D7405-L10-08

D7405-L10-08-SS

D7405-L12-04

D7405-L12-04-SS

D7405-L12-06

D7405-L12-06-SS

D7405-L12-08

D7405-L12-08-SS

D7405-L15-06

D7405-L15-08

D7405-L15-08-SS

D7405-L18-06

D7405-L18-06-SS

D7405-L18-08

D7405-L18-08-SS

D7405-L22-12

D7405-L22-12-SS

D7405-L22-16

D7405-L28-16

D7405-L28-16-SS

D7405-L35-20

D7405-L35-20-SS

D7405-L42-24

D7405-L42-24-SS

D7405-S06-04

D7405-S06-04-SS

D7405-S08-04

D7405-S08-04-SS

D7405-S08-06-SS

D7405-S10-04-SS

D7405-S10-06

D7405-S10-06-SS

D7405-S10-08

D7405-S10-08-SS

D7405-S12-04-SS

D7405-S12-06

D7405-S12-06-SS

D7405-S12-08

D7405-S12-08-SS

D7405-S14-08

D7405-S14-08-SS

D7405-S16-06-SS

D7405-S16-08

D7405-S16-08-SS

D7405-S16-12-SS

D7405-S20-12

D7405-S20-12-SS

D7405-S25-16

D7405-S25-16-SS

D7405-S30-20

D7405-S30-20-SS

D7405-S38-16-SS

D7405-S38-24

D7405-S38-24-SS

General Attributes

PDF Documents
