D7404-X

D7404-E04-02-SS-X

$29.19

Attribute: D7404-E04-02-SS-X (E04MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	11.0

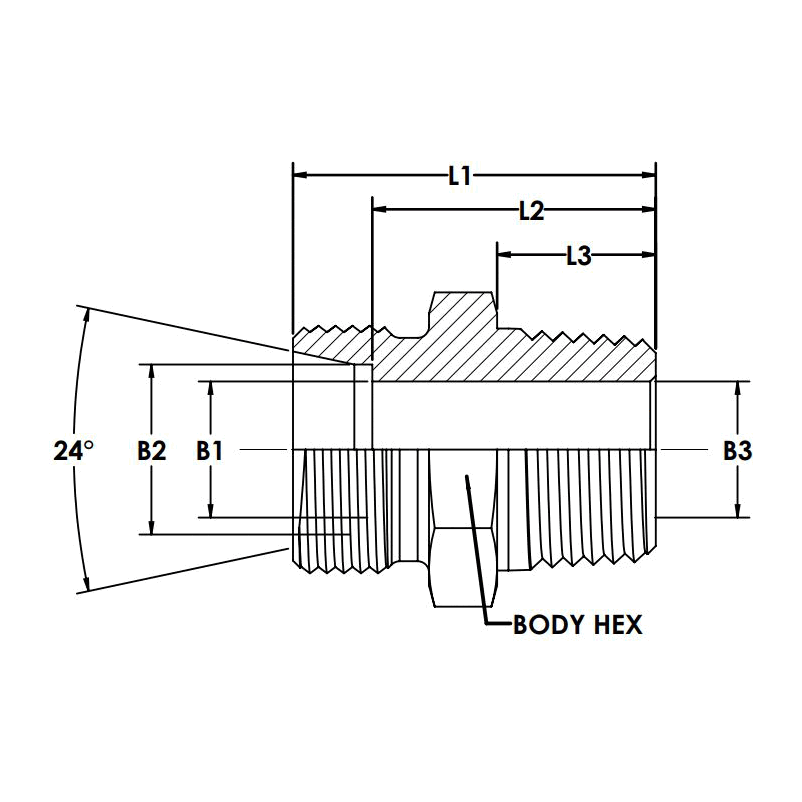

OVERALL LENGTH L1 (MM)	21.5
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.024
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.159

D7404-E06-02-SS-X

$32.21

Attribute: D7404-E06-02-SS-X (E06MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.5
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	11.0
OVERALL LENGTH L1 (MM)	20.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.022
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.192

D7404-E06-02-X

$1.88

Attribute: D7404-E06-02-X (E06MBT-02MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.5
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	11.0
OVERALL LENGTH L1 (MM)	20.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.022
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.192

D7404-E08-02-SS-X

$34.14

Attribute: D7404-E08-02-SS-X (E08MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.5
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	12.0
OVERALL LENGTH L1 (MM)	22.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.026
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.246

D7404-E08-02-X

$2.26

Attribute: D7404-E08-02-X (E08MBT-02MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.5
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	12.0
OVERALL LENGTH L1 (MM)	22.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.026
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.246

D7404-E08-04-SS-X

$39.81

Attribute: D7404-E08-04-SS-X (E08MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	26.5
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.046
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.389

D7404-E08-04-X

$2.98

Attribute: D7404-E08-04-X (E08MBT-04MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	26.5
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.046
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.389

D7404-L06-02-SS-X

$42.89

Attribute: D7404-L06-02-SS-X (L06MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	12.0
OVERALL LENGTH L1 (MM)	23.0
OVERALL LENGTH L2 (MM)	16.0
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.272

D7404-L06-02-X

$24.58

Attribute: D7404-L06-02-X (L06MBT-02MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	12.0
OVERALL LENGTH L1 (MM)	23.0
OVERALL LENGTH L2 (MM)	16.0
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.272

D7404-L06-04-SS-X

$41.13

Attribute: D7404-L06-04-SS-X (L06MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	27.0
OVERALL LENGTH L2 (MM)	20.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.053
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.419

D7404-L06-04-X

$33.80

Attribute: D7404-L06-04-X (L06MBT-04MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	27.0
OVERALL LENGTH L2 (MM)	20.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.053
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.419

D7404-L06-06-SS-X

$49.38

Attribute: D7404-L06-06-SS-X (L06MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.793

D7404-L06-08-SS-X

$68.36

Attribute: D7404-L06-08-SS-X (L06MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.122

D7404-L08-02-SS-X

$44.04

Attribute: D7404-L08-02-SS-X (L08MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	25.0
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.042
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.395

D7404-L08-02-X

$29.74

Attribute: D7404-L08-02-X (L08MBT-02MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	25.0
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.042
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.395

D7404-L08-04-SS-X

$40.16

Attribute: D7404-L08-04-SS-X (L08MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	27.0
OVERALL LENGTH L2 (MM)	20.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.057
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.617

D7404-L08-04-X

$6.92

Attribute: D7404-L08-04-X (L08MBT-04MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	27.0
OVERALL LENGTH L2 (MM)	20.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.057
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.617

D7404-L08-06-SS-X

$51.29

Attribute: D7404-L08-06-SS-X (L08MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.086
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.793

D7404-L08-06-X

$12.16

Attribute: D7404-L08-06-X (L08MBT-06MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.086
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.793

D7404-L08-08-SS-X

$71.69

Attribute: D7404-L08-08-SS-X (L08MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.134
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.122

D7404-L10-02-SS-X

$50.65

Attribute: D7404-L10-02-SS-X (L10MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	24.0
OVERALL LENGTH L2 (MM)	17.0
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.051
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.564

D7404-L10-04-SS-X

$45.32

Attribute: D7404-L10-04-SS-X (L10MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.059
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.635

D7404-L10-04-X

$17.92

Attribute: D7404-L10-04-X (L10MBT-04MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.059
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.635

D7404-L10-06-SS-X

$48.35

Attribute: D7404-L10-06-SS-X (L10MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.079
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.793

D7404-L10-06-X

$27.10

Attribute: D7404-L10-06-X (L10MBT-06MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.079
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.793

D7404-L10-08-SS-X

$77.58

Attribute: D7404-L10-08-SS-X (L10MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.132
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.336

D7404-L10-08-X

$32.43

Attribute: D7404-L10-08-X (L10MBT-08MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.132
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.336

D7404-L12-04-SS-X

$56.45

Attribute: D7404-L12-04-SS-X (L12MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	22.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.815

D7404-L12-04-X

$14.03

Attribute: D7404-L12-04-X (L12MBT-04MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	22.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.815

D7404-L12-06-SS-X

$56.45

Attribute: D7404-L12-06-SS-X (L12MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	22.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.084
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.815

D7404-L12-06-X

$7.60

Attribute: D7404-L12-06-X (L12MBT-06MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	22.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.084
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.815

D7404-L12-08-SS-X

$68.48

Attribute: D7404-L12-08-SS-X (L12MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.126
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.152

D7404-L12-08-X

$15.32

Attribute: D7404-L12-08-X (L12MBT-08MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.126
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.152

D7404-L12-12-SS-X

$113.59

Attribute: D7404-L12-12-SS-X (L12MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	28.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.222
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.913

D7404-L15-04-SS-X

$82.27

Attribute: D7404-L15-04-SS-X (L15MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.110
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.353

D7404-L15-06-SS-X

$78.85

Attribute: D7404-L15-06-SS-X (L15MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.121
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.353

D7404-L15-06-X

$28.93

Attribute: D7404-L15-06-X (L15MBT-06MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.121
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.353

D7404-L15-08-SS-X

$71.69

Attribute: D7404-L15-08-SS-X (L15MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.424

D7404-L15-08-X

$25.99

Attribute: D7404-L15-08-X (L15MBT-08MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.424

D7404-L18-06-SS-X

$82.62

Attribute: D7404-L18-06-SS-X (L18MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.156
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.802

D7404-L18-08-SS-X

$85.35

Attribute: D7404-L18-08-SS-X (L18MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	25.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.165
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.891

D7404-L18-08-X

$20.62

Attribute: D7404-L18-08-X (L18MBT-08MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	25.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.165
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.891

D7404-L18-12-SS-X

$121.49

Attribute: D7404-L18-12-SS-X (L18MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	28.5
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.209
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

D7404-L22-06-SS-X

$126.78

Attribute: D7404-L22-06-SS-X (L22MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	25.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.207
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.718

D7404-L22-08-SS-X

$118.33

Attribute: D7404-L22-08-SS-X (L22MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	27.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.211
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.843

D7404-L22-12-SS-X

$119.62

Attribute: D7404-L22-12-SS-X (L22MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.968

D7404-L22-12-X

$29.02

Attribute: D7404-L22-12-X (L22MBT-12MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.968

D7404-L22-16-SS-X

$224.88

Attribute: D7404-L22-16-SS-X (L22MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	19.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	36.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.388
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.073

D7404-L28-12-SS-X

$203.89

Attribute: D7404-L28-12-SS-X (L28MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	19.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	36.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.335
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.192

D7404-L28-16-SS-X

$206.07

Attribute: D7404-L28-16-SS-X (L28MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	24.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.390
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D7404-L28-20-SS-X

$301.18

Attribute: D7404-L28-20-SS-X (L28MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	24.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	38.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.720
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.360

D7404-L28-24-SS-X

$203.89

Attribute: D7404-L28-24-SS-X (L28MBT-24MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	36.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.317
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.954

D7404-L35-16-SS-X

$273.96

Attribute: D7404-L35-16-SS-X (L35MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	19.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.588
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.360

D7404-L35-20-SS-X

$273.96

Attribute: D7404-L35-20-SS-X (L35MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.590
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.360

D7404-L35-24-SS-X

$308.99

Attribute: D7404-L35-24-SS-X (L35MBT-24MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	38.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.879
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.306

D7404-L42-24-SS-X

$356.61

Attribute: D7404-L42-24-SS-X (L42MBT-24MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	36.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.791
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.891

D7404-S06-04-SS-X

$45.79

Attribute: D7404-S06-04-SS-X (S06MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	22.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.653

D7404-S08-04-SS-X

$53.86

Attribute: D7404-S08-04-SS-X (S08MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	22.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.653

D7404-S10-04-SS-X

$61.45

Attribute: D7404-S10-04-SS-X (S10MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	24.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.903

D7404-S10-06-SS-X

$64.39

Attribute: D7404-S10-06-SS-X (S10MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	24.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.903

D7404-S10-06-X

$15.20

Attribute: D7404-S10-06-X (S10MBT-06MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	24.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.903

D7404-S12-04-SS-X

$72.51

Attribute: D7404-S12-04-SS-X (S12MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.093
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.270

D7404-S12-06-SS-X

$76.04

Attribute: D7404-S12-06-SS-X (S12MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	22.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.134
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.152

D7404-S12-08-SS-X

$71.99

Attribute: D7404-S12-08-SS-X (S12MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	24.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.117
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.441

D7404-S14-06-SS-X

$101.30

Attribute: D7404-S14-06-SS-X (S14MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.161
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.564

D7404-S14-06-X

$29.96

Attribute: D7404-S14-06-X (S14MBT-06MBSPT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.161
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.564

D7404-S14-08-SS-X

$85.65

Attribute: D7404-S14-08-SS-X (S14MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	27.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.582

D7404-S16-06-SS-X

$104.63

Attribute: D7404-S16-06-SS-X (S16MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	27.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.165
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.617

D7404-S16-08-SS-X

$113.12

Attribute: D7404-S16-08-SS-X (S16MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.172
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.687

D7404-S16-12-SS-X

$175.98

Attribute: D7404-S16-12-SS-X (S16MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.189
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.135

D7404-S20-08-SS-X

$136.86

Attribute: D7404-S20-08-SS-X (S20MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.247
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.374

D7404-S20-12-SS-X

$142.96

Attribute: D7404-S20-12-SS-X (S20MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.361
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.593

D7404-S25-16-SS-X

$206.96

Attribute: D7404-S25-16-SS-X (S25MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.645
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.668

D7404-S30-20-SS-X

$291.07

Attribute: D7404-S30-20-SS-X (S30MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	43.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.055
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.870

D7404-S38-24-SS-X

$379.44

Attribute: D7404-S38-24-SS-X (S38MBT-24MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPT
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	32.0
CONNECTION 2 SPECIFICATION	ISO 7-1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.086
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.645

Description

Description

Variations (75)

D7404-E04-02-SS-X

D7404-E06-02-SS-X

D7404-E06-02-X

D7404-E08-02-SS-X

D7404-E08-02-X

D7404-E08-04-SS-X

D7404-E08-04-X

D7404-L06-02-SS-X

D7404-L06-02-X

D7404-L06-04-SS-X

D7404-L06-04-X

D7404-L06-06-SS-X

D7404-L06-08-SS-X

D7404-L08-02-SS-X

D7404-L08-02-X

D7404-L08-04-SS-X

D7404-L08-04-X

D7404-L08-06-SS-X

D7404-L08-06-X

D7404-L08-08-SS-X

D7404-L10-02-SS-X

D7404-L10-04-SS-X

D7404-L10-04-X

D7404-L10-06-SS-X

D7404-L10-06-X

D7404-L10-08-SS-X

D7404-L10-08-X

D7404-L12-04-SS-X

D7404-L12-04-X

D7404-L12-06-SS-X

D7404-L12-06-X

D7404-L12-08-SS-X

D7404-L12-08-X

D7404-L12-12-SS-X

D7404-L15-04-SS-X

D7404-L15-06-SS-X

D7404-L15-06-X

D7404-L15-08-SS-X

D7404-L15-08-X

D7404-L18-06-SS-X

D7404-L18-08-SS-X

D7404-L18-08-X

D7404-L18-12-SS-X

D7404-L22-06-SS-X

D7404-L22-08-SS-X

D7404-L22-12-SS-X

D7404-L22-12-X

D7404-L22-16-SS-X

D7404-L28-12-SS-X

D7404-L28-16-SS-X

D7404-L28-20-SS-X

D7404-L28-24-SS-X

D7404-L35-16-SS-X

D7404-L35-20-SS-X

D7404-L35-24-SS-X

D7404-L42-24-SS-X

D7404-S06-04-SS-X

D7404-S08-04-SS-X

D7404-S10-04-SS-X

D7404-S10-06-SS-X

D7404-S10-06-X

D7404-S12-04-SS-X

D7404-S12-06-SS-X

D7404-S12-08-SS-X

D7404-S14-06-SS-X

D7404-S14-06-X

D7404-S14-08-SS-X

D7404-S16-06-SS-X

D7404-S16-08-SS-X

D7404-S16-12-SS-X

D7404-S20-08-SS-X

D7404-S20-12-SS-X

D7404-S25-16-SS-X

D7404-S30-20-SS-X

D7404-S38-24-SS-X

General Attributes
