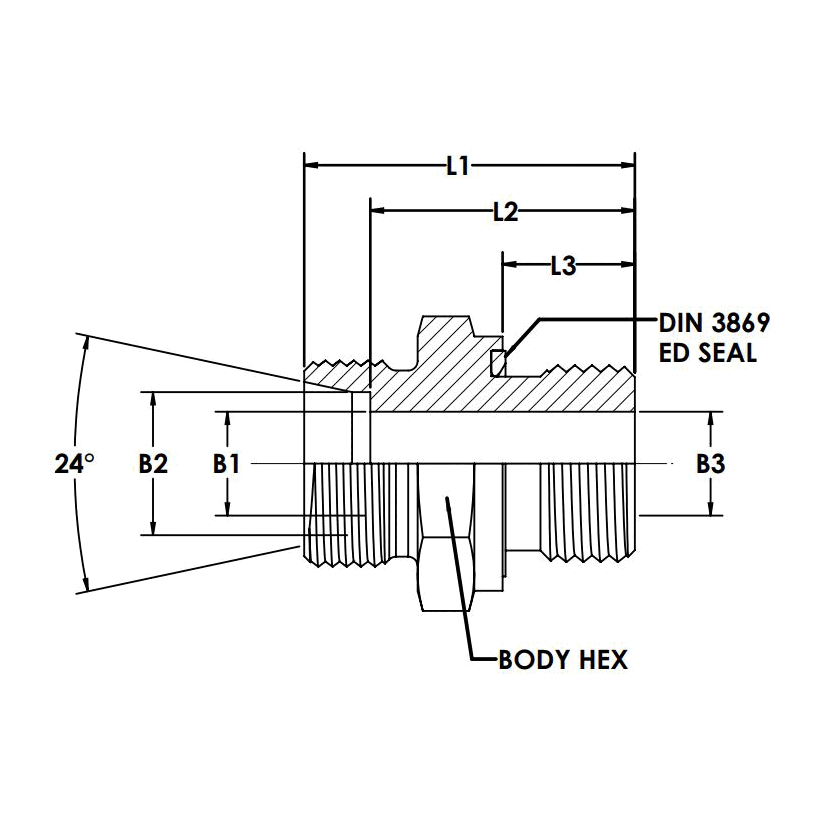

D7400-ED-X

D7400-L06-02-ED-SS-X

$30.64

Attribute: D7400-L06-02-ED-SS-X (L06MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	23.5
OVERALL LENGTH L2 (MM)	8.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.035
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.281

D7400-L06-02-ED-X

$4.48

Attribute: D7400-L06-02-ED-X (L06MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	23.5
OVERALL LENGTH L2 (MM)	8.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.035
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.281

D7400-L06-04-ED-SS-X

$52.71

Attribute: D7400-L06-04-ED-SS-X (L06MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.070
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.639

D7400-L06-04-ED-X

$7.34

Attribute: D7400-L06-04-ED-X (L06MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.070
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.639

D7400-L06-06-ED-SS-X

$71.43

Attribute: D7400-L06-06-ED-SS-X (L06MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	30.5
OVERALL LENGTH L2 (MM)	11.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.099
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.901

D7400-L06-06-ED-X

$12.63

Attribute: D7400-L06-06-ED-X (L06MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	30.5
OVERALL LENGTH L2 (MM)	11.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.099
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.901

D7400-L06-08-ED-SS-X

$84.06

Attribute: D7400-L06-08-ED-SS-X (L06MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	12.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.159
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.468

D7400-L08-02-ED-SS-X

$36.10

Attribute: D7400-L08-02-ED-SS-X (L08MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	24.5
OVERALL LENGTH L2 (MM)	9.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.040
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.293

D7400-L08-02-ED-X

$9.73

Attribute: D7400-L08-02-ED-X (L08MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	24.5
OVERALL LENGTH L2 (MM)	9.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.040
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.293

D7400-L08-04-ED-SS-X

$22.04

Attribute: D7400-L08-04-ED-SS-X (L08MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.068
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.639

D7400-L08-04-ED-X

$4.99

Attribute: D7400-L08-04-ED-X (L08MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.068
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.639

D7400-L08-06-ED-SS-X

$56.16

Attribute: D7400-L08-06-ED-SS-X (L08MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	30.5
OVERALL LENGTH L2 (MM)	11.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.108
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.901

D7400-L08-06-ED-X

$9.34

Attribute: D7400-L08-06-ED-X (L08MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	30.5
OVERALL LENGTH L2 (MM)	11.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.108
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.901

D7400-L08-08-ED-SS-X

$72.63

Attribute: D7400-L08-08-ED-SS-X (L08MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	12.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.161
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.468

D7400-L08-08-ED-X

$24.45

Attribute: D7400-L08-08-ED-X (L08MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	12.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.161
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.468

D7400-L08-12-ED-SS-X

$155.50

Attribute: D7400-L08-12-ED-SS-X (L08MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.227
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.250

D7400-L10-02-ED-SS-X

$41.31

Attribute: D7400-L10-02-ED-SS-X (L10MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	25.5
OVERALL LENGTH L2 (MM)	10.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.053
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.450

D7400-L10-02-ED-X

$17.58

Attribute: D7400-L10-02-ED-X (L10MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	25.5
OVERALL LENGTH L2 (MM)	10.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.053
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.450

D7400-L10-04-ED-SS-X

$38.49

Attribute: D7400-L10-04-ED-SS-X (L10MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D7400-L10-04-ED-X

$6.15

Attribute: D7400-L10-04-ED-X (L10MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D7400-L10-06-ED-SS-X

$60.76

Attribute: D7400-L10-06-ED-SS-X (L10MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

D7400-L10-06-ED-X

$8.28

Attribute: D7400-L10-06-ED-X (L10MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

D7400-L10-08-ED-SS-X

$87.83

Attribute: D7400-L10-08-ED-SS-X (L10MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.172
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D7400-L10-08-ED-X

$14.50

Attribute: D7400-L10-08-ED-X (L10MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.172
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D7400-L10-12-ED-SS-X

$108.69

Attribute: D7400-L10-12-ED-SS-X (L10MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.229
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.312

D7400-L12-02-ED-SS-X

$68.24

Attribute: D7400-L12-02-ED-SS-X (L12MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	26.5
OVERALL LENGTH L2 (MM)	11.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.584

D7400-L12-04-ED-SS-X

$60.76

Attribute: D7400-L12-04-ED-SS-X (L12MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	12.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.079
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.683

D7400-L12-04-ED-X

$9.01

Attribute: D7400-L12-04-ED-X (L12MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	12.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.079
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.683

D7400-L12-06-ED-SS-X

$44.93

Attribute: D7400-L12-06-ED-SS-X (L12MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.104
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

D7400-L12-06-ED-X

$7.90

Attribute: D7400-L12-06-ED-X (L12MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.104
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

D7400-L12-08-ED-SS-X

$77.88

Attribute: D7400-L12-08-ED-SS-X (L12MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.165
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D7400-L12-08-ED-X

$13.61

Attribute: D7400-L12-08-ED-X (152MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.165
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D7400-L12-12-ED-SS-X

$105.31

Attribute: D7400-L12-12-ED-SS-X (L12MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.229
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.312

D7400-L12-12-ED-X

$30.85

Attribute: D7400-L12-12-ED-X (L12MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.229
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.312

D7400-L15-04-ED-SS-X

$75.28

Attribute: D7400-L15-04-ED-SS-X (L15MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

D7400-L15-06-ED-SS-X

$70.19

Attribute: D7400-L15-06-ED-SS-X (L15MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	32.5
OVERALL LENGTH L2 (MM)	13.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.128
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.142

D7400-L15-06-ED-X

$13.06

Attribute: D7400-L15-06-ED-X (L15MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	32.5
OVERALL LENGTH L2 (MM)	13.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.128
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.142

D7400-L15-08-ED-SS-X

$65.85

Attribute: D7400-L15-08-ED-SS-X (L15MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.167
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.557

D7400-L15-08-ED-X

$11.73

Attribute: D7400-L15-08-ED-X (L15MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.167
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.557

D7400-L15-12-ED-SS-X

$122.60

Attribute: D7400-L15-12-ED-SS-X (L15MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.284
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.375

D7400-L15-12-ED-X

$28.43

Attribute: D7400-L15-12-ED-X (L15MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.284
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.375

D7400-L15-16-ED-SS-X

$458.26

Attribute: D7400-L15-16-ED-SS-X (L15MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	20.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.513
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.616

D7400-L18-04-ED-SS-X

$78.00

Attribute: D7400-L18-04-ED-SS-X (L18MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	33.5
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.154
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.490

D7400-L18-06-ED-SS-X

$75.07

Attribute: D7400-L18-06-ED-SS-X (L18MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.172
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D7400-L18-06-ED-X

$34.01

Attribute: D7400-L18-06-ED-X (L18MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.172
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D7400-L18-08-ED-SS-X

$70.33

Attribute: D7400-L18-08-ED-SS-X (L18MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.174
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.602

D7400-L18-08-ED-X

$11.17

Attribute: D7400-L18-08-ED-X (L18MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.174
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.602

D7400-L18-12-ED-SS-X

$114.88

Attribute: D7400-L18-12-ED-SS-X (L18MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	15.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.269
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.375

D7400-L18-12-ED-X

$26.46

Attribute: D7400-L18-12-ED-X (L18MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	15.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.269
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.375

D7400-L18-16-ED-SS-X

$189.08

Attribute: D7400-L18-16-ED-SS-X (L18MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	15.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	15.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.388
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.206

D7400-L22-06-ED-SS-X

$121.36

Attribute: D7400-L22-06-ED-SS-X (L22MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.216
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.250

D7400-L22-08-ED-SS-X

$111.50

Attribute: D7400-L22-08-ED-SS-X (L22MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.375

D7400-L22-08-ED-X

$39.43

Attribute: D7400-L22-08-ED-X (L22MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.375

D7400-L22-12-ED-SS-X

$102.68

Attribute: D7400-L22-12-ED-SS-X (L22MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.256
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.500

D7400-L22-12-ED-X

$15.27

Attribute: D7400-L22-12-ED-X (L22MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.256
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.500

D7400-L22-16-ED-SS-X

$176.15

Attribute: D7400-L22-16-ED-SS-X (L22MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	19.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.454
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.411

D7400-L22-16-ED-X

$56.89

Attribute: D7400-L22-16-ED-X (L22MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	19.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.454
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.411

D7400-L28-08-ED-SS-X

$181.23

Attribute: D7400-L28-08-ED-SS-X (L28MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.337
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.001

D7400-L28-12-ED-SS-X

$166.17

Attribute: D7400-L28-12-ED-SS-X (L28MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.366
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.206

D7400-L28-12-ED-X

$61.62

Attribute: D7400-L28-12-ED-X (L28MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.366
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.206

D7400-L28-16-ED-SS-X

$171.72

Attribute: D7400-L28-16-ED-SS-X (L28MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.410
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.411

D7400-L28-16-ED-X

$31.62

Attribute: D7400-L28-16-ED-X (L28MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.410
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.411

D7400-L28-20-ED-SS-X

$218.22

Attribute: D7400-L28-20-ED-SS-X (L28MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	24.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.621
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.865

D7400-L28-20-ED-X

$99.82

Attribute: D7400-L28-20-ED-X (L28MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	24.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.621
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.865

D7400-L35-12-ED-SS-X

$201.54

Attribute: D7400-L35-12-ED-SS-X (L35MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.511
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.682

D7400-L35-12-ED-X

$115.12

Attribute: D7400-L35-12-ED-X (L35MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.511
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.682

D7400-L35-16-ED-SS-X

$191.22

Attribute: D7400-L35-16-ED-SS-X (L35MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.555
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.940

D7400-L35-16-ED-X

$68.10

Attribute: D7400-L35-16-ED-X (L35MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.555
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.940

D7400-L35-20-ED-SS-X

$219.63

Attribute: D7400-L35-20-ED-SS-X (L35MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.674
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.323

D7400-L35-20-ED-X

$50.56

Attribute: D7400-L35-20-ED-X (L35MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.674
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.323

D7400-L35-24-ED-SS-X

$286.63

Attribute: D7400-L35-24-ED-SS-X (L35MBT-24M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	19.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.018
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.599

D7400-L35-24-ED-X

$95.67

Attribute: D7400-L35-24-ED-X (L35MBT-24MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	19.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.018
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.599

D7400-L42-16-ED-SS-X

$306.90

Attribute: D7400-L42-16-ED-SS-X (L42MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.778
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.861

D7400-L42-16-ED-X

$79.20

Attribute: D7400-L42-16-ED-X (L42MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.778
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.861

D7400-L42-20-ED-SS-X

$305.07

Attribute: D7400-L42-20-ED-SS-X (L42MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.833
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.230

D7400-L42-20-ED-X

$168.42

Attribute: D7400-L42-20-ED-X (L42MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.833
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.230

D7400-L42-24-ED-SS-X

$305.75

Attribute: D7400-L42-24-ED-SS-X (L42MBT-24M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	36.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.852
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.599

D7400-L42-24-ED-X

$59.99

Attribute: D7400-L42-24-ED-X (L42MBT-24MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	36.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.852
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.599

D7400-S06-02-ED-SS-X

$43.49

Attribute: D7400-S06-02-ED-SS-X (S06MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.062
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.494

D7400-S06-04-ED-SS-X

$43.78

Attribute: D7400-S06-04-ED-SS-X (S06MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D7400-S06-04-ED-X

$7.08

Attribute: D7400-S06-04-ED-X (S06MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D7400-S06-06-ED-SS-X

$54.54

Attribute: D7400-S06-06-ED-SS-X (S06MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	15.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.126
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.019

D7400-S06-06-ED-X

$18.06

Attribute: D7400-S06-06-ED-X (S06MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	15.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.126
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.019

D7400-S06-08-ED-SS-X

$74.60

Attribute: D7400-S06-08-ED-SS-X (S06MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D7400-S06-08-ED-X

$52.87

Attribute: D7400-S06-08-ED-X (S06MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D7400-S08-02-ED-SS-X

$48.56

Attribute: D7400-S08-02-ED-SS-X (S08MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	29.5
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.084
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.650

D7400-S08-04-ED-SS-X

$37.89

Attribute: D7400-S08-04-ED-SS-X (S08MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

D7400-S08-04-ED-X

$7.39

Attribute: D7400-S08-04-ED-X (S08MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

D7400-S08-06-ED-SS-X

$46.17

Attribute: D7400-S08-06-ED-SS-X (S08MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	15.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.019

D7400-S08-06-ED-X

$18.91

Attribute: D7400-S08-06-ED-X (S08MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	15.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.019

D7400-S08-08-ED-SS-X

$78.52

Attribute: D7400-S08-08-ED-SS-X (S08MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.238
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D7400-S10-02-ED-SS-X

$59.70

Attribute: D7400-S10-02-ED-SS-X (S10MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.090
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D7400-S10-04-ED-SS-X

$48.26

Attribute: D7400-S10-04-ED-SS-X (S10MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

D7400-S10-04-ED-X

$13.58

Attribute: D7400-S10-04-ED-X (S10MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

D7400-S10-06-ED-SS-X

$48.56

Attribute: D7400-S10-06-ED-SS-X (S10MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.137
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.019

D7400-S10-06-ED-X

$9.01

Attribute: D7400-S10-06-ED-X (S10MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.137
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.019

D7400-S10-08-ED-SS-X

$76.17

Attribute: D7400-S10-08-ED-SS-X (S10MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D7400-S10-08-ED-X

$15.44

Attribute: D7400-S10-08-ED-X (S10MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D7400-S10-12-ED-SS-X

$128.74

Attribute: D7400-S10-12-ED-SS-X (S10MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.262
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.375

D7400-S12-04-ED-SS-X

$53.86

Attribute: D7400-S12-04-ED-SS-X (S12MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.141
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.063

D7400-S12-04-ED-X

$18.14

Attribute: D7400-S12-04-ED-X (S12MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.141
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.063

D7400-S12-06-ED-SS-X

$50.06

Attribute: D7400-S12-06-ED-SS-X (S12MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	36.5
OVERALL LENGTH L2 (MM)	17.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.152
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.078

D7400-S12-06-ED-X

$9.48

Attribute: D7400-S12-06-ED-X (S12MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	36.5
OVERALL LENGTH L2 (MM)	17.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.152
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.078

D7400-S12-08-ED-SS-X

$80.18

Attribute: D7400-S12-08-ED-SS-X (S12MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D7400-S12-08-ED-X

$12.20

Attribute: D7400-S12-08-ED-X (S12MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D7400-S12-12-ED-SS-X

$130.32

Attribute: D7400-S12-12-ED-SS-X (S12MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.311
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.562

D7400-S12-12-ED-X

$56.93

Attribute: D7400-S12-12-ED-X (S12MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.311
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.562

D7400-S14-06-ED-SS-X

$61.45

Attribute: D7400-S14-06-ED-SS-X (S14MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	18.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.167
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.137

D7400-S14-08-ED-SS-X

$75.36

Attribute: D7400-S14-08-ED-SS-X (S14MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D7400-S14-08-ED-X

$15.20

Attribute: D7400-S14-08-ED-X (S14MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D7400-S14-12-ED-SS-X

$130.58

Attribute: D7400-S14-12-ED-SS-X (S14MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.357
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.812

D7400-S16-04-ED-SS-X

$101.95

Attribute: D7400-S16-04-ED-SS-X (S16MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.192
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.690

D7400-S16-06-ED-SS-X

$90.68

Attribute: D7400-S16-06-ED-SS-X (S16MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.209
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.713

D7400-S16-06-ED-X

$33.24

Attribute: D7400-S16-06-ED-X (S16MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.209
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.713

D7400-S16-08-ED-SS-X

$85.65

Attribute: D7400-S16-08-ED-SS-X (S16MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	18.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D7400-S16-08-ED-X

$12.63

Attribute: D7400-S16-08-ED-X (S16MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	18.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D7400-S16-12-ED-SS-X

$118.97

Attribute: D7400-S16-12-ED-SS-X (S16MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.372
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.812

D7400-S16-12-ED-X

$25.78

Attribute: D7400-S16-12-ED-X (S16MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.372
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.812

D7400-S16-16-ED-SS-X

$196.21

Attribute: D7400-S16-16-ED-SS-X (S16MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.553
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.821

D7400-S16-16-ED-X

$86.37

Attribute: D7400-S16-16-ED-X (S16MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.553
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.821

D7400-S20-06-ED-SS-X

$140.18

Attribute: D7400-S20-06-ED-SS-X (S20MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	42.5
OVERALL LENGTH L2 (MM)	20.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.324
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.656

D7400-S20-08-ED-SS-X

$124.86

Attribute: D7400-S20-08-ED-SS-X (S20MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.339
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.812

D7400-S20-08-ED-X

$40.58

Attribute: D7400-S20-08-ED-X (S20MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.339
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.812

D7400-S20-12-ED-SS-X

$116.33

Attribute: D7400-S20-12-ED-SS-X (S20MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.368
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.937

D7400-S20-12-ED-X

$19.21

Attribute: D7400-S20-12-ED-X (S20MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.368
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.937

D7400-S20-16-ED-SS-X

$184.94

Attribute: D7400-S20-16-ED-SS-X (S20MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	22.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.656
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.232

D7400-S20-16-ED-X

$96.05

Attribute: D7400-S20-16-ED-X (S20MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	22.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.656
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.232

D7400-S20-20-ED-SS-X

$248.01

Attribute: D7400-S20-20-ED-SS-X (S20MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	22.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.956
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.086

D7400-S25-08-ED-SS-X

$199.88

Attribute: D7400-S25-08-ED-SS-X (S25MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.564
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.026

D7400-S25-08-ED-X

$86.12

Attribute: D7400-S25-08-ED-X (S25MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.564
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.026

D7400-S25-12-ED-SS-X

$192.84

Attribute: D7400-S25-12-ED-SS-X (S25MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.593
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.232

D7400-S25-12-ED-X

$58.72

Attribute: D7400-S25-12-ED-X (S25MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.593
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.232

D7400-S25-16-ED-SS-X

$193.09

Attribute: D7400-S25-16-ED-SS-X (S25MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.648
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D7400-S25-16-ED-X

$27.35

Attribute: D7400-S25-16-ED-X (S25MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.648
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D7400-S25-20-ED-SS-X

$210.12

Attribute: D7400-S25-20-ED-SS-X (S25MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.051
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.391

D7400-S25-20-ED-X

$122.43

Attribute: D7400-S25-20-ED-X (S25MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.051
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.391

D7400-S25-24-ED-SS-X

$871.03

Attribute: D7400-S25-24-ED-SS-X (S25MBT-24M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.297
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.076

D7400-S30-12-ED-SS-X

$244.73

Attribute: D7400-S30-12-ED-SS-X (S30MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.753
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.844

D7400-S30-12-ED-X

$89.22

Attribute: D7400-S30-12-ED-X (S30MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.753
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.844

D7400-S30-16-ED-SS-X

$228.59

Attribute: D7400-S30-16-ED-SS-X (S30MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.811
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.102

D7400-S30-16-ED-X

$75.31

Attribute: D7400-S30-16-ED-X (S30MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.811
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.102

D7400-S30-20-ED-SS-X

$246.30

Attribute: D7400-S30-20-ED-SS-X (S30MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.009
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.696

D7400-S30-20-ED-X

$63.11

Attribute: D7400-S30-20-ED-X (S30MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.009
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.696

D7400-S30-24-ED-SS-X

$320.09

Attribute: D7400-S30-24-ED-SS-X (S30MBT-24M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	62.0
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.445
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.445

D7400-S30-24-ED-X

$111.63

Attribute: D7400-S30-24-ED-X (S30MBT-24MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	62.0
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.445
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.445

D7400-S38-16-ED-SS-X

$329.05

Attribute: D7400-S38-16-ED-SS-X (S38MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.260
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.076

D7400-S38-16-ED-X

$153.92

Attribute: D7400-S38-16-ED-X (S38MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.260
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.076

D7400-S38-20-ED-SS-X

$313.35

Attribute: D7400-S38-20-ED-SS-X (S38MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	62.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.374
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.445

D7400-S38-20-ED-X

$92.39

Attribute: D7400-S38-20-ED-X (S38MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	62.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.374
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.445

D7400-S38-24-ED-SS-X

$310.87

Attribute: D7400-S38-24-ED-SS-X (S38MBT-24M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7400-S38-24-ED-X

$65.93

Attribute: D7400-S38-24-ED-X (S38MBT-24MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM E CAPTIVE SEAL
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

Description

Description

Variations (151)

D7400-L06-02-ED-SS-X

D7400-L06-02-ED-X

D7400-L06-04-ED-SS-X

D7400-L06-04-ED-X

D7400-L06-06-ED-SS-X

D7400-L06-06-ED-X

D7400-L06-08-ED-SS-X

D7400-L08-02-ED-SS-X

D7400-L08-02-ED-X

D7400-L08-04-ED-SS-X

D7400-L08-04-ED-X

D7400-L08-06-ED-SS-X

D7400-L08-06-ED-X

D7400-L08-08-ED-SS-X

D7400-L08-08-ED-X

D7400-L08-12-ED-SS-X

D7400-L10-02-ED-SS-X

D7400-L10-02-ED-X

D7400-L10-04-ED-SS-X

D7400-L10-04-ED-X

D7400-L10-06-ED-SS-X

D7400-L10-06-ED-X

D7400-L10-08-ED-SS-X

D7400-L10-08-ED-X

D7400-L10-12-ED-SS-X

D7400-L12-02-ED-SS-X

D7400-L12-04-ED-SS-X

D7400-L12-04-ED-X

D7400-L12-06-ED-SS-X

D7400-L12-06-ED-X

D7400-L12-08-ED-SS-X

D7400-L12-08-ED-X

D7400-L12-12-ED-SS-X

D7400-L12-12-ED-X

D7400-L15-04-ED-SS-X

D7400-L15-06-ED-SS-X

D7400-L15-06-ED-X

D7400-L15-08-ED-SS-X

D7400-L15-08-ED-X

D7400-L15-12-ED-SS-X

D7400-L15-12-ED-X

D7400-L15-16-ED-SS-X

D7400-L18-04-ED-SS-X

D7400-L18-06-ED-SS-X

D7400-L18-06-ED-X

D7400-L18-08-ED-SS-X

D7400-L18-08-ED-X

D7400-L18-12-ED-SS-X

D7400-L18-12-ED-X

D7400-L18-16-ED-SS-X

D7400-L22-06-ED-SS-X

D7400-L22-08-ED-SS-X

D7400-L22-08-ED-X

D7400-L22-12-ED-SS-X

D7400-L22-12-ED-X

D7400-L22-16-ED-SS-X

D7400-L22-16-ED-X

D7400-L28-08-ED-SS-X

D7400-L28-12-ED-SS-X

D7400-L28-12-ED-X

D7400-L28-16-ED-SS-X

D7400-L28-16-ED-X

D7400-L28-20-ED-SS-X

D7400-L28-20-ED-X

D7400-L35-12-ED-SS-X

D7400-L35-12-ED-X

D7400-L35-16-ED-SS-X

D7400-L35-16-ED-X

D7400-L35-20-ED-SS-X

D7400-L35-20-ED-X

D7400-L35-24-ED-SS-X

D7400-L35-24-ED-X

D7400-L42-16-ED-SS-X

D7400-L42-16-ED-X

D7400-L42-20-ED-SS-X

D7400-L42-20-ED-X
