D7400-CF-X

D7400-E04-02-CF-SS-X

$49.41

Attribute: D7400-E04-02-CF-SS-X (E04MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200

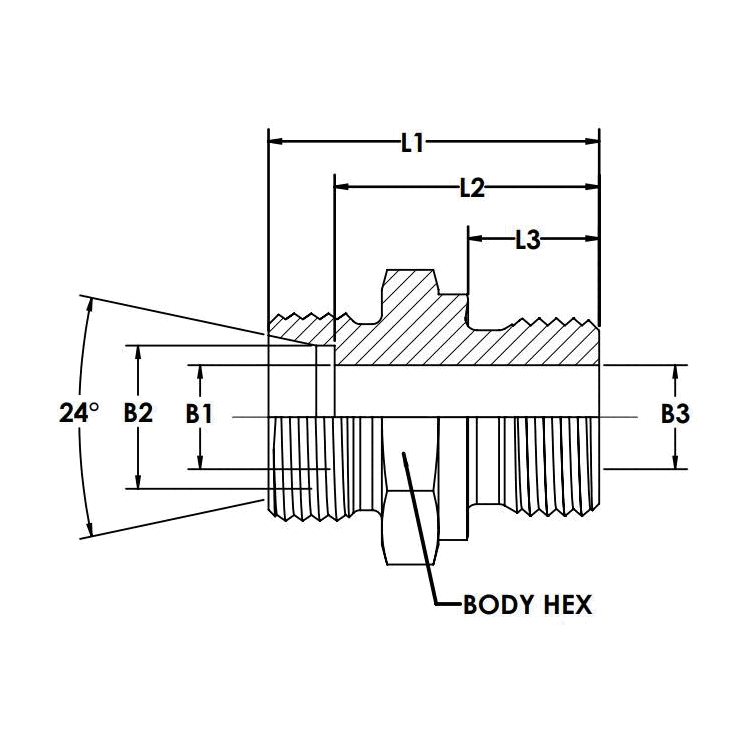

BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	21.5
OVERALL LENGTH L2 (MM)	9.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.029
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.257

D7400-E06-02-CF-SS-X

$51.68

Attribute: D7400-E06-02-CF-SS-X (E06MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	21.5
OVERALL LENGTH L2 (MM)	8.0
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.029
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.257

D7400-E06-04-CF-SS-X

$137.07

Attribute: D7400-E06-04-CF-SS-X (E06MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.5
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	27.0
OVERALL LENGTH L2 (MM)	9.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.595

D7400-E08-02-CF-SS-X

$56.16

Attribute: D7400-E08-02-CF-SS-X (E08MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	22.5
OVERALL LENGTH L2 (MM)	9.0
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.033
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.269

D7400-E08-02-CF-X

$2.56

Attribute: D7400-E08-02-CF-X (E08MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	22.5
OVERALL LENGTH L2 (MM)	9.0
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.033
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.269

D7400-L06-02-CF-SS-X

$18.65

Attribute: D7400-L06-02-CF-SS-X (L06MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	23.5
OVERALL LENGTH L2 (MM)	8.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.035
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.281

D7400-L06-02-CF-X

$3.12

Attribute: D7400-L06-02-CF-X (L06MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	23.5
OVERALL LENGTH L2 (MM)	8.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.035
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.281

D7400-L06-04-CF-SS-X

$41.43

Attribute: D7400-L06-04-CF-SS-X (L06MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.070
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.639

D7400-L06-04-CF-X

$5.63

Attribute: D7400-L06-04-CF-X (L06MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.070
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.639

D7400-L06-06-CF-SS-X

$66.91

Attribute: D7400-L06-06-CF-SS-X (L06MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	30.5
OVERALL LENGTH L2 (MM)	11.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.099
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.901

D7400-L06-06-CF-X

$12.29

Attribute: D7400-L06-06-CF-X (L06MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	30.5
OVERALL LENGTH L2 (MM)	11.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.099
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.901

D7400-L06-08-CF-SS-X

$73.36

Attribute: D7400-L06-08-CF-SS-X (L06MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	12.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.159
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.468

D7400-L06-08-CF-X

$27.91

Attribute: D7400-L06-08-CF-X (L06MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	12.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.159
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.468

D7400-L08-02-CF-SS-X

$28.88

Attribute: D7400-L08-02-CF-SS-X (L08MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	24.5
OVERALL LENGTH L2 (MM)	9.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.042
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.293

D7400-L08-02-CF-X

$8.75

Attribute: D7400-L08-02-CF-X (L08MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	24.5
OVERALL LENGTH L2 (MM)	9.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.042
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.293

D7400-L08-04-CF-SS-X

$26.54

Attribute: D7400-L08-04-CF-SS-X (L08MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.068
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.639

D7400-L08-04-CF-X

$4.36

Attribute: D7400-L08-04-CF-X (L08MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.068
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.639

D7400-L08-06-CF-SS-X

$45.11

Attribute: D7400-L08-06-CF-SS-X (L08MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.099
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.857

D7400-L08-06-CF-X

$7.17

Attribute: D7400-L08-06-CF-X (L08MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.099
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.857

D7400-L08-08-CF-SS-X

$64.91

Attribute: D7400-L08-08-CF-SS-X (L08MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	12.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.159
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.468

D7400-L08-08-CF-X

$18.44

Attribute: D7400-L08-08-CF-X (L08MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	12.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.159
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.468

D7400-L08-12-CF-SS-X

$115.90

Attribute: D7400-L08-12-CF-SS-X (L08MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.229
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.250

D7400-L10-02-CF-SS-X

$29.91

Attribute: D7400-L10-02-CF-SS-X (L10MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	25.5
OVERALL LENGTH L2 (MM)	10.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.051
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.450

D7400-L10-02-CF-X

$16.51

Attribute: D7400-L10-02-CF-X (L10MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	25.5
OVERALL LENGTH L2 (MM)	10.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.051
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.450

D7400-L10-04-CF-SS-X

$28.25

Attribute: D7400-L10-04-CF-SS-X (L10MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D7400-L10-04-CF-X

$4.60

Attribute: D7400-L10-04-CF-X (L10MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D7400-L10-06-CF-SS-X

$49.46

Attribute: D7400-L10-06-CF-SS-X (L10MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

D7400-L10-06-CF-X

$6.83

Attribute: D7400-L10-06-CF-X (L10MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

D7400-L10-08-CF-SS-X

$68.32

Attribute: D7400-L10-08-CF-SS-X (L10MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.172
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D7400-L10-08-CF-X

$12.97

Attribute: D7400-L10-08-CF-X (L10MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.172
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D7400-L10-12-CF-SS-X

$94.52

Attribute: D7400-L10-12-CF-SS-X (L10MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	37.5
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.240
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.343

D7400-L12-02-CF-SS-X

$46.55

Attribute: D7400-L12-02-CF-SS-X (L12MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	27.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.606

D7400-L12-02-CF-X

$19.54

Attribute: D7400-L12-02-CF-X (L12MBT-02MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	27.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.606

D7400-L12-04-CF-SS-X

$49.80

Attribute: D7400-L12-04-CF-SS-X (L12MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	12.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.079
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.683

D7400-L12-04-CF-X

$7.00

Attribute: D7400-L12-04-CF-X (L12MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	12.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.079
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.683

D7400-L12-06-CF-SS-X

$36.57

Attribute: D7400-L12-06-CF-SS-X (L12MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

D7400-L12-06-CF-X

$6.48

Attribute: D7400-L12-06-CF-X (L12MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	31.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

D7400-L12-08-CF-SS-X

$69.56

Attribute: D7400-L12-08-CF-SS-X (L12MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.165
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D7400-L12-08-CF-X

$11.22

Attribute: D7400-L12-08-CF-X (L12MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.165
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D7400-L12-12-CF-SS-X

$85.73

Attribute: D7400-L12-12-CF-SS-X (L12MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.231
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.312

D7400-L12-12-CF-X

$30.26

Attribute: D7400-L12-12-CF-X (L12MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.231
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.312

D7400-L15-04-CF-SS-X

$65.33

Attribute: D7400-L15-04-CF-SS-X (L15MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.123
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.160

D7400-L15-04-CF-X

$34.74

Attribute: D7400-L15-04-CF-X (L15MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.123
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.160

D7400-L15-06-CF-SS-X

$58.81

Attribute: D7400-L15-06-CF-SS-X (L15MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	32.5
OVERALL LENGTH L2 (MM)	13.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.130
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.142

D7400-L15-06-CF-X

$11.95

Attribute: D7400-L15-06-CF-X (L15MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	32.5
OVERALL LENGTH L2 (MM)	13.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.130
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.142

D7400-L15-08-CF-SS-X

$57.52

Attribute: D7400-L15-08-CF-SS-X (L15MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.167
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.557

D7400-L15-08-CF-X

$9.05

Attribute: D7400-L15-08-CF-X (L15MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.167
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.557

D7400-L15-12-CF-SS-X

$109.75

Attribute: D7400-L15-12-CF-SS-X (L15MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.244
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.375

D7400-L15-12-CF-X

$32.82

Attribute: D7400-L15-12-CF-X (L15MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.244
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.375

D7400-L15-16-CF-SS-X

$190.02

Attribute: D7400-L15-16-CF-SS-X (L15MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	16.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.403
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.206

D7400-L18-04-CF-SS-X

$76.55

Attribute: D7400-L18-04-CF-SS-X (L18MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D7400-L18-06-CF-SS-X

$69.42

Attribute: D7400-L18-06-CF-SS-X (L18MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.172
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D7400-L18-06-CF-X

$28.97

Attribute: D7400-L18-06-CF-X (L18MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.172
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D7400-L18-08-CF-SS-X

$61.91

Attribute: D7400-L18-08-CF-SS-X (L18MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.174
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.602

D7400-L18-08-CF-X

$9.39

Attribute: D7400-L18-08-CF-X (L18MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.174
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.602

D7400-L18-12-CF-SS-X

$107.92

Attribute: D7400-L18-12-CF-SS-X (L18MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	15.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.273
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.375

D7400-L18-12-CF-X

$23.86

Attribute: D7400-L18-12-CF-X (L18MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	15.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.273
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.375

D7400-L18-16-CF-SS-X

$154.22

Attribute: D7400-L18-16-CF-SS-X (L18MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	15.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.388
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.103

D7400-L18-16-CF-X

$89.69

Attribute: D7400-L18-16-CF-X (L18MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	15.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.388
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.103

D7400-L22-06-CF-SS-X

$101.86

Attribute: D7400-L22-06-CF-SS-X (L22MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.250

D7400-L22-08-CF-SS-X

$103.06

Attribute: D7400-L22-08-CF-SS-X (L22MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.375

D7400-L22-08-CF-X

$33.59

Attribute: D7400-L22-08-CF-X (L22MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.375

D7400-L22-12-CF-SS-X

$92.22

Attribute: D7400-L22-12-CF-SS-X (L22MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.258
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.500

D7400-L22-12-CF-X

$14.89

Attribute: D7400-L22-12-CF-X (L22MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.258
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.500

D7400-L22-16-CF-SS-X

$163.56

Attribute: D7400-L22-16-CF-SS-X (L22MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	19.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.456
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.411

D7400-L22-16-CF-X

$99.35

Attribute: D7400-L22-16-CF-X (L22MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	19.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.456
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.411

D7400-L22-20-CF-SS-X

$181.70

Attribute: D7400-L22-20-CF-SS-X (L22MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	19.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.628
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.865

D7400-L28-08-CF-X

$54.49

Attribute: D7400-L28-08-CF-X (L28MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.335
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.001

D7400-L28-12-CF-SS-X

$158.31

Attribute: D7400-L28-12-CF-SS-X (L28MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.368
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.206

D7400-L28-12-CF-X

$55.43

Attribute: D7400-L28-12-CF-X (L28MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.368
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.206

D7400-L28-16-CF-SS-X

$159.13

Attribute: D7400-L28-16-CF-SS-X (L28MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.412
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.411

D7400-L28-16-CF-X

$29.02

Attribute: D7400-L28-16-CF-X (L28MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.412
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.411

D7400-L28-20-CF-SS-X

$159.51

Attribute: D7400-L28-20-CF-SS-X (L28MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	24.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.626
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.865

D7400-L28-20-CF-X

$86.24

Attribute: D7400-L28-20-CF-X (L28MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	24.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.626
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.865

D7400-L28-24-CF-SS-X

$195.91

Attribute: D7400-L28-24-CF-SS-X (L28MBT-24M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	24.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.877
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.230

D7400-L35-12-CF-SS-X

$188.48

Attribute: D7400-L35-12-CF-SS-X (L35MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.513
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.682

D7400-L35-16-CF-SS-X

$179.65

Attribute: D7400-L35-16-CF-SS-X (L35MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.559
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.940

D7400-L35-16-CF-X

$109.02

Attribute: D7400-L35-16-CF-X (L35MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.559
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.940

D7400-L35-20-CF-SS-X

$218.91

Attribute: D7400-L35-20-CF-SS-X (L35MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.678
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.323

D7400-L35-20-CF-X

$41.31

Attribute: D7400-L35-20-CF-X (L35MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.678
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.323

D7400-L35-24-CF-SS-X

$275.75

Attribute: D7400-L35-24-CF-SS-X (L35MBT-24M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	19.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.024
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.599

D7400-L35-24-CF-X

$135.18

Attribute: D7400-L35-24-CF-X (L35MBT-24MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	19.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.024
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.599

D7400-L42-16-CF-SS-X

$306.90

Attribute: D7400-L42-16-CF-SS-X (L42MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.780
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.861

D7400-L42-20-CF-SS-X

$246.52

Attribute: D7400-L42-20-CF-SS-X (L42MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.848
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.230

D7400-L42-20-CF-X

$121.02

Attribute: D7400-L42-20-CF-X (L42MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.848
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.230

D7400-L42-24-CF-SS-X

$284.84

Attribute: D7400-L42-24-CF-SS-X (L42MBT-24M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	36.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.861
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.599

D7400-L42-24-CF-X

$43.57

Attribute: D7400-L42-24-CF-X (L42MBT-24MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	36.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.861
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.599

D7400-S06-02-CF-SS-X

$23.72

Attribute: D7400-S06-02-CF-SS-X (S06MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	27.5
OVERALL LENGTH L2 (MM)	12.5
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.062
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.485

D7400-S06-04-CF-SS-X

$27.23

Attribute: D7400-S06-04-CF-SS-X (S06MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D7400-S06-04-CF-X

$4.69

Attribute: D7400-S06-04-CF-X (S06MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D7400-S06-06-CF-SS-X

$35.59

Attribute: D7400-S06-06-CF-SS-X (S06MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	15.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.019

D7400-S06-06-CF-X

$38.40

Attribute: D7400-S06-06-CF-X (S06MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	15.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.019

D7400-S06-08-CF-SS-X

$72.93

Attribute: D7400-S06-08-CF-SS-X (S06MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D7400-S06-08-CF-X

$59.66

Attribute: D7400-S06-08-CF-X (S06MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D7400-S06-12-CF-SS-X

$132.71

Attribute: D7400-S06-12-CF-SS-X (S06MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	20.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.361
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.687

D7400-S08-02-CF-SS-X

$37.04

Attribute: D7400-S08-02-CF-SS-X (S08MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D7400-S08-04-CF-SS-X

$31.11

Attribute: D7400-S08-04-CF-SS-X (S08MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

D7400-S08-04-CF-X

$5.25

Attribute: D7400-S08-04-CF-X (S08MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

D7400-S08-06-CF-SS-X

$34.95

Attribute: D7400-S08-06-CF-SS-X (S08MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	15.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.141
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.019

D7400-S08-06-CF-X

$17.41

Attribute: D7400-S08-06-CF-X (S08MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	15.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.141
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.019

D7400-S08-08-CF-SS-X

$64.14

Attribute: D7400-S08-08-CF-SS-X (S08MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.238
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D7400-S08-08-CF-X

$47.37

Attribute: D7400-S08-08-CF-X (S08MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.238
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D7400-S10-02-CF-SS-X

$46.55

Attribute: D7400-S10-02-CF-SS-X (S10MBT-02M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/8-28
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	29.5
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.650

D7400-S10-04-CF-SS-X

$39.09

Attribute: D7400-S10-04-CF-SS-X (S10MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

D7400-S10-04-CF-X

$13.19

Attribute: D7400-S10-04-CF-X (S10MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

D7400-S10-06-CF-SS-X

$40.84

Attribute: D7400-S10-06-CF-SS-X (S10MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.019

D7400-S10-06-CF-X

$6.95

Attribute: D7400-S10-06-CF-X (S10MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.019

D7400-S10-08-CF-SS-X

$70.19

Attribute: D7400-S10-08-CF-SS-X (S10MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D7400-S10-08-CF-X

$12.80

Attribute: D7400-S10-08-CF-X (S10MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D7400-S10-12-CF-SS-X

$118.29

Attribute: D7400-S10-12-CF-SS-X (S10MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.311
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.562

D7400-S12-04-CF-SS-X

$46.13

Attribute: D7400-S12-04-CF-SS-X (S12MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.141
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.063

D7400-S12-04-CF-X

$18.14

Attribute: D7400-S12-04-CF-X (S12MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.141
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.063

D7400-S12-06-CF-SS-X

$42.46

Attribute: D7400-S12-06-CF-SS-X (S12MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	36.5
OVERALL LENGTH L2 (MM)	17.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.152
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.078

D7400-S12-06-CF-X

$7.51

Attribute: D7400-S12-06-CF-X (S12MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	36.5
OVERALL LENGTH L2 (MM)	17.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.152
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.078

D7400-S12-08-CF-SS-X

$74.29

Attribute: D7400-S12-08-CF-SS-X (S12MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D7400-S12-08-CF-X

$9.94

Attribute: D7400-S12-08-CF-X (S12MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D7400-S12-12-CF-SS-X

$121.83

Attribute: D7400-S12-12-CF-SS-X (S12MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.359
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.562

D7400-S12-12-CF-X

$34.95

Attribute: D7400-S12-12-CF-X (S12MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.359
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.562

D7400-S14-04-CF-SS-X

$114.58

Attribute: D7400-S14-04-CF-SS-X (S14MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	16.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.143
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.063

D7400-S14-04-CF-X

$54.45

Attribute: D7400-S14-04-CF-X (S14MBT-04MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	16.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.143
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.063

D7400-S14-06-CF-SS-X

$50.95

Attribute: D7400-S14-06-CF-SS-X (S14MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	18.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.167
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.137

D7400-S14-06-CF-X

$68.16

Attribute: D7400-S14-06-CF-X (S14MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	18.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.167
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.137

D7400-S14-08-CF-SS-X

$67.94

Attribute: D7400-S14-08-CF-SS-X (S14MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D7400-S14-08-CF-X

$13.19

Attribute: D7400-S14-08-CF-X (S14MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D7400-S14-12-CF-SS-X

$113.55

Attribute: D7400-S14-12-CF-SS-X (S14MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.379
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.812

D7400-S16-04-CF-SS-X

$74.16

Attribute: D7400-S16-04-CF-SS-X (S16MBT-04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/4-19
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.353

D7400-S16-06-CF-SS-X

$71.81

Attribute: D7400-S16-06-CF-SS-X (S16MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.211
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.713

D7400-S16-06-CF-X

$32.39

Attribute: D7400-S16-06-CF-X (S16MBT-06MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.211
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.713

D7400-S16-08-CF-SS-X

$72.51

Attribute: D7400-S16-08-CF-SS-X (S16MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	18.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.227
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D7400-S16-08-CF-X

$10.93

Attribute: D7400-S16-08-CF-X (S16MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	18.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.227
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

D7400-S16-12-CF-SS-X

$109.20

Attribute: D7400-S16-12-CF-SS-X (S16MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.377
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.812

D7400-S16-12-CF-X

$23.17

Attribute: D7400-S16-12-CF-X (S16MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.377
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.812

D7400-S16-16-CF-SS-X

$168.56

Attribute: D7400-S16-16-CF-SS-X (S16MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.555
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.821

D7400-S16-16-CF-X

$49.97

Attribute: D7400-S16-16-CF-X (S16MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.555
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.821

D7400-S20-06-CF-SS-X

$122.04

Attribute: D7400-S20-06-CF-SS-X (S20MBT-06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/8-19
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.333
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.687

D7400-S20-08-CF-X

$29.70

Attribute: D7400-S20-08-CF-X (S20MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.339
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.812

D7400-S20-12-CF-SS-X

$105.66

Attribute: D7400-S20-12-CF-SS-X (S20MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.370
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.937

D7400-S20-12-CF-X

$17.15

Attribute: D7400-S20-12-CF-X (S20MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.370
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.937

D7400-S20-16-CF-SS-X

$159.38

Attribute: D7400-S20-16-CF-SS-X (S20MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	22.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.659
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.232

D7400-S20-16-CF-X

$61.62

Attribute: D7400-S20-16-CF-X (S20MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	22.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.659
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.232

D7400-S20-20-CF-SS-X

$184.35

Attribute: D7400-S20-20-CF-SS-X (S20MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	22.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.960
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.086

D7400-S20-24-CF-SS-X

$69.67

Attribute: D7400-S20-24-CF-SS-X (S20MBT-24M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	58.0
OVERALL LENGTH L2 (MM)	25.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.275
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.707

D7400-S25-08-CF-SS-X

$182.42

Attribute: D7400-S25-08-CF-SS-X (S25MBT-08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.564
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.026

D7400-S25-08-CF-X

$151.71

Attribute: D7400-S25-08-CF-X (S25MBT-08MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.564
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.026

D7400-S25-12-CF-SS-X

$188.36

Attribute: D7400-S25-12-CF-SS-X (S25MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.595
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.232

D7400-S25-12-CF-X

$58.42

Attribute: D7400-S25-12-CF-X (S25MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.595
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.232

D7400-S25-16-CF-SS-X

$184.26

Attribute: D7400-S25-16-CF-SS-X (S25MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.650
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D7400-S25-16-CF-X

$29.40

Attribute: D7400-S25-16-CF-X (S25MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.650
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D7400-S25-20-CF-SS-X

$209.35

Attribute: D7400-S25-20-CF-SS-X (S25MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.055
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.391

D7400-S25-20-CF-X

$113.00

Attribute: D7400-S25-20-CF-X (S25MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.055
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.391

D7400-S30-12-CF-SS-X

$220.28

Attribute: D7400-S30-12-CF-SS-X (S30MBT-12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.725
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.844

D7400-S30-12-CF-X

$66.09

Attribute: D7400-S30-12-CF-X (S30MBT-12MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.725
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.844

D7400-S30-16-CF-SS-X

$186.65

Attribute: D7400-S30-16-CF-SS-X (S30MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.725
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.102

D7400-S30-16-CF-X

$70.80

Attribute: D7400-S30-16-CF-X (S30MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.725
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.102

D7400-S30-20-CF-SS-X

$244.38

Attribute: D7400-S30-20-CF-SS-X (S30MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.815
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.696

D7400-S30-20-CF-X

$51.21

Attribute: D7400-S30-20-CF-X (S30MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.815
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.696

D7400-S30-24-CF-SS-X

$338.57

Attribute: D7400-S30-24-CF-SS-X (S30MBT-24M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	62.0
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.013
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.445

D7400-S30-24-CF-X

$160.79

Attribute: D7400-S30-24-CF-X (S30MBT-24MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	62.0
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.013
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.445

D7400-S38-16-CF-SS-X

$312.36

Attribute: D7400-S38-16-CF-SS-X (S38MBT-16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.207
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.076

D7400-S38-16-CF-X

$147.56

Attribute: D7400-S38-16-CF-X (S38MBT-16MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-11
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.207
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.076

D7400-S38-20-CF-SS-X

$236.75

Attribute: D7400-S38-20-CF-SS-X (S38MBT-20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	62.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.264
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.445

D7400-S38-20-CF-X

$75.45

Attribute: D7400-S38-20-CF-X (S38MBT-20MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/4-11
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	62.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.264
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.445

D7400-S38-24-CF-SS-X

$234.10

Attribute: D7400-S38-24-CF-SS-X (S38MBT-24M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	32.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	64.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.357
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.814

D7400-S38-24-CF-X

$69.39

Attribute: D7400-S38-24-CF-X (S38MBT-24MBSP...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE BSPP FORM B
CONNECTION 2 THREAD SIZE	1-1/2-11
CONNECTION 2 THREAD ID (MM)	32.0
CONNECTION 2 SPECIFICATION	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	64.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.357
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.814

Description

Description

Variations (164)

D7400-E04-02-CF-SS-X

D7400-E06-02-CF-SS-X

D7400-E06-04-CF-SS-X

D7400-E08-02-CF-SS-X

D7400-E08-02-CF-X

D7400-L06-02-CF-SS-X

D7400-L06-02-CF-X

D7400-L06-04-CF-SS-X

D7400-L06-04-CF-X

D7400-L06-06-CF-SS-X

D7400-L06-06-CF-X

D7400-L06-08-CF-SS-X

D7400-L06-08-CF-X

D7400-L08-02-CF-SS-X

D7400-L08-02-CF-X

D7400-L08-04-CF-SS-X

D7400-L08-04-CF-X

D7400-L08-06-CF-SS-X

D7400-L08-06-CF-X

D7400-L08-08-CF-SS-X

D7400-L08-08-CF-X

D7400-L08-12-CF-SS-X

D7400-L10-02-CF-SS-X

D7400-L10-02-CF-X

D7400-L10-04-CF-SS-X

D7400-L10-04-CF-X

D7400-L10-06-CF-SS-X

D7400-L10-06-CF-X

D7400-L10-08-CF-SS-X

D7400-L10-08-CF-X

D7400-L10-12-CF-SS-X

D7400-L12-02-CF-SS-X

D7400-L12-02-CF-X

D7400-L12-04-CF-SS-X

D7400-L12-04-CF-X

D7400-L12-06-CF-SS-X

D7400-L12-06-CF-X

D7400-L12-08-CF-SS-X

D7400-L12-08-CF-X

D7400-L12-12-CF-SS-X

D7400-L12-12-CF-X

D7400-L15-04-CF-SS-X

D7400-L15-04-CF-X

D7400-L15-06-CF-SS-X

D7400-L15-06-CF-X

D7400-L15-08-CF-SS-X

D7400-L15-08-CF-X

D7400-L15-12-CF-SS-X

D7400-L15-12-CF-X

D7400-L15-16-CF-SS-X

D7400-L18-04-CF-SS-X

D7400-L18-06-CF-SS-X

D7400-L18-06-CF-X

D7400-L18-08-CF-SS-X

D7400-L18-08-CF-X

D7400-L18-12-CF-SS-X

D7400-L18-12-CF-X

D7400-L18-16-CF-SS-X

D7400-L18-16-CF-X

D7400-L22-06-CF-SS-X

D7400-L22-08-CF-SS-X

D7400-L22-08-CF-X

D7400-L22-12-CF-SS-X

D7400-L22-12-CF-X

D7400-L22-16-CF-SS-X

D7400-L22-16-CF-X

D7400-L22-20-CF-SS-X

D7400-L28-08-CF-X

D7400-L28-12-CF-SS-X

D7400-L28-12-CF-X

D7400-L28-16-CF-SS-X

D7400-L28-16-CF-X

D7400-L28-20-CF-SS-X

D7400-L28-20-CF-X

D7400-L28-24-CF-SS-X

D7400-L35-12-CF-SS-X
