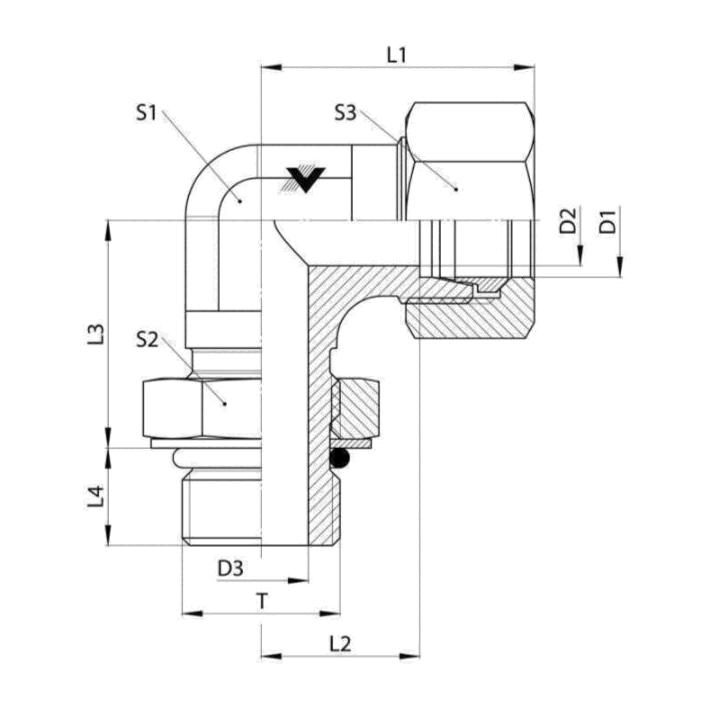

D6801-NWO

Attribute: D6801-L10-06-NWO (L10MBT-06MAORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 SPECIFICATION	SAE J514
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

Attribute: D6801-L12-06-NWO (L12MBT-06MAORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 SPECIFICATION	SAE J514
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

Attribute: D6801-L22-12-NWO (L22MBT-12MAORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 SPECIFICATION	SAE J514
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
