D6602

D6602-L06-L06-L06

$41.52

Attribute: D6602-L06-L06-L06 (L06MBT-L06FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 TUBE SIZE	M12X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1

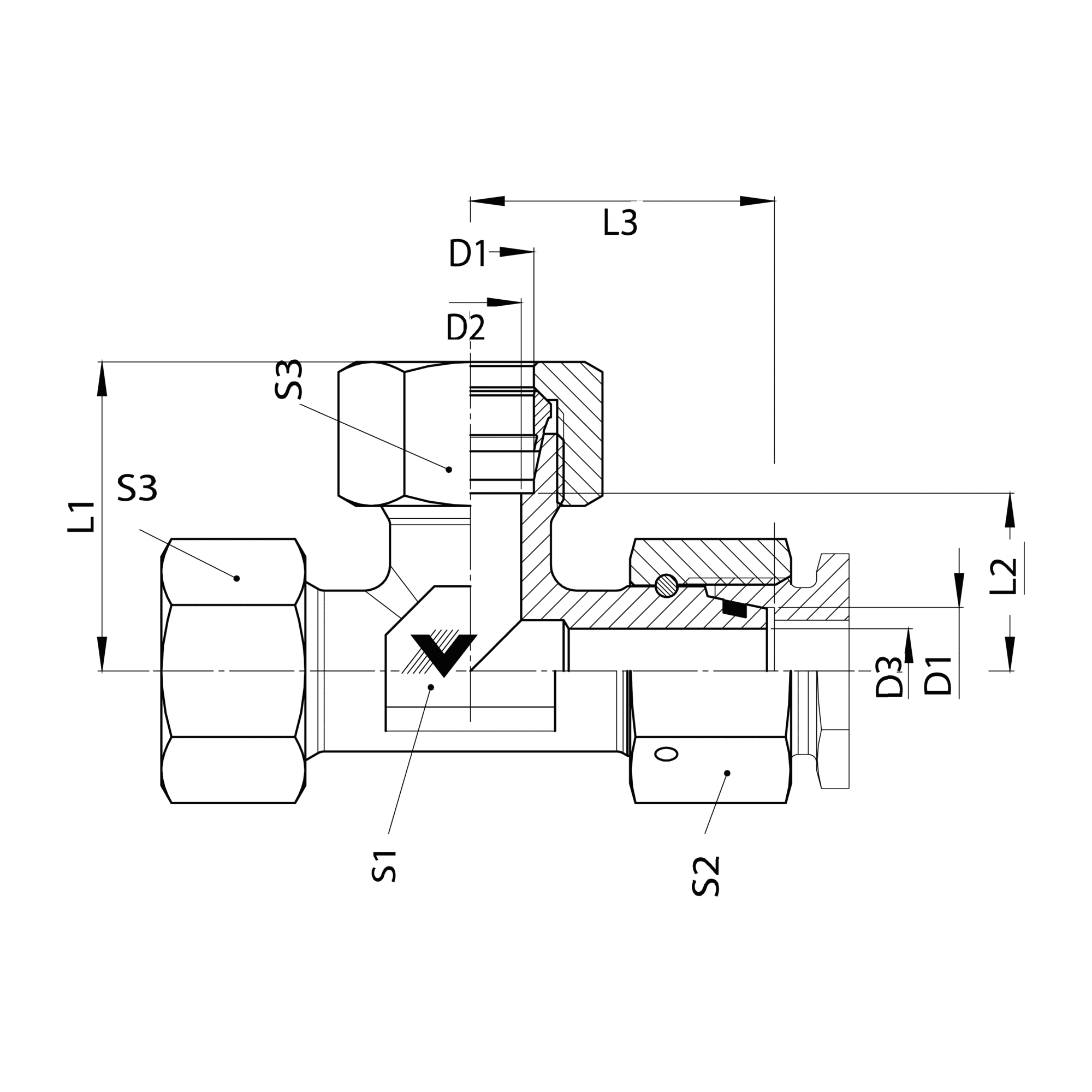

BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	14.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	26.4
OVERALL LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.215
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.154

D6602-L06-L06-L06-SS

$196.21

Attribute: D6602-L06-L06-L06-SS (L06MBT-L06...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 TUBE SIZE	M12X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	14.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	26.4
OVERALL LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.215
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.154

D6602-L08-L08-L08

$42.76

Attribute: D6602-L08-L08-L08 (L08MBT-L08FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 TUBE SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	27.4
OVERALL LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.244
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.193

D6602-L08-L08-L08-SS

$201.59

Attribute: D6602-L08-L08-L08-SS (L08MBT-L08...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 TUBE SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	27.4
OVERALL LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.244
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.193

D6602-L10-L10-L10

$46.85

Attribute: D6602-L10-L10-L10 (L10MBT-L10FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 TUBE SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	28.9
OVERALL LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.318
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.697

D6602-L10-L10-L10-SS

$249.50

Attribute: D6602-L10-L10-L10-SS (L10MBT-L10...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 TUBE SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	28.9
OVERALL LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.318
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.697

D6602-L12-L12-L12

$52.40

Attribute: D6602-L12-L12-L12 (L12MBT-L12FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 TUBE SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	29.4
OVERALL LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.414
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.544

D6602-L12-L12-L12-SS

$270.46

Attribute: D6602-L12-L12-L12-SS (L12MBT-L12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 TUBE SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	29.4
OVERALL LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.414
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.544

D6602-L15-L15-L15

$69.09

Attribute: D6602-L15-L15-L15 (L15MBT-L15FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 TUBE SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
OVERALL LENGTH L1 (MM)	36.5
OVERALL LENGTH L2 (MM)	32.4
OVERALL LENGTH M1 (MM)	28.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	36.5
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.682
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.675

D6602-L15-L15-L15-SS

$384.18

Attribute: D6602-L15-L15-L15-SS (L15MBT-L15...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 TUBE SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
OVERALL LENGTH L1 (MM)	36.5
OVERALL LENGTH L2 (MM)	32.4
OVERALL LENGTH M1 (MM)	28.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	36.5
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.682
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.675

D6602-L18-L18-L18

$92.34

Attribute: D6602-L18-L18-L18 (L18MBT-L18FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 TUBE SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	32.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	35.4
OVERALL LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	23.5
CENTERLINE LENGTH L1 (MM)	40.5
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.970
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.373

D6602-L18-L18-L18-SS

$484.80

Attribute: D6602-L18-L18-L18-SS (L18MBT-L18...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 TUBE SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	32.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	35.4
OVERALL LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	23.5
CENTERLINE LENGTH L1 (MM)	40.5
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.970
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.373

D6602-L22-L22-L22

$135.01

Attribute: D6602-L22-L22-L22 (L22MBT-L22FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 TUBE SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	38.4
OVERALL LENGTH M1 (MM)	35.0
CENTERLINE LENGTH M2 (MM)	27.5
CENTERLINE LENGTH L1 (MM)	45.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.320
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.702

D6602-L22-L22-L22-SS

$648.87

Attribute: D6602-L22-L22-L22-SS (L22MBT-L22...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 TUBE SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	38.4
OVERALL LENGTH M1 (MM)	35.0
CENTERLINE LENGTH M2 (MM)	27.5
CENTERLINE LENGTH L1 (MM)	45.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.320
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.702

D6602-L28-L28-L28

$203.16

Attribute: D6602-L28-L28-L28 (L28MBT-L28FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 28MM TUBE OD
CONNECTION 3 TUBE SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	41.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	41.9
OVERALL LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	30.5
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.779
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.804

D6602-L28-L28-L28-SS

$1,225.77

Attribute: D6602-L28-L28-L28-SS (L28MBT-L28...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 28MM TUBE OD
CONNECTION 3 TUBE SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	41.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	41.9
OVERALL LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	30.5
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.779
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.804

D6602-L35-L35-L35

$279.03

Attribute: D6602-L35-L35-L35 (L35MBT-L35FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 35MM TUBE OD
CONNECTION 3 TUBE SIZE	M45X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	51.5
OVERALL LENGTH M1 (MM)	45.0
CENTERLINE LENGTH M2 (MM)	34.5
CENTERLINE LENGTH L1 (MM)	57.0
CENTERLINE LENGTH L2 (MM)	45.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.770
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	27.141

D6602-L35-L35-L35-SS

$1,565.82

Attribute: D6602-L35-L35-L35-SS (L35MBT-L35...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 35MM TUBE OD
CONNECTION 3 TUBE SIZE	M45X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	51.5
OVERALL LENGTH M1 (MM)	45.0
CENTERLINE LENGTH M2 (MM)	34.5
CENTERLINE LENGTH L1 (MM)	57.0
CENTERLINE LENGTH L2 (MM)	45.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.770
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	27.141

D6602-L42-L42-L42

$382.21

Attribute: D6602-L42-L42-L42 (L42MBT-L42FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 42MM TUBE OD
CONNECTION 3 TUBE SIZE	M52X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
OVERALL LENGTH L1 (MM)	63.0
OVERALL LENGTH L2 (MM)	56.5
OVERALL LENGTH M1 (MM)	51.0
CENTERLINE LENGTH M2 (MM)	40.0
CENTERLINE LENGTH L1 (MM)	63.0
CENTERLINE LENGTH L2 (MM)	51.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	4.073
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	40.684

D6602-L42-L42-L42-SS

$2,231.30

Attribute: D6602-L42-L42-L42-SS (L42MBT-L42...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	LIGHT 42MM TUBE OD
CONNECTION 3 TUBE SIZE	M52X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
OVERALL LENGTH L1 (MM)	63.0
OVERALL LENGTH L2 (MM)	56.5
OVERALL LENGTH M1 (MM)	51.0
CENTERLINE LENGTH M2 (MM)	40.0
CENTERLINE LENGTH L1 (MM)	63.0
CENTERLINE LENGTH L2 (MM)	51.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	4.073
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	40.684

D6602-S06-S06-S06

$48.56

Attribute: D6602-S06-S06-S06 (S06MBT-S06FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 TUBE SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	27.4
OVERALL LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	16.0
CENTERLINE LENGTH L1 (MM)	31.0
CENTERLINE LENGTH L2 (MM)	23.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.303
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.391

D6602-S06-S06-S06-SS

$200.44

Attribute: D6602-S06-S06-S06-SS (S06MBT-S06...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 TUBE SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	27.4
OVERALL LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	16.0
CENTERLINE LENGTH L1 (MM)	31.0
CENTERLINE LENGTH L2 (MM)	23.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.303
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.391

D6602-S08-S08-S08

$48.39

Attribute: D6602-S08-S08-S08 (S08MBT-S08FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 TUBE SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	27.9
OVERALL LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.393
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.880

D6602-S08-S08-S08-SS

$216.95

Attribute: D6602-S08-S08-S08-SS (S08MBT-S08...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 TUBE SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	27.9
OVERALL LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.393
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.880

D6602-S10-S10-S10

$58.76

Attribute: D6602-S10-S10-S10 (S10MBT-S10FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 TUBE SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	30.4
OVERALL LENGTH M1 (MM)	25.0
CENTERLINE LENGTH M2 (MM)	17.5
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	25.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.518
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.890

D6602-S10-S10-S10-SS

$280.91

Attribute: D6602-S10-S10-S10-SS (S10MBT-S10...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 TUBE SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	30.4
OVERALL LENGTH M1 (MM)	25.0
CENTERLINE LENGTH M2 (MM)	17.5
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	25.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.518
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.890

D6602-S12-S12-S12

$64.77

Attribute: D6602-S12-S12-S12 (S12MBT-S12FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 TUBE SIZE	M20X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
HEX C 3 (MM)	24.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.9
OVERALL LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.5
CENTERLINE LENGTH L1 (MM)	38.0
CENTERLINE LENGTH L2 (MM)	29.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.650
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.045

D6602-S12-S12-S12-SS

$293.46

Attribute: D6602-S12-S12-S12-SS (S12MBT-S12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 TUBE SIZE	M20X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
HEX C 3 (MM)	24.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	30.9
OVERALL LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.5
CENTERLINE LENGTH L1 (MM)	38.0
CENTERLINE LENGTH L2 (MM)	29.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.650
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.045

D6602-S14-S14-S14

$103.65

Attribute: D6602-S14-S14-S14 (S14MBT-S14FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 14MM TUBE OD
CONNECTION 3 TUBE SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	34.9
OVERALL LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	40.0
CENTERLINE LENGTH L2 (MM)	30.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.865
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.602

D6602-S14-S14-S14-SS

$386.99

Attribute: D6602-S14-S14-S14-SS (S14MBT-S14...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 14MM TUBE OD
CONNECTION 3 TUBE SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	34.9
OVERALL LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	40.0
CENTERLINE LENGTH L2 (MM)	30.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.865
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.602

D6602-S16-S16-S16

$100.62

Attribute: D6602-S16-S16-S16 (S16MBT-S16FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 TUBE SIZE	M24X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
HEX C 3 (MM)	30.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	35.4
OVERALL LENGTH M1 (MM)	33.0
CENTERLINE LENGTH M2 (MM)	24.5
CENTERLINE LENGTH L1 (MM)	43.0
CENTERLINE LENGTH L2 (MM)	33.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.081
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.324

D6602-S16-S16-S16-SS

$480.97

Attribute: D6602-S16-S16-S16-SS (S16MBT-S16...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 TUBE SIZE	M24X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
HEX C 3 (MM)	30.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	35.4
OVERALL LENGTH M1 (MM)	33.0
CENTERLINE LENGTH M2 (MM)	24.5
CENTERLINE LENGTH L1 (MM)	43.0
CENTERLINE LENGTH L2 (MM)	33.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.081
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.324

D6602-S20-S20-S20

$155.28

Attribute: D6602-S20-S20-S20 (S20MBT-S20FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 20MM TUBE OD
CONNECTION 3 TUBE SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	44.5
OVERALL LENGTH M1 (MM)	37.0
CENTERLINE LENGTH M2 (MM)	26.5
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	37.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.720
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.759

D6602-S20-S20-S20-SS

$665.69

Attribute: D6602-S20-S20-S20-SS (S20MBT-S20...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 20MM TUBE OD
CONNECTION 3 TUBE SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	44.5
OVERALL LENGTH M1 (MM)	37.0
CENTERLINE LENGTH M2 (MM)	26.5
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	37.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.720
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.759

D6602-S25-S25-S25

$218.69

Attribute: D6602-S25-S25-S25 (S25MBT-S25FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 25MM TUBE OD
CONNECTION 3 TUBE SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	46.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	50.0
OVERALL LENGTH M1 (MM)	42.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGTH L1 (MM)	55.0
CENTERLINE LENGTH L2 (MM)	42.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	3.088
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	22.985

D6602-S25-S25-S25-SS

$1,035.14

Attribute: D6602-S25-S25-S25-SS (S25MBT-S25...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 25MM TUBE OD
CONNECTION 3 TUBE SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	46.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	50.0
OVERALL LENGTH M1 (MM)	42.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGTH L1 (MM)	55.0
CENTERLINE LENGTH L2 (MM)	42.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	3.088
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	22.985

D6602-S30-S30-S30

$286.63

Attribute: D6602-S30-S30-S30 (S30MBT-S30FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 30MM TUBE OD
CONNECTION 3 TUBE SIZE	M42X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
OVERALL LENGTH L1 (MM)	63.2
OVERALL LENGTH L2 (MM)	55.5
OVERALL LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	35.5
CENTERLINE LENGTH L1 (MM)	63.2
CENTERLINE LENGTH L2 (MM)	49.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	3.948
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	31.970

D6602-S30-S30-S30-SS

$1,606.19

Attribute: D6602-S30-S30-S30-SS (S30MBT-S30...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 30MM TUBE OD
CONNECTION 3 TUBE SIZE	M42X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
OVERALL LENGTH L1 (MM)	63.2
OVERALL LENGTH L2 (MM)	55.5
OVERALL LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	35.5
CENTERLINE LENGTH L1 (MM)	63.2
CENTERLINE LENGTH L2 (MM)	49.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	3.948
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	31.970

D6602-S38-S38-S38

$490.82

Attribute: D6602-S38-S38-S38 (S38MBT-S38FMS...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 38MM TUBE OD
CONNECTION 3 TUBE SIZE	M52X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
OVERALL LENGTH L1 (MM)	72.5
OVERALL LENGTH L2 (MM)	63.5
OVERALL LENGTH M1 (MM)	57.0
CENTERLINE LENGTH M2 (MM)	41.0
CENTERLINE LENGTH L1 (MM)	72.5
CENTERLINE LENGTH L2 (MM)	57.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	5.920
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	51.032

D6602-S38-S38-S38-SS

$2,300.01

Attribute: D6602-S38-S38-S38-SS (S38MBT-S38...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 THREAD SIZE	HEAVY 38MM TUBE OD
CONNECTION 3 TUBE SIZE	M52X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
OVERALL LENGTH L1 (MM)	72.5
OVERALL LENGTH L2 (MM)	63.5
OVERALL LENGTH M1 (MM)	57.0
CENTERLINE LENGTH M2 (MM)	41.0
CENTERLINE LENGTH L1 (MM)	72.5
CENTERLINE LENGTH L2 (MM)	57.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	5.920
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	51.032

ID	10166508
Category	DIN Metric Tube Fittings

Description

Description

Variations (40)

D6602-L06-L06-L06

D6602-L06-L06-L06-SS

D6602-L08-L08-L08

D6602-L08-L08-L08-SS

D6602-L10-L10-L10

D6602-L10-L10-L10-SS

D6602-L12-L12-L12

D6602-L12-L12-L12-SS

D6602-L15-L15-L15

D6602-L15-L15-L15-SS

D6602-L18-L18-L18

D6602-L18-L18-L18-SS

D6602-L22-L22-L22

D6602-L22-L22-L22-SS

D6602-L28-L28-L28

D6602-L28-L28-L28-SS

D6602-L35-L35-L35

D6602-L35-L35-L35-SS

D6602-L42-L42-L42

D6602-L42-L42-L42-SS

D6602-S06-S06-S06

D6602-S06-S06-S06-SS

D6602-S08-S08-S08

D6602-S08-S08-S08-SS

D6602-S10-S10-S10

D6602-S10-S10-S10-SS

D6602-S12-S12-S12

D6602-S12-S12-S12-SS

D6602-S14-S14-S14

D6602-S14-S14-S14-SS

D6602-S16-S16-S16

D6602-S16-S16-S16-SS

D6602-S20-S20-S20

D6602-S20-S20-S20-SS

D6602-S25-S25-S25

D6602-S25-S25-S25-SS

D6602-S30-S30-S30

D6602-S30-S30-S30-SS

D6602-S38-S38-S38

D6602-S38-S38-S38-SS

General Attributes

PDF Documents
