D6600-X

D6600-L06-L06-L06-SS-X

$169.07

Attribute: D6600-L06-L06-L06-SS-X (L06MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1

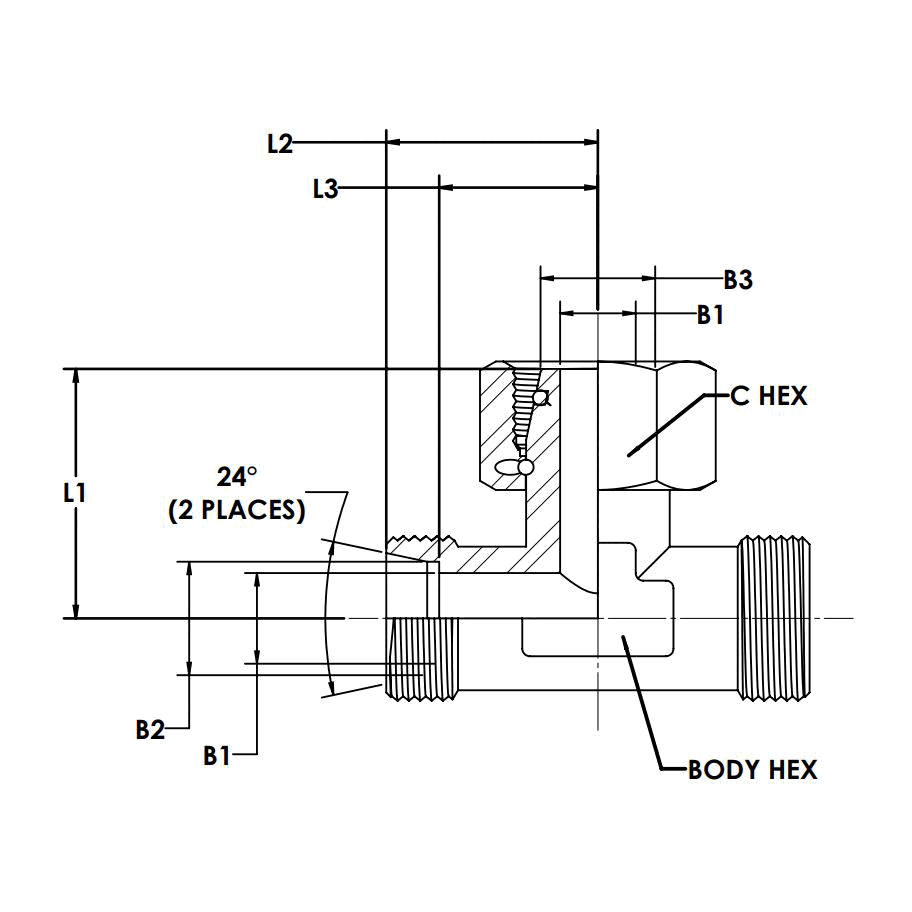

BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	21.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH M1 (MM)	14.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	26.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.081
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.410

D6600-L06-L06-L06-X

$33.67

Attribute: D6600-L06-L06-L06-X (L06MBT-L06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	21.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH M1 (MM)	14.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	26.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.081
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.410

D6600-L08-L08-L08-SS-X

$170.18

Attribute: D6600-L08-L08-L08-SS-X (L08MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	21.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH M1 (MM)	14.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	27.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.084
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.454

D6600-L08-L08-L08-X

$34.18

Attribute: D6600-L08-L08-L08-X (L08MBT-L08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	21.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH M1 (MM)	14.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	27.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.084
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.454

D6600-L10-L10-L10-SS-X

$208.79

Attribute: D6600-L10-L10-L10-SS-X (L10MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	22.0
OVERALL LENGTH L2 (MM)	22.0
OVERALL LENGTH M1 (MM)	15.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	28.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.805

D6600-L10-L10-L10-X

$38.62

Attribute: D6600-L10-L10-L10-X (L10MBT-L10M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	22.0
OVERALL LENGTH L2 (MM)	22.0
OVERALL LENGTH M1 (MM)	15.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	28.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.805

D6600-L12-L12-L12-SS-X

$232.61

Attribute: D6600-L12-L12-L12-SS-X (L12MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	24.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	29.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.148
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.442

D6600-L12-L12-L12-X

$39.30

Attribute: D6600-L12-L12-L12-X (L12MBT-L12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	24.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	29.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.148
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.442

D6600-L15-L15-L15-SS-X

$315.98

Attribute: D6600-L15-L15-L15-SS-X (L15MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	28.0
OVERALL LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	32.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.244
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.865

D6600-L15-L15-L15-X

$53.94

Attribute: D6600-L15-L15-L15-X (L15MBT-L15M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	28.0
OVERALL LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	32.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.244
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.865

D6600-L18-L18-L18-SS-X

$404.07

Attribute: D6600-L18-L18-L18-SS-X (L18MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH M1 (MM)	23.5
CENTERLINE LENGTH M2 (MM)	23.5
CENTERLINE LENGTH L1 (MM)	35.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.352
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.738

D6600-L18-L18-L18-X

$66.01

Attribute: D6600-L18-L18-L18-X (L18MBT-L18M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH M1 (MM)	23.5
CENTERLINE LENGTH M2 (MM)	23.5
CENTERLINE LENGTH L1 (MM)	35.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.352
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.738

D6600-L22-L22-L22-SS-X

$492.27

Attribute: D6600-L22-L22-L22-SS-X (L22MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH M1 (MM)	27.5
CENTERLINE LENGTH M2 (MM)	27.5
CENTERLINE LENGTH L1 (MM)	38.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.460
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.980

D6600-L22-L22-L22-X

$105.40

Attribute: D6600-L22-L22-L22-X (L22MBT-L22M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH M1 (MM)	27.5
CENTERLINE LENGTH M2 (MM)	27.5
CENTERLINE LENGTH L1 (MM)	38.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.460
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.980

D6600-L28-L28-L28-SS-X

$841.76

Attribute: D6600-L28-L28-L28-SS-X (L28MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH M1 (MM)	30.5
CENTERLINE LENGTH M2 (MM)	30.5
CENTERLINE LENGTH L1 (MM)	41.9
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.725
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.388

D6600-L28-L28-L28-X

$151.36

Attribute: D6600-L28-L28-L28-X (L28MBT-L28M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH M1 (MM)	30.5
CENTERLINE LENGTH M2 (MM)	30.5
CENTERLINE LENGTH L1 (MM)	41.9
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.725
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.388

D6600-L35-L35-L35-SS-X

$1,216.50

Attribute: D6600-L35-L35-L35-SS-X (L35MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M45X2.0
CONNECTION 3 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	45.0
OVERALL LENGTH M1 (MM)	34.5
CENTERLINE LENGTH M2 (MM)	34.5
CENTERLINE LENGTH L1 (MM)	51.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.205
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.766

D6600-L35-L35-L35-X

$204.87

Attribute: D6600-L35-L35-L35-X (L35MBT-L35M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M45X2.0
CONNECTION 3 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	45.0
OVERALL LENGTH M1 (MM)	34.5
CENTERLINE LENGTH M2 (MM)	34.5
CENTERLINE LENGTH L1 (MM)	51.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.205
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.766

D6600-L42-L42-L42-SS-X

$1,703.86

Attribute: D6600-L42-L42-L42-SS-X (L42MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	51.0
OVERALL LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	40.0
CENTERLINE LENGTH L1 (MM)	56.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.703
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	30.429

D6600-L42-L42-L42-X

$329.77

Attribute: D6600-L42-L42-L42-X (L42MBT-L42M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	51.0
OVERALL LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	40.0
CENTERLINE LENGTH L1 (MM)	56.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.703
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	30.429

D6600-S06-S06-S06-SS-X

$174.61

Attribute: D6600-S06-S06-S06-SS-X (S06MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	23.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH M1 (MM)	16.0
CENTERLINE LENGTH M2 (MM)	16.0
CENTERLINE LENGTH L1 (MM)	27.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.110
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.592

D6600-S06-S06-S06-X

$38.83

Attribute: D6600-S06-S06-S06-X (S06MBT-S06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	23.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH M1 (MM)	16.0
CENTERLINE LENGTH M2 (MM)	16.0
CENTERLINE LENGTH L1 (MM)	27.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.110
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.592

D6600-S08-S08-S08-SS-X

$182.80

Attribute: D6600-S08-S08-S08-SS-X (S08MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	24.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	27.9
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.940

D6600-S08-S08-S08-X

$42.89

Attribute: D6600-S08-S08-S08-X (S08MBT-S08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	24.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	27.9
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.940

D6600-S10-S10-S10-SS-X

$241.31

Attribute: D6600-S10-S10-S10-SS-X (S10MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	25.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH M1 (MM)	17.5
CENTERLINE LENGTH M2 (MM)	17.5
CENTERLINE LENGTH L1 (MM)	30.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.189
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.611

D6600-S10-S10-S10-X

$46.29

Attribute: D6600-S10-S10-S10-X (S10MBT-S10M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	25.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH M1 (MM)	17.5
CENTERLINE LENGTH M2 (MM)	17.5
CENTERLINE LENGTH L1 (MM)	30.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.189
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.611

D6600-S12-S12-S12-SS-X

$251.89

Attribute: D6600-S12-S12-S12-SS-X (S12MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M20X1.5
CONNECTION 3 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH M1 (MM)	21.5
CENTERLINE LENGTH M2 (MM)	21.5
CENTERLINE LENGTH L1 (MM)	30.9
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.249
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.346

D6600-S12-S12-S12-X

$50.86

Attribute: D6600-S12-S12-S12-X (S12MBT-S12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M20X1.5
CONNECTION 3 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH M1 (MM)	21.5
CENTERLINE LENGTH M2 (MM)	21.5
CENTERLINE LENGTH L1 (MM)	30.9
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.249
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.346

D6600-S14-S14-S14-SS-X

$329.21

Attribute: D6600-S14-S14-S14-SS-X (S14MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	34.9
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.311
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.388

D6600-S14-S14-S14-X

$168.57

Attribute: D6600-S14-S14-S14-X (S14MBT-S14M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	34.9
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.311
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.388

D6600-S16-S16-S16-SS-X

$399.03

Attribute: D6600-S16-S16-S16-SS-X (S16MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH M1 (MM)	24.5
CENTERLINE LENGTH M2 (MM)	24.5
CENTERLINE LENGTH L1 (MM)	35.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.410
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.726

D6600-S16-S16-S16-X

$68.88

Attribute: D6600-S16-S16-S16-X (S16MBT-S16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH M1 (MM)	24.5
CENTERLINE LENGTH M2 (MM)	24.5
CENTERLINE LENGTH L1 (MM)	35.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.410
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.726

D6600-S20-S20-S20-SS-X

$531.01

Attribute: D6600-S20-S20-S20-SS-X (S20MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH M1 (MM)	26.5
CENTERLINE LENGTH M2 (MM)	26.5
CENTERLINE LENGTH L1 (MM)	44.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.643
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.425

D6600-S20-S20-S20-X

$110.82

Attribute: D6600-S20-S20-S20-X (S20MBT-S20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH M1 (MM)	26.5
CENTERLINE LENGTH M2 (MM)	26.5
CENTERLINE LENGTH L1 (MM)	44.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.643
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.425

D6600-S25-S25-S25-SS-X

$790.55

Attribute: D6600-S25-S25-S25-SS-X (S25MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	42.0
OVERALL LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGTH L1 (MM)	50.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.079
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.029

D6600-S25-S25-S25-X

$159.46

Attribute: D6600-S25-S25-S25-X (S25MBT-S25M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	42.0
OVERALL LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGTH L1 (MM)	50.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.079
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.029

D6600-S30-S30-S30-SS-X

$1,074.74

Attribute: D6600-S30-S30-S30-SS-X (S30MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M42X2.0
CONNECTION 3 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	49.0
OVERALL LENGTH M1 (MM)	35.5
CENTERLINE LENGTH M2 (MM)	35.5
CENTERLINE LENGTH L1 (MM)	55.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.630
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	22.719

D6600-S30-S30-S30-X

$207.34

Attribute: D6600-S30-S30-S30-X (S30MBT-S30M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M42X2.0
CONNECTION 3 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	49.0
OVERALL LENGTH M1 (MM)	35.5
CENTERLINE LENGTH M2 (MM)	35.5
CENTERLINE LENGTH L1 (MM)	55.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.630
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	22.719

D6600-S38-S38-S38-SS-X

$1,697.81

Attribute: D6600-S38-S38-S38-SS-X (S38MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	57.0
OVERALL LENGTH M1 (MM)	41.0
CENTERLINE LENGTH M2 (MM)	41.0
CENTERLINE LENGTH L1 (MM)	63.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.425
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	36.931

D6600-S38-S38-S38-X

$340.31

Attribute: D6600-S38-S38-S38-X (S38MBT-S38M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	57.0
OVERALL LENGTH M1 (MM)	41.0
CENTERLINE LENGTH M2 (MM)	41.0
CENTERLINE LENGTH L1 (MM)	63.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.425
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	36.931

ID	10166465
Category	DIN Metric Tube Fittings

Description

Description

Variations (40)

D6600-L06-L06-L06-SS-X

D6600-L06-L06-L06-X

D6600-L08-L08-L08-SS-X

D6600-L08-L08-L08-X

D6600-L10-L10-L10-SS-X

D6600-L10-L10-L10-X

D6600-L12-L12-L12-SS-X

D6600-L12-L12-L12-X

D6600-L15-L15-L15-SS-X

D6600-L15-L15-L15-X

D6600-L18-L18-L18-SS-X

D6600-L18-L18-L18-X

D6600-L22-L22-L22-SS-X

D6600-L22-L22-L22-X

D6600-L28-L28-L28-SS-X

D6600-L28-L28-L28-X

D6600-L35-L35-L35-SS-X

D6600-L35-L35-L35-X

D6600-L42-L42-L42-SS-X

D6600-L42-L42-L42-X

D6600-S06-S06-S06-SS-X

D6600-S06-S06-S06-X

D6600-S08-S08-S08-SS-X

D6600-S08-S08-S08-X

D6600-S10-S10-S10-SS-X

D6600-S10-S10-S10-X

D6600-S12-S12-S12-SS-X

D6600-S12-S12-S12-X

D6600-S14-S14-S14-SS-X

D6600-S14-S14-S14-X

D6600-S16-S16-S16-SS-X

D6600-S16-S16-S16-X

D6600-S20-S20-S20-SS-X

D6600-S20-S20-S20-X

D6600-S25-S25-S25-SS-X

D6600-S25-S25-S25-X

D6600-S30-S30-S30-SS-X

D6600-S30-S30-S30-X

D6600-S38-S38-S38-SS-X

D6600-S38-S38-S38-X

General Attributes

PDF Documents
