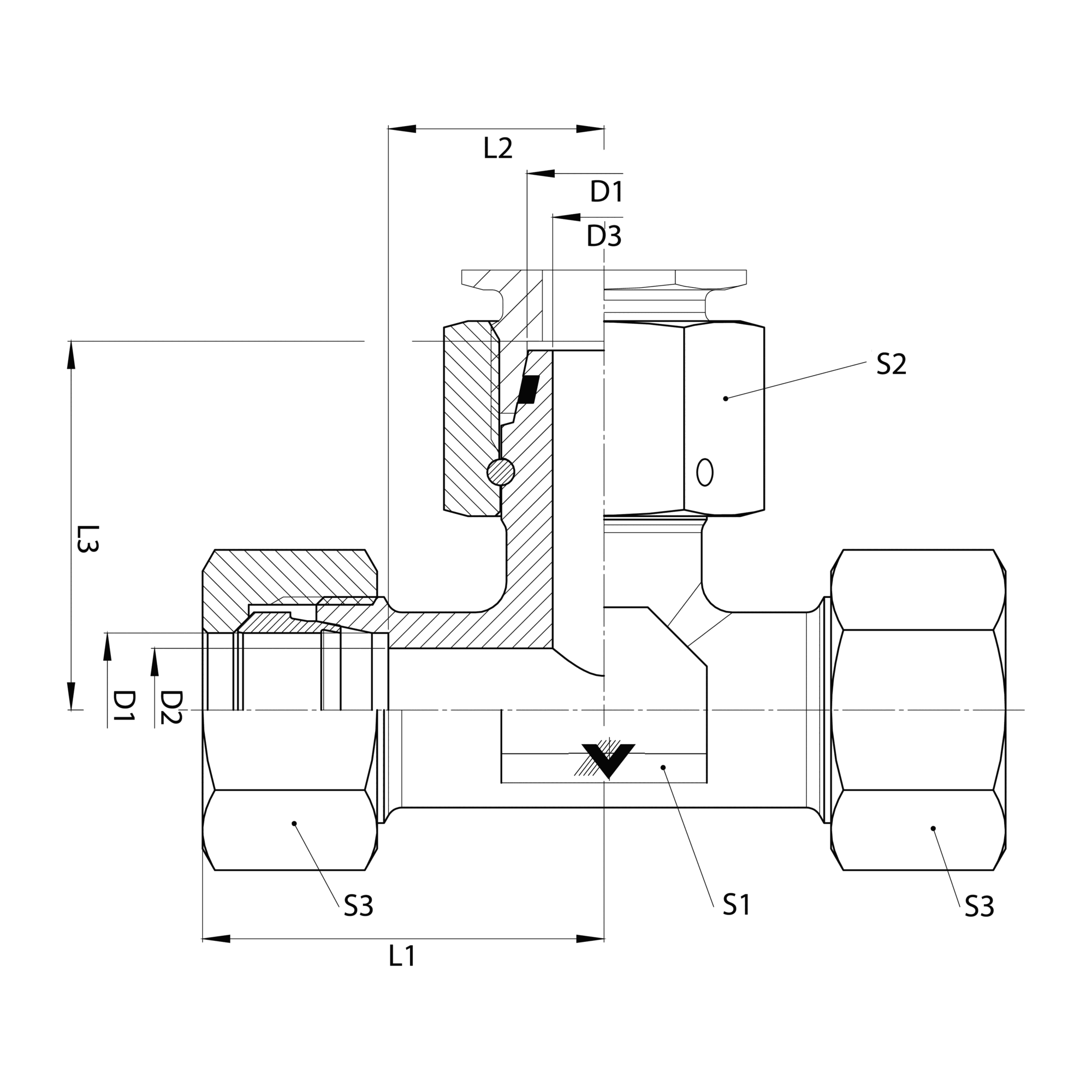

D6600

D6600-L06-L06-L06

$37.98

Attribute: D6600-L06-L06-L06 (L06MBT-L06MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
HEX C 3 (MM)	17.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	14.0
CENTERLINE LENGTH L2 (MM)	26.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.215
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.007

D6600-L06-L06-L06-SS

$197.32

Attribute: D6600-L06-L06-L06-SS (L06MBT-L06...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
HEX C 3 (MM)	17.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	14.0
CENTERLINE LENGTH L2 (MM)	26.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.215
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.007

D6600-L08-L08-L08

$41.18

Attribute: D6600-L08-L08-L08 (L08MBT-L08MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	14.0
CENTERLINE LENGTH L2 (MM)	27.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.245
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.158

D6600-L08-L08-L08-SS

$206.02

Attribute: D6600-L08-L08-L08-SS (L08MBT-L08...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	14.0
CENTERLINE LENGTH L2 (MM)	27.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.245
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.158

D6600-L10-L10-L10

$44.97

Attribute: D6600-L10-L10-L10 (L10MBT-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	15.0
CENTERLINE LENGTH L2 (MM)	28.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.317
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.636

D6600-L10-L10-L10-SS

$252.62

Attribute: D6600-L10-L10-L10-SS (L10MBT-L10...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	15.0
CENTERLINE LENGTH L2 (MM)	28.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.317
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.636

D6600-L12-L12-L12

$48.52

Attribute: D6600-L12-L12-L12 (L12MBT-L12MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	29.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.416
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.470

D6600-L12-L12-L12-SS

$315.95

Attribute: D6600-L12-L12-L12-SS (L12MBT-L12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	29.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.416
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.470

D6600-L15-L15-L15

$63.32

Attribute: D6600-L15-L15-L15 (L15MBT-L15MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
OVERALL LENGTH L1 (MM)	36.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH M1 (MM)	28.0
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	21.0
CENTERLINE LENGTH L2 (MM)	32.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.683
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.520

D6600-L15-L15-L15-SS

$369.07

Attribute: D6600-L15-L15-L15-SS (L15MBT-L15...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
OVERALL LENGTH L1 (MM)	36.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH M1 (MM)	28.0
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	21.0
CENTERLINE LENGTH L2 (MM)	32.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.683
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.520

D6600-L18-L18-L18

$85.56

Attribute: D6600-L18-L18-L18 (L18MBT-L18MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	32.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	40.5
OVERALL LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	23.5
CENTERLINE LENGTH L2 (MM)	35.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.970
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.129

D6600-L18-L18-L18-SS

$494.49

Attribute: D6600-L18-L18-L18-SS (L18MBT-L18...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	32.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	40.5
OVERALL LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	23.5
CENTERLINE LENGTH L2 (MM)	35.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.970
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.129

D6600-L22-L22-L22

$127.81

Attribute: D6600-L22-L22-L22 (L22MBT-L22MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	45.5
OVERALL LENGTH M1 (MM)	35.0
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	27.5
CENTERLINE LENGTH L2 (MM)	38.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.313
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.273

D6600-L22-L22-L22-SS

$630.18

Attribute: D6600-L22-L22-L22-SS (L22MBT-L22...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	45.5
OVERALL LENGTH M1 (MM)	35.0
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	27.5
CENTERLINE LENGTH L2 (MM)	38.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.313
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.273

D6600-L28-L28-L28

$195.78

Attribute: D6600-L28-L28-L28 (L28MBT-L28MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	41.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	49.0
OVERALL LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	30.5
CENTERLINE LENGTH L2 (MM)	41.9
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.786
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.297

D6600-L28-L28-L28-SS

$1,390.01

Attribute: D6600-L28-L28-L28-SS (L28MBT-L28...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	41.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	49.0
OVERALL LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	30.5
CENTERLINE LENGTH L2 (MM)	41.9
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.786
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.297

D6600-L35-L35-L35

$264.70

Attribute: D6600-L35-L35-L35 (L35MBT-L35MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M45X2.0
CONNECTION 3 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	57.0
OVERALL LENGTH M1 (MM)	45.0
CENTERLINE LENGTH M2 (MM)	45.0
CENTERLINE LENGTH L1 (MM)	34.5
CENTERLINE LENGTH L2 (MM)	51.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.793
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	26.602

D6600-L35-L35-L35-SS

$1,496.10

Attribute: D6600-L35-L35-L35-SS (L35MBT-L35...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M45X2.0
CONNECTION 3 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	57.0
OVERALL LENGTH M1 (MM)	45.0
CENTERLINE LENGTH M2 (MM)	45.0
CENTERLINE LENGTH L1 (MM)	34.5
CENTERLINE LENGTH L2 (MM)	51.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.793
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	26.602

D6600-L42-L42-L42

$401.93

Attribute: D6600-L42-L42-L42 (L42MBT-L42MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
OVERALL LENGTH L1 (MM)	63.0
OVERALL LENGTH L2 (MM)	63.0
OVERALL LENGTH M1 (MM)	51.0
CENTERLINE LENGTH M2 (MM)	51.0
CENTERLINE LENGTH L1 (MM)	40.0
CENTERLINE LENGTH L2 (MM)	56.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	4.080
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	39.896

D6600-L42-L42-L42-SS

$2,115.65

Attribute: D6600-L42-L42-L42-SS (L42MBT-L42...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
OVERALL LENGTH L1 (MM)	63.0
OVERALL LENGTH L2 (MM)	63.0
OVERALL LENGTH M1 (MM)	51.0
CENTERLINE LENGTH M2 (MM)	51.0
CENTERLINE LENGTH L1 (MM)	40.0
CENTERLINE LENGTH L2 (MM)	56.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	4.080
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	39.896

D6600-S06-S06-S06

$43.52

Attribute: D6600-S06-S06-S06 (S06MBT-S06MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	23.0
CENTERLINE LENGTH L1 (MM)	16.0
CENTERLINE LENGTH L2 (MM)	27.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.303
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.307

D6600-S06-S06-S06-SS

$206.28

Attribute: D6600-S06-S06-S06-SS (S06MBT-S06...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	23.0
CENTERLINE LENGTH L1 (MM)	16.0
CENTERLINE LENGTH L2 (MM)	27.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.303
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.307

D6600-S08-S08-S08

$50.74

Attribute: D6600-S08-S08-S08 (S08MBT-S08MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	27.9
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.394
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.772

D6600-S08-S08-S08-SS

$224.16

Attribute: D6600-S08-S08-S08-SS (S08MBT-S08...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	27.9
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.394
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.772

D6600-S10-S10-S10

$54.96

Attribute: D6600-S10-S10-S10 (S10MBT-S10MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH M1 (MM)	25.0
CENTERLINE LENGTH M2 (MM)	25.0
CENTERLINE LENGTH L1 (MM)	17.5
CENTERLINE LENGTH L2 (MM)	30.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.518
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.779

D6600-S10-S10-S10-SS

$277.55

Attribute: D6600-S10-S10-S10-SS (S10MBT-S10...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH M1 (MM)	25.0
CENTERLINE LENGTH M2 (MM)	25.0
CENTERLINE LENGTH L1 (MM)	17.5
CENTERLINE LENGTH L2 (MM)	30.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.518
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.779

D6600-S12-S12-S12

$59.66

Attribute: D6600-S12-S12-S12 (S12MBT-S12MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M20X1.5
CONNECTION 3 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
HEX C 3 (MM)	24.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGTH L1 (MM)	21.5
CENTERLINE LENGTH L2 (MM)	30.9
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.650
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.774

D6600-S12-S12-S12-SS

$331.09

Attribute: D6600-S12-S12-S12-SS (S12MBT-S12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M20X1.5
CONNECTION 3 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
HEX C 3 (MM)	24.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGTH L1 (MM)	21.5
CENTERLINE LENGTH L2 (MM)	30.9
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.650
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.774

D6600-S14-S14-S14

$153.92

Attribute: D6600-S14-S14-S14 (S14MBT-S14MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGTH L1 (MM)	22.0
CENTERLINE LENGTH L2 (MM)	34.9
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.866
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.378

D6600-S14-S14-S14-SS

$388.83

Attribute: D6600-S14-S14-S14-SS (S14MBT-S14...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGTH L1 (MM)	22.0
CENTERLINE LENGTH L2 (MM)	34.9
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.866
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.378

D6600-S16-S16-S16

$89.45

Attribute: D6600-S16-S16-S16 (S16MBT-S16MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
HEX C 3 (MM)	30.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH M1 (MM)	33.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGTH L1 (MM)	24.5
CENTERLINE LENGTH L2 (MM)	35.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.083
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.934

D6600-S16-S16-S16-SS

$483.22

Attribute: D6600-S16-S16-S16-SS (S16MBT-S16...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
HEX C 3 (MM)	30.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH M1 (MM)	33.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGTH L1 (MM)	24.5
CENTERLINE LENGTH L2 (MM)	35.4
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.083
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.934

D6600-S20-S20-S20

$140.90

Attribute: D6600-S20-S20-S20 (S20MBT-S20MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	49.0
OVERALL LENGTH M1 (MM)	37.0
CENTERLINE LENGTH M2 (MM)	37.0
CENTERLINE LENGTH L1 (MM)	26.5
CENTERLINE LENGTH L2 (MM)	44.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.726
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.451

D6600-S20-S20-S20-SS

$648.71

Attribute: D6600-S20-S20-S20-SS (S20MBT-S20...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	49.0
OVERALL LENGTH M1 (MM)	37.0
CENTERLINE LENGTH M2 (MM)	37.0
CENTERLINE LENGTH L1 (MM)	26.5
CENTERLINE LENGTH L2 (MM)	44.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.726
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.451

D6600-S25-S25-S25

$209.56

Attribute: D6600-S25-S25-S25 (S25MBT-S25MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	46.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	55.0
OVERALL LENGTH M1 (MM)	42.0
CENTERLINE LENGTH M2 (MM)	42.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	50.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	3.097
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	22.534

D6600-S25-S25-S25-SS

$1,047.87

Attribute: D6600-S25-S25-S25-SS (S25MBT-S25...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	46.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	55.0
OVERALL LENGTH M1 (MM)	42.0
CENTERLINE LENGTH M2 (MM)	42.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	50.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	3.097
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	22.534

D6600-S30-S30-S30

$271.31

Attribute: D6600-S30-S30-S30 (S30MBT-S30MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M42X2.0
CONNECTION 3 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
OVERALL LENGTH L1 (MM)	63.2
OVERALL LENGTH L2 (MM)	63.2
OVERALL LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	49.0
CENTERLINE LENGTH L1 (MM)	35.5
CENTERLINE LENGTH L2 (MM)	55.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	3.958
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	31.063

D6600-S30-S30-S30-SS

$1,404.18

Attribute: D6600-S30-S30-S30-SS (S30MBT-S30...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M42X2.0
CONNECTION 3 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
OVERALL LENGTH L1 (MM)	63.2
OVERALL LENGTH L2 (MM)	63.2
OVERALL LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	49.0
CENTERLINE LENGTH L1 (MM)	35.5
CENTERLINE LENGTH L2 (MM)	55.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	3.958
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	31.063

D6600-S38-S38-S38

$432.87

Attribute: D6600-S38-S38-S38 (S38MBT-S38MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
OVERALL LENGTH L1 (MM)	72.5
OVERALL LENGTH L2 (MM)	72.5
OVERALL LENGTH M1 (MM)	57.0
CENTERLINE LENGTH M2 (MM)	57.0
CENTERLINE LENGTH L1 (MM)	41.0
CENTERLINE LENGTH L2 (MM)	63.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	5.883
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	49.628

D6600-S38-S38-S38-SS

$2,174.08

Attribute: D6600-S38-S38-S38-SS (S38MBT-S38...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
OVERALL LENGTH L1 (MM)	72.5
OVERALL LENGTH L2 (MM)	72.5
OVERALL LENGTH M1 (MM)	57.0
CENTERLINE LENGTH M2 (MM)	57.0
CENTERLINE LENGTH L1 (MM)	41.0
CENTERLINE LENGTH L2 (MM)	63.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	5.883
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	49.628

ID	10166339
Category	DIN Metric Tube Fittings

Description

Description

Variations (40)

D6600-L06-L06-L06

D6600-L06-L06-L06-SS

D6600-L08-L08-L08

D6600-L08-L08-L08-SS

D6600-L10-L10-L10

D6600-L10-L10-L10-SS

D6600-L12-L12-L12

D6600-L12-L12-L12-SS

D6600-L15-L15-L15

D6600-L15-L15-L15-SS

D6600-L18-L18-L18

D6600-L18-L18-L18-SS

D6600-L22-L22-L22

D6600-L22-L22-L22-SS

D6600-L28-L28-L28

D6600-L28-L28-L28-SS

D6600-L35-L35-L35

D6600-L35-L35-L35-SS

D6600-L42-L42-L42

D6600-L42-L42-L42-SS

D6600-S06-S06-S06

D6600-S06-S06-S06-SS

D6600-S08-S08-S08

D6600-S08-S08-S08-SS

D6600-S10-S10-S10

D6600-S10-S10-S10-SS

D6600-S12-S12-S12

D6600-S12-S12-S12-SS

D6600-S14-S14-S14

D6600-S14-S14-S14-SS

D6600-S16-S16-S16

D6600-S16-S16-S16-SS

D6600-S20-S20-S20

D6600-S20-S20-S20-SS

D6600-S25-S25-S25

D6600-S25-S25-S25-SS

D6600-S30-S30-S30

D6600-S30-S30-S30-SS

D6600-S38-S38-S38

D6600-S38-S38-S38-SS

General Attributes

PDF Documents
