D6504-SP

D6504-SP-L08-L06

$13.11

Attribute: D6504-SP-L08-L06 (L08FMSP-L06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	42.4
OVERALL LENGTH L2 (MM)	34.4
OVERALL LENGTH L3 (MM)	27.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.149
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.748

D6504-SP-L08-L06-SS

$65.97

Attribute: D6504-SP-L08-L06-SS (L08FMSP-L06...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	42.4
OVERALL LENGTH L2 (MM)	34.4
OVERALL LENGTH L3 (MM)	27.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.149
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.748

D6504-SP-L10-L06

$13.79

Attribute: D6504-SP-L10-L06 (L10FMSP-L06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.178
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.947

D6504-SP-L10-L06-SS

$67.80

Attribute: D6504-SP-L10-L06-SS (L10FMSP-L06...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.178
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.947

D6504-SP-L10-L08

$14.08

Attribute: D6504-SP-L10-L08 (L10FMSP-L08MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.197
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.947

D6504-SP-L10-L08-SS

$75.99

Attribute: D6504-SP-L10-L08-SS (L10FMSP-L08...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.197
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.947

D6504-SP-L12-L06

$12.85

Attribute: D6504-SP-L12-L06 (L12FMSP-L06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	29.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.223
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.314

D6504-SP-L12-L06-SS

$91.07

Attribute: D6504-SP-L12-L06-SS (L12FMSP-L06...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	29.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.223
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.314

D6504-SP-L12-L08

$14.81

Attribute: D6504-SP-L12-L08 (L12FMSP-L08MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.235
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.300

D6504-SP-L12-L08-SS

$98.15

Attribute: D6504-SP-L12-L08-SS (L12FMSP-L08...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.235
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.300

D6504-SP-L12-L10

$16.00

Attribute: D6504-SP-L12-L10 (L12FMSP-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	37.5
OVERALL LENGTH L3 (MM)	30.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.257
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.344

D6504-SP-L12-L10-SS

$99.00

Attribute: D6504-SP-L12-L10-SS (L12FMSP-L10...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	37.5
OVERALL LENGTH L3 (MM)	30.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.257
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.344

D6504-SP-L15-L06

$18.18

Attribute: D6504-SP-L15-L06 (L15FMSP-L06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	29.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.336
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.980

D6504-SP-L15-L06-SS

$101.05

Attribute: D6504-SP-L15-L06-SS (L15FMSP-L06...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	29.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.336
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.980

D6504-SP-L15-L08

$17.50

Attribute: D6504-SP-L15-L08 (L15FMSP-L08MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1

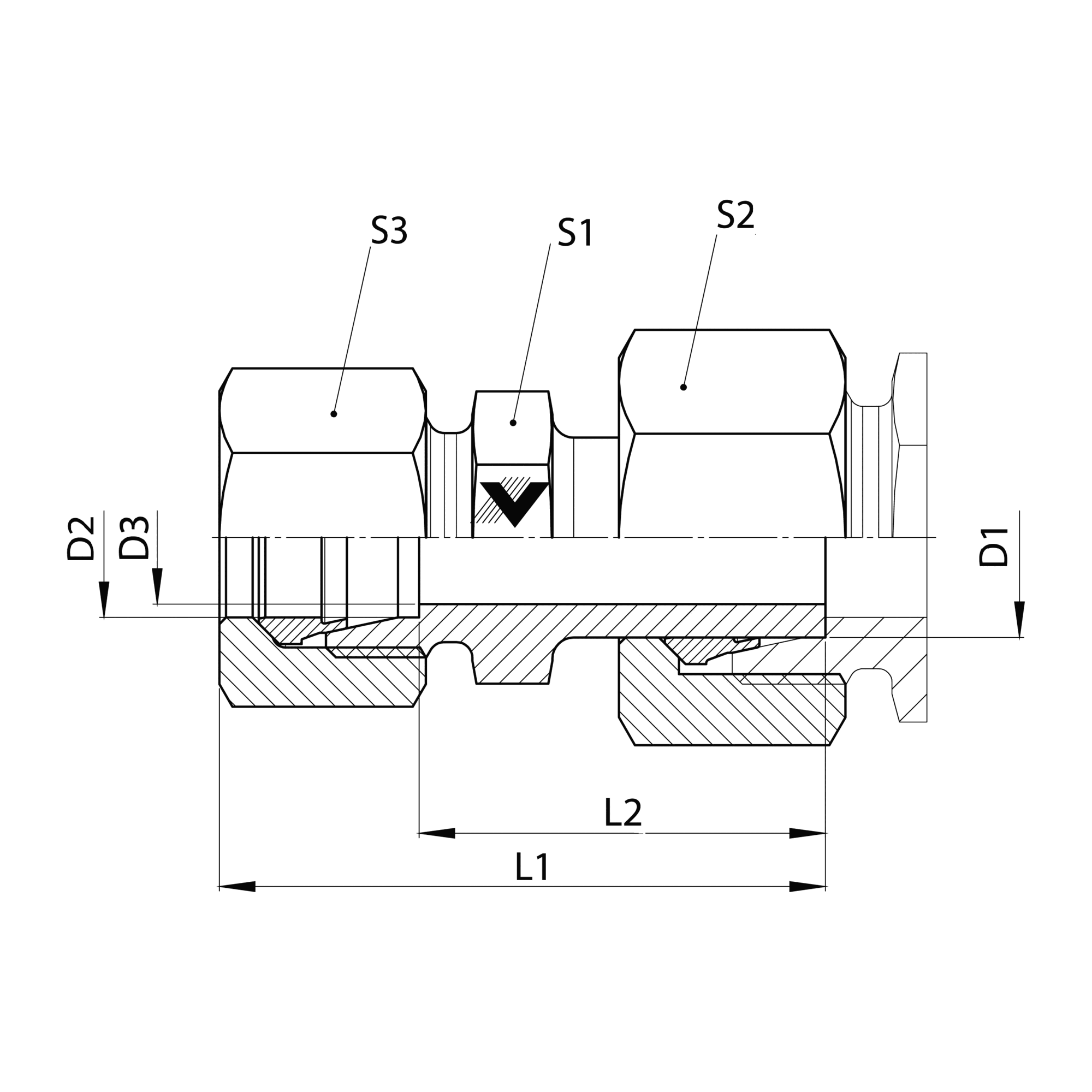

BODY HEX (MM)	17.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	29.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.350
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.980

D6504-SP-L15-L08-SS

$103.22

Attribute: D6504-SP-L15-L08-SS (L15FMSP-L08...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	29.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.350
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.980

D6504-SP-L15-L10

$17.67

Attribute: D6504-SP-L15-L10 (L15FMSP-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	37.5
OVERALL LENGTH L3 (MM)	30.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.363
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

D6504-SP-L15-L10-SS

$109.96

Attribute: D6504-SP-L15-L10-SS (L15FMSP-L10...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	37.5
OVERALL LENGTH L3 (MM)	30.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.363
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

D6504-SP-L15-L12

$14.43

Attribute: D6504-SP-L15-L12 (L15FMSP-L12MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	37.5
OVERALL LENGTH L3 (MM)	30.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.386
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

D6504-SP-L15-L12-SS

$112.11

Attribute: D6504-SP-L15-L12-SS (L15FMSP-L12...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	37.5
OVERALL LENGTH L3 (MM)	30.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.386
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

D6504-SP-L18-L06

$41.65

Attribute: D6504-SP-L18-L06 (L18FMSP-L06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	39.5
OVERALL LENGTH L3 (MM)	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.457
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.968

D6504-SP-L18-L08

$24.37

Attribute: D6504-SP-L18-L08 (L18FMSP-L08MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	39.5
OVERALL LENGTH L3 (MM)	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.471
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.968

D6504-SP-L18-L08-SS

$112.91

Attribute: D6504-SP-L18-L08-SS (L18FMSP-L08...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	39.5
OVERALL LENGTH L3 (MM)	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.471
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.968

D6504-SP-L18-L10

$24.37

Attribute: D6504-SP-L18-L10 (L18FMSP-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	40.5
OVERALL LENGTH L3 (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.483
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.031

D6504-SP-L18-L10-SS

$180.08

Attribute: D6504-SP-L18-L10-SS (L18FMSP-L10...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	40.5
OVERALL LENGTH L3 (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.483
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.031

D6504-SP-L18-L12

$23.93

Attribute: D6504-SP-L18-L12 (L18FMSP-L12MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	40.5
OVERALL LENGTH L3 (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.500
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.031

D6504-SP-L18-L12-SS

$138.34

Attribute: D6504-SP-L18-L12-SS (L18FMSP-L12...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	40.5
OVERALL LENGTH L3 (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.500
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.031

D6504-SP-L18-L15

$24.45

Attribute: D6504-SP-L18-L15 (L18FMSP-L15MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	41.5
OVERALL LENGTH L3 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.583
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.124

D6504-SP-L18-L15-SS

$142.96

Attribute: D6504-SP-L18-L15-SS (L18FMSP-L15...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	41.5
OVERALL LENGTH L3 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.583
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.124

D6504-SP-L22-L06

$37.09

Attribute: D6504-SP-L22-L06 (L22FMSP-L06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	40.5
OVERALL LENGTH L3 (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.615
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.836

D6504-SP-L22-L08

$33.67

Attribute: D6504-SP-L22-L08 (L22FMSP-L08MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	40.5
OVERALL LENGTH L3 (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.630
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.836

D6504-SP-L22-L08-SS

$139.45

Attribute: D6504-SP-L22-L08-SS (L22FMSP-L08...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	40.5
OVERALL LENGTH L3 (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.630
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.836

D6504-SP-L22-L10

$39.95

Attribute: D6504-SP-L22-L10 (L22FMSP-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	49.5
OVERALL LENGTH L2 (MM)	41.5
OVERALL LENGTH L3 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.642
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.915

D6504-SP-L22-L10-SS

$144.87

Attribute: D6504-SP-L22-L10-SS (L22FMSP-L10...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	49.5
OVERALL LENGTH L2 (MM)	41.5
OVERALL LENGTH L3 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.642
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.915

D6504-SP-L22-L12

$31.15

Attribute: D6504-SP-L22-L12 (L22FMSP-L12MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	49.5
OVERALL LENGTH L2 (MM)	41.5
OVERALL LENGTH L3 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.659
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.915

D6504-SP-L22-L12-SS

$177.64

Attribute: D6504-SP-L22-L12-SS (L22FMSP-L12...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	49.5
OVERALL LENGTH L2 (MM)	41.5
OVERALL LENGTH L3 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.659
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.915

D6504-SP-L22-L15

$30.73

Attribute: D6504-SP-L22-L15 (L22FMSP-L15MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	42.5
OVERALL LENGTH L3 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.713
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.033

D6504-SP-L22-L15-SS

$178.97

Attribute: D6504-SP-L22-L15-SS (L22FMSP-L15...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	42.5
OVERALL LENGTH L3 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.713
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.033

D6504-SP-L22-L18

$33.54

Attribute: D6504-SP-L22-L18 (L22FMSP-L18MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	42.5
OVERALL LENGTH L3 (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.787
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.113

D6504-SP-L22-L18-SS

$223.05

Attribute: D6504-SP-L22-L18-SS (L22FMSP-L18...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	42.5
OVERALL LENGTH L3 (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.787
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.113

D6504-SP-L28-L06

$65.76

Attribute: D6504-SP-L28-L06 (L28FMSP-L06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	49.5
OVERALL LENGTH L2 (MM)	41.5
OVERALL LENGTH L3 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.838
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.078

D6504-SP-L28-L06-SS

$194.08

Attribute: D6504-SP-L28-L06-SS (L28FMSP-L06...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	49.5
OVERALL LENGTH L2 (MM)	41.5
OVERALL LENGTH L3 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.838
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.078

D6504-SP-L28-L08

$99.73

Attribute: D6504-SP-L28-L08 (L28FMSP-L08MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	49.5
OVERALL LENGTH L2 (MM)	41.5
OVERALL LENGTH L3 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.853
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.078

D6504-SP-L28-L08-SS

$202.91

Attribute: D6504-SP-L28-L08-SS (L28FMSP-L08...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	49.5
OVERALL LENGTH L2 (MM)	41.5
OVERALL LENGTH L3 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.853
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.078

D6504-SP-L28-L10

$54.28

Attribute: D6504-SP-L28-L10 (L28FMSP-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	42.5
OVERALL LENGTH L3 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.866
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.180

D6504-SP-L28-L10-SS

$238.16

Attribute: D6504-SP-L28-L10-SS (L28FMSP-L10...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	42.5
OVERALL LENGTH L3 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.866
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.180

D6504-SP-L28-L12

$51.76

Attribute: D6504-SP-L28-L12 (L28FMSP-L12MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	42.5
OVERALL LENGTH L3 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.883
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.180

D6504-SP-L28-L12-SS

$222.58

Attribute: D6504-SP-L28-L12-SS (L28FMSP-L12...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	42.5
OVERALL LENGTH L3 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.883
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.180

D6504-SP-L28-L15

$49.54

Attribute: D6504-SP-L28-L15 (L28FMSP-L15MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	43.5
OVERALL LENGTH L3 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.937
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.334

D6504-SP-L28-L15-SS

$253.60

Attribute: D6504-SP-L28-L15-SS (L28FMSP-L15...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	43.5
OVERALL LENGTH L3 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.937
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.334

D6504-SP-L28-L18

$52.01

Attribute: D6504-SP-L28-L18 (L28FMSP-L18MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	43.5
OVERALL LENGTH L3 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.995
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D6504-SP-L28-L18-SS

$297.17

Attribute: D6504-SP-L28-L18-SS (L28FMSP-L18...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	30.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	43.5
OVERALL LENGTH L3 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.995
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D6504-SP-L28-L22

$55.65

Attribute: D6504-SP-L28-L22 (L28FMSP-L22MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	56.0
OVERALL LENGTH L2 (MM)	45.5
OVERALL LENGTH L3 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.069
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.745

D6504-SP-L28-L22-SS

$288.13

Attribute: D6504-SP-L28-L22-SS (L28FMSP-L22...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	56.0
OVERALL LENGTH L2 (MM)	45.5
OVERALL LENGTH L3 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.069
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.745

D6504-SP-L35-L06

$279.64

Attribute: D6504-SP-L35-L06 (L35FMSP-L06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	55.5
OVERALL LENGTH L2 (MM)	47.5
OVERALL LENGTH L3 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.292
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.467

D6504-SP-L35-L06-SS

$296.11

Attribute: D6504-SP-L35-L06-SS (L35FMSP-L06...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	55.5
OVERALL LENGTH L2 (MM)	47.5
OVERALL LENGTH L3 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.292
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.467

D6504-SP-L35-L08

$213.20

Attribute: D6504-SP-L35-L08 (L35FMSP-L08MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	55.5
OVERALL LENGTH L2 (MM)	47.5
OVERALL LENGTH L3 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.306
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.467

D6504-SP-L35-L08-SS

$298.88

Attribute: D6504-SP-L35-L08-SS (L35FMSP-L08...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	55.5
OVERALL LENGTH L2 (MM)	47.5
OVERALL LENGTH L3 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.306
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.467

D6504-SP-L35-L10

$268.19

Attribute: D6504-SP-L35-L10 (L35FMSP-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	48.5
OVERALL LENGTH L3 (MM)	41.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.320
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.620

D6504-SP-L35-L10-SS

$306.86

Attribute: D6504-SP-L35-L10-SS (L35FMSP-L10...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	48.5
OVERALL LENGTH L3 (MM)	41.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.320
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.620

D6504-SP-L35-L12

$199.66

Attribute: D6504-SP-L35-L12 (L35FMSP-L12MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	48.5
OVERALL LENGTH L3 (MM)	41.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.337
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.620

D6504-SP-L35-L15

$98.53

Attribute: D6504-SP-L35-L15 (L35FMSP-L15MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	58.0
OVERALL LENGTH L2 (MM)	49.5
OVERALL LENGTH L3 (MM)	42.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.392
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.849

D6504-SP-L35-L18

$65.71

Attribute: D6504-SP-L35-L18 (L35FMSP-L18MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	49.5
OVERALL LENGTH L3 (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.451
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.001

D6504-SP-L35-L18-SS

$333.87

Attribute: D6504-SP-L35-L18-SS (L35FMSP-L18...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	49.5
OVERALL LENGTH L3 (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.451
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.001

D6504-SP-L35-L22

$85.00

Attribute: D6504-SP-L35-L22 (L35FMSP-L22MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	62.0
OVERALL LENGTH L2 (MM)	51.5
OVERALL LENGTH L3 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.511
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.459

D6504-SP-L35-L22-SS

$333.95

Attribute: D6504-SP-L35-L22-SS (L35FMSP-L22...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	62.0
OVERALL LENGTH L2 (MM)	51.5
OVERALL LENGTH L3 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.511
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.459

D6504-SP-L35-L28

$84.79

Attribute: D6504-SP-L35-L28 (L35FMSP-L28MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	41.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	51.5
OVERALL LENGTH L3 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.596
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.535

D6504-SP-L35-L28-SS

$347.53

Attribute: D6504-SP-L35-L28-SS (L35FMSP-L28...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	41.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	51.5
OVERALL LENGTH L3 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.596
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.535

D6504-SP-L42-L06

$358.32

Attribute: D6504-SP-L42-L06 (L42FMSP-L06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6504-SP-L42-L08

$358.62

Attribute: D6504-SP-L42-L08 (L42FMSP-L08MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6504-SP-L42-L10

$280.65

Attribute: D6504-SP-L42-L10 (L42FMSP-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	52.0
OVERALL LENGTH L3 (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.957
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.181

D6504-SP-L42-L10-SS

$386.87

Attribute: D6504-SP-L42-L10-SS (L42FMSP-L10...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	52.0
OVERALL LENGTH L3 (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.957
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.181

D6504-SP-L42-L12

$379.91

Attribute: D6504-SP-L42-L12 (L42FMSP-L12MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	52.0
OVERALL LENGTH L3 (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.974
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.181

D6504-SP-L42-L12-SS

$400.13

Attribute: D6504-SP-L42-L12-SS (L42FMSP-L12...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	52.0
OVERALL LENGTH L3 (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.974
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.181

D6504-SP-L42-L15

$282.88

Attribute: D6504-SP-L42-L15 (L42FMSP-L15MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	61.5
OVERALL LENGTH L2 (MM)	53.0
OVERALL LENGTH L3 (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.029
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.511

D6504-SP-L42-L15-SS

$413.62

Attribute: D6504-SP-L42-L15-SS (L42FMSP-L15...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	61.5
OVERALL LENGTH L2 (MM)	53.0
OVERALL LENGTH L3 (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.029
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.511

D6504-SP-L42-L18-SS

$413.80

Attribute: D6504-SP-L42-L18-SS (L42FMSP-L18...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	53.0
OVERALL LENGTH L3 (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.087
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.731

D6504-SP-L42-L22

$106.72

Attribute: D6504-SP-L42-L22 (L42FMSP-L22MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	65.5
OVERALL LENGTH L2 (MM)	55.0
OVERALL LENGTH L3 (MM)	47.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.148
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.389

D6504-SP-L42-L22-SS

$427.32

Attribute: D6504-SP-L42-L22-SS (L42FMSP-L22...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	65.5
OVERALL LENGTH L2 (MM)	55.0
OVERALL LENGTH L3 (MM)	47.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.148
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.389

D6504-SP-L42-L28

$109.49

Attribute: D6504-SP-L42-L28 (L42FMSP-L28MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	41.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	55.0
OVERALL LENGTH L3 (MM)	47.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.179
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.499

D6504-SP-L42-L28-SS

$558.50

Attribute: D6504-SP-L42-L28-SS (L42FMSP-L28...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	41.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	55.0
OVERALL LENGTH L3 (MM)	47.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.179
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.499

D6504-SP-L42-L35

$120.42

Attribute: D6504-SP-L42-L35 (L42FMSP-L35MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	69.0
OVERALL LENGTH L2 (MM)	57.0
OVERALL LENGTH L3 (MM)	46.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.336
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.158

D6504-SP-L42-L35-SS

$608.50

Attribute: D6504-SP-L42-L35-SS (L42FMSP-L35...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	69.0
OVERALL LENGTH L2 (MM)	57.0
OVERALL LENGTH L3 (MM)	46.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.336
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.158

D6504-SP-S08-S06

$24.92

Attribute: D6504-SP-S08-S06 (S08FMSP-S06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	30.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.248
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.991

D6504-SP-S08-S06-SS

$91.70

Attribute: D6504-SP-S08-S06-SS (S08FMSP-S06...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	30.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.248
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.991

D6504-SP-S10-S06

$20.10

Attribute: D6504-SP-S10-S06 (S10FMSP-S06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.301
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.447

D6504-SP-S10-S06-SS

$93.11

Attribute: D6504-SP-S10-S06-SS (S10FMSP-S06...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.301
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.447

D6504-SP-S10-S08

$18.27

Attribute: D6504-SP-S10-S08 (S10FMSP-S08MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.328
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.447

D6504-SP-S10-S08-SS

$95.71

Attribute: D6504-SP-S10-S08-SS (S10FMSP-S08...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.328
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.447

D6504-SP-S12-S06

$15.83

Attribute: D6504-SP-S12-S06 (S12FMSP-S06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.363
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.793

D6504-SP-S12-S06-SS

$100.20

Attribute: D6504-SP-S12-S06-SS (S12FMSP-S06...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.363
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.793

D6504-SP-S12-S08

$19.80

Attribute: D6504-SP-S12-S08 (S12FMSP-S08MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.390
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.793

D6504-SP-S12-S08-SS

$107.79

Attribute: D6504-SP-S12-S08-SS (S12FMSP-S08...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.390
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.793

D6504-SP-S12-S10

$17.83

Attribute: D6504-SP-S12-S10 (S12FMSP-S10MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.428
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.828

D6504-SP-S12-S10-SS

$112.49

Attribute: D6504-SP-S12-S10-SS (S12FMSP-S10...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.428
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.828

D6504-SP-S14-S06

$43.57

Attribute: D6504-SP-S14-S06 (S14FMSP-S06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	44.0
OVERALL LENGTH L3 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.472
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.313

D6504-SP-S14-S06-SS

$108.34

Attribute: D6504-SP-S14-S06-SS (S14FMSP-S06...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	44.0
OVERALL LENGTH L3 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.472
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.313

D6504-SP-S14-S08-SS

$111.41

Attribute: D6504-SP-S14-S08-SS (S14FMSP-S08...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	44.0
OVERALL LENGTH L3 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.485
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.313

D6504-SP-S14-S10

$34.06

Attribute: D6504-SP-S14-S10 (S14FMSP-S10MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	44.0
OVERALL LENGTH L3 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.522
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.358

D6504-SP-S14-S10-SS

$117.01

Attribute: D6504-SP-S14-S10-SS (S14FMSP-S10...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	44.0
OVERALL LENGTH L3 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.522
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.358

D6504-SP-S14-S12

$41.05

Attribute: D6504-SP-S14-S12 (S14FMSP-S12MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	44.0
OVERALL LENGTH L3 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.559
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.358

D6504-SP-S14-S12-SS

$127.29

Attribute: D6504-SP-S14-S12-SS (S14FMSP-S12...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	44.0
OVERALL LENGTH L3 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.559
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.358

D6504-SP-S16-S06

$22.24

Attribute: D6504-SP-S16-S06 (S16FMSP-S06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	45.5
OVERALL LENGTH L3 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.545
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.938

D6504-SP-S16-S06-SS

$136.63

Attribute: D6504-SP-S16-S06-SS (S16FMSP-S06...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	45.5
OVERALL LENGTH L3 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.545
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.938

D6504-SP-S16-S08

$16.59

Attribute: D6504-SP-S16-S08 (S16FMSP-S08MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	45.5
OVERALL LENGTH L3 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.558
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.938

D6504-SP-S16-S08-SS

$137.28

Attribute: D6504-SP-S16-S08-SS (S16FMSP-S08...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	45.5
OVERALL LENGTH L3 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.558
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.938

D6504-SP-S16-S10

$22.87

Attribute: D6504-SP-S16-S10 (S16FMSP-S10MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	54.5
OVERALL LENGTH L2 (MM)	45.5
OVERALL LENGTH L3 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.596
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.993

D6504-SP-S16-S10-SS

$152.47

Attribute: D6504-SP-S16-S10-SS (S16FMSP-S10...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	54.5
OVERALL LENGTH L2 (MM)	45.5
OVERALL LENGTH L3 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.596
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.993

D6504-SP-S16-S12

$22.83

Attribute: D6504-SP-S16-S12 (S16FMSP-S12MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	54.5
OVERALL LENGTH L2 (MM)	45.5
OVERALL LENGTH L3 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.628
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.993

D6504-SP-S16-S12-SS

$159.04

Attribute: D6504-SP-S16-S12-SS (S16FMSP-S12...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	54.5
OVERALL LENGTH L2 (MM)	45.5
OVERALL LENGTH L3 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.628
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.993

D6504-SP-S16-S14

$37.30

Attribute: D6504-SP-S16-S14 (S16FMSP-S14MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	57.5
OVERALL LENGTH L2 (MM)	47.5
OVERALL LENGTH L3 (MM)	39.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.700
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.158

D6504-SP-S20-S06

$40.84

Attribute: D6504-SP-S20-S06 (S20FMSP-S06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	61.5
OVERALL LENGTH L2 (MM)	53.5
OVERALL LENGTH L3 (MM)	46.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.870
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.864

D6504-SP-S20-S06-SS

$150.89

Attribute: D6504-SP-S20-S06-SS (S20FMSP-S06...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	61.5
OVERALL LENGTH L2 (MM)	53.5
OVERALL LENGTH L3 (MM)	46.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.870
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.864

D6504-SP-S20-S08

$31.92

Attribute: D6504-SP-S20-S08 (S20FMSP-S08MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	61.5
OVERALL LENGTH L2 (MM)	53.5
OVERALL LENGTH L3 (MM)	46.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.883
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.864

D6504-SP-S20-S08-SS

$152.04

Attribute: D6504-SP-S20-S08-SS (S20FMSP-S08...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	61.5
OVERALL LENGTH L2 (MM)	53.5
OVERALL LENGTH L3 (MM)	46.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.883
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.864

D6504-SP-S20-S10

$28.43

Attribute: D6504-SP-S20-S10 (S20FMSP-S10MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	53.5
OVERALL LENGTH L3 (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.910
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.943

D6504-SP-S20-S10-SS

$192.20

Attribute: D6504-SP-S20-S10-SS (S20FMSP-S10...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	53.5
OVERALL LENGTH L3 (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.910
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.943

D6504-SP-S20-S12

$28.55

Attribute: D6504-SP-S20-S12 (S20FMSP-S12MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	53.5
OVERALL LENGTH L3 (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.922
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.943

D6504-SP-S20-S12-SS

$173.98

Attribute: D6504-SP-S20-S12-SS (S20FMSP-S12...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	53.5
OVERALL LENGTH L3 (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.922
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.943

D6504-SP-S20-S14

$69.77

Attribute: D6504-SP-S20-S14 (S20FMSP-S14MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	65.5
OVERALL LENGTH L2 (MM)	55.5
OVERALL LENGTH L3 (MM)	47.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.994
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.180

D6504-SP-S20-S16

$32.35

Attribute: D6504-SP-S20-S16 (S20FMSP-S16MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	65.5
OVERALL LENGTH L2 (MM)	55.5
OVERALL LENGTH L3 (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.051
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.180

D6504-SP-S20-S16-SS

$212.26

Attribute: D6504-SP-S20-S16-SS (S20FMSP-S16...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	65.5
OVERALL LENGTH L2 (MM)	55.5
OVERALL LENGTH L3 (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.051
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.180

D6504-SP-S25-S06

$68.10

Attribute: D6504-SP-S25-S06 (S25FMSP-S06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	58.0
OVERALL LENGTH L3 (MM)	51.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.495
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.522

D6504-SP-S25-S06-SS

$226.88

Attribute: D6504-SP-S25-S06-SS (S25FMSP-S06...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	58.0
OVERALL LENGTH L3 (MM)	51.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.495
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.522

D6504-SP-S25-S08

$69.60

Attribute: D6504-SP-S25-S08 (S25FMSP-S08MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	58.0
OVERALL LENGTH L3 (MM)	51.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.507
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.522

D6504-SP-S25-S08-SS

$228.29

Attribute: D6504-SP-S25-S08-SS (S25FMSP-S08...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	58.0
OVERALL LENGTH L3 (MM)	51.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.507
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.522

D6504-SP-S25-S10

$66.06

Attribute: D6504-SP-S25-S10 (S25FMSP-S10MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	67.0
OVERALL LENGTH L2 (MM)	58.0
OVERALL LENGTH L3 (MM)	50.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.533
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.651

D6504-SP-S25-S10-SS

$234.39

Attribute: D6504-SP-S25-S10-SS (S25FMSP-S10...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	67.0
OVERALL LENGTH L2 (MM)	58.0
OVERALL LENGTH L3 (MM)	50.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.533
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.651

D6504-SP-S25-S12

$53.68

Attribute: D6504-SP-S25-S12 (S25FMSP-S12MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	67.0
OVERALL LENGTH L2 (MM)	58.0
OVERALL LENGTH L3 (MM)	50.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.547
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.651

D6504-SP-S25-S12-SS

$272.13

Attribute: D6504-SP-S25-S12-SS (S25FMSP-S12...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	67.0
OVERALL LENGTH L2 (MM)	58.0
OVERALL LENGTH L3 (MM)	50.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.547
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.651

D6504-SP-S25-S14

$140.22

Attribute: D6504-SP-S25-S14 (S25FMSP-S14MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	70.0
OVERALL LENGTH L2 (MM)	60.0
OVERALL LENGTH L3 (MM)	52.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.601
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.039

D6504-SP-S25-S14-SS

$266.53

Attribute: D6504-SP-S25-S14-SS (S25FMSP-S14...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	70.0
OVERALL LENGTH L2 (MM)	60.0
OVERALL LENGTH L3 (MM)	52.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.601
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.039

D6504-SP-S25-S16

$53.39

Attribute: D6504-SP-S25-S16 (S25FMSP-S16MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	70.0
OVERALL LENGTH L2 (MM)	60.0
OVERALL LENGTH L3 (MM)	51.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.630
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.039

D6504-SP-S25-S16-SS

$281.80

Attribute: D6504-SP-S25-S16-SS (S25FMSP-S16...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	70.0
OVERALL LENGTH L2 (MM)	60.0
OVERALL LENGTH L3 (MM)	51.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.630
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.039

D6504-SP-S25-S20

$58.51

Attribute: D6504-SP-S25-S20 (S25FMSP-S20MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	74.0
OVERALL LENGTH L2 (MM)	62.0
OVERALL LENGTH L3 (MM)	51.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.812
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.555

D6504-SP-S25-S20-SS

$320.60

Attribute: D6504-SP-S25-S20-SS (S25FMSP-S20...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	74.0
OVERALL LENGTH L2 (MM)	62.0
OVERALL LENGTH L3 (MM)	51.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.812
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.555

D6504-SP-S30-S06

$222.58

Attribute: D6504-SP-S30-S06 (S30FMSP-S06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	67.5
OVERALL LENGTH L2 (MM)	59.5
OVERALL LENGTH L3 (MM)	52.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.861
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.298

D6504-SP-S30-S06-SS

$346.80

Attribute: D6504-SP-S30-S06-SS (S30FMSP-S06...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	67.5
OVERALL LENGTH L2 (MM)	59.5
OVERALL LENGTH L3 (MM)	52.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.861
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.298

D6504-SP-S30-S08

$81.68

Attribute: D6504-SP-S30-S08 (S30FMSP-S08MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	67.5
OVERALL LENGTH L2 (MM)	59.5
OVERALL LENGTH L3 (MM)	52.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.873
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.298

D6504-SP-S30-S08-SS

$346.85

Attribute: D6504-SP-S30-S08-SS (S30FMSP-S08...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	67.5
OVERALL LENGTH L2 (MM)	59.5
OVERALL LENGTH L3 (MM)	52.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.873
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.298

D6504-SP-S30-S10

$77.07

Attribute: D6504-SP-S30-S10 (S30FMSP-S10MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	68.5
OVERALL LENGTH L2 (MM)	59.5
OVERALL LENGTH L3 (MM)	52.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.900
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.450

D6504-SP-S30-S10-SS

$360.20

Attribute: D6504-SP-S30-S10-SS (S30FMSP-S10...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	68.5
OVERALL LENGTH L2 (MM)	59.5
OVERALL LENGTH L3 (MM)	52.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.900
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.450

D6504-SP-S30-S12

$66.65

Attribute: D6504-SP-S30-S12 (S30FMSP-S12MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	68.5
OVERALL LENGTH L2 (MM)	59.5
OVERALL LENGTH L3 (MM)	52.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.913
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.450

D6504-SP-S30-S12-SS

$373.55

Attribute: D6504-SP-S30-S12-SS (S30FMSP-S12...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	68.5
OVERALL LENGTH L2 (MM)	59.5
OVERALL LENGTH L3 (MM)	52.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.913
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.450

D6504-SP-S30-S14

$103.69

Attribute: D6504-SP-S30-S14 (S30FMSP-S14MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	71.5
OVERALL LENGTH L2 (MM)	61.5
OVERALL LENGTH L3 (MM)	53.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.968
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.908

D6504-SP-S30-S14-SS

$400.27

Attribute: D6504-SP-S30-S14-SS (S30FMSP-S14...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	71.5
OVERALL LENGTH L2 (MM)	61.5
OVERALL LENGTH L3 (MM)	53.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.968
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.908

D6504-SP-S30-S16

$74.67

Attribute: D6504-SP-S30-S16 (S30FMSP-S16MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	71.5
OVERALL LENGTH L2 (MM)	61.5
OVERALL LENGTH L3 (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.998
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.908

D6504-SP-S30-S16-SS

$400.44

Attribute: D6504-SP-S30-S16-SS (S30FMSP-S16...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	71.5
OVERALL LENGTH L2 (MM)	61.5
OVERALL LENGTH L3 (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.998
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.908

D6504-SP-S30-S20

$58.04

Attribute: D6504-SP-S30-S20 (S30FMSP-S20MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	75.5
OVERALL LENGTH L2 (MM)	63.5
OVERALL LENGTH L3 (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.119
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.518

D6504-SP-S30-S20-SS

$413.88

Attribute: D6504-SP-S30-S20-SS (S30FMSP-S20...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	75.5
OVERALL LENGTH L2 (MM)	63.5
OVERALL LENGTH L3 (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.119
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.518

D6504-SP-S30-S25

$86.37

Attribute: D6504-SP-S30-S25 (S30FMSP-S25MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	46.0
OVERALL LENGTH L1 (MM)	78.5
OVERALL LENGTH L2 (MM)	65.5
OVERALL LENGTH L3 (MM)	53.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.539
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.976

D6504-SP-S30-S25-SS

$441.06

Attribute: D6504-SP-S30-S25-SS (S30FMSP-S25...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	46.0
OVERALL LENGTH L1 (MM)	78.5
OVERALL LENGTH L2 (MM)	65.5
OVERALL LENGTH L3 (MM)	53.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.539
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.976

D6504-SP-S38-S06

$274.04

Attribute: D6504-SP-S38-S06 (S38FMSP-S06MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	71.0
OVERALL LENGTH L2 (MM)	63.0
OVERALL LENGTH L3 (MM)	56.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.881
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.598

D6504-SP-S38-S06-SS

$480.15

Attribute: D6504-SP-S38-S06-SS (S38FMSP-S06...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	71.0
OVERALL LENGTH L2 (MM)	63.0
OVERALL LENGTH L3 (MM)	56.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.881
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.598

D6504-SP-S38-S08

$274.22

Attribute: D6504-SP-S38-S08 (S38FMSP-S08MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	71.0
OVERALL LENGTH L2 (MM)	63.0
OVERALL LENGTH L3 (MM)	56.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.894
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.598

D6504-SP-S38-S08-SS

$480.15

Attribute: D6504-SP-S38-S08-SS (S38FMSP-S08...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	71.0
OVERALL LENGTH L2 (MM)	63.0
OVERALL LENGTH L3 (MM)	56.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.894
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.598

D6504-SP-S38-S10

$261.03

Attribute: D6504-SP-S38-S10 (S38FMSP-S10MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	72.0
OVERALL LENGTH L2 (MM)	63.0
OVERALL LENGTH L3 (MM)	55.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.921
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.817

D6504-SP-S38-S10-SS

$480.15

Attribute: D6504-SP-S38-S10-SS (S38FMSP-S10...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	72.0
OVERALL LENGTH L2 (MM)	63.0
OVERALL LENGTH L3 (MM)	55.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.921
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.817

D6504-SP-S38-S12

$135.87

Attribute: D6504-SP-S38-S12 (S38FMSP-S12MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	72.0
OVERALL LENGTH L2 (MM)	63.0
OVERALL LENGTH L3 (MM)	55.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.935
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.817

D6504-SP-S38-S12-SS

$480.19

Attribute: D6504-SP-S38-S12-SS (S38FMSP-S12...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	72.0
OVERALL LENGTH L2 (MM)	63.0
OVERALL LENGTH L3 (MM)	55.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.935
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.817

D6504-SP-S38-S14

$132.83

Attribute: D6504-SP-S38-S14 (S38FMSP-S14MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	75.0
OVERALL LENGTH L2 (MM)	65.0
OVERALL LENGTH L3 (MM)	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.991
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.477

D6504-SP-S38-S14-SS

$520.26

Attribute: D6504-SP-S38-S14-SS (S38FMSP-S14...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	75.0
OVERALL LENGTH L2 (MM)	65.0
OVERALL LENGTH L3 (MM)	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.991
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.477

D6504-SP-S38-S16

$116.67

Attribute: D6504-SP-S38-S16 (S38FMSP-S16MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	75.0
OVERALL LENGTH L2 (MM)	65.0
OVERALL LENGTH L3 (MM)	56.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	3.022
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.477

D6504-SP-S38-S16-SS

$520.39

Attribute: D6504-SP-S38-S16-SS (S38FMSP-S16...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	75.0
OVERALL LENGTH L2 (MM)	65.0
OVERALL LENGTH L3 (MM)	56.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	3.022
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.477

D6504-SP-S38-S20

$86.50

Attribute: D6504-SP-S38-S20 (S38FMSP-S20MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	79.0
OVERALL LENGTH L2 (MM)	67.0
OVERALL LENGTH L3 (MM)	56.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	3.146
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.355

D6504-SP-S38-S20-SS

$520.48

Attribute: D6504-SP-S38-S20-SS (S38FMSP-S20...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	79.0
OVERALL LENGTH L2 (MM)	67.0
OVERALL LENGTH L3 (MM)	56.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	3.146
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.355

D6504-SP-S38-S25

$120.77

Attribute: D6504-SP-S38-S25 (S38FMSP-S25MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	46.0
OVERALL LENGTH L1 (MM)	82.0
OVERALL LENGTH L2 (MM)	69.0
OVERALL LENGTH L3 (MM)	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	3.430
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.014

D6504-SP-S38-S25-SS

$561.06

Attribute: D6504-SP-S38-S25-SS (S38FMSP-S25...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	46.0
OVERALL LENGTH L1 (MM)	82.0
OVERALL LENGTH L2 (MM)	69.0
OVERALL LENGTH L3 (MM)	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	3.430
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.014

D6504-SP-S38-S30

$175.04

Attribute: D6504-SP-S38-S30 (S38FMSP-S30MBT...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	85.2
OVERALL LENGTH L2 (MM)	71.0
OVERALL LENGTH L3 (MM)	57.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	3.609
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.728

D6504-SP-S38-S30-SS

$587.99

Attribute: D6504-SP-S38-S30-SS (S38FMSP-S30...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	85.2
OVERALL LENGTH L2 (MM)	71.0
OVERALL LENGTH L3 (MM)	57.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	3.609
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.728

Description

Description

Variations (170)

D6504-SP-L08-L06

D6504-SP-L08-L06-SS

D6504-SP-L10-L06

D6504-SP-L10-L06-SS

D6504-SP-L10-L08

D6504-SP-L10-L08-SS

D6504-SP-L12-L06

D6504-SP-L12-L06-SS

D6504-SP-L12-L08

D6504-SP-L12-L08-SS

D6504-SP-L12-L10

D6504-SP-L12-L10-SS

D6504-SP-L15-L06

D6504-SP-L15-L06-SS

D6504-SP-L15-L08

D6504-SP-L15-L08-SS

D6504-SP-L15-L10

D6504-SP-L15-L10-SS

D6504-SP-L15-L12

D6504-SP-L15-L12-SS

D6504-SP-L18-L06

D6504-SP-L18-L08

D6504-SP-L18-L08-SS

D6504-SP-L18-L10

D6504-SP-L18-L10-SS

D6504-SP-L18-L12

D6504-SP-L18-L12-SS

D6504-SP-L18-L15

D6504-SP-L18-L15-SS

D6504-SP-L22-L06

D6504-SP-L22-L08

D6504-SP-L22-L08-SS

D6504-SP-L22-L10

D6504-SP-L22-L10-SS

D6504-SP-L22-L12

D6504-SP-L22-L12-SS

D6504-SP-L22-L15

D6504-SP-L22-L15-SS

D6504-SP-L22-L18

D6504-SP-L22-L18-SS

D6504-SP-L28-L06

D6504-SP-L28-L06-SS

D6504-SP-L28-L08

D6504-SP-L28-L08-SS

D6504-SP-L28-L10

D6504-SP-L28-L10-SS

D6504-SP-L28-L12

D6504-SP-L28-L12-SS

D6504-SP-L28-L15

D6504-SP-L28-L15-SS

D6504-SP-L28-L18

D6504-SP-L28-L18-SS

D6504-SP-L28-L22

D6504-SP-L28-L22-SS

D6504-SP-L35-L06

D6504-SP-L35-L06-SS

D6504-SP-L35-L08

D6504-SP-L35-L08-SS

D6504-SP-L35-L10

D6504-SP-L35-L10-SS

D6504-SP-L35-L12

D6504-SP-L35-L15

D6504-SP-L35-L18

D6504-SP-L35-L18-SS

D6504-SP-L35-L22

D6504-SP-L35-L22-SS

D6504-SP-L35-L28

D6504-SP-L35-L28-SS

D6504-SP-L42-L06

D6504-SP-L42-L08

D6504-SP-L42-L10

D6504-SP-L42-L10-SS

D6504-SP-L42-L12

D6504-SP-L42-L12-SS

D6504-SP-L42-L15

D6504-SP-L42-L15-SS
