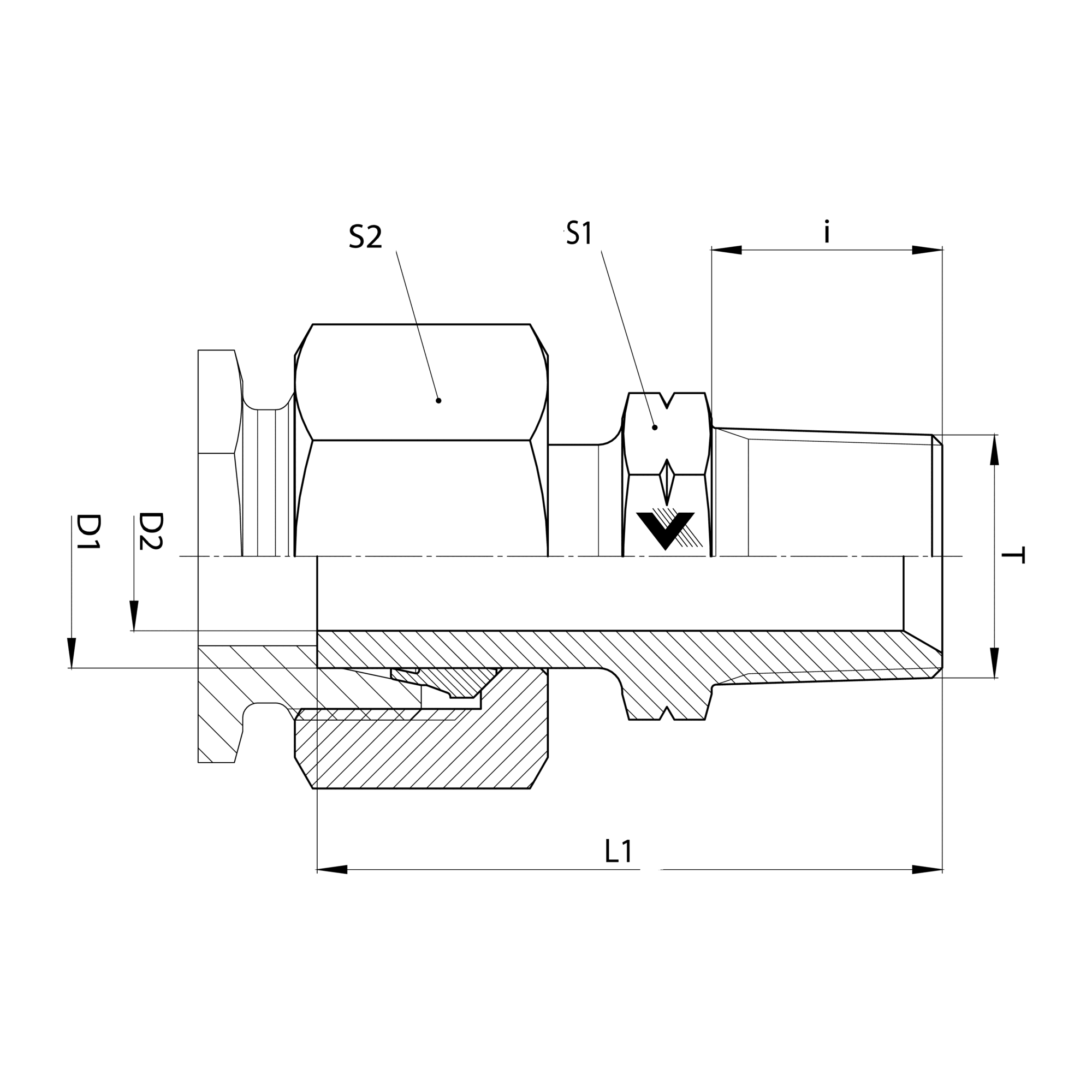

D6505-SP

D6505-SP-L06-02

$38.49

Attribute: D6505-SP-L06-02 (L06FMSP-02MP St...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L06
CONNECTION 1 TUBE SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	3.3
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	11.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.085
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.395

D6505-SP-L08-04

$38.15

Attribute: D6505-SP-L08-04 (L08FMSP-04MP St...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L08
CONNECTION 1 TUBE SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	24.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.137
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D6505-SP-L08-04-SS

$65.12

Attribute: D6505-SP-L08-04-SS (L08FMSP-04MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L08
CONNECTION 1 TUBE SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	24.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.137
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D6505-SP-L10-04

$39.51

Attribute: D6505-SP-L10-04 (L10FMSP-04MP St...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L10
CONNECTION 1 TUBE SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	6.5
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	25.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.167
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.903

D6505-SP-L10-04-SS

$72.80

Attribute: D6505-SP-L10-04-SS (L10FMSP-04MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L10
CONNECTION 1 TUBE SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	6.5
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	25.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.167
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.903

D6505-SP-L12-06

$46.68

Attribute: D6505-SP-L12-06 (L12FMSP-06MP St...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L12
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.231
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.240

D6505-SP-L12-06-SS

$92.78

Attribute: D6505-SP-L12-06-SS (L12FMSP-06MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L12
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.231
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.240

D6505-SP-L15-06-SS

$97.68

Attribute: D6505-SP-L15-06-SS (L15FMSP-06MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L15
CONNECTION 1 TUBE SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.280
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

D6505-SP-L15-08

$46.26

Attribute: D6505-SP-L15-08 (L15FMSP-08MP St...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L15
CONNECTION 1 TUBE SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.369
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.069

D6505-SP-L15-08-SS

$88.16

Attribute: D6505-SP-L15-08-SS (L15FMSP-08MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L15
CONNECTION 1 TUBE SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.369
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.069

D6505-SP-L18-08-SS

$193.17

Attribute: D6505-SP-L18-08-SS (L18FMSP-08MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L18
CONNECTION 1 TUBE SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	13.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	49.5
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.486
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.093

D6505-SP-L22-12

$73.43

Attribute: D6505-SP-L22-12 (L22FMSP-12MP St...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L22
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.5
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.656
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.875

D6505-SP-L22-12-SS

$228.59

Attribute: D6505-SP-L22-12-SS (L22FMSP-12MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L22
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.5
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.656
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.875

D6505-SP-L28-16

$98.11

Attribute: D6505-SP-L28-16 (L28FMSP-16MP St...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L28
CONNECTION 1 TUBE SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6505-SP-L28-16-SS

$477.68

Attribute: D6505-SP-L28-16-SS (L28FMSP-16MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L28
CONNECTION 1 TUBE SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6505-SP-L35-20-SS

$599.84

Attribute: D6505-SP-L35-20-SS (L35FMSP-20MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L35
CONNECTION 1 TUBE SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	28.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	65.5
OVERALL LENGTH L2 (MM)	39.5
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.594
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.993

D6505-SP-L42-24

$230.39

Attribute: D6505-SP-L42-24 (L42FMSP-24MP St...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L42
CONNECTION 1 TUBE SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 THREAD ID (MM)	34.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	67.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.113
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.719

D6505-SP-L42-24-SS

$780.95

Attribute: D6505-SP-L42-24-SS (L42FMSP-24MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	L42
CONNECTION 1 TUBE SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 THREAD ID (MM)	34.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	67.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.113
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.719

D6505-SP-S06-04-SS

$71.27

Attribute: D6505-SP-S06-04-SS (S06FMSP-04MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S06
CONNECTION 1 TUBE SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	3.3
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	24.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.159
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D6505-SP-S08-04

$83.68

Attribute: D6505-SP-S08-04 (S08FMSP-04MP St...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S08
CONNECTION 1 TUBE SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	4.3
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	24.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.198
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.881

D6505-SP-S08-04-SS

$74.76

Attribute: D6505-SP-S08-04-SS (S08FMSP-04MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S08
CONNECTION 1 TUBE SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	4.3
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	24.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.198
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.881

D6505-SP-S10-06

$106.60

Attribute: D6505-SP-S10-06 (S10FMSP-06MP St...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S10
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.280
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.314

D6505-SP-S10-06-SS

$96.05

Attribute: D6505-SP-S10-06-SS (S10FMSP-06MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S10
CONNECTION 1 TUBE SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.280
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.314

D6505-SP-S12-04-SS

$107.79

Attribute: D6505-SP-S12-04-SS (S12FMSP-04MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S12
CONNECTION 1 TUBE SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	7.3
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	30.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.312
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.617

D6505-SP-S12-06

$78.90

Attribute: D6505-SP-S12-06 (S12FMSP-06MP St...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S12
CONNECTION 1 TUBE SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	7.3
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.345
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.634

D6505-SP-S12-06-SS

$111.25

Attribute: D6505-SP-S12-06-SS (S12FMSP-06MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S12
CONNECTION 1 TUBE SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	7.3
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.345
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.634

D6505-SP-S12-08-SS

$123.02

Attribute: D6505-SP-S12-08-SS (S12FMSP-08MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S12
CONNECTION 1 TUBE SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	7.3
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.394
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.793

D6505-SP-S14-08

$90.72

Attribute: D6505-SP-S14-08 (S14FMSP-08MP St...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S14
CONNECTION 1 TUBE SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.485
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.313

D6505-SP-S14-08-SS

$133.95

Attribute: D6505-SP-S14-08-SS (S14FMSP-08MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S14
CONNECTION 1 TUBE SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.485
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.313

D6505-SP-S16-08

$52.57

Attribute: D6505-SP-S16-08 (S16FMSP-08MP St...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S16
CONNECTION 1 TUBE SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.5
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	33.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.555
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.938

D6505-SP-S16-08-SS

$192.63

Attribute: D6505-SP-S16-08-SS (S16FMSP-08MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S16
CONNECTION 1 TUBE SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.5
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	33.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.555
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.938

D6505-SP-S20-12

$84.88

Attribute: D6505-SP-S20-12 (S20FMSP-12MP St...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S20
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	13.5
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	58.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.885
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.587

D6505-SP-S20-12-SS

$246.30

Attribute: D6505-SP-S20-12-SS (S20FMSP-12MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S20
CONNECTION 1 TUBE SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	13.5
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	58.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.885
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.587

D6505-SP-S25-16

$124.57

Attribute: D6505-SP-S25-16 (S25FMSP-16MP St...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S25
CONNECTION 1 TUBE SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6505-SP-S30-20-SS

$653.23

Attribute: D6505-SP-S30-20-SS (S30FMSP-20MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S30
CONNECTION 1 TUBE SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	22.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	73.5
OVERALL LENGTH L2 (MM)	47.5
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.221
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.213

D6505-SP-S38-24-SS

$711.91

Attribute: D6505-SP-S38-24-SS (S38FMSP-24MP...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 1 THREAD SIZE	S38
CONNECTION 1 TUBE SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 THREAD ID (MM)	28.5
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	80.0
OVERALL LENGTH L2 (MM)	54.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	3.253
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.575

ID	10166127
Category	DIN Metric Tube Fittings

Description

Description

Variations (36)

D6505-SP-L06-02

D6505-SP-L08-04

D6505-SP-L08-04-SS

D6505-SP-L10-04

D6505-SP-L10-04-SS

D6505-SP-L12-06

D6505-SP-L12-06-SS

D6505-SP-L15-06-SS

D6505-SP-L15-08

D6505-SP-L15-08-SS

D6505-SP-L18-08-SS

D6505-SP-L22-12

D6505-SP-L22-12-SS

D6505-SP-L28-16

D6505-SP-L28-16-SS

D6505-SP-L35-20-SS

D6505-SP-L42-24

D6505-SP-L42-24-SS

D6505-SP-S06-04-SS

D6505-SP-S08-04

D6505-SP-S08-04-SS

D6505-SP-S10-06

D6505-SP-S10-06-SS

D6505-SP-S12-04-SS

D6505-SP-S12-06

D6505-SP-S12-06-SS

D6505-SP-S12-08-SS

D6505-SP-S14-08

D6505-SP-S14-08-SS

D6505-SP-S16-08

D6505-SP-S16-08-SS

D6505-SP-S20-12

D6505-SP-S20-12-SS

D6505-SP-S25-16

D6505-SP-S30-20-SS

D6505-SP-S38-24-SS

General Attributes

PDF Documents
