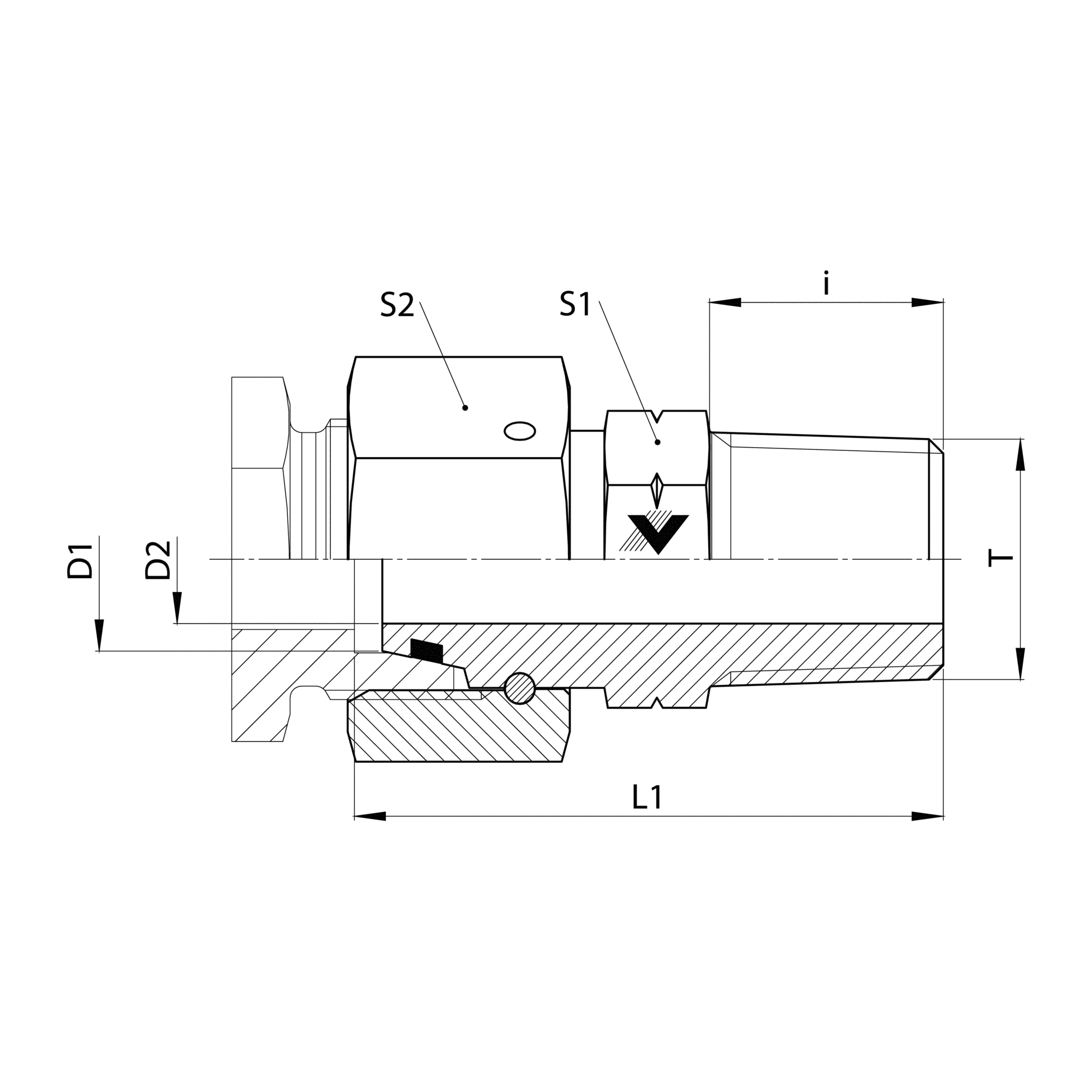

D6505

D6505-L06-02-SS

$111.97

Attribute: D6505-L06-02-SS (L06FMS-02MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	34.5
OVERALL LENGTH L2 (MM)	34.4
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.125
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.608

D6505-L08-04

$61.11

Attribute: D6505-L08-04 (L08FMS-04MP Straig...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	37.5
OVERALL LENGTH L2 (MM)	37.4
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.141
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D6505-L08-04-SS

$144.06

Attribute: D6505-L08-04-SS (L08FMS-04MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	37.5
OVERALL LENGTH L2 (MM)	37.4
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.141
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D6505-L10-04-SS

$136.68

Attribute: D6505-L10-04-SS (L10FMS-04MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	6.5
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	41.9
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.193
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.947

D6505-L12-06

$87.31

Attribute: D6505-L12-06 (L12FMS-06MP Straig...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	39.9
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.244
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.196

D6505-L12-06-SS

$148.92

Attribute: D6505-L12-06-SS (L12FMS-06MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	39.9
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.244
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.196

D6505-L15-08-SS

$235.68

Attribute: D6505-L15-08-SS (L15FMS-08MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	51.5
OVERALL LENGTH L2 (MM)	49.4
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.423
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.291

D6505-L18-08-SS

$336.51

Attribute: D6505-L18-08-SS (L18FMS-08MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	45.9
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.502
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.843

D6505-L22-12-SS

$320.69

Attribute: D6505-L22-12-SS (L22FMS-12MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	17.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	30.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	51.4
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.724
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.231

D6505-L28-16-SS

$636.89

Attribute: D6505-L28-16-SS (L28FMS-16MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	55.9
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.000
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.052

D6505-L35-20-SS

$915.92

Attribute: D6505-L35-20-SS (L35FMS-20MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	28.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	66.5
OVERALL LENGTH L2 (MM)	65.5
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.704
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.145

D6505-L42-24-SS

$858.18

Attribute: D6505-L42-24-SS (L42FMS-24MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 THREAD ID (MM)	35.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	64.5
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.141
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.280

D6505-S06-04

$77.79

Attribute: D6505-S06-04 (S06FMS-04MP Straig...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	37.9
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.170
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.679

D6505-S06-04-SS

$124.90

Attribute: D6505-S06-04-SS (S06FMS-04MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	37.9
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.170
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.679

D6505-S08-04-SS

$129.34

Attribute: D6505-S08-04-SS (S08FMS-04MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	39.4
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.215
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.881

D6505-S12-06-SS

$175.25

Attribute: D6505-S12-06-SS (S12FMS-06MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	41.9
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.348
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.529

D6505-S14-08-SS

$209.48

Attribute: D6505-S14-08-SS (S14FMS-08MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	50.9
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.512
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.313

D6505-S16-08-SS

$327.73

Attribute: D6505-S16-08-SS (S16FMS-08MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	50.4
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.552
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.801

D6505-S20-12-SS

$446.09

Attribute: D6505-S20-12-SS (S20FMS-12MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	54.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.884
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.231

D6505-S25-16-SS

$664.33

Attribute: D6505-S25-16-SS (S25FMS-16MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	66.0
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.657
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.393

D6505-S30-20-SS

$651.61

Attribute: D6505-S30-20-SS (S30FMS-20MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	22.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	68.0
OVERALL LENGTH L2 (MM)	70.5
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.293
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.374

D6505-S38-24-SS

$994.69

Attribute: D6505-S38-24-SS (S38FMS-24MP Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL DIN 24DEG
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
CALIFORNIA RESIDENTS	PROP-65 WARNING

ID	10166102
Category	DIN Metric Tube Fittings

Description

Description

Variations (22)

D6505-L06-02-SS

D6505-L08-04

D6505-L08-04-SS

D6505-L10-04-SS

D6505-L12-06

D6505-L12-06-SS

D6505-L15-08-SS

D6505-L18-08-SS

D6505-L22-12-SS

D6505-L28-16-SS

D6505-L35-20-SS

D6505-L42-24-SS

D6505-S06-04

D6505-S06-04-SS

D6505-S08-04-SS

D6505-S12-06-SS

D6505-S14-08-SS

D6505-S16-08-SS

D6505-S20-12-SS

D6505-S25-16-SS

D6505-S30-20-SS

D6505-S38-24-SS

General Attributes

PDF Documents
