D6504-REDUCER-X

D6504-L08-L06-SS-X

$74.72

Attribute: D6504-L08-L06-SS-X (L08FMS-L06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1

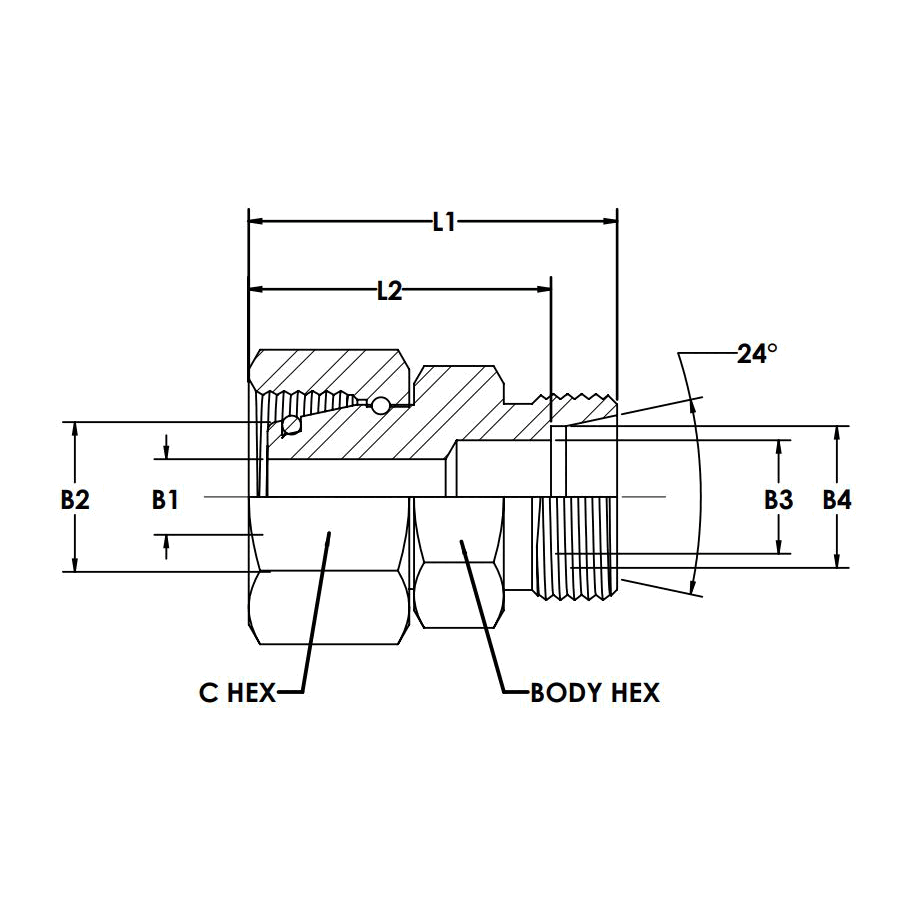

BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	23.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.040
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.412

D6504-L08-L06-X

$14.03

Attribute: D6504-L08-L06-X (L08FMS-L06MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	23.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.040
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.412

D6504-L10-L06-SS-X

$78.56

Attribute: D6504-L10-L06-SS-X (L10FMS-L06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.057
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.548

D6504-L10-L06-X

$14.73

Attribute: D6504-L10-L06-X (L10FMS-L06MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.057
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.548

D6504-L10-L08-SS-X

$83.17

Attribute: D6504-L10-L08-SS-X (L10FMS-L08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.055
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.548

D6504-L10-L08-X

$14.38

Attribute: D6504-L10-L08-X (L10FMS-L08MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.055
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.548

D6504-L12-L06-SS-X

$105.69

Attribute: D6504-L12-L06-SS-X (L12FMS-L06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.735

D6504-L12-L06-X

$15.74

Attribute: D6504-L12-L06-X (L12FMS-L06MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.735

D6504-L12-L08-SS-X

$105.87

Attribute: D6504-L12-L08-SS-X (L12FMS-L08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.735

D6504-L12-L08-X

$15.74

Attribute: D6504-L12-L08-X (L12FMS-L08MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.735

D6504-L12-L10-SS-X

$116.29

Attribute: D6504-L12-L10-SS-X (L12FMS-L10MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	25.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.068
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.765

D6504-L12-L10-X

$15.41

Attribute: D6504-L12-L10-X (L12FMS-L10MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	25.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.068
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.765

D6504-L15-L06-SS-X

$125.46

Attribute: D6504-L15-L06-SS-X (L15FMS-L06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	28.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.108
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.263

D6504-L15-L06-X

$18.77

Attribute: D6504-L15-L06-X (L15FMS-L06MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	28.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.108
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.263

D6504-L15-L08-SS-X

$123.87

Attribute: D6504-L15-L08-SS-X (L15FMS-L08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	28.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.134
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.263

D6504-L15-L08-X

$17.80

Attribute: D6504-L15-L08-X (L15FMS-L08MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	28.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.134
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.263

D6504-L15-L10-SS-X

$124.01

Attribute: D6504-L15-L10-SS-X (L15FMS-L10MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	29.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.130
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.307

D6504-L15-L10-X

$17.36

Attribute: D6504-L15-L10-X (L15FMS-L10MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	29.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.130
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.307

D6504-L15-L12-SS-X

$124.13

Attribute: D6504-L15-L12-SS-X (L15FMS-L12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	29.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.121
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.307

D6504-L15-L12-X

$17.41

Attribute: D6504-L15-L12-X (L15FMS-L12MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	29.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.121
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.307

D6504-L18-L06-SS-X

$141.76

Attribute: D6504-L18-L06-SS-X (L18FMS-L06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	27.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.126
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.743

D6504-L18-L06-X

$40.16

Attribute: D6504-L18-L06-X (L18FMS-L06MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	27.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.126
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.743

D6504-L18-L08-SS-X

$153.24

Attribute: D6504-L18-L08-SS-X (L18FMS-L08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	27.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.128
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.743

D6504-L18-L08-X

$23.86

Attribute: D6504-L18-L08-X (L18FMS-L08MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	27.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.128
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.743

D6504-L18-L10-SS-X

$151.36

Attribute: D6504-L18-L10-SS-X (L18FMS-L10MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	28.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.161
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.805

D6504-L18-L10-X

$23.13

Attribute: D6504-L18-L10-X (L18FMS-L10MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	28.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.161
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.805

D6504-L18-L12-SS-X

$150.89

Attribute: D6504-L18-L12-SS-X (L18FMS-L12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	28.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.154
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.805

D6504-L18-L12-X

$23.17

Attribute: D6504-L18-L12-X (L18FMS-L12MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	28.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.154
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.805

D6504-L18-L15-SS-X

$154.86

Attribute: D6504-L18-L15-SS-X (L18FMS-L15MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	29.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.156
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

D6504-L18-L15-X

$23.17

Attribute: D6504-L18-L15-X (L18FMS-L15MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	29.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.156
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

D6504-L18-L22-X

$242.20

Attribute: D6504-L18-L22-X (L18FMS-L22MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 TUBE SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6504-L22-L06-SS-X

$188.57

Attribute: D6504-L22-L06-SS-X (L22FMS-L06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.185
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.522

D6504-L22-L06-X

$49.46

Attribute: D6504-L22-L06-X (L22FMS-L06MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.185
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.522

D6504-L22-L08-SS-X

$178.08

Attribute: D6504-L22-L08-SS-X (L22FMS-L08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.178
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.522

D6504-L22-L08-X

$44.93

Attribute: D6504-L22-L08-X (L22FMS-L08MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.178
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.522

D6504-L22-L10-SS-X

$190.15

Attribute: D6504-L22-L10-SS-X (L22FMS-L10MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	32.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.183
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.601

D6504-L22-L10-X

$41.65

Attribute: D6504-L22-L10-X (L22FMS-L10MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	32.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.183
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.601

D6504-L22-L12-SS-X

$184.98

Attribute: D6504-L22-L12-SS-X (L22FMS-L12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	32.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.185
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.601

D6504-L22-L12-X

$29.49

Attribute: D6504-L22-L12-X (L22FMS-L12MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	32.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.185
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.601

D6504-L22-L15-SS-X

$223.69

Attribute: D6504-L22-L15-SS-X (L22FMS-L15MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	33.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.242
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.680

D6504-L22-L15-X

$29.49

Attribute: D6504-L22-L15-X (L22FMS-L15MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	33.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.242
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.680

D6504-L22-L18-SS-X

$228.85

Attribute: D6504-L22-L18-SS-X (L22FMS-L18MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 TUBE SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	33.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.227
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.641

D6504-L22-L18-X

$29.49

Attribute: D6504-L22-L18-X (L22FMS-L18MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 TUBE SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	33.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.227
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.641

D6504-L28-L06-SS-X

$251.77

Attribute: D6504-L28-L06-SS-X (L28FMS-L06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	33.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.322
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.476

D6504-L28-L08-SS-X

$276.94

Attribute: D6504-L28-L08-SS-X (L28FMS-L08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	33.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.324
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.476

D6504-L28-L08-X

$76.47

Attribute: D6504-L28-L08-X (L28FMS-L08MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	33.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.324
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.476

D6504-L28-L10-SS-X

$275.07

Attribute: D6504-L28-L10-SS-X (L28FMS-L10MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	34.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.300
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.579

D6504-L28-L10-X

$61.40

Attribute: D6504-L28-L10-X (L28FMS-L10MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	34.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.300
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.579

D6504-L28-L12-SS-X

$271.05

Attribute: D6504-L28-L12-SS-X (L28FMS-L12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	34.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.302
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.579

D6504-L28-L12-X

$56.28

Attribute: D6504-L28-L12-X (L28FMS-L12MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	34.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.302
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.579

D6504-L28-L15-SS-X

$268.80

Attribute: D6504-L28-L15-SS-X (L28FMS-L15MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	35.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.315
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.682

D6504-L28-L15-X

$55.27

Attribute: D6504-L28-L15-X (L28FMS-L15MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	35.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.315
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.682

D6504-L28-L18-SS-X

$264.95

Attribute: D6504-L28-L18-SS-X (L28FMS-L18MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 TUBE SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	35.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.324
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.630

D6504-L28-L18-X

$55.27

Attribute: D6504-L28-L18-X (L28FMS-L18MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 TUBE SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	35.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.324
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.630

D6504-L28-L22-SS-X

$286.98

Attribute: D6504-L28-L22-SS-X (L28FMS-L22MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 TUBE SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	37.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.383
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.835

D6504-L28-L22-X

$55.34

Attribute: D6504-L28-L22-X (L28FMS-L22MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 TUBE SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	37.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.383
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.835

D6504-L35-L06-SS-X

$379.18

Attribute: D6504-L35-L06-SS-X (L35FMS-L06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.529
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.641

D6504-L35-L08-SS-X

$384.74

Attribute: D6504-L35-L08-SS-X (L35FMS-L08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.531
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.641

D6504-L35-L10-SS-X

$403.43

Attribute: D6504-L35-L10-SS-X (L35FMS-L10MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.533
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.794

D6504-L35-L12-SS-X

$428.39

Attribute: D6504-L35-L12-SS-X (L35FMS-L12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.496
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.794

D6504-L35-L15-SS-X

$439.70

Attribute: D6504-L35-L15-SS-X (L35FMS-L15MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.511
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.946

D6504-L35-L15-X

$108.52

Attribute: D6504-L35-L15-X (L35FMS-L15MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.511
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.946

D6504-L35-L18-SS-X

$433.51

Attribute: D6504-L35-L18-SS-X (L35FMS-L18MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 TUBE SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.522
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.870

D6504-L35-L18-X

$89.01

Attribute: D6504-L35-L18-X (L35FMS-L18MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 TUBE SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.522
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.870

D6504-L35-L22-SS-X

$433.16

Attribute: D6504-L35-L22-SS-X (L35FMS-L22MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 TUBE SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.537
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.175

D6504-L35-L22-X

$78.82

Attribute: D6504-L35-L22-X (L35FMS-L22MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 TUBE SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.537
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.175

D6504-L35-L28-SS-X

$422.37

Attribute: D6504-L35-L28-SS-X (L35FMS-L28MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 TUBE SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.612
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.175

D6504-L35-L28-X

$76.17

Attribute: D6504-L35-L28-X (L35FMS-L28MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 TUBE SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.612
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.175

D6504-L42-L06-SS-X

$531.36

Attribute: D6504-L42-L06-SS-X (L42FMS-L06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.725
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.892

D6504-L42-L10-SS-X

$563.57

Attribute: D6504-L42-L10-SS-X (L42FMS-L10MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	41.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.729
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.112

D6504-L42-L12-SS-X

$570.07

Attribute: D6504-L42-L12-SS-X (L42FMS-L12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	41.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.729
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.112

D6504-L42-L15-SS-X

$572.84

Attribute: D6504-L42-L15-SS-X (L42FMS-L15MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	42.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.742
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.332

D6504-L42-L18-SS-X

$572.15

Attribute: D6504-L42-L18-SS-X (L42FMS-L18MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 TUBE SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.747
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.222

D6504-L42-L18-X

$168.18

Attribute: D6504-L42-L18-X (L42FMS-L18MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 TUBE SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.747
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.222

D6504-L42-L22-SS-X

$575.61

Attribute: D6504-L42-L22-SS-X (L42FMS-L22MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 TUBE SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.698
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.661

D6504-L42-L22-X

$105.61

Attribute: D6504-L42-L22-X (L42FMS-L22MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 TUBE SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.698
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.661

D6504-L42-L28-SS-X

$575.82

Attribute: D6504-L42-L28-SS-X (L42FMS-L28MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 TUBE SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.703
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.661

D6504-L42-L28-X

$99.47

Attribute: D6504-L42-L28-X (L42FMS-L28MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 TUBE SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.703
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.661

D6504-L42-L35-SS-X

$586.36

Attribute: D6504-L42-L35-SS-X (L42FMS-L35MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 TUBE SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	43.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.855
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.442

D6504-L42-L35-X

$108.64

Attribute: D6504-L42-L35-X (L42FMS-L35MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 TUBE SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	43.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.855
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.442

D6504-S08-S06-SS-X

$111.12

Attribute: D6504-S08-S06-SS-X (S08FMS-S06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	26.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.592

D6504-S08-S06-X

$33.59

Attribute: D6504-S08-S06-X (S08FMS-S06MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	26.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.592

D6504-S10-S06-SS-X

$113.55

Attribute: D6504-S10-S06-SS-X (S10FMS-S06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	27.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.081
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.809

D6504-S10-S06-X

$21.38

Attribute: D6504-S10-S06-X (S10FMS-S06MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	27.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.081
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.809

D6504-S10-S08-SS-X

$113.55

Attribute: D6504-S10-S08-SS-X (S10FMS-S08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	27.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.086
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.809

D6504-S10-S08-X

$21.38

Attribute: D6504-S10-S08-X (S10FMS-S08MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	27.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.086
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.809

D6504-S12-S06-SS-X

$125.80

Attribute: D6504-S12-S06-SS-X (S12FMS-S06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	29.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.051

D6504-S12-S06-X

$18.27

Attribute: D6504-S12-S06-X (S12FMS-S06MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	29.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.051

D6504-S12-S08-SS-X

$129.85

Attribute: D6504-S12-S08-SS-X (S12FMS-S08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	29.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.117
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.051

D6504-S12-S08-X

$18.27

Attribute: D6504-S12-S08-X (S12FMS-S08MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	29.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.117
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.051

D6504-S12-S10-SS-X

$131.21

Attribute: D6504-S12-S10-SS-X (S12FMS-S10MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	29.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.033

D6504-S12-S10-X

$18.27

Attribute: D6504-S12-S10-X (S12FMS-S10MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	29.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.033

D6504-S14-S06-SS-X

$131.99

Attribute: D6504-S14-S06-SS-X (S14FMS-S06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	31.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.145
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.396

D6504-S14-S08-SS-X

$135.91

Attribute: D6504-S14-S08-SS-X (S14FMS-S08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	31.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.396

D6504-S14-S08-X

$53.72

Attribute: D6504-S14-S08-X (S14FMS-S08MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	31.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.396

D6504-S14-S10-SS-X

$133.01

Attribute: D6504-S14-S10-SS-X (S14FMS-S10MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	30.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.145
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.374

D6504-S14-S10-X

$52.95

Attribute: D6504-S14-S10-X (S14FMS-S10MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	30.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.145
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.374

D6504-S14-S12-SS-X

$163.70

Attribute: D6504-S14-S12-SS-X (S14FMS-S12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	30.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.148
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.374

D6504-S14-S12-X

$52.87

Attribute: D6504-S14-S12-X (S14FMS-S12MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	30.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.148
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.374

D6504-S16-S06-SS-X

$166.25

Attribute: D6504-S16-S06-SS-X (S16FMS-S06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.132
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.751

D6504-S16-S06-X

$36.06

Attribute: D6504-S16-S06-X (S16FMS-S06MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.132
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.751

D6504-S16-S08-SS-X

$166.94

Attribute: D6504-S16-S08-SS-X (S16FMS-S08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.751

D6504-S16-S08-X

$25.05

Attribute: D6504-S16-S08-X (S16FMS-S08MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.751

D6504-S16-S10-SS-X

$175.60

Attribute: D6504-S16-S10-SS-X (S16FMS-S10MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	31.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.724

D6504-S16-S10-X

$25.05

Attribute: D6504-S16-S10-X (S16FMS-S10MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	31.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.724

D6504-S16-S12-SS-X

$170.48

Attribute: D6504-S16-S12-SS-X (S16FMS-S12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	31.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.165
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.724

D6504-S16-S12-X

$25.78

Attribute: D6504-S16-S12-X (S16FMS-S12MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	31.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.165
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.724

D6504-S16-S14-SS-X

$170.99

Attribute: D6504-S16-S14-SS-X (S16FMS-S14MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	32.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.178
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.806

D6504-S16-S14-X

$58.63

Attribute: D6504-S16-S14-X (S16FMS-S14MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	32.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.178
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.806

D6504-S20-S06-SS-X

$189.55

Attribute: D6504-S20-S06-SS-X (S20FMS-S06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.200
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.845

D6504-S20-S06-X

$83.67

Attribute: D6504-S20-S06-X (S20FMS-S06MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.200
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.845

D6504-S20-S08-SS-X

$192.70

Attribute: D6504-S20-S08-SS-X (S20FMS-S08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.207
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.845

D6504-S20-S08-X

$45.44

Attribute: D6504-S20-S08-X (S20FMS-S08MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.207
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.845

D6504-S20-S10-SS-X

$211.79

Attribute: D6504-S20-S10-SS-X (S20FMS-S10MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.211
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.806

D6504-S20-S10-X

$38.57

Attribute: D6504-S20-S10-X (S20FMS-S10MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.211
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.806

D6504-S20-S12-SS-X

$212.94

Attribute: D6504-S20-S12-SS-X (S20FMS-S12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.216
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.806

D6504-S20-S12-X

$33.38

Attribute: D6504-S20-S12-X (S20FMS-S12MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.216
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.806

D6504-S20-S14-SS-X

$231.83

Attribute: D6504-S20-S14-SS-X (S20FMS-S14MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.264
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.924

D6504-S20-S14-X

$82.27

Attribute: D6504-S20-S14-X (S20FMS-S14MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.264
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.924

D6504-S20-S16-SS-X

$232.56

Attribute: D6504-S20-S16-SS-X (S20FMS-S16MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 TUBE SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.253
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.885

D6504-S20-S16-X

$31.70

Attribute: D6504-S20-S16-X (S20FMS-S16MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 TUBE SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.253
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.885

D6504-S25-S06-SS-X

$286.89

Attribute: D6504-S25-S06-SS-X (S25FMS-S06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.330
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.969

D6504-S25-S08-SS-X

$310.49

Attribute: D6504-S25-S08-SS-X (S25FMS-S08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.335
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.969

D6504-S25-S08-X

$81.59

Attribute: D6504-S25-S08-X (S25FMS-S08MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.335
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.969

D6504-S25-S10-SS-X

$313.90

Attribute: D6504-S25-S10-SS-X (S25FMS-S10MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.339
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.904

D6504-S25-S10-X

$74.63

Attribute: D6504-S25-S10-X (S25FMS-S10MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.339
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.904

D6504-S25-S12-SS-X

$358.88

Attribute: D6504-S25-S12-SS-X (S25FMS-S12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.344
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.904

D6504-S25-S12-X

$57.61

Attribute: D6504-S25-S12-X (S25FMS-S12MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.344
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.904

D6504-S25-S14-SS-X

$326.70

Attribute: D6504-S25-S14-SS-X (S25FMS-S14MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	39.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.357
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.098

D6504-S25-S16-SS-X

$318.33

Attribute: D6504-S25-S16-SS-X (S25FMS-S16MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 TUBE SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.361
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.033

D6504-S25-S16-X

$54.19

Attribute: D6504-S25-S16-X (S25FMS-S16MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 TUBE SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.361
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.033

D6504-S25-S20-SS-X

$346.50

Attribute: D6504-S25-S20-SS-X (S25FMS-S20MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 TUBE SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.416
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.033

D6504-S25-S20-X

$56.58

Attribute: D6504-S25-S20-X (S25FMS-S20MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 TUBE SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.416
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.033

D6504-S30-S06-SS-X

$466.24

Attribute: D6504-S30-S06-SS-X (S30FMS-S06MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 TUBE SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.520
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.709

D6504-S30-S08-SS-X

$475.03

Attribute: D6504-S30-S08-SS-X (S30FMS-S08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.513
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.709

D6504-S30-S10-SS-X

$506.14

Attribute: D6504-S30-S10-SS-X (S30FMS-S10MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	43.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.529
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.633

D6504-S30-S12-SS-X

$515.44

Attribute: D6504-S30-S12-SS-X (S30FMS-S12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	43.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.533
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.633

D6504-S30-S14-SS-X

$517.10

Attribute: D6504-S30-S14-SS-X (S30FMS-S14MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.546
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.862

D6504-S30-S16-SS-X

$535.24

Attribute: D6504-S30-S16-SS-X (S30FMS-S16MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 TUBE SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.548
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.786

D6504-S30-S16-X

$74.63

Attribute: D6504-S30-S16-X (S30FMS-S16MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 TUBE SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.548
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.786

D6504-S30-S20-SS-X

$533.54

Attribute: D6504-S30-S20-SS-X (S30FMS-S20MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 TUBE SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.579
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.786

D6504-S30-S20-X

$72.89

Attribute: D6504-S30-S20-X (S30FMS-S20MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 TUBE SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.579
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.786

D6504-S30-S25-SS-X

$499.69

Attribute: D6504-S30-S25-SS-X (S30FMS-S25MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 TUBE SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.650
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.862

D6504-S30-S25-X

$76.64

Attribute: D6504-S30-S25-X (S30FMS-S25MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 TUBE SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.650
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.862

D6504-S38-S08-SS-X

$640.77

Attribute: D6504-S38-S08-SS-X (S38FMS-S08MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 TUBE SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	47.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.773
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.430

D6504-S38-S10-SS-X

$663.72

Attribute: D6504-S38-S10-SS-X (S38FMS-S10MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 TUBE SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.778
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.320

D6504-S38-S12-SS-X

$668.13

Attribute: D6504-S38-S12-SS-X (S38FMS-S12MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 TUBE SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.782
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.320

D6504-S38-S14-SS-X

$661.12

Attribute: D6504-S38-S14-SS-X (S38FMS-S14MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 TUBE SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	48.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.795
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.650

D6504-S38-S16-SS-X

$676.91

Attribute: D6504-S38-S16-SS-X (S38FMS-S16MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 TUBE SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.797
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.540

D6504-S38-S16-X

$128.58

Attribute: D6504-S38-S16-X (S38FMS-S16MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 TUBE SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.797
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.540

D6504-S38-S20-SS-X

$676.41

Attribute: D6504-S38-S20-SS-X (S38FMS-S20MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 TUBE SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.828
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.540

D6504-S38-S20-X

$119.36

Attribute: D6504-S38-S20-X (S38FMS-S20MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 TUBE SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.828
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.540

D6504-S38-S25-SS-X

$778.42

Attribute: D6504-S38-S25-SS-X (S38FMS-S25MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 TUBE SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	48.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.872
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.650

D6504-S38-S25-X

$119.36

Attribute: D6504-S38-S25-X (S38FMS-S25MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 TUBE SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	48.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.872
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.650

D6504-S38-S30-SS-X

$710.67

Attribute: D6504-S38-S30-SS-X (S38FMS-S30MB...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 TUBE SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.002
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.760

D6504-S38-S30-X

$119.36

Attribute: D6504-S38-S30-X (S38FMS-S30MBT S...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 THREAD SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 TUBE SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.002
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.760

Description

Description

Variations (156)

D6504-L08-L06-SS-X

D6504-L08-L06-X

D6504-L10-L06-SS-X

D6504-L10-L06-X

D6504-L10-L08-SS-X

D6504-L10-L08-X

D6504-L12-L06-SS-X

D6504-L12-L06-X

D6504-L12-L08-SS-X

D6504-L12-L08-X

D6504-L12-L10-SS-X

D6504-L12-L10-X

D6504-L15-L06-SS-X

D6504-L15-L06-X

D6504-L15-L08-SS-X

D6504-L15-L08-X

D6504-L15-L10-SS-X

D6504-L15-L10-X

D6504-L15-L12-SS-X

D6504-L15-L12-X

D6504-L18-L06-SS-X

D6504-L18-L06-X

D6504-L18-L08-SS-X

D6504-L18-L08-X

D6504-L18-L10-SS-X

D6504-L18-L10-X

D6504-L18-L12-SS-X

D6504-L18-L12-X

D6504-L18-L15-SS-X

D6504-L18-L15-X

D6504-L18-L22-X

D6504-L22-L06-SS-X

D6504-L22-L06-X

D6504-L22-L08-SS-X

D6504-L22-L08-X

D6504-L22-L10-SS-X

D6504-L22-L10-X

D6504-L22-L12-SS-X

D6504-L22-L12-X

D6504-L22-L15-SS-X

D6504-L22-L15-X

D6504-L22-L18-SS-X

D6504-L22-L18-X

D6504-L28-L06-SS-X

D6504-L28-L08-SS-X

D6504-L28-L08-X

D6504-L28-L10-SS-X

D6504-L28-L10-X

D6504-L28-L12-SS-X

D6504-L28-L12-X

D6504-L28-L15-SS-X

D6504-L28-L15-X

D6504-L28-L18-SS-X

D6504-L28-L18-X

D6504-L28-L22-SS-X

D6504-L28-L22-X

D6504-L35-L06-SS-X

D6504-L35-L08-SS-X

D6504-L35-L10-SS-X

D6504-L35-L12-SS-X

D6504-L35-L15-SS-X

D6504-L35-L15-X

D6504-L35-L18-SS-X

D6504-L35-L18-X

D6504-L35-L22-SS-X

D6504-L35-L22-X

D6504-L35-L28-SS-X

D6504-L35-L28-X

D6504-L42-L06-SS-X

D6504-L42-L10-SS-X

D6504-L42-L12-SS-X

D6504-L42-L15-SS-X

D6504-L42-L18-SS-X

D6504-L42-L18-X

D6504-L42-L22-SS-X

D6504-L42-L22-X
