D6504-REDUCER

D6504-L08-L06

$16.90

Attribute: D6504-L08-L06 (L08FMS-L06MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1

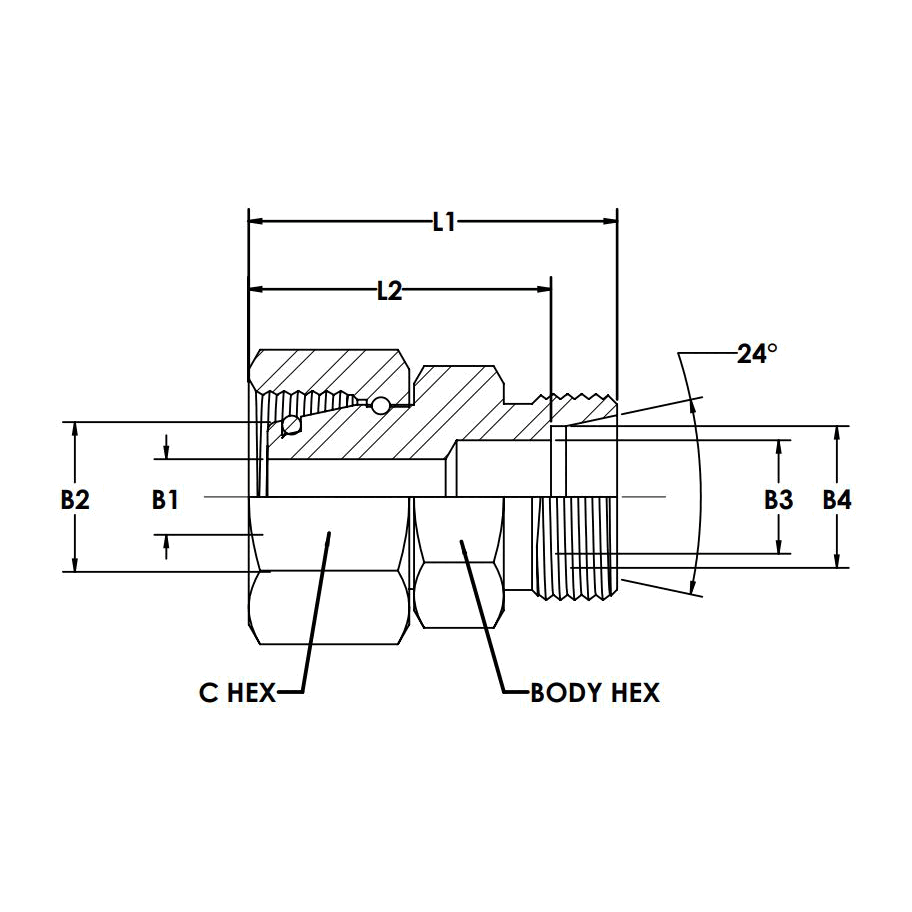

BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	23.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.145
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.679

D6504-L08-L06-SS

$89.52

Attribute: D6504-L08-L06-SS (L08FMS-L06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	38.5
OVERALL LENGTH L2 (MM)	23.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.145
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.679

D6504-L10-L06

$17.58

Attribute: D6504-L10-L06 (L10FMS-L06MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.188
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.903

D6504-L10-L06-SS

$91.02

Attribute: D6504-L10-L06-SS (L10FMS-L06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.188
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.903

D6504-L10-L08

$17.24

Attribute: D6504-L10-L08 (L10FMS-L08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.198
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.903

D6504-L10-L08-SS

$97.34

Attribute: D6504-L10-L08-SS (L10FMS-L08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.198
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.903

D6504-L12-L06

$18.65

Attribute: D6504-L12-L06 (L12FMS-L06MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.196

D6504-L12-L06-SS

$119.83

Attribute: D6504-L12-L06-SS (L12FMS-L06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.196

D6504-L12-L08

$18.86

Attribute: D6504-L12-L08 (L12FMS-L08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.246
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.196

D6504-L12-L08-SS

$143.25

Attribute: D6504-L12-L08-SS (L12FMS-L08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	24.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.246
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.196

D6504-L12-L10

$19.29

Attribute: D6504-L12-L10 (L12FMS-L10MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	41.5
OVERALL LENGTH L2 (MM)	25.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.253
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.226

D6504-L12-L10-SS

$132.62

Attribute: D6504-L12-L10-SS (L12FMS-L10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	41.5
OVERALL LENGTH L2 (MM)	25.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.253
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.226

D6504-L15-L06

$21.72

Attribute: D6504-L15-L06 (L15FMS-L06MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	28.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.358
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

D6504-L15-L06-SS

$136.77

Attribute: D6504-L15-L06-SS (L15FMS-L06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	28.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.358
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

D6504-L15-L08

$20.22

Attribute: D6504-L15-L08 (L15FMS-L08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	28.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.397
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

D6504-L15-L08-SS

$140.95

Attribute: D6504-L15-L08-SS (L15FMS-L08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	28.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.397
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

D6504-L15-L10

$20.57

Attribute: D6504-L15-L10 (L15FMS-L10MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	29.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.403
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.069

D6504-L15-L10-SS

$161.73

Attribute: D6504-L15-L10-SS (L15FMS-L10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	29.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.403
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.069

D6504-L15-L12

$21.25

Attribute: D6504-L15-L12 (L15FMS-L12MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	29.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.411
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.069

D6504-L15-L12-SS

$142.19

Attribute: D6504-L15-L12-SS (L15FMS-L12MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	29.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.411
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.069

D6504-L18-L06

$44.38

Attribute: D6504-L18-L06 (L18FMS-L06MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	42.5
OVERALL LENGTH L2 (MM)	27.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.451
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.656

D6504-L18-L06-SS

$159.81

Attribute: D6504-L18-L06-SS (L18FMS-L06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	42.5
OVERALL LENGTH L2 (MM)	27.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.451
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.656

D6504-L18-L08

$27.19

Attribute: D6504-L18-L08 (L18FMS-L08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	42.5
OVERALL LENGTH L2 (MM)	27.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.467
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.656

D6504-L18-L08-SS

$170.27

Attribute: D6504-L18-L08-SS (L18FMS-L08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	42.5
OVERALL LENGTH L2 (MM)	27.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.467
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.656

D6504-L18-L10

$27.26

Attribute: D6504-L18-L10 (L18FMS-L10MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	28.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.510
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.718

D6504-L18-L10-SS

$172.48

Attribute: D6504-L18-L10-SS (L18FMS-L10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	28.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.510
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.718

D6504-L18-L12

$27.96

Attribute: D6504-L18-L12 (L18FMS-L12MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	28.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.519
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.718

D6504-L18-L12-SS

$167.66

Attribute: D6504-L18-L12-SS (L18FMS-L12MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	28.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.519
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.718

D6504-L18-L15

$29.14

Attribute: D6504-L18-L15 (L18FMS-L15MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	29.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.563
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.812

D6504-L18-L15-SS

$181.53

Attribute: D6504-L18-L15-SS (L18FMS-L15MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	29.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.563
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.812

D6504-L22-L06

$54.15

Attribute: D6504-L22-L06 (L22FMS-L06MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.637
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.875

D6504-L22-L06-SS

$196.59

Attribute: D6504-L22-L06-SS (L22FMS-L06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.637
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.875

D6504-L22-L08

$49.62

Attribute: D6504-L22-L08 (L22FMS-L08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.645
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.875

D6504-L22-L08-SS

$194.32

Attribute: D6504-L22-L08-SS (L22FMS-L08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.645
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.875

D6504-L22-L10

$44.90

Attribute: D6504-L22-L10 (L22FMS-L10MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	32.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.659
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.954

D6504-L22-L10-SS

$210.25

Attribute: D6504-L22-L10-SS (L22FMS-L10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	32.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.659
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.954

D6504-L22-L12

$33.33

Attribute: D6504-L22-L12 (L22FMS-L12MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	32.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.677
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.954

D6504-L22-L12-SS

$208.96

Attribute: D6504-L22-L12-SS (L22FMS-L12MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	32.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.677
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.954

D6504-L22-L15

$34.53

Attribute: D6504-L22-L15 (L22FMS-L15MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	51.5
OVERALL LENGTH L2 (MM)	33.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.776
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.073

D6504-L22-L15-SS

$251.13

Attribute: D6504-L22-L15-SS (L22FMS-L15MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	51.5
OVERALL LENGTH L2 (MM)	33.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.776
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.073

D6504-L22-L18

$37.77

Attribute: D6504-L22-L18 (L22FMS-L18MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	52.5
OVERALL LENGTH L2 (MM)	33.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.811
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.152

D6504-L22-L18-SS

$389.22

Attribute: D6504-L22-L18-SS (L22FMS-L18MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	52.5
OVERALL LENGTH L2 (MM)	33.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.811
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.152

D6504-L28-L06-SS

$263.97

Attribute: D6504-L28-L06-SS (L28FMS-L06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	33.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.913
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.334

D6504-L28-L08

$80.78

Attribute: D6504-L28-L08 (L28FMS-L08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	33.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.927
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.334

D6504-L28-L08-SS

$331.74

Attribute: D6504-L28-L08-SS (L28FMS-L08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	33.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.927
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.334

D6504-L28-L10

$67.17

Attribute: D6504-L28-L10 (L28FMS-L10MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	34.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.913
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D6504-L28-L10-SS

$286.59

Attribute: D6504-L28-L10-SS (L28FMS-L10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	34.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.913
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D6504-L28-L12

$60.34

Attribute: D6504-L28-L12 (L28FMS-L12MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	34.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.931
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D6504-L28-L12-SS

$295.00

Attribute: D6504-L28-L12-SS (L28FMS-L12MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	34.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.931
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D6504-L28-L15

$62.61

Attribute: D6504-L28-L15 (L28FMS-L15MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	54.5
OVERALL LENGTH L2 (MM)	35.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.986
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.591

D6504-L28-L15-SS

$302.42

Attribute: D6504-L28-L15-SS (L28FMS-L15MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	54.5
OVERALL LENGTH L2 (MM)	35.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.986
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.591

D6504-L28-L18

$66.01

Attribute: D6504-L28-L18 (L28FMS-L18MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	55.5
OVERALL LENGTH L2 (MM)	35.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.046
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.693

D6504-L28-L18-SS

$319.06

Attribute: D6504-L28-L18-SS (L28FMS-L18MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	55.5
OVERALL LENGTH L2 (MM)	35.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.046
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.693

D6504-L28-L22

$66.53

Attribute: D6504-L28-L22 (L28FMS-L22MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	58.5
OVERALL LENGTH L2 (MM)	37.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.159
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.001

D6504-L28-L22-SS

$355.13

Attribute: D6504-L28-L22-SS (L28FMS-L22MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	58.5
OVERALL LENGTH L2 (MM)	37.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.159
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.001

D6504-L35-L06-SS

$391.47

Attribute: D6504-L35-L06-SS (L35FMS-L06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.383
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.086

D6504-L35-L08-SS

$399.50

Attribute: D6504-L35-L08-SS (L35FMS-L08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.397
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.086

D6504-L35-L10-SS

$421.13

Attribute: D6504-L35-L10-SS (L35FMS-L10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	54.0
OVERALL LENGTH L2 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.410
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.238

D6504-L35-L12-SS

$453.01

Attribute: D6504-L35-L12-SS (L35FMS-L12MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	54.0
OVERALL LENGTH L2 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.390
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.238

D6504-L35-L15

$118.16

Attribute: D6504-L35-L15 (L35FMS-L15MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	55.5
OVERALL LENGTH L2 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.447
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.467

D6504-L35-L15-SS

$474.22

Attribute: D6504-L35-L15-SS (L35FMS-L15MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	55.5
OVERALL LENGTH L2 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.447
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.467

D6504-L35-L18

$101.26

Attribute: D6504-L35-L18 (L35FMS-L18MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.509
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.620

D6504-L35-L18-SS

$489.11

Attribute: D6504-L35-L18-SS (L35FMS-L18MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.509
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.620

D6504-L35-L22

$93.67

Attribute: D6504-L35-L22 (L35FMS-L22MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	59.5
OVERALL LENGTH L2 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.577
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.077

D6504-L35-L22-SS

$503.07

Attribute: D6504-L35-L22-SS (L35FMS-L22MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	59.5
OVERALL LENGTH L2 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.577
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.077

D6504-L35-L28

$98.83

Attribute: D6504-L35-L28 (L35FMS-L28MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	41.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.688
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.154

D6504-L35-L28-SS

$519.63

Attribute: D6504-L35-L28-SS (L35FMS-L28MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	41.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.688
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.154

D6504-L42-L06-SS

$543.52

Attribute: D6504-L42-L06-SS (L42FMS-L06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	56.0
OVERALL LENGTH L2 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.973
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.303

D6504-L42-L08-SS

$538.05

Attribute: D6504-L42-L08-SS (L42FMS-L08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	56.0
OVERALL LENGTH L2 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.987
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.303

D6504-L42-L10-SS

$537.93

Attribute: D6504-L42-L10-SS (L42FMS-L10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	41.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.000
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.522

D6504-L42-L12-SS

$594.73

Attribute: D6504-L42-L12-SS (L42FMS-L12MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	41.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.017
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.522

D6504-L42-L15-SS

$607.35

Attribute: D6504-L42-L15-SS (L42FMS-L15MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	58.5
OVERALL LENGTH L2 (MM)	42.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.071
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.852

D6504-L42-L18

$240.42

Attribute: D6504-L42-L18 (L42FMS-L18MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	59.5
OVERALL LENGTH L2 (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.128
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.071

D6504-L42-L18-SS

$676.44

Attribute: D6504-L42-L18-SS (L42FMS-L18MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	59.5
OVERALL LENGTH L2 (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.128
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.071

D6504-L42-L22

$114.96

Attribute: D6504-L42-L22 (L42FMS-L22MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.132
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.730

D6504-L42-L22-SS

$645.47

Attribute: D6504-L42-L22-SS (L42FMS-L22MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.132
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.730

D6504-L42-L28

$116.36

Attribute: D6504-L42-L28 (L42FMS-L28MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	41.0
OVERALL LENGTH L1 (MM)	63.0
OVERALL LENGTH L2 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.173
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.840

D6504-L42-L28-SS

$675.68

Attribute: D6504-L42-L28-SS (L42FMS-L28MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	41.0
OVERALL LENGTH L1 (MM)	63.0
OVERALL LENGTH L2 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.173
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.840

D6504-L42-L35

$138.81

Attribute: D6504-L42-L35 (L42FMS-L35MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	43.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.456
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.499

D6504-L42-L35-SS

$723.76

Attribute: D6504-L42-L35-SS (L42FMS-L35MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	43.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.456
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.499

D6504-S08-S06

$35.76

Attribute: D6504-S08-S06 (S08FMS-S06MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	42.5
OVERALL LENGTH L2 (MM)	26.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.247
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.936

D6504-S08-S06-SS

$124.57

Attribute: D6504-S08-S06-SS (S08FMS-S06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	42.5
OVERALL LENGTH L2 (MM)	26.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.247
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.936

D6504-S10-S06

$25.10

Attribute: D6504-S10-S06 (S10FMS-S06MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	42.5
OVERALL LENGTH L2 (MM)	27.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.297
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.255

D6504-S10-S06-SS

$129.12

Attribute: D6504-S10-S06-SS (S10FMS-S06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	42.5
OVERALL LENGTH L2 (MM)	27.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.297
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.255

D6504-S10-S08

$23.93

Attribute: D6504-S10-S08 (S10FMS-S08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	42.5
OVERALL LENGTH L2 (MM)	27.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.308
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.255

D6504-S10-S08-SS

$166.80

Attribute: D6504-S10-S08-SS (S10FMS-S08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	42.5
OVERALL LENGTH L2 (MM)	27.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.308
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.255

D6504-S12-S06

$21.89

Attribute: D6504-S12-S06 (S12FMS-S06MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	29.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.382
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.634

D6504-S12-S06-SS

$137.36

Attribute: D6504-S12-S06-SS (S12FMS-S06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	29.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.382
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.634

D6504-S12-S08

$22.10

Attribute: D6504-S12-S08 (S12FMS-S08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	29.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.393
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.634

D6504-S12-S08-SS

$144.14

Attribute: D6504-S12-S08-SS (S12FMS-S08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	29.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.393
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.634

D6504-S12-S10

$22.53

Attribute: D6504-S12-S10 (S12FMS-S10MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	29.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.415
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.670

D6504-S12-S10-SS

$156.69

Attribute: D6504-S12-S10-SS (S12FMS-S10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	29.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.415
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.670

D6504-S14-S06

$123.11

Attribute: D6504-S14-S06 (S14FMS-S06MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	31.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.479
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.113

D6504-S14-S06-SS

$110.61

Attribute: D6504-S14-S06-SS (S14FMS-S06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	31.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.479
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.113

D6504-S14-S08

$73.14

Attribute: D6504-S14-S08 (S14FMS-S08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	31.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.490
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.113

D6504-S14-S08-SS

$156.40

Attribute: D6504-S14-S08-SS (S14FMS-S08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	31.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.490
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.113

D6504-S14-S10

$57.95

Attribute: D6504-S14-S10 (S14FMS-S10MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	30.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.512
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.158

D6504-S14-S10-SS

$156.61

Attribute: D6504-S14-S10-SS (S14FMS-S10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	30.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.512
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.158

D6504-S14-S12

$58.51

Attribute: D6504-S14-S12 (S14FMS-S12MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	30.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.523
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.158

D6504-S14-S12-SS

$186.52

Attribute: D6504-S14-S12-SS (S14FMS-S12MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	30.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.523
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.158

D6504-S16-S06

$40.37

Attribute: D6504-S16-S06 (S16FMS-S06MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.521
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.609

D6504-S16-S06-SS

$183.83

Attribute: D6504-S16-S06-SS (S16FMS-S06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.521
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.609

D6504-S16-S08

$27.57

Attribute: D6504-S16-S08 (S16FMS-S08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.534
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.609

D6504-S16-S08-SS

$187.46

Attribute: D6504-S16-S08-SS (S16FMS-S08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	31.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.534
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.609

D6504-S16-S10

$29.49

Attribute: D6504-S16-S10 (S16FMS-S10MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	31.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.584
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.664

D6504-S16-S10-SS

$199.97

Attribute: D6504-S16-S10-SS (S16FMS-S10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	31.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.584
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.664

D6504-S16-S12

$28.93

Attribute: D6504-S16-S12 (S16FMS-S12MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	31.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.595
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.664

D6504-S16-S12-SS

$192.16

Attribute: D6504-S16-S12-SS (S16FMS-S12MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	31.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.595
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.664

D6504-S16-S14

$68.53

Attribute: D6504-S16-S14 (S16FMS-S14MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	51.5
OVERALL LENGTH L2 (MM)	32.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.655
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.828

D6504-S16-S14-SS

$200.44

Attribute: D6504-S16-S14-SS (S16FMS-S14MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	51.5
OVERALL LENGTH L2 (MM)	32.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.655
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.828

D6504-S20-S06

$87.22

Attribute: D6504-S20-S06 (S20FMS-S06MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.799
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.994

D6504-S20-S06-SS

$206.32

Attribute: D6504-S20-S06-SS (S20FMS-S06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.799
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.994

D6504-S20-S08

$50.35

Attribute: D6504-S20-S08 (S20FMS-S08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.813
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.994

D6504-S20-S08-SS

$212.17

Attribute: D6504-S20-S08-SS (S20FMS-S08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.813
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.994

D6504-S20-S10

$41.78

Attribute: D6504-S20-S10 (S20FMS-S10MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	51.5
OVERALL LENGTH L2 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.842
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.073

D6504-S20-S10-SS

$226.29

Attribute: D6504-S20-S10-SS (S20FMS-S10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	51.5
OVERALL LENGTH L2 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.842
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.073

D6504-S20-S12

$36.23

Attribute: D6504-S20-S12 (S20FMS-S12MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	51.5
OVERALL LENGTH L2 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.858
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.073

D6504-S20-S12-SS

$231.59

Attribute: D6504-S20-S12-SS (S20FMS-S12MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	51.5
OVERALL LENGTH L2 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.858
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.073

D6504-S20-S14

$93.20

Attribute: D6504-S20-S14 (S20FMS-S14MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	54.5
OVERALL LENGTH L2 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.950
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.310

D6504-S20-S14-SS

$258.46

Attribute: D6504-S20-S14-SS (S20FMS-S14MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	54.5
OVERALL LENGTH L2 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.950
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.310

D6504-S20-S16

$35.07

Attribute: D6504-S20-S16 (S20FMS-S16MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	54.5
OVERALL LENGTH L2 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.971
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.310

D6504-S20-S16-SS

$273.07

Attribute: D6504-S20-S16-SS (S20FMS-S16MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	54.5
OVERALL LENGTH L2 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.971
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.310

D6504-S25-S06-SS

$301.65

Attribute: D6504-S25-S06-SS (S25FMS-S06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	52.5
OVERALL LENGTH L2 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.365
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.779

D6504-S25-S08

$88.12

Attribute: D6504-S25-S08 (S25FMS-S08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	52.5
OVERALL LENGTH L2 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.379
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.779

D6504-S25-S08-SS

$329.99

Attribute: D6504-S25-S08-SS (S25FMS-S08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	52.5
OVERALL LENGTH L2 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.379
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.779

D6504-S25-S10

$81.71

Attribute: D6504-S25-S10 (S25FMS-S10MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.407
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.908

D6504-S25-S10-SS

$338.90

Attribute: D6504-S25-S10-SS (S25FMS-S10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.407
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.908

D6504-S25-S12

$64.47

Attribute: D6504-S25-S12 (S25FMS-S12MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.423
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.908

D6504-S25-S12-SS

$337.66

Attribute: D6504-S25-S12-SS (S25FMS-S12MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.423
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.908

D6504-S25-S14

$86.33

Attribute: D6504-S25-S14 (S25FMS-S14MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	39.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.481
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.296

D6504-S25-S14-SS

$364.30

Attribute: D6504-S25-S14-SS (S25FMS-S14MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	39.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.481
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.296

D6504-S25-S16

$63.08

Attribute: D6504-S25-S16 (S25FMS-S16MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.516
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.296

D6504-S25-S16-SS

$419.55

Attribute: D6504-S25-S16-SS (S25FMS-S16MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.516
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.296

D6504-S25-S20

$72.03

Attribute: D6504-S25-S20 (S25FMS-S20MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	60.5
OVERALL LENGTH L2 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.670
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.812

D6504-S25-S20-SS

$419.98

Attribute: D6504-S25-S20-SS (S25FMS-S20MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	60.5
OVERALL LENGTH L2 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.670
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.812

D6504-S30-S06-SS

$481.00

Attribute: D6504-S30-S06-SS (S30FMS-S06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.752
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.620

D6504-S30-S08

$83.85

Attribute: D6504-S30-S08 (S30FMS-S08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.753
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.620

D6504-S30-S08-SS

$498.16

Attribute: D6504-S30-S08-SS (S30FMS-S08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.753
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.620

D6504-S30-S10

$120.77

Attribute: D6504-S30-S10 (S30FMS-S10MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	57.5
OVERALL LENGTH L2 (MM)	43.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.794
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.772

D6504-S30-S10-SS

$504.99

Attribute: D6504-S30-S10-SS (S30FMS-S10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	57.5
OVERALL LENGTH L2 (MM)	43.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.794
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.772

D6504-S30-S12

$71.69

Attribute: D6504-S30-S12 (S30FMS-S12MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	57.5
OVERALL LENGTH L2 (MM)	43.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.809
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.772

D6504-S30-S12-SS

$520.05

Attribute: D6504-S30-S12-SS (S30FMS-S12MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	57.5
OVERALL LENGTH L2 (MM)	43.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.809
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.772

D6504-S30-S14

$122.72

Attribute: D6504-S30-S14 (S30FMS-S14MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	60.5
OVERALL LENGTH L2 (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.866
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.230

D6504-S30-S14-SS

$552.35

Attribute: D6504-S30-S14-SS (S30FMS-S14MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	60.5
OVERALL LENGTH L2 (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.866
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.230

D6504-S30-S16

$86.80

Attribute: D6504-S30-S16 (S30FMS-S16MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	60.5
OVERALL LENGTH L2 (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.900
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.230

D6504-S30-S16-SS

$562.72

Attribute: D6504-S30-S16-SS (S30FMS-S16MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	60.5
OVERALL LENGTH L2 (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.900
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.230

D6504-S30-S20

$89.31

Attribute: D6504-S30-S20 (S30FMS-S20MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	64.5
OVERALL LENGTH L2 (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.031
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.840

D6504-S30-S20-SS

$582.57

Attribute: D6504-S30-S20-SS (S30FMS-S20MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	64.5
OVERALL LENGTH L2 (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.031
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.840

D6504-S30-S25

$96.44

Attribute: D6504-S30-S25 (S30FMS-S25MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	46.0
OVERALL LENGTH L1 (MM)	67.5
OVERALL LENGTH L2 (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.350
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.298

D6504-S30-S25-SS

$630.06

Attribute: D6504-S30-S25-SS (S30FMS-S25MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	46.0
OVERALL LENGTH L1 (MM)	67.5
OVERALL LENGTH L2 (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.350
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.298

D6504-S38-S06-SS

$641.32

Attribute: D6504-S38-S06-SS (S38FMS-S06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	58.5
OVERALL LENGTH L2 (MM)	47.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.624
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.852

D6504-S38-S08

$105.27

Attribute: D6504-S38-S08 (S38FMS-S08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	58.5
OVERALL LENGTH L2 (MM)	47.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.637
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.852

D6504-S38-S08-SS

$657.62

Attribute: D6504-S38-S08-SS (S38FMS-S08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	58.5
OVERALL LENGTH L2 (MM)	47.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.637
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.852

D6504-S38-S10

$224.75

Attribute: D6504-S38-S10 (S38FMS-S10MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	59.5
OVERALL LENGTH L2 (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.666
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.071

D6504-S38-S10-SS

$688.78

Attribute: D6504-S38-S10-SS (S38FMS-S10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	59.5
OVERALL LENGTH L2 (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.666
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.071

D6504-S38-S12

$126.96

Attribute: D6504-S38-S12 (S38FMS-S12MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	59.5
OVERALL LENGTH L2 (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.681
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.071

D6504-S38-S12-SS

$697.27

Attribute: D6504-S38-S12-SS (S38FMS-S12MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	59.5
OVERALL LENGTH L2 (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.681
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.071

D6504-S38-S14

$191.64

Attribute: D6504-S38-S14 (S38FMS-S14MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	48.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.739
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.731

D6504-S38-S14-SS

$719.63

Attribute: D6504-S38-S14-SS (S38FMS-S14MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	48.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.739
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.731

D6504-S38-S16

$142.99

Attribute: D6504-S38-S16 (S38FMS-S16MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.772
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.731

D6504-S38-S16-SS

$729.95

Attribute: D6504-S38-S16-SS (S38FMS-S16MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.772
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.731

D6504-S38-S20

$129.73

Attribute: D6504-S38-S20 (S38FMS-S20MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	66.5
OVERALL LENGTH L2 (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.904
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.609

D6504-S38-S20-SS

$706.19

Attribute: D6504-S38-S20-SS (S38FMS-S20MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	66.5
OVERALL LENGTH L2 (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.904
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.609

D6504-S38-S25

$221.01

Attribute: D6504-S38-S25 (S38FMS-S25MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	46.0
OVERALL LENGTH L1 (MM)	69.5
OVERALL LENGTH L2 (MM)	48.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	3.197
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.268

D6504-S38-S25-SS

$821.32

Attribute: D6504-S38-S25-SS (S38FMS-S25MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	46.0
OVERALL LENGTH L1 (MM)	69.5
OVERALL LENGTH L2 (MM)	48.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	3.197
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.268

D6504-S38-S30

$229.58

Attribute: D6504-S38-S30 (S38FMS-S30MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	72.7
OVERALL LENGTH L2 (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	3.383
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.982

D6504-S38-S30-SS

$875.38

Attribute: D6504-S38-S30-SS (S38FMS-S30MBT ...)

Stock Status: True

CONNECTION 1 TYPE	FEMALE METRIC SWIVEL 24DEG DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	72.7
OVERALL LENGTH L2 (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	3.383
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.982

Description

Description

Variations (167)

D6504-L08-L06

D6504-L08-L06-SS

D6504-L10-L06

D6504-L10-L06-SS

D6504-L10-L08

D6504-L10-L08-SS

D6504-L12-L06

D6504-L12-L06-SS

D6504-L12-L08

D6504-L12-L08-SS

D6504-L12-L10

D6504-L12-L10-SS

D6504-L15-L06

D6504-L15-L06-SS

D6504-L15-L08

D6504-L15-L08-SS

D6504-L15-L10

D6504-L15-L10-SS

D6504-L15-L12

D6504-L15-L12-SS

D6504-L18-L06

D6504-L18-L06-SS

D6504-L18-L08

D6504-L18-L08-SS

D6504-L18-L10

D6504-L18-L10-SS

D6504-L18-L12

D6504-L18-L12-SS

D6504-L18-L15

D6504-L18-L15-SS

D6504-L22-L06

D6504-L22-L06-SS

D6504-L22-L08

D6504-L22-L08-SS

D6504-L22-L10

D6504-L22-L10-SS

D6504-L22-L12

D6504-L22-L12-SS

D6504-L22-L15

D6504-L22-L15-SS

D6504-L22-L18

D6504-L22-L18-SS

D6504-L28-L06-SS

D6504-L28-L08

D6504-L28-L08-SS

D6504-L28-L10

D6504-L28-L10-SS

D6504-L28-L12

D6504-L28-L12-SS

D6504-L28-L15

D6504-L28-L15-SS

D6504-L28-L18

D6504-L28-L18-SS

D6504-L28-L22

D6504-L28-L22-SS

D6504-L35-L06-SS

D6504-L35-L08-SS

D6504-L35-L10-SS

D6504-L35-L12-SS

D6504-L35-L15

D6504-L35-L15-SS

D6504-L35-L18

D6504-L35-L18-SS

D6504-L35-L22

D6504-L35-L22-SS

D6504-L35-L28

D6504-L35-L28-SS

D6504-L42-L06-SS

D6504-L42-L08-SS

D6504-L42-L10-SS

D6504-L42-L12-SS

D6504-L42-L15-SS

D6504-L42-L18

D6504-L42-L18-SS

D6504-L42-L22

D6504-L42-L22-SS
