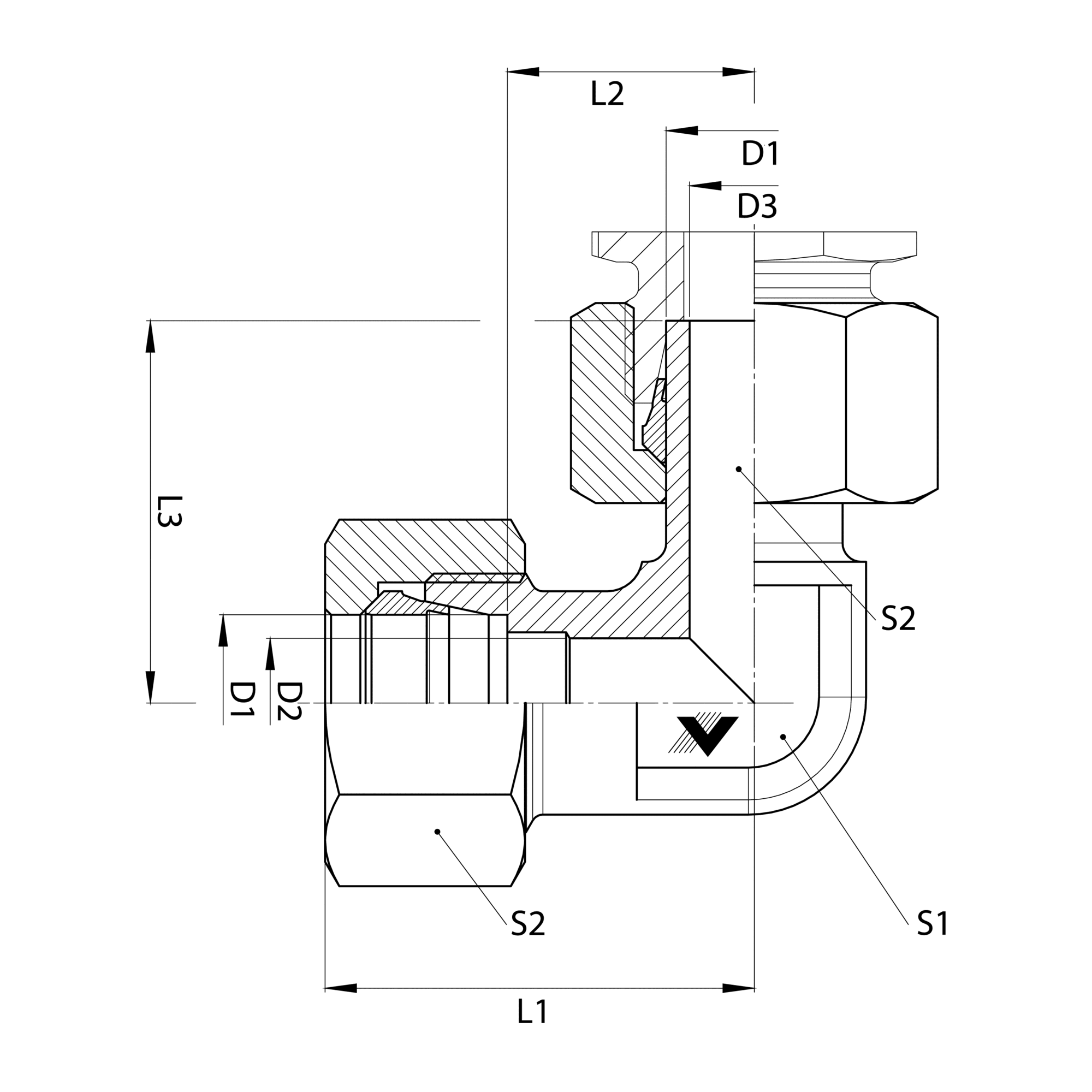

D6500-SP

D6500-SP-L06-L06

$22.78

Attribute: D6500-SP-L06-L06 (L06MBT-L06FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	27.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH M1 (MM)	12.0
CENTERLINE LENGTH M2 (MM)	26.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.135
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.959

D6500-SP-L06-L06-SS

$100.66

Attribute: D6500-SP-L06-L06-SS (L06MBT-L06F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	27.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH M1 (MM)	12.0
CENTERLINE LENGTH M2 (MM)	26.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.135
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.959

D6500-SP-L08-L08

$21.59

Attribute: D6500-SP-L08-L08 (L08MBT-L08FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH M1 (MM)	14.0
CENTERLINE LENGTH M2 (MM)	28.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.179
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.420

D6500-SP-L08-L08-SS

$103.27

Attribute: D6500-SP-L08-L08-SS (L08MBT-L08F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	29.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH M1 (MM)	14.0
CENTERLINE LENGTH M2 (MM)	28.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.179
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.420

D6500-SP-L10-L10

$22.28

Attribute: D6500-SP-L10-L10 (L10MBT-L10FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	22.0
OVERALL LENGTH M1 (MM)	15.0
CENTERLINE LENGTH M2 (MM)	29.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.232
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.786

D6500-SP-L10-L10-SS

$135.06

Attribute: D6500-SP-L10-L10-SS (L10MBT-L10F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	22.0
OVERALL LENGTH M1 (MM)	15.0
CENTERLINE LENGTH M2 (MM)	29.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.232
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.786

D6500-SP-L12-L12

$27.82

Attribute: D6500-SP-L12-L12 (L12MBT-L12FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	30.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.305
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.367

D6500-SP-L12-L12-SS

$168.51

Attribute: D6500-SP-L12-L12-SS (L12MBT-L12F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	30.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.305
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.367

D6500-SP-L15-L15

$32.26

Attribute: D6500-SP-L15-L15 (L15MBT-L15FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	36.5
OVERALL LENGTH L2 (MM)	28.0
OVERALL LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	33.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.513
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.831

D6500-SP-L15-L15-SS

$209.22

Attribute: D6500-SP-L15-L15-SS (L15MBT-L15F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	36.5
OVERALL LENGTH L2 (MM)	28.0
OVERALL LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	33.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.513
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.831

D6500-SP-L18-L18

$46.60

Attribute: D6500-SP-L18-L18 (L18MBT-L18FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH M1 (MM)	23.5
CENTERLINE LENGTH M2 (MM)	36.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.733
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.737

D6500-SP-L18-L18-SS

$299.95

Attribute: D6500-SP-L18-L18-SS (L18MBT-L18F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH M1 (MM)	23.5
CENTERLINE LENGTH M2 (MM)	36.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.733
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.737

D6500-SP-L22-L22

$64.86

Attribute: D6500-SP-L22-L22 (L22MBT-L22FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH M1 (MM)	27.5
CENTERLINE LENGTH M2 (MM)	39.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.002
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.951

D6500-SP-L22-L22-SS

$382.04

Attribute: D6500-SP-L22-L22-SS (L22MBT-L22F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	45.5
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH M1 (MM)	27.5
CENTERLINE LENGTH M2 (MM)	39.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.002
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.951

D6500-SP-L28-L28

$108.64

Attribute: D6500-SP-L28-L28 (L28MBT-L28FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH M1 (MM)	30.5
CENTERLINE LENGTH M2 (MM)	42.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.412
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.868

D6500-SP-L28-L28-SS

$565.12

Attribute: D6500-SP-L28-L28-SS (L28MBT-L28F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH M1 (MM)	30.5
CENTERLINE LENGTH M2 (MM)	42.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.412
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.868

D6500-SP-L35-L35

$244.99

Attribute: D6500-SP-L35-L35 (L35MBT-L35FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	45.0
OVERALL LENGTH M1 (MM)	34.5
CENTERLINE LENGTH M2 (MM)	51.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.174
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.140

D6500-SP-L35-L35-SS

$860.95

Attribute: D6500-SP-L35-L35-SS (L35MBT-L35F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	45.0
OVERALL LENGTH M1 (MM)	34.5
CENTERLINE LENGTH M2 (MM)	51.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.174
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.140

D6500-SP-L42-L42

$272.42

Attribute: D6500-SP-L42-L42 (L42MBT-L42FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
OVERALL LENGTH L1 (MM)	63.0
OVERALL LENGTH L2 (MM)	51.0
OVERALL LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	56.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	3.214
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	29.284

D6500-SP-L42-L42-SS

$1,239.98

Attribute: D6500-SP-L42-L42-SS (L42MBT-L42F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
OVERALL LENGTH L1 (MM)	63.0
OVERALL LENGTH L2 (MM)	51.0
OVERALL LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	56.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	3.214
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	29.284

D6500-SP-S06-S06

$23.93

Attribute: D6500-SP-S06-S06 (S06MBT-S06FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH M1 (MM)	16.0
CENTERLINE LENGTH M2 (MM)	27.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.221
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.475

D6500-SP-S06-S06-SS

$113.26

Attribute: D6500-SP-S06-S06-SS (S06MBT-S06F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH M1 (MM)	16.0
CENTERLINE LENGTH M2 (MM)	27.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.221
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.475

D6500-SP-S08-S08

$27.01

Attribute: D6500-SP-S08-S08 (S08MBT-S08FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	28.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.290
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.804

D6500-SP-S08-S08-SS

$131.26

Attribute: D6500-SP-S08-S08-SS (S08MBT-S08F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	28.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.290
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.804

D6500-SP-S10-S10

$31.36

Attribute: D6500-SP-S10-S10 (S10MBT-S10FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH M1 (MM)	17.5
CENTERLINE LENGTH M2 (MM)	30.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.383
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.507

D6500-SP-S10-S10-SS

$154.51

Attribute: D6500-SP-S10-S10-SS (S10MBT-S10F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH M1 (MM)	17.5
CENTERLINE LENGTH M2 (MM)	30.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.383
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.507

D6500-SP-S12-S12

$32.73

Attribute: D6500-SP-S12-S12 (S12MBT-S12FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH M1 (MM)	21.5
CENTERLINE LENGTH M2 (MM)	31.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.483
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.185

D6500-SP-S12-S12-SS

$182.94

Attribute: D6500-SP-S12-S12-SS (S12MBT-S12F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH M1 (MM)	21.5
CENTERLINE LENGTH M2 (MM)	31.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.483
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.185

D6500-SP-S14-S14

$49.59

Attribute: D6500-SP-S14-S14 (S14MBT-S14FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	35.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.658
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.319

D6500-SP-S14-S14-SS

$228.17

Attribute: D6500-SP-S14-S14-SS (S14MBT-S14F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	35.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.658
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.319

D6500-SP-S16-S16

$50.39

Attribute: D6500-SP-S16-S16 (S16MBT-S16FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH M1 (MM)	24.5
CENTERLINE LENGTH M2 (MM)	37.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.833
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.521

D6500-SP-S16-S16-SS

$294.61

Attribute: D6500-SP-S16-S16-SS (S16MBT-S16F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH M1 (MM)	24.5
CENTERLINE LENGTH M2 (MM)	37.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.833
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.521

D6500-SP-S20-S20

$72.98

Attribute: D6500-SP-S20-S20 (S20MBT-S20FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH M1 (MM)	26.5
CENTERLINE LENGTH M2 (MM)	45.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.328
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.273

D6500-SP-S20-S20-SS

$400.69

Attribute: D6500-SP-S20-S20-SS (S20MBT-S20F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH M1 (MM)	26.5
CENTERLINE LENGTH M2 (MM)	45.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.328
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.273

D6500-SP-S25-S25

$126.57

Attribute: D6500-SP-S25-S25 (S25MBT-S25FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	42.0
OVERALL LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	50.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.420
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.093

D6500-SP-S25-S25-SS

$614.65

Attribute: D6500-SP-S25-S25-SS (S25MBT-S25F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	42.0
OVERALL LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	50.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.420
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.093

D6500-SP-S30-S30

$200.00

Attribute: D6500-SP-S30-S30 (S30MBT-S30FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	63.2
OVERALL LENGTH L2 (MM)	49.0
OVERALL LENGTH M1 (MM)	35.5
CENTERLINE LENGTH M2 (MM)	55.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	3.120
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.676

D6500-SP-S30-S30-SS

$876.88

Attribute: D6500-SP-S30-S30-SS (S30MBT-S30F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	63.2
OVERALL LENGTH L2 (MM)	49.0
OVERALL LENGTH M1 (MM)	35.5
CENTERLINE LENGTH M2 (MM)	55.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	3.120
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.676

D6500-SP-S38-S38

$292.40

Attribute: D6500-SP-S38-S38 (S38MBT-S38FMSP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
OVERALL LENGTH L1 (MM)	72.5
OVERALL LENGTH L2 (MM)	57.0
OVERALL LENGTH M1 (MM)	41.0
CENTERLINE LENGTH M2 (MM)	63.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	4.773
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	35.090

D6500-SP-S38-S38-SS

$1,288.20

Attribute: D6500-SP-S38-S38-SS (S38MBT-S38F...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE METRIC STANDPIPE DIN24D
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
OVERALL LENGTH L1 (MM)	72.5
OVERALL LENGTH L2 (MM)	57.0
OVERALL LENGTH M1 (MM)	41.0
CENTERLINE LENGTH M2 (MM)	63.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	4.773
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	35.090

ID	10165594
Category	DIN Metric Tube Fittings

Description

Description

Variations (40)

D6500-SP-L06-L06

D6500-SP-L06-L06-SS

D6500-SP-L08-L08

D6500-SP-L08-L08-SS

D6500-SP-L10-L10

D6500-SP-L10-L10-SS

D6500-SP-L12-L12

D6500-SP-L12-L12-SS

D6500-SP-L15-L15

D6500-SP-L15-L15-SS

D6500-SP-L18-L18

D6500-SP-L18-L18-SS

D6500-SP-L22-L22

D6500-SP-L22-L22-SS

D6500-SP-L28-L28

D6500-SP-L28-L28-SS

D6500-SP-L35-L35

D6500-SP-L35-L35-SS

D6500-SP-L42-L42

D6500-SP-L42-L42-SS

D6500-SP-S06-S06

D6500-SP-S06-S06-SS

D6500-SP-S08-S08

D6500-SP-S08-S08-SS

D6500-SP-S10-S10

D6500-SP-S10-S10-SS

D6500-SP-S12-S12

D6500-SP-S12-S12-SS

D6500-SP-S14-S14

D6500-SP-S14-S14-SS

D6500-SP-S16-S16

D6500-SP-S16-S16-SS

D6500-SP-S20-S20

D6500-SP-S20-S20-SS

D6500-SP-S25-S25

D6500-SP-S25-S25-SS

D6500-SP-S30-S30

D6500-SP-S30-S30-SS

D6500-SP-S38-S38

D6500-SP-S38-S38-SS

General Attributes

PDF Documents
