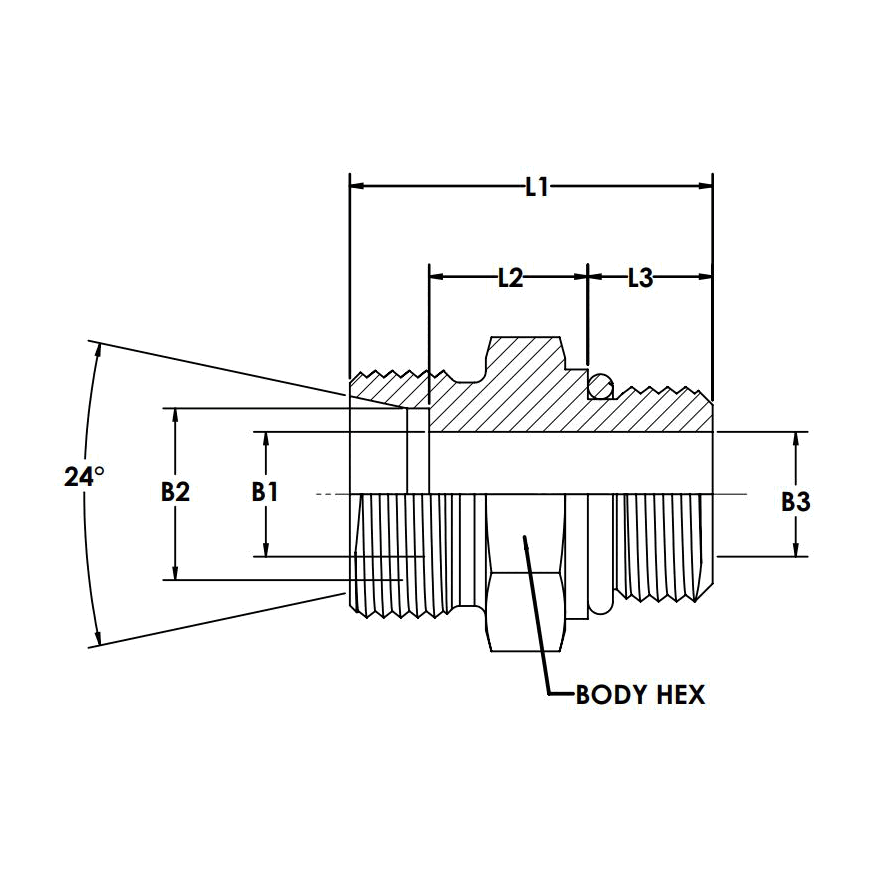

D6400-O-X

D6400-L06-06-O-X

$35.03

Attribute: D6400-L06-06-O-X (L06MBT-06MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L08-04-O-SS-X

$113.59

Attribute: D6400-L08-04-O-SS-X (L08MBT-04MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/16-20 UNF
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	26.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.055
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.459

D6400-L08-04-O-X

$42.11

Attribute: D6400-L08-04-O-X (L08MBT-04MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/16-20 UNF
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	26.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.055
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.459

D6400-L08-06-O-X

$41.52

Attribute: D6400-L08-06-O-X (L08MBT-06MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L10-04-O-SS-X

$117.09

Attribute: D6400-L10-04-O-SS-X (L10MBT-04MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/16-20 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	27.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.057
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.476

D6400-L10-04-O-X

$43.31

Attribute: D6400-L10-04-O-X (L10MBT-04MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/16-20 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	27.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.057
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.476

D6400-L10-06-O-X

$45.44

Attribute: D6400-L10-06-O-X (L10MBT-06MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L10-08-O-X

$49.12

Attribute: D6400-L10-08-O-X (L10MBT-08MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L12-06-O-SS-X

$116.33

Attribute: D6400-L12-06-O-SS-X (L12MBT-06MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.617

D6400-L12-06-O-X

$44.04

Attribute: D6400-L12-06-O-X (L12MBT-06MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	11.0
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.617

D6400-L12-08-O-SS-X

$118.38

Attribute: D6400-L12-08-O-SS-X (L12MBT-08MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.126
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.090

D6400-L12-08-O-X

$43.61

Attribute: D6400-L12-08-O-X (L12MBT-08MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.126
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.090

D6400-L12-10-O-SS-X

$126.87

Attribute: D6400-L12-10-O-SS-X (L12MBT-10MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	14.3
OVERALL LENGTH L3 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D6400-L12-10-O-X

$60.72

Attribute: D6400-L12-10-O-X (L12MBT-10MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	14.3
OVERALL LENGTH L3 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D6400-L15-08-O-SS-X

$118.76

Attribute: D6400-L15-08-O-SS-X (L15MBT-08MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.125

D6400-L15-08-O-X

$54.19

Attribute: D6400-L15-08-O-X (L15MBT-08MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	14.0
OVERALL LENGTH L3 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.125

D6400-L15-10-O-SS-X

$128.32

Attribute: D6400-L15-10-O-SS-X (L15MBT-10MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	15.3
OVERALL LENGTH L3 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.200
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.557

D6400-L15-10-O-X

$63.41

Attribute: D6400-L15-10-O-X (L15MBT-10MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	15.3
OVERALL LENGTH L3 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.200
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.557

D6400-L18-08-O-SS-X

$136.98

Attribute: D6400-L18-08-O-SS-X (L18MBT-08MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.468

D6400-L18-08-O-X

$63.20

Attribute: D6400-L18-08-O-X (L18MBT-08MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.468

D6400-L18-10-O-SS-X

$136.89

Attribute: D6400-L18-10-O-SS-X (L18MBT-10MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.7
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.544

D6400-L18-10-O-X

$66.53

Attribute: D6400-L18-10-O-X (L18MBT-10MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.7
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.544

D6400-L18-12-O-X

$101.05

Attribute: D6400-L18-12-O-X (L18MBT-12MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L22-08-O-X

$116.71

Attribute: D6400-L22-08-O-X (L22MBT-08MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L22-10-O-SS-X

$215.92

Attribute: D6400-L22-10-O-SS-X (L22MBT-10MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	16.8
OVERALL LENGTH L3 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.258
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.312

D6400-L22-10-O-X

$85.89

Attribute: D6400-L22-10-O-X (L22MBT-10MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	16.8
OVERALL LENGTH L3 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.258
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.312

D6400-L22-12-O-SS-X

$205.60

Attribute: D6400-L22-12-O-SS-X (L22MBT-12MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.273
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.437

D6400-L22-12-O-X

$91.70

Attribute: D6400-L22-12-O-X (L22MBT-12MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.273
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.437

D6400-L22-16-O-SS-X

$276.38

Attribute: D6400-L22-16-O-SS-X (L22MBT-16MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/16-12 UN
CONNECTION 2 THREAD ID (MM)	19.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.445
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.103

D6400-L22-16-O-X

$77.11

Attribute: D6400-L22-16-O-X (L22MBT-16MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/16-12 UN
CONNECTION 2 THREAD ID (MM)	19.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.445
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.103

D6400-L28-12-O-SS-X

$295.38

Attribute: D6400-L28-12-O-SS-X (L28MBT-12MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.405
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.103

D6400-L28-12-O-X

$136.30

Attribute: D6400-L28-12-O-X (L28MBT-12MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.405
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.103

D6400-L28-16-O-X

$114.58

Attribute: D6400-L28-16-O-X (L28MBT-16MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/16-12 UN
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L35-20-O-SS-X

$686.73

Attribute: D6400-L35-20-O-SS-X (L35MBT-20MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/8-12 UN
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.630
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.560

D6400-L42-20-O-SS-X

$969.78

Attribute: D6400-L42-20-O-SS-X (L42MBT-20MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/8-12 UN
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.828
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.307

D6400-L42-24-O-X

$194.41

Attribute: D6400-L42-24-O-X (L42MBT-24MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-7/8-12 UN
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-S08-04-O-SS-X

$98.18

Attribute: D6400-S08-04-O-SS-X (S08MBT-04MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/16-20 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.079
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.547

D6400-S08-04-O-X

$64.73

Attribute: D6400-S08-04-O-X (S08MBT-04MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/16-20 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	15.0
OVERALL LENGTH L3 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.079
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.547

D6400-S08-05-O-X

$90.83

Attribute: D6400-S08-05-O-X (S08MBT-05MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1/2-20 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-S10-06-O-SS-X

$115.30

Attribute: D6400-S10-06-O-SS-X (S10MBT-06MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.108
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D6400-S10-06-O-X

$46.85

Attribute: D6400-S10-06-O-X (S10MBT-06MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.108
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D6400-S12-06-O-SS-X

$121.57

Attribute: D6400-S12-06-O-SS-X (S12MBT-06MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.130
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.945

D6400-S12-06-O-X

$62.47

Attribute: D6400-S12-06-O-X (S12MBT-06MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.130
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.945

D6400-S12-08-O-SS-X

$125.33

Attribute: D6400-S12-08-O-SS-X (S12MBT-08MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.183
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.265

D6400-S12-08-O-X

$43.45

Attribute: D6400-S12-08-O-X (S12MBT-08MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.183
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.265

D6400-S16-08-O-SS-X

$119.91

Attribute: D6400-S16-08-O-SS-X (S16MBT-08MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	15.5
OVERALL LENGTH L3 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.230

D6400-S16-10-O-SS-X

$142.70

Attribute: D6400-S16-10-O-SS-X (S16MBT-10MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	18.8
OVERALL LENGTH L3 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.240
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.779

D6400-S16-10-O-X

$74.16

Attribute: D6400-S16-10-O-X (S16MBT-10MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	18.8
OVERALL LENGTH L3 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.240
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.779

D6400-S16-12-O-X

$136.38

Attribute: D6400-S16-12-O-X (S16MBT-12MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-S20-08-O-SS-X

$193.56

Attribute: D6400-S20-08-O-SS-X (S20MBT-08MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.359
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.625

D6400-S20-10-O-SS-X

$202.60

Attribute: D6400-S20-10-O-SS-X (S20MBT-10MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	20.8
OVERALL LENGTH L3 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.363
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.749

D6400-S20-12-O-SS-X

$194.58

Attribute: D6400-S20-12-O-SS-X (S20MBT-12MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.381
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.874

D6400-S20-12-O-X

$91.66

Attribute: D6400-S20-12-O-X (S20MBT-12MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	20.5
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.381
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.874

D6400-S20-16-O-X

$194.32

Attribute: D6400-S20-16-O-X (S20MBT-16MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/16-12 UN
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-S25-12-O-SS-X

$303.22

Attribute: D6400-S25-12-O-SS-X (S25MBT-12MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	36.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.535
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.954

D6400-S25-12-O-X

$133.56

Attribute: D6400-S25-12-O-X (S25MBT-12MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	36.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.535
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.954

D6400-S25-16-O-SS-X

$286.80

Attribute: D6400-S25-16-O-SS-X (S25MBT-16MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/16-12 UN
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.639
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.129

D6400-S25-16-O-X

$123.11

Attribute: D6400-S25-16-O-X (S25MBT-16MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/16-12 UN
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.639
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.129

D6400-S30-16-O-X

$160.06

Attribute: D6400-S30-16-O-X (S30MBT-16MORB ...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/16-12 UN
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.826
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.715

D6400-S30-20-O-SS-X

$815.09

Attribute: D6400-S30-20-O-SS-X (S30MBT-20MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/8-12 UN
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	23.5
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.945
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.933

D6400-S38-20-O-SS-X

$901.75

Attribute: D6400-S38-20-O-SS-X (S38MBT-20MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/8-12 UN
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.348
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.522

D6400-S38-24-O-SS-X

$324.18

Attribute: D6400-S38-24-O-SS-X (S38MBT-24MO...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-7/8-12 UN
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
CALIFORNIA RESIDENTS	PROP-65 WARNING

Description

Description

Variations (62)

D6400-L06-06-O-X

D6400-L08-04-O-SS-X

D6400-L08-04-O-X

D6400-L08-06-O-X

D6400-L10-04-O-SS-X

D6400-L10-04-O-X

D6400-L10-06-O-X

D6400-L10-08-O-X

D6400-L12-06-O-SS-X

D6400-L12-06-O-X

D6400-L12-08-O-SS-X

D6400-L12-08-O-X

D6400-L12-10-O-SS-X

D6400-L12-10-O-X

D6400-L15-08-O-SS-X

D6400-L15-08-O-X

D6400-L15-10-O-SS-X

D6400-L15-10-O-X

D6400-L18-08-O-SS-X

D6400-L18-08-O-X

D6400-L18-10-O-SS-X

D6400-L18-10-O-X

D6400-L18-12-O-X

D6400-L22-08-O-X

D6400-L22-10-O-SS-X

D6400-L22-10-O-X

D6400-L22-12-O-SS-X

D6400-L22-12-O-X

D6400-L22-16-O-SS-X

D6400-L22-16-O-X

D6400-L28-12-O-SS-X

D6400-L28-12-O-X

D6400-L28-16-O-X

D6400-L35-20-O-SS-X

D6400-L42-20-O-SS-X

D6400-L42-24-O-X

D6400-S08-04-O-SS-X

D6400-S08-04-O-X

D6400-S08-05-O-X

D6400-S10-06-O-SS-X

D6400-S10-06-O-X

D6400-S12-06-O-SS-X

D6400-S12-06-O-X

D6400-S12-08-O-SS-X

D6400-S12-08-O-X

D6400-S16-08-O-SS-X

D6400-S16-10-O-SS-X

D6400-S16-10-O-X

D6400-S16-12-O-X

D6400-S20-08-O-SS-X

D6400-S20-10-O-SS-X

D6400-S20-12-O-SS-X

D6400-S20-12-O-X

D6400-S20-16-O-X

D6400-S25-12-O-SS-X

D6400-S25-12-O-X

D6400-S25-16-O-SS-X

D6400-S25-16-O-X

D6400-S30-16-O-X

D6400-S30-20-O-SS-X

D6400-S38-20-O-SS-X

D6400-S38-24-O-SS-X

General Attributes

PDF Documents
