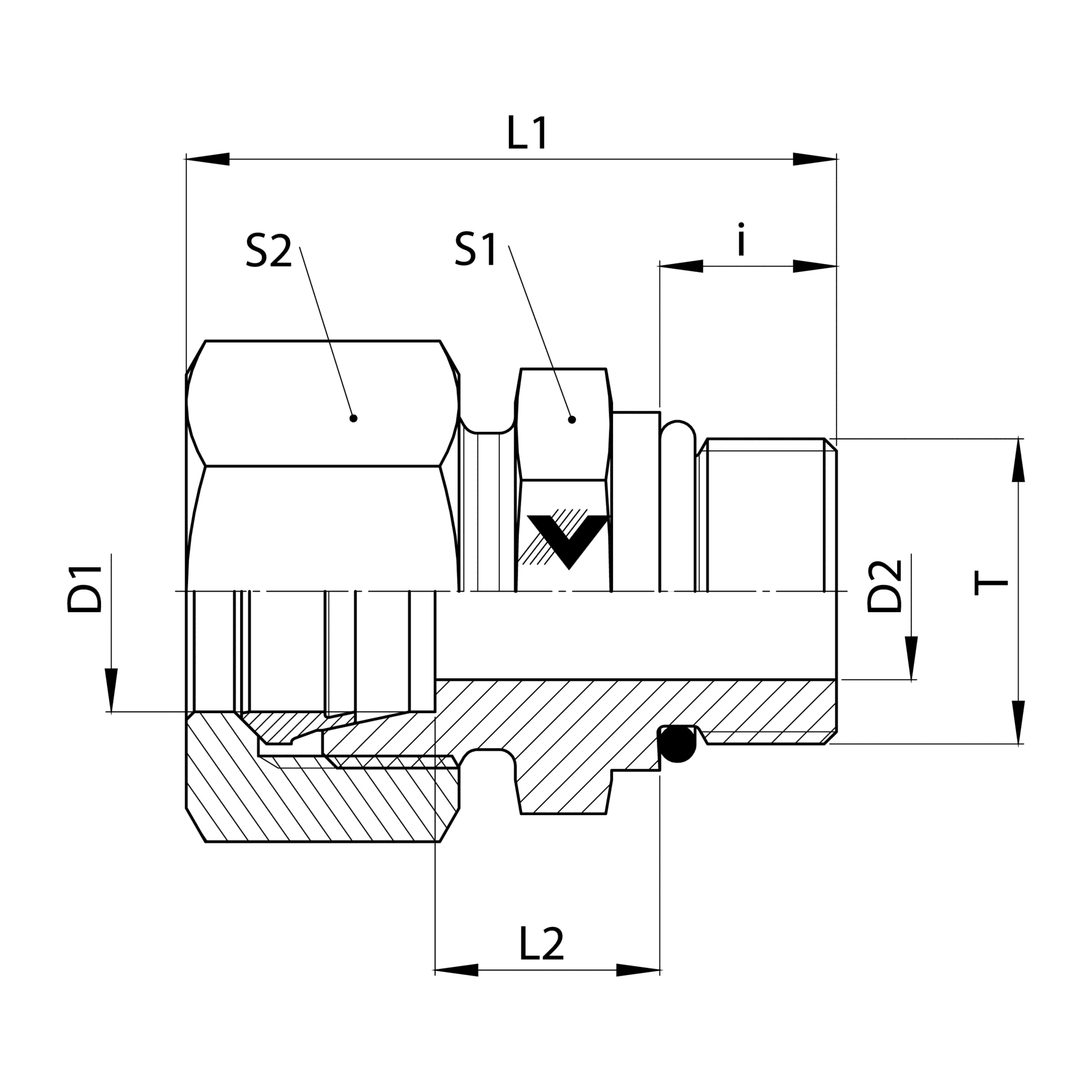

D6400-O

D6400-L06-06-O

$39.90

Attribute: D6400-L06-06-O (L06MBT-06MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L08-04-O

$45.44

Attribute: D6400-L08-04-O (L08MBT-04MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/16-20 UNF
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	10.0
OVERALL LENGTH L4 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.097
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.600

D6400-L08-04-O-SS

$135.31

Attribute: D6400-L08-04-O-SS (L08MBT-04MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/16-20 UNF
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	10.0
OVERALL LENGTH L4 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.097
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.600

D6400-L08-06-O

$44.81

Attribute: D6400-L08-06-O (L08MBT-06MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L08-06-O-SS

$135.27

Attribute: D6400-L08-06-O-SS (L08MBT-06MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L10-04-O

$46.13

Attribute: D6400-L10-04-O (L10MBT-04MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/16-20 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	27.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.108
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.771

D6400-L10-04-O-SS

$132.59

Attribute: D6400-L10-04-O-SS (L10MBT-04MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/16-20 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	27.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.108
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.771

D6400-L10-06-O

$48.26

Attribute: D6400-L10-06-O (L10MBT-06MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L10-08-O

$53.94

Attribute: D6400-L10-08-O (L10MBT-08MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L12-04-O

$98.18

Attribute: D6400-L12-04-O (L12MBT-04MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/16-20 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L12-04-O-SS

$135.15

Attribute: D6400-L12-04-O-SS (L12MBT-04MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/16-20 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L12-06-O

$47.62

Attribute: D6400-L12-06-O (L12MBT-06MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	28.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.143
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.063

D6400-L12-06-O-SS

$133.09

Attribute: D6400-L12-06-O-SS (L12MBT-06MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	28.0
OVERALL LENGTH L3 (MM)	11.0
OVERALL LENGTH L4 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.143
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.063

D6400-L12-08-O

$57.82

Attribute: D6400-L12-08-O (L12MBT-08MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	13.0
OVERALL LENGTH L4 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.194
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.371

D6400-L12-08-O-SS

$165.83

Attribute: D6400-L12-08-O-SS (L12MBT-08MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	13.0
OVERALL LENGTH L4 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.194
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.371

D6400-L12-10-O

$66.23

Attribute: D6400-L12-10-O (L12MBT-10MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	14.3
OVERALL LENGTH L4 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.256
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

D6400-L12-10-O-SS

$147.94

Attribute: D6400-L12-10-O-SS (L12MBT-10MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	14.3
OVERALL LENGTH L4 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.256
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

D6400-L15-08-O

$59.70

Attribute: D6400-L15-08-O (L15MBT-08MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	14.0
OVERALL LENGTH L4 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.247
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.802

D6400-L15-08-O-SS

$145.00

Attribute: D6400-L15-08-O-SS (L15MBT-08MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	14.0
OVERALL LENGTH L4 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.247
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.802

D6400-L15-10-O

$69.13

Attribute: D6400-L15-10-O (L15MBT-10MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	15.3
OVERALL LENGTH L4 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.308
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.935

D6400-L15-10-O-SS

$149.86

Attribute: D6400-L15-10-O-SS (L15MBT-10MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	15.3
OVERALL LENGTH L4 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.308
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.935

D6400-L18-08-O-SS

$179.18

Attribute: D6400-L18-08-O-SS (L18MBT-08MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	42.5
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	14.5
OVERALL LENGTH L4 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.341
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.656

D6400-L18-10-O

$74.29

Attribute: D6400-L18-10-O (L18MBT-10MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	44.2
OVERALL LENGTH L2 (MM)	34.7
OVERALL LENGTH L3 (MM)	14.5
OVERALL LENGTH L4 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.348
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.762

D6400-L18-10-O-SS

$177.17

Attribute: D6400-L18-10-O-SS (L18MBT-10MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	44.2
OVERALL LENGTH L2 (MM)	34.7
OVERALL LENGTH L3 (MM)	14.5
OVERALL LENGTH L4 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.348
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.762

D6400-L18-12-O

$110.56

Attribute: D6400-L18-12-O (L18MBT-12MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L22-10-O

$95.16

Attribute: D6400-L22-10-O (L22MBT-10MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	16.8
OVERALL LENGTH L4 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.471
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.757

D6400-L22-10-O-SS

$265.64

Attribute: D6400-L22-10-O-SS (L22MBT-10MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	47.5
OVERALL LENGTH L2 (MM)	37.0
OVERALL LENGTH L3 (MM)	16.8
OVERALL LENGTH L4 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.471
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.757

D6400-L22-12-O

$102.80

Attribute: D6400-L22-12-O (L22MBT-12MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	49.5
OVERALL LENGTH L2 (MM)	39.0
OVERALL LENGTH L3 (MM)	16.5
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.487
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.915

D6400-L22-12-O-SS

$288.13

Attribute: D6400-L22-12-O-SS (L22MBT-12MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	49.5
OVERALL LENGTH L2 (MM)	39.0
OVERALL LENGTH L3 (MM)	16.5
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.487
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.915

D6400-L22-16-O-SS

$323.41

Attribute: D6400-L22-16-O-SS (L22MBT-16MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/16-12 UN
CONNECTION 2 THREAD ID (MM)	19.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	41.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	50.5
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.659
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.180

D6400-L28-12-O

$162.84

Attribute: D6400-L28-12-O (L28MBT-12MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.656
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.232

D6400-L28-12-O-SS

$369.63

Attribute: D6400-L28-12-O-SS (L28MBT-12MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.656
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.232

D6400-L28-16-O

$134.59

Attribute: D6400-L28-16-O (L28MBT-16MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/16-12 UN
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-L35-16-O

$146.11

Attribute: D6400-L35-16-O (L35MBT-16MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/16-12 UN
CONNECTION 2 THREAD ID (MM)	22.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.989
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.391

D6400-L35-20-O

$174.57

Attribute: D6400-L35-20-O (L35MBT-20MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/8-12 UN
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.011
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.391

D6400-L35-20-O-SS

$892.15

Attribute: D6400-L35-20-O-SS (L35MBT-20MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/8-12 UN
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.011
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.391

D6400-L42-20-O

$207.90

Attribute: D6400-L42-20-O (L42MBT-20MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/8-12 UN
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	45.0
OVERALL LENGTH L3 (MM)	19.0
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.410
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.522

D6400-L42-20-O-SS

$1,095.74

Attribute: D6400-L42-20-O-SS (L42MBT-20MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/8-12 UN
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	45.0
OVERALL LENGTH L3 (MM)	19.0
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.410
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.522

D6400-L42-24-O

$230.26

Attribute: D6400-L42-24-O (L42MBT-24MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-7/8-12 UN
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-S06-04-O

$311.85

Attribute: D6400-S06-04-O (S06MBT-04MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/16-20 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-S08-04-O

$73.27

Attribute: D6400-S08-04-O (S08MBT-04MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/16-20 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.134
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.859

D6400-S08-04-O-SS

$120.42

Attribute: D6400-S08-04-O-SS (S08MBT-04MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/16-20 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	15.0
OVERALL LENGTH L4 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.134
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.859

D6400-S08-05-O

$20.57

Attribute: D6400-S08-05-O (S08MBT-05MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1/2-20 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-S08-06-O

$48.09

Attribute: D6400-S08-06-O (S08MBT-06MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-S10-06-O

$50.39

Attribute: D6400-S10-06-O (S10MBT-06MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	14.5
OVERALL LENGTH L4 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.189
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.211

D6400-S10-06-O-SS

$135.15

Attribute: D6400-S10-06-O-SS (S10MBT-06MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	14.5
OVERALL LENGTH L4 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.189
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.211

D6400-S12-06-O

$69.94

Attribute: D6400-S12-06-O (S12MBT-06MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	14.5
OVERALL LENGTH L4 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.220
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.441

D6400-S12-06-O-SS

$148.24

Attribute: D6400-S12-06-O-SS (S12MBT-06MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	9/16-18 UNF
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	14.5
OVERALL LENGTH L4 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.220
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.441

D6400-S12-08-O

$51.08

Attribute: D6400-S12-08-O (S12MBT-08MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.273
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.582

D6400-S12-08-O-SS

$159.34

Attribute: D6400-S12-08-O-SS (S12MBT-08MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	17.5
OVERALL LENGTH L4 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.273
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.582

D6400-S14-08-O

$20.10

Attribute: D6400-S14-08-O (S14MBT-08MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-S16-08-O-SS

$161.38

Attribute: D6400-S16-08-O-SS (S16MBT-08MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	15.5
OVERALL LENGTH L4 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.355
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.471

D6400-S16-10-O

$67.21

Attribute: D6400-S16-10-O (S16MBT-10MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	18.8
OVERALL LENGTH L4 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.405
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.746

D6400-S16-10-O-SS

$179.61

Attribute: D6400-S16-10-O-SS (S16MBT-10MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	18.8
OVERALL LENGTH L4 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.405
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.746

D6400-S16-12-O

$150.00

Attribute: D6400-S16-12-O (S16MBT-12MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-S20-08-O

$111.25

Attribute: D6400-S20-08-O (S20MBT-08MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	54.0
OVERALL LENGTH L2 (MM)	42.0
OVERALL LENGTH L3 (MM)	20.5
OVERALL LENGTH L4 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.628
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.271

D6400-S20-08-O-SS

$248.86

Attribute: D6400-S20-08-O-SS (S20MBT-08MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	3/4-16 UNF
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	54.0
OVERALL LENGTH L2 (MM)	42.0
OVERALL LENGTH L3 (MM)	20.5
OVERALL LENGTH L4 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.628
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.271

D6400-S20-10-O-SS

$263.03

Attribute: D6400-S20-10-O-SS (S20MBT-10MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	7/8-14 UNF
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	56.0
OVERALL LENGTH L2 (MM)	44.0
OVERALL LENGTH L3 (MM)	20.8
OVERALL LENGTH L4 (MM)	12.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.630
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.429

D6400-S20-12-O

$106.51

Attribute: D6400-S20-12-O (S20MBT-12MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	58.0
OVERALL LENGTH L2 (MM)	46.0
OVERALL LENGTH L3 (MM)	20.5
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.648
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.587

D6400-S20-12-O-SS

$255.52

Attribute: D6400-S20-12-O-SS (S20MBT-12MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	58.0
OVERALL LENGTH L2 (MM)	46.0
OVERALL LENGTH L3 (MM)	20.5
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.648
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.587

D6400-S20-16-O

$217.68

Attribute: D6400-S20-16-O (S20MBT-16MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/16-12 UN
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

D6400-S25-12-O

$164.46

Attribute: D6400-S25-12-O (S25MBT-12MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	63.0
OVERALL LENGTH L2 (MM)	50.0
OVERALL LENGTH L3 (MM)	23.0
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.051
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.135

D6400-S25-12-O-SS

$384.99

Attribute: D6400-S25-12-O-SS (S25MBT-12MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-1/16-12 UN
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	63.0
OVERALL LENGTH L2 (MM)	50.0
OVERALL LENGTH L3 (MM)	23.0
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.051
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.135

D6400-S25-16-O

$141.72

Attribute: D6400-S25-16-O (S25MBT-16MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/16-12 UN
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	63.0
OVERALL LENGTH L2 (MM)	50.0
OVERALL LENGTH L3 (MM)	23.0
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.156
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.135

D6400-S25-16-O-SS

$433.47

Attribute: D6400-S25-16-O-SS (S25MBT-16MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/16-12 UN
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	63.0
OVERALL LENGTH L2 (MM)	50.0
OVERALL LENGTH L3 (MM)	23.0
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.156
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.135

D6400-S30-20-O

$192.11

Attribute: D6400-S30-20-O (S30MBT-20MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/8-12 UN
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	66.2
OVERALL LENGTH L2 (MM)	52.0
OVERALL LENGTH L3 (MM)	23.5
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.518
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.107

D6400-S30-20-O-SS

$841.15

Attribute: D6400-S30-20-O-SS (S30MBT-20MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/8-12 UN
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	66.2
OVERALL LENGTH L2 (MM)	52.0
OVERALL LENGTH L3 (MM)	23.5
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	1.518
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.107

D6400-S38-20-O

$219.12

Attribute: D6400-S38-20-O (S38MBT-20MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/8-12 UN
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	72.5
OVERALL LENGTH L2 (MM)	57.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.176
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.927

D6400-S38-20-O-SS

$945.24

Attribute: D6400-S38-20-O-SS (S38MBT-20MORB...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-5/8-12 UN
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	72.5
OVERALL LENGTH L2 (MM)	57.0
OVERALL LENGTH L3 (MM)	26.0
OVERALL LENGTH L4 (MM)	15.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.176
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	15.927

D6400-S38-24-O

$277.76

Attribute: D6400-S38-24-O (S38MBT-24MORB St...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE SAE O-RING BOSS
CONNECTION 2 THREAD SIZE	1-7/8-12 UN
CONNECTION 2 SPECIFICATION	SAE J1926 / ISO 11926
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

Description

Description

Variations (70)

D6400-L06-06-O

D6400-L08-04-O

D6400-L08-04-O-SS

D6400-L08-06-O

D6400-L08-06-O-SS

D6400-L10-04-O

D6400-L10-04-O-SS

D6400-L10-06-O

D6400-L10-08-O

D6400-L12-04-O

D6400-L12-04-O-SS

D6400-L12-06-O

D6400-L12-06-O-SS

D6400-L12-08-O

D6400-L12-08-O-SS

D6400-L12-10-O

D6400-L12-10-O-SS

D6400-L15-08-O

D6400-L15-08-O-SS

D6400-L15-10-O

D6400-L15-10-O-SS

D6400-L18-08-O-SS

D6400-L18-10-O

D6400-L18-10-O-SS

D6400-L18-12-O

D6400-L22-10-O

D6400-L22-10-O-SS

D6400-L22-12-O

D6400-L22-12-O-SS

D6400-L22-16-O-SS

D6400-L28-12-O

D6400-L28-12-O-SS

D6400-L28-16-O

D6400-L35-16-O

D6400-L35-20-O

D6400-L35-20-O-SS

D6400-L42-20-O

D6400-L42-20-O-SS

D6400-L42-24-O

D6400-S06-04-O

D6400-S08-04-O

D6400-S08-04-O-SS

D6400-S08-05-O

D6400-S08-06-O

D6400-S10-06-O

D6400-S10-06-O-SS

D6400-S12-06-O

D6400-S12-06-O-SS

D6400-S12-08-O

D6400-S12-08-O-SS

D6400-S14-08-O

D6400-S16-08-O-SS

D6400-S16-10-O

D6400-S16-10-O-SS

D6400-S16-12-O

D6400-S20-08-O

D6400-S20-08-O-SS

D6400-S20-10-O-SS

D6400-S20-12-O

D6400-S20-12-O-SS

D6400-S20-16-O

D6400-S25-12-O

D6400-S25-12-O-SS

D6400-S25-16-O

D6400-S25-16-O-SS

D6400-S30-20-O

D6400-S30-20-O-SS

D6400-S38-20-O

D6400-S38-20-O-SS

D6400-S38-24-O

General Attributes

PDF Documents
