Description

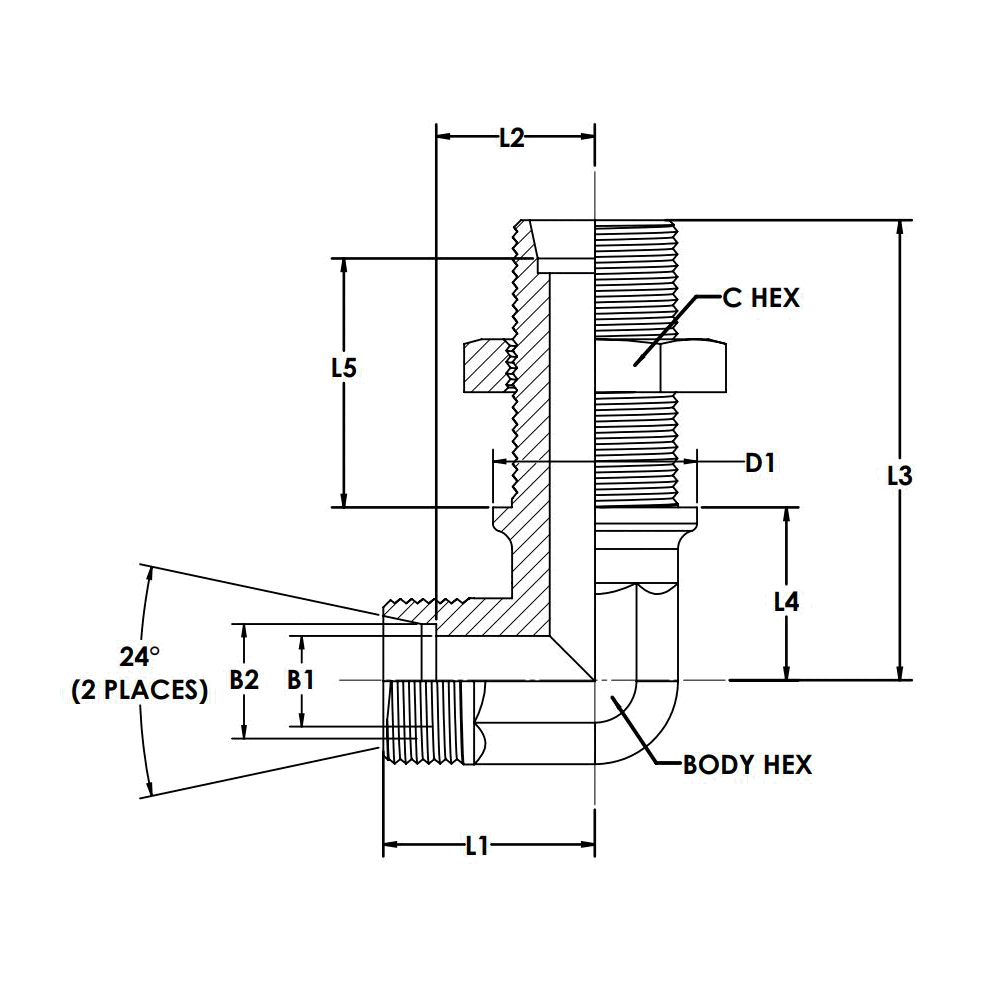

MBT-MBT BULKHEAD 90 ELBOW WITH LOCK NUT
Description
Variations (40)
D2701-LN-L06-L06-SS-X
$144.19Attribute: D2701-LN-L06-L06-SS-X (L06MBT-L0...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M12X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M12X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M12X1.5-SS |
| BODY HEX (MM) | 12.0 |
| HEX C 1 (MM) | 17.0 |
| OVERALL LENGTH L1 (MM) | 19.0 |
| OVERALL LENGTH L2 (MM) | 12.0 |
| OVERALL LENGTH L3 (MM) | 56.0 |
| CENTERLINE LENGTH 1 (MM) | 48.0 |
| CENTERLINE LENGTH 2 (MM) | 41.0 |
| CENTERLINE LENGTH 3 (MM) | 14.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.123 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.769 |
D2701-LN-L06-L06-X
$26.41Attribute: D2701-LN-L06-L06-X (L06MBT-L06MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M12X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M12X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M12X1.5 |
| BODY HEX (MM) | 12.0 |
| HEX C 1 (MM) | 17.0 |
| OVERALL LENGTH L1 (MM) | 19.0 |
| OVERALL LENGTH L2 (MM) | 12.0 |
| OVERALL LENGTH L3 (MM) | 56.0 |
| CENTERLINE LENGTH 1 (MM) | 48.0 |
| CENTERLINE LENGTH 2 (MM) | 41.0 |
| CENTERLINE LENGTH 3 (MM) | 14.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 0.123 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.769 |
D2701-LN-L08-L08-SS-X
$152.42Attribute: D2701-LN-L08-L08-SS-X (L08MBT-L0...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M14X1.5-SS |
| BODY HEX (MM) | 12.0 |
| HEX C 1 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 21.0 |
| OVERALL LENGTH L2 (MM) | 14.0 |
| OVERALL LENGTH L3 (MM) | 59.0 |
| CENTERLINE LENGTH 1 (MM) | 51.0 |
| CENTERLINE LENGTH 2 (MM) | 44.0 |
| CENTERLINE LENGTH 3 (MM) | 17.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.159 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.299 |
D2701-LN-L08-L08-X
$27.14Attribute: D2701-LN-L08-L08-X (L08MBT-L08MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M14X1.5 |
| BODY HEX (MM) | 12.0 |
| HEX C 1 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 21.0 |
| OVERALL LENGTH L2 (MM) | 14.0 |
| OVERALL LENGTH L3 (MM) | 59.0 |
| CENTERLINE LENGTH 1 (MM) | 51.0 |
| CENTERLINE LENGTH 2 (MM) | 44.0 |
| CENTERLINE LENGTH 3 (MM) | 17.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 0.159 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.299 |
D2701-LN-L10-L10-SS-X
$176.84Attribute: D2701-LN-L10-L10-SS-X (L10MBT-L1...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M16X1.5-SS |
| BODY HEX (MM) | 14.0 |
| HEX C 1 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 22.0 |
| OVERALL LENGTH L2 (MM) | 15.0 |
| OVERALL LENGTH L3 (MM) | 61.0 |
| CENTERLINE LENGTH 1 (MM) | 53.0 |
| CENTERLINE LENGTH 2 (MM) | 46.0 |
| CENTERLINE LENGTH 3 (MM) | 18.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.192 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.013 |
D2701-LN-L10-L10-X
$30.94Attribute: D2701-LN-L10-L10-X (L10MBT-L10MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M16X1.5 |
| BODY HEX (MM) | 14.0 |
| HEX C 1 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 22.0 |
| OVERALL LENGTH L2 (MM) | 15.0 |
| OVERALL LENGTH L3 (MM) | 61.0 |
| CENTERLINE LENGTH 1 (MM) | 53.0 |
| CENTERLINE LENGTH 2 (MM) | 46.0 |
| CENTERLINE LENGTH 3 (MM) | 18.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 0.192 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.013 |
D2701-LN-L12-L12-SS-X
$190.49Attribute: D2701-LN-L12-L12-SS-X (L12MBT-L1...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M18X1.5-SS |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 24.0 |
| OVERALL LENGTH L1 (MM) | 24.0 |
| OVERALL LENGTH L2 (MM) | 17.0 |
| OVERALL LENGTH L3 (MM) | 64.0 |
| CENTERLINE LENGTH 1 (MM) | 56.0 |
| CENTERLINE LENGTH 2 (MM) | 49.0 |
| CENTERLINE LENGTH 3 (MM) | 20.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.233 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.823 |
D2701-LN-L12-L12-X
$37.09Attribute: D2701-LN-L12-L12-X (L12MBT-L12MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M18X1.5 |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 24.0 |
| OVERALL LENGTH L1 (MM) | 24.0 |
| OVERALL LENGTH L2 (MM) | 17.0 |
| OVERALL LENGTH L3 (MM) | 64.0 |
| CENTERLINE LENGTH 1 (MM) | 56.0 |
| CENTERLINE LENGTH 2 (MM) | 49.0 |
| CENTERLINE LENGTH 3 (MM) | 20.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 0.233 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.823 |
D2701-LN-L15-L15-SS-X
$249.63Attribute: D2701-LN-L15-L15-SS-X (L15MBT-L1...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M22X1.5-SS |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 30.0 |
| OVERALL LENGTH L1 (MM) | 28.0 |
| OVERALL LENGTH L2 (MM) | 21.0 |
| OVERALL LENGTH L3 (MM) | 69.5 |
| CENTERLINE LENGTH 1 (MM) | 61.0 |
| CENTERLINE LENGTH 2 (MM) | 54.0 |
| CENTERLINE LENGTH 3 (MM) | 23.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.363 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.219 |
D2701-LN-L15-L15-X
$42.89Attribute: D2701-LN-L15-L15-X (L15MBT-L15MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M22X1.5 |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 30.0 |
| OVERALL LENGTH L1 (MM) | 28.0 |
| OVERALL LENGTH L2 (MM) | 21.0 |
| OVERALL LENGTH L3 (MM) | 69.5 |
| CENTERLINE LENGTH 1 (MM) | 61.0 |
| CENTERLINE LENGTH 2 (MM) | 54.0 |
| CENTERLINE LENGTH 3 (MM) | 23.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 0.363 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.219 |
D2701-LN-L18-L18-SS-X
$316.33Attribute: D2701-LN-L18-L18-SS-X (L18MBT-L1...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M26X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M26X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M26X1.5-SS |
| BODY HEX (MM) | 24.0 |
| HEX C 1 (MM) | 36.0 |
| OVERALL LENGTH L1 (MM) | 31.0 |
| OVERALL LENGTH L2 (MM) | 23.5 |
| OVERALL LENGTH L3 (MM) | 73.5 |
| CENTERLINE LENGTH 1 (MM) | 64.0 |
| CENTERLINE LENGTH 2 (MM) | 56.5 |
| CENTERLINE LENGTH 3 (MM) | 24.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.502 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 9.204 |
D2701-LN-L18-L18-X
$52.83Attribute: D2701-LN-L18-L18-X (L18MBT-L18MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M26X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M26X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M26X1.5 |
| BODY HEX (MM) | 24.0 |
| HEX C 1 (MM) | 36.0 |
| OVERALL LENGTH L1 (MM) | 31.0 |
| OVERALL LENGTH L2 (MM) | 23.5 |
| OVERALL LENGTH L3 (MM) | 73.5 |
| CENTERLINE LENGTH 1 (MM) | 64.0 |
| CENTERLINE LENGTH 2 (MM) | 56.5 |
| CENTERLINE LENGTH 3 (MM) | 24.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 0.502 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 9.204 |
D2701-LN-L22-L22-SS-X
$456.93Attribute: D2701-LN-L22-L22-SS-X (L22MBT-L2...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M30X2.0-SS |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 41.0 |
| OVERALL LENGTH L1 (MM) | 35.0 |
| OVERALL LENGTH L2 (MM) | 27.5 |
| OVERALL LENGTH L3 (MM) | 82.5 |
| CENTERLINE LENGTH 1 (MM) | 72.0 |
| CENTERLINE LENGTH 2 (MM) | 64.5 |
| CENTERLINE LENGTH 3 (MM) | 30.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.659 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 13.330 |
D2701-LN-L22-L22-X
$90.04Attribute: D2701-LN-L22-L22-X (L22MBT-L22MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M30X2.0 |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 41.0 |
| OVERALL LENGTH L1 (MM) | 35.0 |
| OVERALL LENGTH L2 (MM) | 27.5 |
| OVERALL LENGTH L3 (MM) | 82.5 |
| CENTERLINE LENGTH 1 (MM) | 72.0 |
| CENTERLINE LENGTH 2 (MM) | 64.5 |
| CENTERLINE LENGTH 3 (MM) | 30.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 0.659 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 13.330 |
D2701-LN-L28-L28-SS-X
$632.28Attribute: D2701-LN-L28-L28-SS-X (L28MBT-L2...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M36X2.0-SS |
| BODY HEX (MM) | 36.0 |
| HEX C 1 (MM) | 46.0 |
| OVERALL LENGTH L1 (MM) | 38.0 |
| OVERALL LENGTH L2 (MM) | 30.5 |
| OVERALL LENGTH L3 (MM) | 88.0 |
| CENTERLINE LENGTH 1 (MM) | 77.0 |
| CENTERLINE LENGTH 2 (MM) | 69.5 |
| CENTERLINE LENGTH 3 (MM) | 34.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 1.009 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 18.151 |
D2701-LN-L28-L28-X
$129.21Attribute: D2701-LN-L28-L28-X (L28MBT-L28MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M36X2.0 |
| BODY HEX (MM) | 36.0 |
| HEX C 1 (MM) | 46.0 |
| OVERALL LENGTH L1 (MM) | 38.0 |
| OVERALL LENGTH L2 (MM) | 30.5 |
| OVERALL LENGTH L3 (MM) | 88.0 |
| CENTERLINE LENGTH 1 (MM) | 77.0 |
| CENTERLINE LENGTH 2 (MM) | 69.5 |
| CENTERLINE LENGTH 3 (MM) | 34.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 1.009 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 18.151 |
D2701-LN-L35-L35-SS-X
$846.28Attribute: D2701-LN-L35-L35-SS-X (L35MBT-L3...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M45X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M45X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M45X2.0-SS |
| BODY HEX (MM) | 41.0 |
| HEX C 1 (MM) | 55.0 |
| OVERALL LENGTH L1 (MM) | 45.0 |
| OVERALL LENGTH L2 (MM) | 34.5 |
| OVERALL LENGTH L3 (MM) | 98.0 |
| CENTERLINE LENGTH 1 (MM) | 86.0 |
| CENTERLINE LENGTH 2 (MM) | 75.5 |
| CENTERLINE LENGTH 3 (MM) | 39.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 1.639 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 28.835 |
D2701-LN-L35-L35-X
$202.60Attribute: D2701-LN-L35-L35-X (L35MBT-L35MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M45X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M45X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M45X2.0 |
| BODY HEX (MM) | 41.0 |
| HEX C 1 (MM) | 55.0 |
| OVERALL LENGTH L1 (MM) | 45.0 |
| OVERALL LENGTH L2 (MM) | 34.5 |
| OVERALL LENGTH L3 (MM) | 98.0 |
| CENTERLINE LENGTH 1 (MM) | 86.0 |
| CENTERLINE LENGTH 2 (MM) | 75.5 |
| CENTERLINE LENGTH 3 (MM) | 39.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 1.639 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 28.835 |
D2701-LN-L42-L42-SS-X
$1,366.88Attribute: D2701-LN-L42-L42-SS-X (L42MBT-L4...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M52X2.0-SS |
| BODY HEX (MM) | 50.0 |
| HEX C 1 (MM) | 65.0 |
| OVERALL LENGTH L1 (MM) | 51.0 |
| OVERALL LENGTH L2 (MM) | 40.0 |
| OVERALL LENGTH L3 (MM) | 102.0 |
| CENTERLINE LENGTH 1 (MM) | 90.0 |
| CENTERLINE LENGTH 2 (MM) | 79.0 |
| CENTERLINE LENGTH 3 (MM) | 43.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 2.282 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 42.063 |
D2701-LN-L42-L42-X
$298.11Attribute: D2701-LN-L42-L42-X (L42MBT-L42MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M52X2.0 |
| BODY HEX (MM) | 50.0 |
| HEX C 1 (MM) | 65.0 |
| OVERALL LENGTH L1 (MM) | 51.0 |
| OVERALL LENGTH L2 (MM) | 40.0 |
| OVERALL LENGTH L3 (MM) | 102.0 |
| CENTERLINE LENGTH 1 (MM) | 90.0 |
| CENTERLINE LENGTH 2 (MM) | 79.0 |
| CENTERLINE LENGTH 3 (MM) | 43.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 2.282 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 42.063 |
D2701-LN-S06-S06-SS-X
$172.27Attribute: D2701-LN-S06-S06-SS-X (S06MBT-S0...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M14X1.5-SS |
| BODY HEX (MM) | 12.0 |
| HEX C 1 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 23.0 |
| OVERALL LENGTH L2 (MM) | 16.0 |
| OVERALL LENGTH L3 (MM) | 61.0 |
| CENTERLINE LENGTH 1 (MM) | 53.0 |
| CENTERLINE LENGTH 2 (MM) | 46.0 |
| CENTERLINE LENGTH 3 (MM) | 17.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.192 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.525 |
D2701-LN-S06-S06-X
$30.73Attribute: D2701-LN-S06-S06-X (S06MBT-S06MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M14X1.5 |
| BODY HEX (MM) | 12.0 |
| HEX C 1 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 23.0 |
| OVERALL LENGTH L2 (MM) | 16.0 |
| OVERALL LENGTH L3 (MM) | 61.0 |
| CENTERLINE LENGTH 1 (MM) | 53.0 |
| CENTERLINE LENGTH 2 (MM) | 46.0 |
| CENTERLINE LENGTH 3 (MM) | 17.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 0.192 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.525 |
D2701-LN-S08-S08-SS-X
$183.15Attribute: D2701-LN-S08-S08-SS-X (S08MBT-S0...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M16X1.5-SS |
| BODY HEX (MM) | 14.0 |
| HEX C 1 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 24.0 |
| OVERALL LENGTH L2 (MM) | 17.0 |
| OVERALL LENGTH L3 (MM) | 62.0 |
| CENTERLINE LENGTH 1 (MM) | 54.0 |
| CENTERLINE LENGTH 2 (MM) | 47.0 |
| CENTERLINE LENGTH 3 (MM) | 18.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.242 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.242 |
D2701-LN-S08-S08-X
$34.30Attribute: D2701-LN-S08-S08-X (S08MBT-S08MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M16X1.5 |
| BODY HEX (MM) | 14.0 |
| HEX C 1 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 24.0 |
| OVERALL LENGTH L2 (MM) | 17.0 |
| OVERALL LENGTH L3 (MM) | 62.0 |
| CENTERLINE LENGTH 1 (MM) | 54.0 |
| CENTERLINE LENGTH 2 (MM) | 47.0 |
| CENTERLINE LENGTH 3 (MM) | 18.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 0.242 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.242 |
D2701-LN-S10-S10-SS-X
$178.93Attribute: D2701-LN-S10-S10-SS-X (S10MBT-S1...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M18X1.5-SS |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 24.0 |
| OVERALL LENGTH L1 (MM) | 25.0 |
| OVERALL LENGTH L2 (MM) | 17.5 |
| OVERALL LENGTH L3 (MM) | 66.0 |
| CENTERLINE LENGTH 1 (MM) | 57.0 |
| CENTERLINE LENGTH 2 (MM) | 49.5 |
| CENTERLINE LENGTH 3 (MM) | 20.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.295 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.037 |
D2701-LN-S10-S10-X
$42.50Attribute: D2701-LN-S10-S10-X (S10MBT-S10MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M18X1.5 |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 24.0 |
| OVERALL LENGTH L1 (MM) | 25.0 |
| OVERALL LENGTH L2 (MM) | 17.5 |
| OVERALL LENGTH L3 (MM) | 66.0 |
| CENTERLINE LENGTH 1 (MM) | 57.0 |
| CENTERLINE LENGTH 2 (MM) | 49.5 |
| CENTERLINE LENGTH 3 (MM) | 20.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 0.295 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.037 |
D2701-LN-S12-S12-SS-X
$198.68Attribute: D2701-LN-S12-S12-SS-X (S12MBT-S1...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M20X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M20X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M20X1.5-SS |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 27.0 |
| OVERALL LENGTH L1 (MM) | 29.0 |
| OVERALL LENGTH L2 (MM) | 21.5 |
| OVERALL LENGTH L3 (MM) | 68.0 |
| CENTERLINE LENGTH 1 (MM) | 59.0 |
| CENTERLINE LENGTH 2 (MM) | 51.5 |
| CENTERLINE LENGTH 3 (MM) | 21.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.374 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.357 |
D2701-LN-S12-S12-X
$42.97Attribute: D2701-LN-S12-S12-X (S12MBT-S12MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M20X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M20X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M20X1.5 |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 27.0 |
| OVERALL LENGTH L1 (MM) | 29.0 |
| OVERALL LENGTH L2 (MM) | 21.5 |
| OVERALL LENGTH L3 (MM) | 68.0 |
| CENTERLINE LENGTH 1 (MM) | 59.0 |
| CENTERLINE LENGTH 2 (MM) | 51.5 |
| CENTERLINE LENGTH 3 (MM) | 21.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 0.374 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.357 |
D2701-LN-S14-S14-SS-X
$246.73Attribute: D2701-LN-S14-S14-SS-X (S14MBT-S1...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M22X1.5-SS |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 30.0 |
| OVERALL LENGTH L1 (MM) | 30.0 |
| OVERALL LENGTH L2 (MM) | 22.0 |
| OVERALL LENGTH L3 (MM) | 73.0 |
| CENTERLINE LENGTH 1 (MM) | 63.0 |
| CENTERLINE LENGTH 2 (MM) | 55.0 |
| CENTERLINE LENGTH 3 (MM) | 23.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.432 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.797 |
D2701-LN-S14-S14-X
$253.23Attribute: D2701-LN-S14-S14-X (S14MBT-S14MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M22X1.5 |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 30.0 |
| OVERALL LENGTH L1 (MM) | 30.0 |
| OVERALL LENGTH L2 (MM) | 22.0 |
| OVERALL LENGTH L3 (MM) | 73.0 |
| CENTERLINE LENGTH 1 (MM) | 63.0 |
| CENTERLINE LENGTH 2 (MM) | 55.0 |
| CENTERLINE LENGTH 3 (MM) | 23.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 0.432 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.797 |
D2701-LN-S16-S16-SS-X
$279.17Attribute: D2701-LN-S16-S16-SS-X (S16MBT-S1...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M24X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M24X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M24X1.5-SS |
| BODY HEX (MM) | 24.0 |
| HEX C 1 (MM) | 32.0 |
| OVERALL LENGTH L1 (MM) | 33.0 |
| OVERALL LENGTH L2 (MM) | 24.5 |
| OVERALL LENGTH L3 (MM) | 74.0 |
| CENTERLINE LENGTH 1 (MM) | 64.0 |
| CENTERLINE LENGTH 2 (MM) | 55.5 |
| CENTERLINE LENGTH 3 (MM) | 24.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.542 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 8.229 |
D2701-LN-S16-S16-X
$55.01Attribute: D2701-LN-S16-S16-X (S16MBT-S16MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M24X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M24X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M24X1.5 |
| BODY HEX (MM) | 24.0 |
| HEX C 1 (MM) | 32.0 |
| OVERALL LENGTH L1 (MM) | 33.0 |
| OVERALL LENGTH L2 (MM) | 24.5 |
| OVERALL LENGTH L3 (MM) | 74.0 |
| CENTERLINE LENGTH 1 (MM) | 64.0 |
| CENTERLINE LENGTH 2 (MM) | 55.5 |
| CENTERLINE LENGTH 3 (MM) | 24.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 0.542 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 8.229 |
D2701-LN-S20-S20-SS-X
$483.65Attribute: D2701-LN-S20-S20-SS-X (S20MBT-S2...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M30X2.0-SS |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 41.0 |
| OVERALL LENGTH L1 (MM) | 37.0 |
| OVERALL LENGTH L2 (MM) | 26.5 |
| OVERALL LENGTH L3 (MM) | 86.0 |
| CENTERLINE LENGTH 1 (MM) | 74.0 |
| CENTERLINE LENGTH 2 (MM) | 63.5 |
| CENTERLINE LENGTH 3 (MM) | 30.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.828 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 14.314 |
D2701-LN-S20-S20-X
$89.10Attribute: D2701-LN-S20-S20-X (S20MBT-S20MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M30X2.0 |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 41.0 |
| OVERALL LENGTH L1 (MM) | 37.0 |
| OVERALL LENGTH L2 (MM) | 26.5 |
| OVERALL LENGTH L3 (MM) | 86.0 |
| CENTERLINE LENGTH 1 (MM) | 74.0 |
| CENTERLINE LENGTH 2 (MM) | 63.5 |
| CENTERLINE LENGTH 3 (MM) | 30.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 0.828 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 14.314 |
D2701-LN-S25-S25-SS-X
$672.31Attribute: D2701-LN-S25-S25-SS-X (S25MBT-S2...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M36X2.0-SS |
| BODY HEX (MM) | 36.0 |
| HEX C 1 (MM) | 46.0 |
| OVERALL LENGTH L1 (MM) | 42.0 |
| OVERALL LENGTH L2 (MM) | 30.0 |
| OVERALL LENGTH L3 (MM) | 94.0 |
| CENTERLINE LENGTH 1 (MM) | 81.0 |
| CENTERLINE LENGTH 2 (MM) | 69.0 |
| CENTERLINE LENGTH 3 (MM) | 34.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 1.346 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 20.436 |
D2701-LN-S25-S25-X
$133.69Attribute: D2701-LN-S25-S25-X (S25MBT-S25MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M36X2.0 |
| BODY HEX (MM) | 36.0 |
| HEX C 1 (MM) | 46.0 |
| OVERALL LENGTH L1 (MM) | 42.0 |
| OVERALL LENGTH L2 (MM) | 30.0 |
| OVERALL LENGTH L3 (MM) | 94.0 |
| CENTERLINE LENGTH 1 (MM) | 81.0 |
| CENTERLINE LENGTH 2 (MM) | 69.0 |
| CENTERLINE LENGTH 3 (MM) | 34.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 1.346 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 20.436 |
D2701-LN-S30-S30-SS-X
$928.60Attribute: D2701-LN-S30-S30-SS-X (S30MBT-S3...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M42X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M42X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M42X2.0-SS |
| BODY HEX (MM) | 41.0 |
| HEX C 1 (MM) | 50.0 |
| OVERALL LENGTH L1 (MM) | 49.0 |
| OVERALL LENGTH L2 (MM) | 35.5 |
| OVERALL LENGTH L3 (MM) | 104.2 |
| CENTERLINE LENGTH 1 (MM) | 90.0 |
| CENTERLINE LENGTH 2 (MM) | 76.5 |
| CENTERLINE LENGTH 3 (MM) | 39.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 2.029 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 28.167 |
D2701-LN-S30-S30-X
$197.53Attribute: D2701-LN-S30-S30-X (S30MBT-S30MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M42X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M42X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M42X2.0 |
| BODY HEX (MM) | 41.0 |
| HEX C 1 (MM) | 50.0 |
| OVERALL LENGTH L1 (MM) | 49.0 |
| OVERALL LENGTH L2 (MM) | 35.5 |
| OVERALL LENGTH L3 (MM) | 104.2 |
| CENTERLINE LENGTH 1 (MM) | 90.0 |
| CENTERLINE LENGTH 2 (MM) | 76.5 |
| CENTERLINE LENGTH 3 (MM) | 39.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 2.029 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 28.167 |
D2701-LN-S38-S38-SS-X
$1,442.84Attribute: D2701-LN-S38-S38-SS-X (S38MBT-S3...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M52X2.0-SS |
| BODY HEX (MM) | 50.0 |
| HEX C 1 (MM) | 65.0 |
| OVERALL LENGTH L1 (MM) | 57.0 |
| OVERALL LENGTH L2 (MM) | 41.0 |
| OVERALL LENGTH L3 (MM) | 111.5 |
| CENTERLINE LENGTH 1 (MM) | 96.0 |
| CENTERLINE LENGTH 2 (MM) | 80.0 |
| CENTERLINE LENGTH 3 (MM) | 43.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 2.991 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 48.458 |
D2701-LN-S38-S38-X
$293.76Attribute: D2701-LN-S38-S38-X (S38MBT-S38MB...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC BH 24 DEG DIN SEAT |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M52X2.0 |
| BODY HEX (MM) | 50.0 |
| HEX C 1 (MM) | 65.0 |
| OVERALL LENGTH L1 (MM) | 57.0 |
| OVERALL LENGTH L2 (MM) | 41.0 |
| OVERALL LENGTH L3 (MM) | 111.5 |
| CENTERLINE LENGTH 1 (MM) | 96.0 |
| CENTERLINE LENGTH 2 (MM) | 80.0 |
| CENTERLINE LENGTH 3 (MM) | 43.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY |
| WEIGHT (LBS) | 2.991 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 48.458 |
General Attributes
No general attributes scraped.
PDF Documents
No PDF documents scraped.
