Description

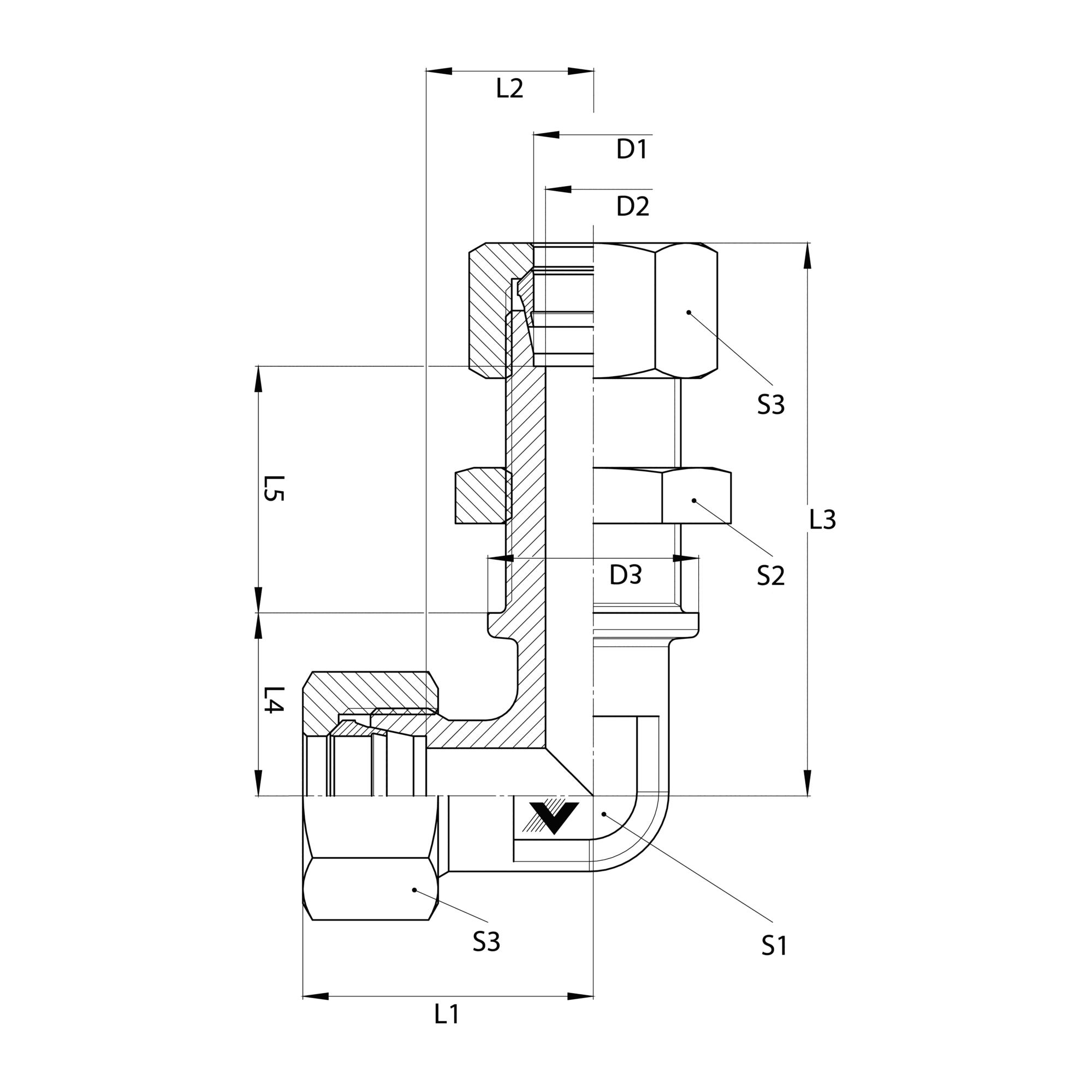

MBT-MBT BULKHEAD 90 ELBOW WITH LOCK NUT. COMPLETE WITH DIN TUBE NUTS AND SLEEVES
Description
Variations (40)
D2701-LN-L06-L06
$33.12Attribute: D2701-LN-L06-L06 (L06MBT-L06MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M12X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M12X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M12X1.5 |
| BODY HEX (MM) | 12.0 |
| HEX C 1 (MM) | 17.0 |
| HEX C 2 (MM) | 14.0 |
| HEX C 3 (MM) | 14.0 |
| OVERALL LENGTH L1 (MM) | 27.0 |
| OVERALL LENGTH L2 (MM) | 19.0 |
| OVERALL LENGTH L3 (MM) | 12.0 |
| CENTERLINE LENGTH 1 (MM) | 56.0 |
| CENTERLINE LENGTH 2 (MM) | 48.0 |
| CENTERLINE LENGTH 3 (MM) | 41.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.181 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.320 |
D2701-LN-L06-L06-SS
$170.13Attribute: D2701-LN-L06-L06-SS (L06MBT-L06M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M12X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M12X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M12X1.5-SS |
| BODY HEX (MM) | 12.0 |
| HEX C 1 (MM) | 17.0 |
| HEX C 2 (MM) | 14.0 |
| HEX C 3 (MM) | 14.0 |
| OVERALL LENGTH L1 (MM) | 27.0 |
| OVERALL LENGTH L2 (MM) | 19.0 |
| OVERALL LENGTH L3 (MM) | 12.0 |
| CENTERLINE LENGTH 1 (MM) | 56.0 |
| CENTERLINE LENGTH 2 (MM) | 48.0 |
| CENTERLINE LENGTH 3 (MM) | 41.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.181 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.320 |
D2701-LN-L08-L08
$34.48Attribute: D2701-LN-L08-L08 (L08MBT-L08MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M14X1.5 |
| BODY HEX (MM) | 12.0 |
| HEX C 1 (MM) | 19.0 |
| HEX C 2 (MM) | 17.0 |
| HEX C 3 (MM) | 17.0 |
| OVERALL LENGTH L1 (MM) | 29.0 |
| OVERALL LENGTH L2 (MM) | 21.0 |
| OVERALL LENGTH L3 (MM) | 14.0 |
| CENTERLINE LENGTH 1 (MM) | 59.0 |
| CENTERLINE LENGTH 2 (MM) | 51.0 |
| CENTERLINE LENGTH 3 (MM) | 44.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.242 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.013 |
D2701-LN-L08-L08-SS
$183.27Attribute: D2701-LN-L08-L08-SS (L08MBT-L08M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M14X1.5-SS |
| BODY HEX (MM) | 12.0 |
| HEX C 1 (MM) | 19.0 |
| HEX C 2 (MM) | 17.0 |
| HEX C 3 (MM) | 17.0 |
| OVERALL LENGTH L1 (MM) | 29.0 |
| OVERALL LENGTH L2 (MM) | 21.0 |
| OVERALL LENGTH L3 (MM) | 14.0 |
| CENTERLINE LENGTH 1 (MM) | 59.0 |
| CENTERLINE LENGTH 2 (MM) | 51.0 |
| CENTERLINE LENGTH 3 (MM) | 44.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.242 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.013 |
D2701-LN-L10-L10
$38.33Attribute: D2701-LN-L10-L10 (L10MBT-L10MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M16X1.5 |
| BODY HEX (MM) | 14.0 |
| HEX C 1 (MM) | 22.0 |
| HEX C 2 (MM) | 19.0 |
| HEX C 3 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 30.0 |
| OVERALL LENGTH L2 (MM) | 22.0 |
| OVERALL LENGTH L3 (MM) | 15.0 |
| CENTERLINE LENGTH 1 (MM) | 61.0 |
| CENTERLINE LENGTH 2 (MM) | 53.0 |
| CENTERLINE LENGTH 3 (MM) | 46.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.301 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.881 |
D2701-LN-L10-L10-SS
$210.16Attribute: D2701-LN-L10-L10-SS (L10MBT-L10M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M16X1.5-SS |
| BODY HEX (MM) | 14.0 |
| HEX C 1 (MM) | 22.0 |
| HEX C 2 (MM) | 19.0 |
| HEX C 3 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 30.0 |
| OVERALL LENGTH L2 (MM) | 22.0 |
| OVERALL LENGTH L3 (MM) | 15.0 |
| CENTERLINE LENGTH 1 (MM) | 61.0 |
| CENTERLINE LENGTH 2 (MM) | 53.0 |
| CENTERLINE LENGTH 3 (MM) | 46.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.301 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.881 |
D2701-LN-L12-L12
$46.13Attribute: D2701-LN-L12-L12 (L12MBT-L12MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M18X1.5 |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 24.0 |
| HEX C 2 (MM) | 22.0 |
| HEX C 3 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 32.0 |
| OVERALL LENGTH L2 (MM) | 24.0 |
| OVERALL LENGTH L3 (MM) | 17.0 |
| CENTERLINE LENGTH 1 (MM) | 64.0 |
| CENTERLINE LENGTH 2 (MM) | 56.0 |
| CENTERLINE LENGTH 3 (MM) | 49.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.379 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.833 |
D2701-LN-L12-L12-SS
$233.00Attribute: D2701-LN-L12-L12-SS (L12MBT-L12M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M18X1.5-SS |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 24.0 |
| HEX C 2 (MM) | 22.0 |
| HEX C 3 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 32.0 |
| OVERALL LENGTH L2 (MM) | 24.0 |
| OVERALL LENGTH L3 (MM) | 17.0 |
| CENTERLINE LENGTH 1 (MM) | 64.0 |
| CENTERLINE LENGTH 2 (MM) | 56.0 |
| CENTERLINE LENGTH 3 (MM) | 49.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.379 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.833 |
D2701-LN-L15-L15
$54.49Attribute: D2701-LN-L15-L15 (L15MBT-L15MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M22X1.5 |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 30.0 |
| HEX C 2 (MM) | 27.0 |
| HEX C 3 (MM) | 27.0 |
| OVERALL LENGTH L1 (MM) | 36.5 |
| OVERALL LENGTH L2 (MM) | 28.0 |
| OVERALL LENGTH L3 (MM) | 21.0 |
| CENTERLINE LENGTH 1 (MM) | 69.5 |
| CENTERLINE LENGTH 2 (MM) | 61.0 |
| CENTERLINE LENGTH 3 (MM) | 54.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.615 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 7.826 |
D2701-LN-L15-L15-SS
$305.19Attribute: D2701-LN-L15-L15-SS (L15MBT-L15M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M22X1.5-SS |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 30.0 |
| HEX C 2 (MM) | 27.0 |
| HEX C 3 (MM) | 27.0 |
| OVERALL LENGTH L1 (MM) | 36.5 |
| OVERALL LENGTH L2 (MM) | 28.0 |
| OVERALL LENGTH L3 (MM) | 21.0 |
| CENTERLINE LENGTH 1 (MM) | 69.5 |
| CENTERLINE LENGTH 2 (MM) | 61.0 |
| CENTERLINE LENGTH 3 (MM) | 54.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.615 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 7.826 |
D2701-LN-L18-L18
$77.70Attribute: D2701-LN-L18-L18 (L18MBT-L18MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M26X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M26X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M26X1.5 |
| BODY HEX (MM) | 24.0 |
| HEX C 1 (MM) | 36.0 |
| HEX C 2 (MM) | 32.0 |
| HEX C 3 (MM) | 32.0 |
| OVERALL LENGTH L1 (MM) | 40.5 |
| OVERALL LENGTH L2 (MM) | 31.0 |
| OVERALL LENGTH L3 (MM) | 23.5 |
| CENTERLINE LENGTH 1 (MM) | 73.5 |
| CENTERLINE LENGTH 2 (MM) | 64.0 |
| CENTERLINE LENGTH 3 (MM) | 56.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.893 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 11.502 |
D2701-LN-L18-L18-SS
$426.05Attribute: D2701-LN-L18-L18-SS (L18MBT-L18M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M26X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M26X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M26X1.5-SS |
| BODY HEX (MM) | 24.0 |
| HEX C 1 (MM) | 36.0 |
| HEX C 2 (MM) | 32.0 |
| HEX C 3 (MM) | 32.0 |
| OVERALL LENGTH L1 (MM) | 40.5 |
| OVERALL LENGTH L2 (MM) | 31.0 |
| OVERALL LENGTH L3 (MM) | 23.5 |
| CENTERLINE LENGTH 1 (MM) | 73.5 |
| CENTERLINE LENGTH 2 (MM) | 64.0 |
| CENTERLINE LENGTH 3 (MM) | 56.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.893 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 11.502 |
D2701-LN-L22-L22
$121.83Attribute: D2701-LN-L22-L22 (L22MBT-L22MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M30X2.0 |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 41.0 |
| HEX C 2 (MM) | 36.0 |
| HEX C 3 (MM) | 36.0 |
| OVERALL LENGTH L1 (MM) | 45.5 |
| OVERALL LENGTH L2 (MM) | 35.0 |
| OVERALL LENGTH L3 (MM) | 27.5 |
| CENTERLINE LENGTH 1 (MM) | 82.5 |
| CENTERLINE LENGTH 2 (MM) | 72.0 |
| CENTERLINE LENGTH 3 (MM) | 64.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 1.183 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 16.595 |
D2701-LN-L22-L22-SS
$568.99Attribute: D2701-LN-L22-L22-SS (L22MBT-L22M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M30X2.0-SS |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 41.0 |
| HEX C 2 (MM) | 36.0 |
| HEX C 3 (MM) | 36.0 |
| OVERALL LENGTH L1 (MM) | 45.5 |
| OVERALL LENGTH L2 (MM) | 35.0 |
| OVERALL LENGTH L3 (MM) | 27.5 |
| CENTERLINE LENGTH 1 (MM) | 82.5 |
| CENTERLINE LENGTH 2 (MM) | 72.0 |
| CENTERLINE LENGTH 3 (MM) | 64.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 1.183 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 16.595 |
D2701-LN-L28-L28
$187.42Attribute: D2701-LN-L28-L28 (L28MBT-L28MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M36X2.0 |
| BODY HEX (MM) | 36.0 |
| HEX C 1 (MM) | 46.0 |
| HEX C 2 (MM) | 41.0 |
| HEX C 3 (MM) | 41.0 |
| OVERALL LENGTH L1 (MM) | 49.0 |
| OVERALL LENGTH L2 (MM) | 38.0 |
| OVERALL LENGTH L3 (MM) | 30.5 |
| CENTERLINE LENGTH 1 (MM) | 88.0 |
| CENTERLINE LENGTH 2 (MM) | 77.0 |
| CENTERLINE LENGTH 3 (MM) | 69.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 1.633 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 21.929 |
D2701-LN-L28-L28-SS
$829.30Attribute: D2701-LN-L28-L28-SS (L28MBT-L28M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M36X2.0-SS |
| BODY HEX (MM) | 36.0 |
| HEX C 1 (MM) | 46.0 |
| HEX C 2 (MM) | 41.0 |
| HEX C 3 (MM) | 41.0 |
| OVERALL LENGTH L1 (MM) | 49.0 |
| OVERALL LENGTH L2 (MM) | 38.0 |
| OVERALL LENGTH L3 (MM) | 30.5 |
| CENTERLINE LENGTH 1 (MM) | 88.0 |
| CENTERLINE LENGTH 2 (MM) | 77.0 |
| CENTERLINE LENGTH 3 (MM) | 69.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 1.633 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 21.929 |
D2701-LN-L35-L35
$281.26Attribute: D2701-LN-L35-L35 (L35MBT-L35MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M45X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M45X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M45X2.0 |
| BODY HEX (MM) | 41.0 |
| HEX C 1 (MM) | 55.0 |
| HEX C 2 (MM) | 50.0 |
| HEX C 3 (MM) | 50.0 |
| OVERALL LENGTH L1 (MM) | 57.0 |
| OVERALL LENGTH L2 (MM) | 45.0 |
| OVERALL LENGTH L3 (MM) | 34.5 |
| CENTERLINE LENGTH 1 (MM) | 98.0 |
| CENTERLINE LENGTH 2 (MM) | 86.0 |
| CENTERLINE LENGTH 3 (MM) | 75.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 2.560 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 34.884 |
D2701-LN-L35-L35-SS
$1,229.22Attribute: D2701-LN-L35-L35-SS (L35MBT-L35M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M45X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M45X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M45X2.0-SS |
| BODY HEX (MM) | 41.0 |
| HEX C 1 (MM) | 55.0 |
| HEX C 2 (MM) | 50.0 |
| HEX C 3 (MM) | 50.0 |
| OVERALL LENGTH L1 (MM) | 57.0 |
| OVERALL LENGTH L2 (MM) | 45.0 |
| OVERALL LENGTH L3 (MM) | 34.5 |
| CENTERLINE LENGTH 1 (MM) | 98.0 |
| CENTERLINE LENGTH 2 (MM) | 86.0 |
| CENTERLINE LENGTH 3 (MM) | 75.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 2.560 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 34.884 |
D2701-LN-L42-L42
$377.86Attribute: D2701-LN-L42-L42 (L42MBT-L42MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M52X2.0 |
| BODY HEX (MM) | 50.0 |
| HEX C 1 (MM) | 65.0 |
| HEX C 2 (MM) | 60.0 |
| HEX C 3 (MM) | 60.0 |
| OVERALL LENGTH L1 (MM) | 63.0 |
| OVERALL LENGTH L2 (MM) | 51.0 |
| OVERALL LENGTH L3 (MM) | 40.0 |
| CENTERLINE LENGTH 1 (MM) | 102.0 |
| CENTERLINE LENGTH 2 (MM) | 90.0 |
| CENTERLINE LENGTH 3 (MM) | 79.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 3.710 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 50.002 |
D2701-LN-L42-L42-SS
$1,689.83Attribute: D2701-LN-L42-L42-SS (L42MBT-L42M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M52X2.0-SS |
| BODY HEX (MM) | 50.0 |
| HEX C 1 (MM) | 65.0 |
| HEX C 2 (MM) | 60.0 |
| HEX C 3 (MM) | 60.0 |
| OVERALL LENGTH L1 (MM) | 63.0 |
| OVERALL LENGTH L2 (MM) | 51.0 |
| OVERALL LENGTH L3 (MM) | 40.0 |
| CENTERLINE LENGTH 1 (MM) | 102.0 |
| CENTERLINE LENGTH 2 (MM) | 90.0 |
| CENTERLINE LENGTH 3 (MM) | 79.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 3.710 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 160 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 50.002 |
D2701-LN-S06-S06
$39.01Attribute: D2701-LN-S06-S06 (S06MBT-S06MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M14X1.5 |
| BODY HEX (MM) | 12.0 |
| HEX C 1 (MM) | 19.0 |
| HEX C 2 (MM) | 17.0 |
| HEX C 3 (MM) | 17.0 |
| OVERALL LENGTH L1 (MM) | 31.0 |
| OVERALL LENGTH L2 (MM) | 23.0 |
| OVERALL LENGTH L3 (MM) | 16.0 |
| CENTERLINE LENGTH 1 (MM) | 61.0 |
| CENTERLINE LENGTH 2 (MM) | 53.0 |
| CENTERLINE LENGTH 3 (MM) | 46.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.284 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.264 |
D2701-LN-S06-S06-SS
$207.13Attribute: D2701-LN-S06-S06-SS (S06MBT-S06M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M14X1.5-SS |
| BODY HEX (MM) | 12.0 |
| HEX C 1 (MM) | 19.0 |
| HEX C 2 (MM) | 17.0 |
| HEX C 3 (MM) | 17.0 |
| OVERALL LENGTH L1 (MM) | 31.0 |
| OVERALL LENGTH L2 (MM) | 23.0 |
| OVERALL LENGTH L3 (MM) | 16.0 |
| CENTERLINE LENGTH 1 (MM) | 61.0 |
| CENTERLINE LENGTH 2 (MM) | 53.0 |
| CENTERLINE LENGTH 3 (MM) | 46.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.284 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.264 |
D2701-LN-S08-S08
$43.28Attribute: D2701-LN-S08-S08 (S08MBT-S08MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M16X1.5 |
| BODY HEX (MM) | 14.0 |
| HEX C 1 (MM) | 22.0 |
| HEX C 2 (MM) | 19.0 |
| HEX C 3 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 32.0 |
| OVERALL LENGTH L2 (MM) | 24.0 |
| OVERALL LENGTH L3 (MM) | 17.0 |
| CENTERLINE LENGTH 1 (MM) | 62.0 |
| CENTERLINE LENGTH 2 (MM) | 54.0 |
| CENTERLINE LENGTH 3 (MM) | 47.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.357 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.128 |
D2701-LN-S08-S08-SS
$209.26Attribute: D2701-LN-S08-S08-SS (S08MBT-S08M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M16X1.5-SS |
| BODY HEX (MM) | 14.0 |
| HEX C 1 (MM) | 22.0 |
| HEX C 2 (MM) | 19.0 |
| HEX C 3 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 32.0 |
| OVERALL LENGTH L2 (MM) | 24.0 |
| OVERALL LENGTH L3 (MM) | 17.0 |
| CENTERLINE LENGTH 1 (MM) | 62.0 |
| CENTERLINE LENGTH 2 (MM) | 54.0 |
| CENTERLINE LENGTH 3 (MM) | 47.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.357 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.128 |
D2701-LN-S10-S10
$54.62Attribute: D2701-LN-S10-S10 (S10MBT-S10MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M18X1.5 |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 24.0 |
| HEX C 2 (MM) | 22.0 |
| HEX C 3 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 34.0 |
| OVERALL LENGTH L2 (MM) | 25.0 |
| OVERALL LENGTH L3 (MM) | 17.5 |
| CENTERLINE LENGTH 1 (MM) | 66.0 |
| CENTERLINE LENGTH 2 (MM) | 57.0 |
| CENTERLINE LENGTH 3 (MM) | 49.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.464 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.188 |
D2701-LN-S10-S10-SS
$225.57Attribute: D2701-LN-S10-S10-SS (S10MBT-S10M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M18X1.5-SS |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 24.0 |
| HEX C 2 (MM) | 22.0 |
| HEX C 3 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 34.0 |
| OVERALL LENGTH L2 (MM) | 25.0 |
| OVERALL LENGTH L3 (MM) | 17.5 |
| CENTERLINE LENGTH 1 (MM) | 66.0 |
| CENTERLINE LENGTH 2 (MM) | 57.0 |
| CENTERLINE LENGTH 3 (MM) | 49.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.464 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.188 |
D2701-LN-S12-S12
$52.62Attribute: D2701-LN-S12-S12 (S12MBT-S12MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M20X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M20X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M20X1.5 |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 27.0 |
| HEX C 2 (MM) | 24.0 |
| HEX C 3 (MM) | 24.0 |
| OVERALL LENGTH L1 (MM) | 38.0 |
| OVERALL LENGTH L2 (MM) | 29.0 |
| OVERALL LENGTH L3 (MM) | 21.5 |
| CENTERLINE LENGTH 1 (MM) | 68.0 |
| CENTERLINE LENGTH 2 (MM) | 59.0 |
| CENTERLINE LENGTH 3 (MM) | 51.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.572 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.788 |
D2701-LN-S12-S12-SS
$256.25Attribute: D2701-LN-S12-S12-SS (S12MBT-S12M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M20X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M20X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M20X1.5-SS |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 27.0 |
| HEX C 2 (MM) | 24.0 |
| HEX C 3 (MM) | 24.0 |
| OVERALL LENGTH L1 (MM) | 38.0 |
| OVERALL LENGTH L2 (MM) | 29.0 |
| OVERALL LENGTH L3 (MM) | 21.5 |
| CENTERLINE LENGTH 1 (MM) | 68.0 |
| CENTERLINE LENGTH 2 (MM) | 59.0 |
| CENTERLINE LENGTH 3 (MM) | 51.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.572 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.788 |
D2701-LN-S14-S14
$208.96Attribute: D2701-LN-S14-S14 (S14MBT-S14MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M22X1.5 |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 30.0 |
| HEX C 2 (MM) | 27.0 |
| HEX C 3 (MM) | 27.0 |
| OVERALL LENGTH L1 (MM) | 40.0 |
| OVERALL LENGTH L2 (MM) | 30.0 |
| OVERALL LENGTH L3 (MM) | 22.0 |
| CENTERLINE LENGTH 1 (MM) | 73.0 |
| CENTERLINE LENGTH 2 (MM) | 63.0 |
| CENTERLINE LENGTH 3 (MM) | 55.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.737 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 8.710 |
D2701-LN-S14-S14-SS
$315.14Attribute: D2701-LN-S14-S14-SS (S14MBT-S14M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M22X1.5-SS |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 30.0 |
| HEX C 2 (MM) | 27.0 |
| HEX C 3 (MM) | 27.0 |
| OVERALL LENGTH L1 (MM) | 40.0 |
| OVERALL LENGTH L2 (MM) | 30.0 |
| OVERALL LENGTH L3 (MM) | 22.0 |
| CENTERLINE LENGTH 1 (MM) | 73.0 |
| CENTERLINE LENGTH 2 (MM) | 63.0 |
| CENTERLINE LENGTH 3 (MM) | 55.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.737 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 8.710 |
D2701-LN-S16-S16
$77.20Attribute: D2701-LN-S16-S16 (S16MBT-S16MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M24X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M24X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M24X1.5 |
| BODY HEX (MM) | 24.0 |
| HEX C 1 (MM) | 32.0 |
| HEX C 2 (MM) | 30.0 |
| HEX C 3 (MM) | 30.0 |
| OVERALL LENGTH L1 (MM) | 43.0 |
| OVERALL LENGTH L2 (MM) | 33.0 |
| OVERALL LENGTH L3 (MM) | 24.5 |
| CENTERLINE LENGTH 1 (MM) | 74.0 |
| CENTERLINE LENGTH 2 (MM) | 64.0 |
| CENTERLINE LENGTH 3 (MM) | 55.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.914 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 10.254 |
D2701-LN-S16-S16-SS
$379.36Attribute: D2701-LN-S16-S16-SS (S16MBT-S16M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M24X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M24X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M24X1.5-SS |
| BODY HEX (MM) | 24.0 |
| HEX C 1 (MM) | 32.0 |
| HEX C 2 (MM) | 30.0 |
| HEX C 3 (MM) | 30.0 |
| OVERALL LENGTH L1 (MM) | 43.0 |
| OVERALL LENGTH L2 (MM) | 33.0 |
| OVERALL LENGTH L3 (MM) | 24.5 |
| CENTERLINE LENGTH 1 (MM) | 74.0 |
| CENTERLINE LENGTH 2 (MM) | 64.0 |
| CENTERLINE LENGTH 3 (MM) | 55.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.914 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 10.254 |
D2701-LN-S20-S20
$121.40Attribute: D2701-LN-S20-S20 (S20MBT-S20MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M30X2.0 |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 41.0 |
| HEX C 2 (MM) | 36.0 |
| HEX C 3 (MM) | 36.0 |
| OVERALL LENGTH L1 (MM) | 49.0 |
| OVERALL LENGTH L2 (MM) | 37.0 |
| OVERALL LENGTH L3 (MM) | 26.5 |
| CENTERLINE LENGTH 1 (MM) | 86.0 |
| CENTERLINE LENGTH 2 (MM) | 74.0 |
| CENTERLINE LENGTH 3 (MM) | 63.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 1.456 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 18.084 |
D2701-LN-S20-S20-SS
$622.81Attribute: D2701-LN-S20-S20-SS (S20MBT-S20M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M30X2.0-SS |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 41.0 |
| HEX C 2 (MM) | 36.0 |
| HEX C 3 (MM) | 36.0 |
| OVERALL LENGTH L1 (MM) | 49.0 |
| OVERALL LENGTH L2 (MM) | 37.0 |
| OVERALL LENGTH L3 (MM) | 26.5 |
| CENTERLINE LENGTH 1 (MM) | 86.0 |
| CENTERLINE LENGTH 2 (MM) | 74.0 |
| CENTERLINE LENGTH 3 (MM) | 63.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 1.456 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 18.084 |
D2701-LN-S25-S25
$204.48Attribute: D2701-LN-S25-S25 (S25MBT-S25MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M36X2.0 |
| BODY HEX (MM) | 36.0 |
| HEX C 1 (MM) | 46.0 |
| HEX C 2 (MM) | 46.0 |
| HEX C 3 (MM) | 46.0 |
| OVERALL LENGTH L1 (MM) | 55.0 |
| OVERALL LENGTH L2 (MM) | 42.0 |
| OVERALL LENGTH L3 (MM) | 30.0 |
| CENTERLINE LENGTH 1 (MM) | 94.0 |
| CENTERLINE LENGTH 2 (MM) | 81.0 |
| CENTERLINE LENGTH 3 (MM) | 69.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 2.498 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 25.617 |
D2701-LN-S25-S25-SS
$892.11Attribute: D2701-LN-S25-S25-SS (S25MBT-S25M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M36X2.0-SS |
| BODY HEX (MM) | 36.0 |
| HEX C 1 (MM) | 46.0 |
| HEX C 2 (MM) | 46.0 |
| HEX C 3 (MM) | 46.0 |
| OVERALL LENGTH L1 (MM) | 55.0 |
| OVERALL LENGTH L2 (MM) | 42.0 |
| OVERALL LENGTH L3 (MM) | 30.0 |
| CENTERLINE LENGTH 1 (MM) | 94.0 |
| CENTERLINE LENGTH 2 (MM) | 81.0 |
| CENTERLINE LENGTH 3 (MM) | 69.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 2.498 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 25.617 |
D2701-LN-S30-S30
$278.91Attribute: D2701-LN-S30-S30 (S30MBT-S30MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M42X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M42X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M42X2.0 |
| BODY HEX (MM) | 41.0 |
| HEX C 1 (MM) | 50.0 |
| HEX C 2 (MM) | 50.0 |
| HEX C 3 (MM) | 50.0 |
| OVERALL LENGTH L1 (MM) | 63.2 |
| OVERALL LENGTH L2 (MM) | 49.0 |
| OVERALL LENGTH L3 (MM) | 35.5 |
| CENTERLINE LENGTH 1 (MM) | 104.2 |
| CENTERLINE LENGTH 2 (MM) | 90.0 |
| CENTERLINE LENGTH 3 (MM) | 76.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 3.289 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 34.803 |
D2701-LN-S30-S30-SS
$1,255.17Attribute: D2701-LN-S30-S30-SS (S30MBT-S30M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M42X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M42X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M42X2.0-SS |
| BODY HEX (MM) | 41.0 |
| HEX C 1 (MM) | 50.0 |
| HEX C 2 (MM) | 50.0 |
| HEX C 3 (MM) | 50.0 |
| OVERALL LENGTH L1 (MM) | 63.2 |
| OVERALL LENGTH L2 (MM) | 49.0 |
| OVERALL LENGTH L3 (MM) | 35.5 |
| CENTERLINE LENGTH 1 (MM) | 104.2 |
| CENTERLINE LENGTH 2 (MM) | 90.0 |
| CENTERLINE LENGTH 3 (MM) | 76.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 3.289 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 34.803 |
D2701-LN-S38-S38
$392.67Attribute: D2701-LN-S38-S38 (S38MBT-S38MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M52X2.0 |
| BODY HEX (MM) | 50.0 |
| HEX C 1 (MM) | 65.0 |
| HEX C 2 (MM) | 60.0 |
| HEX C 3 (MM) | 60.0 |
| OVERALL LENGTH L1 (MM) | 72.5 |
| OVERALL LENGTH L2 (MM) | 57.0 |
| OVERALL LENGTH L3 (MM) | 41.0 |
| CENTERLINE LENGTH 1 (MM) | 111.5 |
| CENTERLINE LENGTH 2 (MM) | 96.0 |
| CENTERLINE LENGTH 3 (MM) | 80.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 4.912 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 58.933 |
D2701-LN-S38-S38-SS
$1,877.71Attribute: D2701-LN-S38-S38-SS (S38MBT-S38M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M52X2.0-SS |
| BODY HEX (MM) | 50.0 |
| HEX C 1 (MM) | 65.0 |
| HEX C 2 (MM) | 60.0 |
| HEX C 3 (MM) | 60.0 |
| OVERALL LENGTH L1 (MM) | 72.5 |
| OVERALL LENGTH L2 (MM) | 57.0 |
| OVERALL LENGTH L3 (MM) | 41.0 |
| CENTERLINE LENGTH 1 (MM) | 111.5 |
| CENTERLINE LENGTH 2 (MM) | 96.0 |
| CENTERLINE LENGTH 3 (MM) | 80.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 4.912 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 58.933 |
General Attributes
No general attributes scraped.
PDF Documents
No PDF documents scraped.
