Description

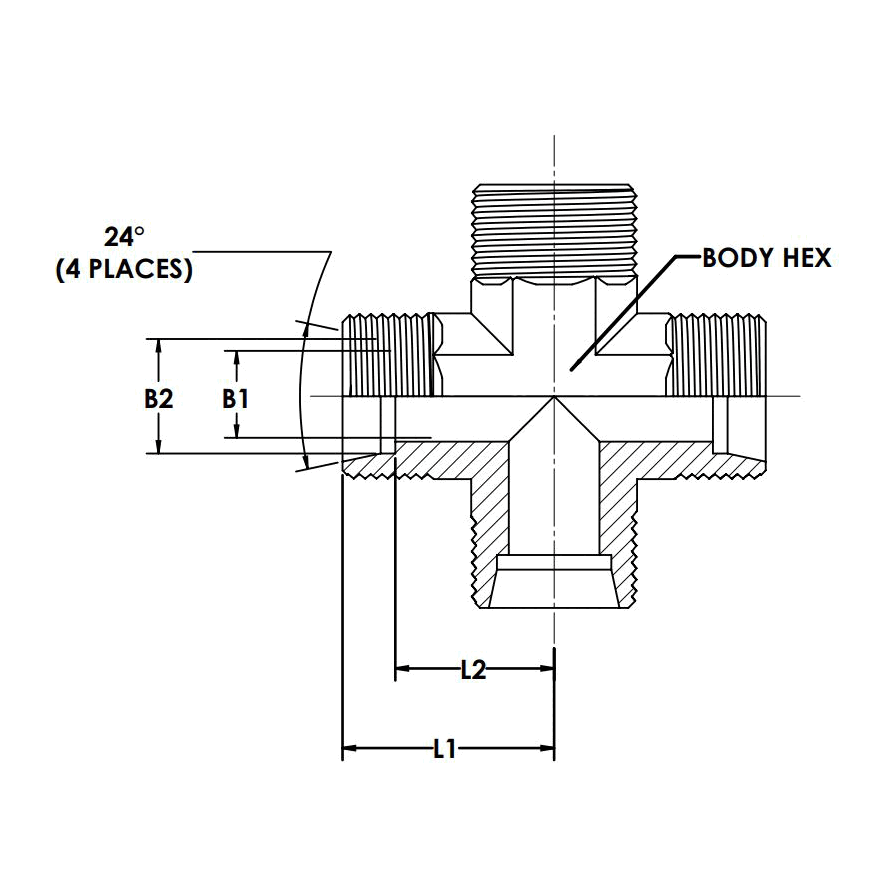

MBT-MBT-MBT-MBT CROSS UNION (BODY ONLY)
Description
Variations (42)
D2650-E04-E04-E04-E04-SS-X
$155.71Attribute: D2650-E04-E04-E04-E04-SS-X (E04M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M08X1.0 |
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 04MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M08X1.0 |
| CONNECTION 2 TUBE SIZE | EXTRA LIGHT 04MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M08X1.0 |
| CONNECTION 3 TUBE SIZE | EXTRA LIGHT 04MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M08X1.0 |
| CONNECTION 4 TUBE SIZE | EXTRA LIGHT 04MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D2650-E06-E06-E06-E06-SS-X
$147.68Attribute: D2650-E06-E06-E06-E06-SS-X (E06M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M10X1.0 |
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 06MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M10X1.0 |
| CONNECTION 2 TUBE SIZE | EXTRA LIGHT 06MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M10X1.0 |
| CONNECTION 3 TUBE SIZE | EXTRA LIGHT 06MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M10X1.0 |
| CONNECTION 4 TUBE SIZE | EXTRA LIGHT 06MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D2650-E08-E08-E08-E08-SS-X
$142.28Attribute: D2650-E08-E08-E08-E08-SS-X (E08M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M12X1.0 |
| CONNECTION 1 TUBE SIZE | EXTRA LIGHT 08MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M12X1.0 |
| CONNECTION 2 TUBE SIZE | EXTRA LIGHT 08MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M12X1.0 |
| CONNECTION 3 TUBE SIZE | EXTRA LIGHT 08MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M12X1.0 |
| CONNECTION 4 TUBE SIZE | EXTRA LIGHT 08MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
D2650-L06-L06-L06-L06-SS-X
$165.48Attribute: D2650-L06-L06-L06-L06-SS-X (L06M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M12X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M12X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M12X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M12X1.5 |
| CONNECTION 4 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 12.0 |
| CENTERLINE LENGTH M1 (MM) | 19.0 |
| CENTERLINE LENGTH M2 (MM) | 12.0 |
| CENTERLINE LENGTH M3 (MM) | 19.0 |
| CENTERLINE LENGTH M4 (MM) | 12.0 |
| CENTERLINE LENGTH L1 (MM) | 19.0 |
| CENTERLINE LENGTH L2 (MM) | 12.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.086 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.057 |
D2650-L06-L06-L06-L06-X
$66.09Attribute: D2650-L06-L06-L06-L06-X (L06MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M12X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M12X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M12X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M12X1.5 |
| CONNECTION 4 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 12.0 |
| CENTERLINE LENGTH M1 (MM) | 19.0 |
| CENTERLINE LENGTH M2 (MM) | 12.0 |
| CENTERLINE LENGTH M3 (MM) | 19.0 |
| CENTERLINE LENGTH M4 (MM) | 12.0 |
| CENTERLINE LENGTH L1 (MM) | 19.0 |
| CENTERLINE LENGTH L2 (MM) | 12.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.086 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.057 |
D2650-L08-L08-L08-L08-SS-X
$175.90Attribute: D2650-L08-L08-L08-L08-SS-X (L08M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M14X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M14X1.5 |
| CONNECTION 4 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 12.0 |
| CENTERLINE LENGTH M1 (MM) | 21.0 |
| CENTERLINE LENGTH M2 (MM) | 14.0 |
| CENTERLINE LENGTH M3 (MM) | 21.0 |
| CENTERLINE LENGTH M4 (MM) | 14.0 |
| CENTERLINE LENGTH L1 (MM) | 21.0 |
| CENTERLINE LENGTH L2 (MM) | 14.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.101 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.292 |
D2650-L08-L08-L08-L08-X
$73.99Attribute: D2650-L08-L08-L08-L08-X (L08MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M14X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M14X1.5 |
| CONNECTION 4 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 12.0 |
| CENTERLINE LENGTH M1 (MM) | 21.0 |
| CENTERLINE LENGTH M2 (MM) | 14.0 |
| CENTERLINE LENGTH M3 (MM) | 21.0 |
| CENTERLINE LENGTH M4 (MM) | 14.0 |
| CENTERLINE LENGTH L1 (MM) | 21.0 |
| CENTERLINE LENGTH L2 (MM) | 14.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.101 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.292 |
D2650-L10-L10-L10-L10-SS-X
$233.33Attribute: D2650-L10-L10-L10-L10-SS-X (L10M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M16X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M16X1.5 |
| CONNECTION 4 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 14.0 |
| CENTERLINE LENGTH M1 (MM) | 22.0 |
| CENTERLINE LENGTH M2 (MM) | 15.0 |
| CENTERLINE LENGTH M3 (MM) | 22.0 |
| CENTERLINE LENGTH M4 (MM) | 15.0 |
| CENTERLINE LENGTH L1 (MM) | 22.0 |
| CENTERLINE LENGTH L2 (MM) | 15.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.130 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.654 |
D2650-L10-L10-L10-L10-X
$78.17Attribute: D2650-L10-L10-L10-L10-X (L10MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M16X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M16X1.5 |
| CONNECTION 4 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 14.0 |
| CENTERLINE LENGTH M1 (MM) | 22.0 |
| CENTERLINE LENGTH M2 (MM) | 15.0 |
| CENTERLINE LENGTH M3 (MM) | 22.0 |
| CENTERLINE LENGTH M4 (MM) | 15.0 |
| CENTERLINE LENGTH L1 (MM) | 22.0 |
| CENTERLINE LENGTH L2 (MM) | 15.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.130 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.654 |
D2650-L12-L12-L12-L12-SS-X
$242.29Attribute: D2650-L12-L12-L12-L12-SS-X (L12M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M18X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M18X1.5 |
| CONNECTION 4 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 17.0 |
| CENTERLINE LENGTH M1 (MM) | 24.0 |
| CENTERLINE LENGTH M2 (MM) | 17.0 |
| CENTERLINE LENGTH M3 (MM) | 24.0 |
| CENTERLINE LENGTH M4 (MM) | 17.0 |
| CENTERLINE LENGTH L1 (MM) | 24.0 |
| CENTERLINE LENGTH L2 (MM) | 17.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.167 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.390 |
D2650-L12-L12-L12-L12-X
$86.84Attribute: D2650-L12-L12-L12-L12-X (L12MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M18X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M18X1.5 |
| CONNECTION 4 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 17.0 |
| CENTERLINE LENGTH M1 (MM) | 24.0 |
| CENTERLINE LENGTH M2 (MM) | 17.0 |
| CENTERLINE LENGTH M3 (MM) | 24.0 |
| CENTERLINE LENGTH M4 (MM) | 17.0 |
| CENTERLINE LENGTH L1 (MM) | 24.0 |
| CENTERLINE LENGTH L2 (MM) | 17.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.167 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.390 |
D2650-L15-L15-L15-L15-SS-X
$304.08Attribute: D2650-L15-L15-L15-L15-SS-X (L15M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M22X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M22X1.5 |
| CONNECTION 4 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 19.0 |
| CENTERLINE LENGTH M1 (MM) | 28.0 |
| CENTERLINE LENGTH M2 (MM) | 21.0 |
| CENTERLINE LENGTH M3 (MM) | 28.0 |
| CENTERLINE LENGTH M4 (MM) | 21.0 |
| CENTERLINE LENGTH L1 (MM) | 28.0 |
| CENTERLINE LENGTH L2 (MM) | 21.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.300 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.636 |
D2650-L15-L15-L15-L15-X
$98.91Attribute: D2650-L15-L15-L15-L15-X (L15MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M22X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M22X1.5 |
| CONNECTION 4 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 19.0 |
| CENTERLINE LENGTH M1 (MM) | 28.0 |
| CENTERLINE LENGTH M2 (MM) | 21.0 |
| CENTERLINE LENGTH M3 (MM) | 28.0 |
| CENTERLINE LENGTH M4 (MM) | 21.0 |
| CENTERLINE LENGTH L1 (MM) | 28.0 |
| CENTERLINE LENGTH L2 (MM) | 21.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.300 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.636 |
D2650-L18-L18-L18-L18-SS-X
$433.51Attribute: D2650-L18-L18-L18-L18-SS-X (L18M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M26X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M26X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M26X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M26X1.5 |
| CONNECTION 4 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 24.0 |
| CENTERLINE LENGTH M1 (MM) | 31.0 |
| CENTERLINE LENGTH M2 (MM) | 23.5 |
| CENTERLINE LENGTH M3 (MM) | 31.0 |
| CENTERLINE LENGTH M4 (MM) | 23.5 |
| CENTERLINE LENGTH L1 (MM) | 31.0 |
| CENTERLINE LENGTH L2 (MM) | 23.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.430 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.630 |
D2650-L18-L18-L18-L18-X
$120.00Attribute: D2650-L18-L18-L18-L18-X (L18MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M26X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M26X1.5 |
| CONNECTION 2 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M26X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M26X1.5 |
| CONNECTION 4 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 24.0 |
| CENTERLINE LENGTH M1 (MM) | 31.0 |
| CENTERLINE LENGTH M2 (MM) | 23.5 |
| CENTERLINE LENGTH M3 (MM) | 31.0 |
| CENTERLINE LENGTH M4 (MM) | 23.5 |
| CENTERLINE LENGTH L1 (MM) | 31.0 |
| CENTERLINE LENGTH L2 (MM) | 23.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.430 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.630 |
D2650-L22-L22-L22-L22-SS-X
$580.81Attribute: D2650-L22-L22-L22-L22-SS-X (L22M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M30X2.0 |
| CONNECTION 3 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M30X2.0 |
| CONNECTION 4 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 27.0 |
| CENTERLINE LENGTH M1 (MM) | 35.0 |
| CENTERLINE LENGTH M2 (MM) | 27.5 |
| CENTERLINE LENGTH M3 (MM) | 35.0 |
| CENTERLINE LENGTH M4 (MM) | 27.5 |
| CENTERLINE LENGTH L1 (MM) | 35.0 |
| CENTERLINE LENGTH L2 (MM) | 27.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.568 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 8.073 |
D2650-L22-L22-L22-L22-X
$175.38Attribute: D2650-L22-L22-L22-L22-X (L22MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M30X2.0 |
| CONNECTION 3 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M30X2.0 |
| CONNECTION 4 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 27.0 |
| CENTERLINE LENGTH M1 (MM) | 35.0 |
| CENTERLINE LENGTH M2 (MM) | 27.5 |
| CENTERLINE LENGTH M3 (MM) | 35.0 |
| CENTERLINE LENGTH M4 (MM) | 27.5 |
| CENTERLINE LENGTH L1 (MM) | 35.0 |
| CENTERLINE LENGTH L2 (MM) | 27.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.568 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 8.073 |
D2650-L28-L28-L28-L28-SS-X
$817.52Attribute: D2650-L28-L28-L28-L28-SS-X (L28M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M36X2.0 |
| CONNECTION 3 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M36X2.0 |
| CONNECTION 4 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 36.0 |
| CENTERLINE LENGTH M1 (MM) | 38.0 |
| CENTERLINE LENGTH M2 (MM) | 30.5 |
| CENTERLINE LENGTH M3 (MM) | 38.0 |
| CENTERLINE LENGTH M4 (MM) | 30.5 |
| CENTERLINE LENGTH L1 (MM) | 38.0 |
| CENTERLINE LENGTH L2 (MM) | 30.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.883 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 12.689 |
D2650-L28-L28-L28-L28-X
$217.24Attribute: D2650-L28-L28-L28-L28-X (L28MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M36X2.0 |
| CONNECTION 3 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M36X2.0 |
| CONNECTION 4 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 36.0 |
| CENTERLINE LENGTH M1 (MM) | 38.0 |
| CENTERLINE LENGTH M2 (MM) | 30.5 |
| CENTERLINE LENGTH M3 (MM) | 38.0 |
| CENTERLINE LENGTH M4 (MM) | 30.5 |
| CENTERLINE LENGTH L1 (MM) | 38.0 |
| CENTERLINE LENGTH L2 (MM) | 30.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.883 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 12.689 |
D2650-L35-L35-L35-L35-SS-X
$1,033.82Attribute: D2650-L35-L35-L35-L35-SS-X (L35M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M45X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M45X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M45X2.0 |
| CONNECTION 3 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M45X2.0 |
| CONNECTION 4 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 41.0 |
| CENTERLINE LENGTH M1 (MM) | 45.0 |
| CENTERLINE LENGTH M2 (MM) | 34.5 |
| CENTERLINE LENGTH M3 (MM) | 45.0 |
| CENTERLINE LENGTH M4 (MM) | 34.5 |
| CENTERLINE LENGTH L1 (MM) | 45.0 |
| CENTERLINE LENGTH L2 (MM) | 34.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 1.344 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 20.266 |
D2650-L35-L35-L35-L35-X
$301.39Attribute: D2650-L35-L35-L35-L35-X (L35MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M45X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M45X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M45X2.0 |
| CONNECTION 3 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M45X2.0 |
| CONNECTION 4 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 41.0 |
| CENTERLINE LENGTH M1 (MM) | 45.0 |
| CENTERLINE LENGTH M2 (MM) | 34.5 |
| CENTERLINE LENGTH M3 (MM) | 45.0 |
| CENTERLINE LENGTH M4 (MM) | 34.5 |
| CENTERLINE LENGTH L1 (MM) | 45.0 |
| CENTERLINE LENGTH L2 (MM) | 34.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 1.344 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 20.266 |
D2650-L42-L42-L42-L42-SS-X
$1,716.12Attribute: D2650-L42-L42-L42-L42-SS-X (L42M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M52X2.0 |
| CONNECTION 3 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M52X2.0 |
| CONNECTION 4 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 50.0 |
| CENTERLINE LENGTH M1 (MM) | 51.0 |
| CENTERLINE LENGTH M2 (MM) | 40.0 |
| CENTERLINE LENGTH M3 (MM) | 51.0 |
| CENTERLINE LENGTH M4 (MM) | 40.0 |
| CENTERLINE LENGTH L1 (MM) | 51.0 |
| CENTERLINE LENGTH L2 (MM) | 40.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 1.936 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 31.745 |
D2650-L42-L42-L42-L42-X
$504.73Attribute: D2650-L42-L42-L42-L42-X (L42MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M52X2.0 |
| CONNECTION 3 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M52X2.0 |
| CONNECTION 4 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 50.0 |
| CENTERLINE LENGTH M1 (MM) | 51.0 |
| CENTERLINE LENGTH M2 (MM) | 40.0 |
| CENTERLINE LENGTH M3 (MM) | 51.0 |
| CENTERLINE LENGTH M4 (MM) | 40.0 |
| CENTERLINE LENGTH L1 (MM) | 51.0 |
| CENTERLINE LENGTH L2 (MM) | 40.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 1.936 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 31.745 |
D2650-S06-S06-S06-S06-SS-X
$178.55Attribute: D2650-S06-S06-S06-S06-SS-X (S06M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M14X1.5 |
| CONNECTION 3 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M14X1.5 |
| CONNECTION 4 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 12.0 |
| CENTERLINE LENGTH M1 (MM) | 23.0 |
| CENTERLINE LENGTH M2 (MM) | 16.0 |
| CENTERLINE LENGTH M3 (MM) | 23.0 |
| CENTERLINE LENGTH M4 (MM) | 16.0 |
| CENTERLINE LENGTH L1 (MM) | 23.0 |
| CENTERLINE LENGTH L2 (MM) | 16.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.148 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.550 |
D2650-S06-S06-S06-S06-X
$80.40Attribute: D2650-S06-S06-S06-S06-X (S06MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M14X1.5 |
| CONNECTION 3 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M14X1.5 |
| CONNECTION 4 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 12.0 |
| CENTERLINE LENGTH M1 (MM) | 23.0 |
| CENTERLINE LENGTH M2 (MM) | 16.0 |
| CENTERLINE LENGTH M3 (MM) | 23.0 |
| CENTERLINE LENGTH M4 (MM) | 16.0 |
| CENTERLINE LENGTH L1 (MM) | 23.0 |
| CENTERLINE LENGTH L2 (MM) | 16.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.148 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.550 |
D2650-S08-S08-S08-S08-SS-X
$245.62Attribute: D2650-S08-S08-S08-S08-SS-X (S08M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M16X1.5 |
| CONNECTION 3 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M16X1.5 |
| CONNECTION 4 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 14.0 |
| CENTERLINE LENGTH M1 (MM) | 24.0 |
| CENTERLINE LENGTH M2 (MM) | 17.0 |
| CENTERLINE LENGTH M3 (MM) | 24.0 |
| CENTERLINE LENGTH M4 (MM) | 17.0 |
| CENTERLINE LENGTH L1 (MM) | 24.0 |
| CENTERLINE LENGTH L2 (MM) | 17.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.196 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.968 |
D2650-S08-S08-S08-S08-X
$87.48Attribute: D2650-S08-S08-S08-S08-X (S08MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M16X1.5 |
| CONNECTION 3 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M16X1.5 |
| CONNECTION 4 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 14.0 |
| CENTERLINE LENGTH M1 (MM) | 24.0 |
| CENTERLINE LENGTH M2 (MM) | 17.0 |
| CENTERLINE LENGTH M3 (MM) | 24.0 |
| CENTERLINE LENGTH M4 (MM) | 17.0 |
| CENTERLINE LENGTH L1 (MM) | 24.0 |
| CENTERLINE LENGTH L2 (MM) | 17.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.196 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.968 |
D2650-S10-S10-S10-S10-SS-X
$254.07Attribute: D2650-S10-S10-S10-S10-SS-X (S10M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M18X1.5 |
| CONNECTION 3 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M18X1.5 |
| CONNECTION 4 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 17.0 |
| CENTERLINE LENGTH M1 (MM) | 25.0 |
| CENTERLINE LENGTH M2 (MM) | 17.5 |
| CENTERLINE LENGTH M3 (MM) | 25.0 |
| CENTERLINE LENGTH M4 (MM) | 17.5 |
| CENTERLINE LENGTH L1 (MM) | 25.0 |
| CENTERLINE LENGTH L2 (MM) | 17.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.240 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.594 |
D2650-S10-S10-S10-S10-X
$91.83Attribute: D2650-S10-S10-S10-S10-X (S10MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M18X1.5 |
| CONNECTION 3 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M18X1.5 |
| CONNECTION 4 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 17.0 |
| CENTERLINE LENGTH M1 (MM) | 25.0 |
| CENTERLINE LENGTH M2 (MM) | 17.5 |
| CENTERLINE LENGTH M3 (MM) | 25.0 |
| CENTERLINE LENGTH M4 (MM) | 17.5 |
| CENTERLINE LENGTH L1 (MM) | 25.0 |
| CENTERLINE LENGTH L2 (MM) | 17.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.240 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.594 |
D2650-S12-S12-S12-S12-SS-X
$304.04Attribute: D2650-S12-S12-S12-S12-SS-X (S12M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M20X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M20X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M20X1.5 |
| CONNECTION 3 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M20X1.5 |
| CONNECTION 4 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 17.0 |
| CENTERLINE LENGTH M1 (MM) | 29.0 |
| CENTERLINE LENGTH M2 (MM) | 21.5 |
| CENTERLINE LENGTH M3 (MM) | 29.0 |
| CENTERLINE LENGTH M4 (MM) | 21.5 |
| CENTERLINE LENGTH L1 (MM) | 29.0 |
| CENTERLINE LENGTH L2 (MM) | 21.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.326 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.490 |
D2650-S12-S12-S12-S12-X
$95.84Attribute: D2650-S12-S12-S12-S12-X (S12MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M20X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M20X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M20X1.5 |
| CONNECTION 3 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M20X1.5 |
| CONNECTION 4 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 17.0 |
| CENTERLINE LENGTH M1 (MM) | 29.0 |
| CENTERLINE LENGTH M2 (MM) | 21.5 |
| CENTERLINE LENGTH M3 (MM) | 29.0 |
| CENTERLINE LENGTH M4 (MM) | 21.5 |
| CENTERLINE LENGTH L1 (MM) | 29.0 |
| CENTERLINE LENGTH L2 (MM) | 21.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.326 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.490 |
D2650-S14-S14-S14-S14-SS-X
$302.07Attribute: D2650-S14-S14-S14-S14-SS-X (S14M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M22X1.5 |
| CONNECTION 3 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M22X1.5 |
| CONNECTION 4 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 19.0 |
| CENTERLINE LENGTH M1 (MM) | 30.0 |
| CENTERLINE LENGTH M2 (MM) | 22.0 |
| CENTERLINE LENGTH M3 (MM) | 30.0 |
| CENTERLINE LENGTH M4 (MM) | 22.0 |
| CENTERLINE LENGTH L1 (MM) | 30.0 |
| CENTERLINE LENGTH L2 (MM) | 22.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.392 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.174 |
D2650-S16-S16-S16-S16-SS-X
$398.95Attribute: D2650-S16-S16-S16-S16-SS-X (S16M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M24X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M24X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M24X1.5 |
| CONNECTION 3 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M24X1.5 |
| CONNECTION 4 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 24.0 |
| CENTERLINE LENGTH M1 (MM) | 33.0 |
| CENTERLINE LENGTH M2 (MM) | 24.5 |
| CENTERLINE LENGTH M3 (MM) | 33.0 |
| CENTERLINE LENGTH M4 (MM) | 24.5 |
| CENTERLINE LENGTH L1 (MM) | 33.0 |
| CENTERLINE LENGTH L2 (MM) | 24.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.531 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.380 |
D2650-S16-S16-S16-S16-X
$129.47Attribute: D2650-S16-S16-S16-S16-X (S16MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M24X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M24X1.5 |
| CONNECTION 2 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M24X1.5 |
| CONNECTION 3 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M24X1.5 |
| CONNECTION 4 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 24.0 |
| CENTERLINE LENGTH M1 (MM) | 33.0 |
| CENTERLINE LENGTH M2 (MM) | 24.5 |
| CENTERLINE LENGTH M3 (MM) | 33.0 |
| CENTERLINE LENGTH M4 (MM) | 24.5 |
| CENTERLINE LENGTH L1 (MM) | 33.0 |
| CENTERLINE LENGTH L2 (MM) | 24.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.531 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.380 |
D2650-S20-S20-S20-S20-SS-X
$575.65Attribute: D2650-S20-S20-S20-S20-SS-X (S20M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M30X2.0 |
| CONNECTION 3 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M30X2.0 |
| CONNECTION 4 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 27.0 |
| CENTERLINE LENGTH M1 (MM) | 37.0 |
| CENTERLINE LENGTH M2 (MM) | 26.5 |
| CENTERLINE LENGTH M3 (MM) | 37.0 |
| CENTERLINE LENGTH M4 (MM) | 26.5 |
| CENTERLINE LENGTH L1 (MM) | 37.0 |
| CENTERLINE LENGTH L2 (MM) | 26.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.762 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 9.023 |
D2650-S20-S20-S20-S20-X
$187.25Attribute: D2650-S20-S20-S20-S20-X (S20MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M30X2.0 |
| CONNECTION 3 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M30X2.0 |
| CONNECTION 4 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 27.0 |
| CENTERLINE LENGTH M1 (MM) | 37.0 |
| CENTERLINE LENGTH M2 (MM) | 26.5 |
| CENTERLINE LENGTH M3 (MM) | 37.0 |
| CENTERLINE LENGTH M4 (MM) | 26.5 |
| CENTERLINE LENGTH L1 (MM) | 37.0 |
| CENTERLINE LENGTH L2 (MM) | 26.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.762 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 9.023 |
D2650-S25-S25-S25-S25-SS-X
$950.99Attribute: D2650-S25-S25-S25-S25-SS-X (S25M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M36X2.0 |
| CONNECTION 3 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M36X2.0 |
| CONNECTION 4 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 36.0 |
| CENTERLINE LENGTH M1 (MM) | 42.0 |
| CENTERLINE LENGTH M2 (MM) | 30.0 |
| CENTERLINE LENGTH M3 (MM) | 42.0 |
| CENTERLINE LENGTH M4 (MM) | 30.0 |
| CENTERLINE LENGTH L1 (MM) | 42.0 |
| CENTERLINE LENGTH L2 (MM) | 30.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 1.313 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 15.501 |
D2650-S25-S25-S25-S25-X
$207.22Attribute: D2650-S25-S25-S25-S25-X (S25MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M36X2.0 |
| CONNECTION 3 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M36X2.0 |
| CONNECTION 4 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 36.0 |
| CENTERLINE LENGTH M1 (MM) | 42.0 |
| CENTERLINE LENGTH M2 (MM) | 30.0 |
| CENTERLINE LENGTH M3 (MM) | 42.0 |
| CENTERLINE LENGTH M4 (MM) | 30.0 |
| CENTERLINE LENGTH L1 (MM) | 42.0 |
| CENTERLINE LENGTH L2 (MM) | 30.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 1.313 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 15.501 |
D2650-S30-S30-S30-S30-SS-X
$1,686.75Attribute: D2650-S30-S30-S30-S30-SS-X (S30M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M42X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M42X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M42X2.0 |
| CONNECTION 3 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M42X2.0 |
| CONNECTION 4 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 41.0 |
| CENTERLINE LENGTH M1 (MM) | 49.0 |
| CENTERLINE LENGTH M2 (MM) | 35.5 |
| CENTERLINE LENGTH M3 (MM) | 49.0 |
| CENTERLINE LENGTH M4 (MM) | 35.5 |
| CENTERLINE LENGTH L1 (MM) | 49.0 |
| CENTERLINE LENGTH L2 (MM) | 35.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 1.965 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 24.029 |
D2650-S30-S30-S30-S30-X
$288.25Attribute: D2650-S30-S30-S30-S30-X (S30MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M42X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M42X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M42X2.0 |
| CONNECTION 3 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M42X2.0 |
| CONNECTION 4 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 41.0 |
| CENTERLINE LENGTH M1 (MM) | 49.0 |
| CENTERLINE LENGTH M2 (MM) | 35.5 |
| CENTERLINE LENGTH M3 (MM) | 49.0 |
| CENTERLINE LENGTH M4 (MM) | 35.5 |
| CENTERLINE LENGTH L1 (MM) | 49.0 |
| CENTERLINE LENGTH L2 (MM) | 35.5 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 1.965 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 24.029 |
D2650-S38-S38-S38-S38-SS-X
$1,783.03Attribute: D2650-S38-S38-S38-S38-SS-X (S38M...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M52X2.0 |
| CONNECTION 3 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M52X2.0 |
| CONNECTION 4 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 50.0 |
| CENTERLINE LENGTH M1 (MM) | 57.0 |
| CENTERLINE LENGTH M2 (MM) | 41.0 |
| CENTERLINE LENGTH M3 (MM) | 57.0 |
| CENTERLINE LENGTH M4 (MM) | 41.0 |
| CENTERLINE LENGTH L1 (MM) | 57.0 |
| CENTERLINE LENGTH L2 (MM) | 41.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 3.011 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 39.653 |
D2650-S38-S38-S38-S38-X
$475.88Attribute: D2650-S38-S38-S38-S38-X (S38MBT-...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M52X2.0 |
| CONNECTION 3 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 4 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 4 THREAD SIZE | M52X2.0 |
| CONNECTION 4 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 4 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 50.0 |
| CENTERLINE LENGTH M1 (MM) | 57.0 |
| CENTERLINE LENGTH M2 (MM) | 41.0 |
| CENTERLINE LENGTH M3 (MM) | 57.0 |
| CENTERLINE LENGTH M4 (MM) | 41.0 |
| CENTERLINE LENGTH L1 (MM) | 57.0 |
| CENTERLINE LENGTH L2 (MM) | 41.0 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 3.011 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 39.653 |
General Attributes
No general attributes scraped.
PDF Documents
No PDF documents scraped.
