Description

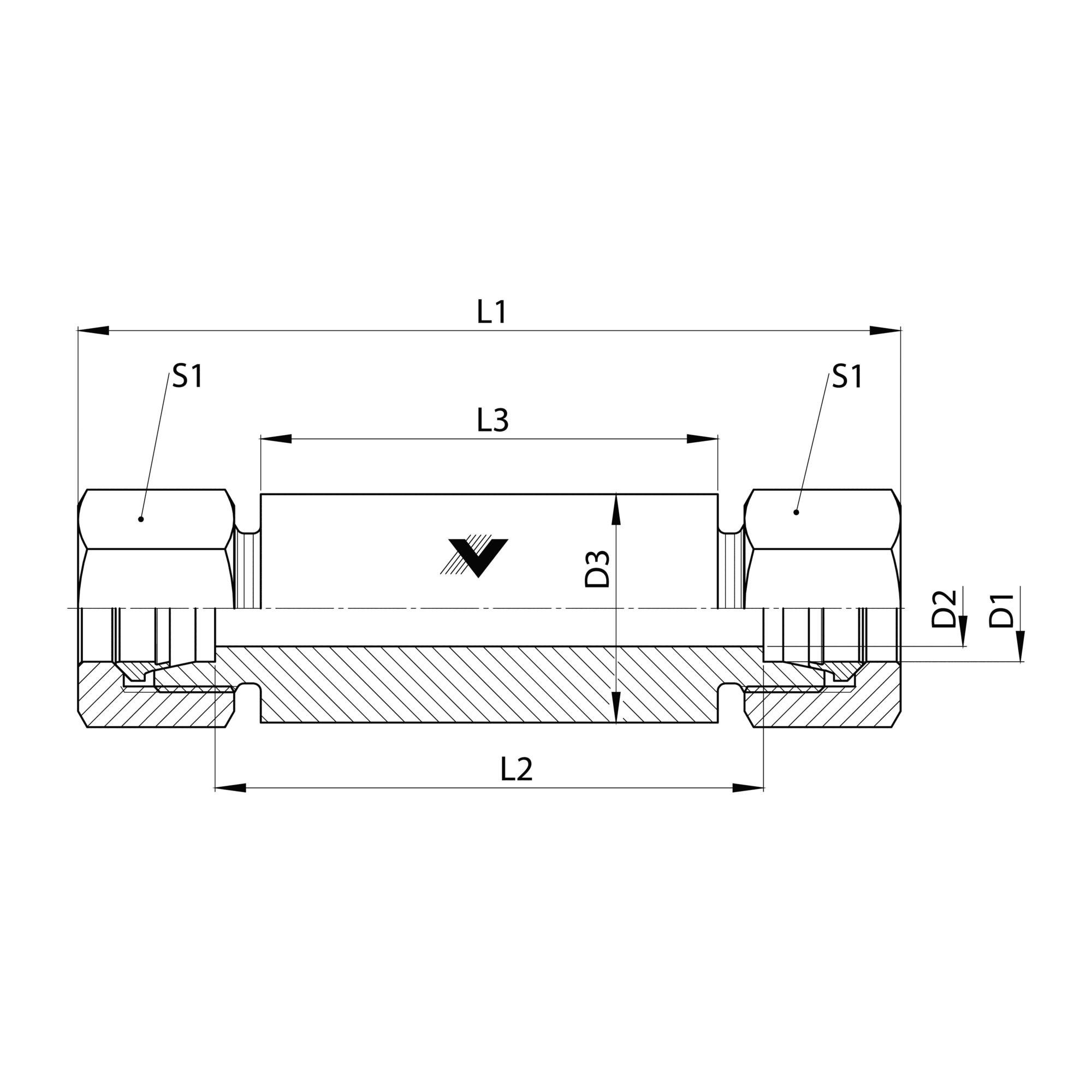

MBT-MBT WELD BULKHEAD STRAIGHT. COMPLETE WITH DIN TUBE NUTS AND SLEEVES
Description
Variations (38)
D2700-WC-L06-L06
$40.80Attribute: D2700-WC-L06-L06 (L06MBT-L06MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M12X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M12X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 18.0 |
| HEX C 1 (MM) | 14.0 |
| HEX C 2 (MM) | 14.0 |
| OVERALL LENGTH L1 (MM) | 86.0 |
| OVERALL LENGTH L2 (MM) | 70.0 |
| OVERALL LENGTH L3 (MM) | 56.0 |
| CENTERLINE LENGTH 1 (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.295 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.700 |
D2700-WC-L06-L06-SS
$100.03Attribute: D2700-WC-L06-L06-SS (L06MBT-L06M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M12X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M12X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 18.0 |
| HEX C 1 (MM) | 14.0 |
| HEX C 2 (MM) | 14.0 |
| OVERALL LENGTH L1 (MM) | 86.0 |
| OVERALL LENGTH L2 (MM) | 70.0 |
| OVERALL LENGTH L3 (MM) | 56.0 |
| CENTERLINE LENGTH 1 (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.295 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.700 |
D2700-WC-L08-L08
$41.57Attribute: D2700-WC-L08-L08 (L08MBT-L08MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 20.0 |
| HEX C 1 (MM) | 17.0 |
| HEX C 2 (MM) | 17.0 |
| OVERALL LENGTH L1 (MM) | 86.0 |
| OVERALL LENGTH L2 (MM) | 70.0 |
| OVERALL LENGTH L3 (MM) | 56.0 |
| CENTERLINE LENGTH 1 (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.366 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.099 |
D2700-WC-L08-L08-SS
$106.30Attribute: D2700-WC-L08-L08-SS (L08MBT-L08M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 20.0 |
| HEX C 1 (MM) | 17.0 |
| HEX C 2 (MM) | 17.0 |
| OVERALL LENGTH L1 (MM) | 86.0 |
| OVERALL LENGTH L2 (MM) | 70.0 |
| OVERALL LENGTH L3 (MM) | 56.0 |
| CENTERLINE LENGTH 1 (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.366 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.099 |
D2700-WC-L10-L10
$44.59Attribute: D2700-WC-L10-L10 (L10MBT-L10MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 22.0 |
| HEX C 1 (MM) | 19.0 |
| HEX C 2 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 88.0 |
| OVERALL LENGTH L2 (MM) | 72.0 |
| OVERALL LENGTH L3 (MM) | 58.0 |
| CENTERLINE LENGTH 1 (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.435 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.599 |
D2700-WC-L10-L10-SS
$127.88Attribute: D2700-WC-L10-L10-SS (L10MBT-L10M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 22.0 |
| HEX C 1 (MM) | 19.0 |
| HEX C 2 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 88.0 |
| OVERALL LENGTH L2 (MM) | 72.0 |
| OVERALL LENGTH L3 (MM) | 58.0 |
| CENTERLINE LENGTH 1 (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.435 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.599 |
D2700-WC-L12-L12
$57.18Attribute: D2700-WC-L12-L12 (L12MBT-L12MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 25.0 |
| HEX C 1 (MM) | 22.0 |
| HEX C 2 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 88.0 |
| OVERALL LENGTH L2 (MM) | 72.0 |
| OVERALL LENGTH L3 (MM) | 58.0 |
| CENTERLINE LENGTH 1 (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.549 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.356 |
D2700-WC-L12-L12-SS
$150.42Attribute: D2700-WC-L12-L12-SS (L12MBT-L12M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 25.0 |
| HEX C 1 (MM) | 22.0 |
| HEX C 2 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 88.0 |
| OVERALL LENGTH L2 (MM) | 72.0 |
| OVERALL LENGTH L3 (MM) | 58.0 |
| CENTERLINE LENGTH 1 (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.549 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.356 |
D2700-WC-L15-L15
$58.98Attribute: D2700-WC-L15-L15 (L15MBT-L15MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 28.0 |
| HEX C 1 (MM) | 27.0 |
| HEX C 2 (MM) | 27.0 |
| OVERALL LENGTH L1 (MM) | 101.0 |
| OVERALL LENGTH L2 (MM) | 84.0 |
| OVERALL LENGTH L3 (MM) | 70.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.833 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.832 |
D2700-WC-L15-L15-SS
$220.96Attribute: D2700-WC-L15-L15-SS (L15MBT-L15M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 28.0 |
| HEX C 1 (MM) | 27.0 |
| HEX C 2 (MM) | 27.0 |
| OVERALL LENGTH L1 (MM) | 101.0 |
| OVERALL LENGTH L2 (MM) | 84.0 |
| OVERALL LENGTH L3 (MM) | 70.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.833 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.832 |
D2700-WC-L18-L18
$78.56Attribute: D2700-WC-L18-L18 (L18MBT-L18MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M26X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M26X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 32.0 |
| HEX C 1 (MM) | 32.0 |
| HEX C 2 (MM) | 32.0 |
| OVERALL LENGTH L1 (MM) | 103.0 |
| OVERALL LENGTH L2 (MM) | 84.0 |
| OVERALL LENGTH L3 (MM) | 69.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 1.097 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.436 |
D2700-WC-L18-L18-SS
$294.61Attribute: D2700-WC-L18-L18-SS (L18MBT-L18M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M26X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M26X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 32.0 |
| HEX C 1 (MM) | 32.0 |
| HEX C 2 (MM) | 32.0 |
| OVERALL LENGTH L1 (MM) | 103.0 |
| OVERALL LENGTH L2 (MM) | 84.0 |
| OVERALL LENGTH L3 (MM) | 69.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 1.097 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.436 |
D2700-WC-L22-L22
$106.43Attribute: D2700-WC-L22-L22 (L22MBT-L22MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 36.0 |
| HEX C 1 (MM) | 36.0 |
| HEX C 2 (MM) | 36.0 |
| OVERALL LENGTH L1 (MM) | 109.0 |
| OVERALL LENGTH L2 (MM) | 88.0 |
| OVERALL LENGTH L3 (MM) | 73.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 1.362 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 8.620 |
D2700-WC-L22-L22-SS
$426.76Attribute: D2700-WC-L22-L22-SS (L22MBT-L22M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 36.0 |
| HEX C 1 (MM) | 36.0 |
| HEX C 2 (MM) | 36.0 |
| OVERALL LENGTH L1 (MM) | 109.0 |
| OVERALL LENGTH L2 (MM) | 88.0 |
| OVERALL LENGTH L3 (MM) | 73.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 1.362 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 8.620 |
D2700-WC-L28-L28
$138.25Attribute: D2700-WC-L28-L28 (L28MBT-L28MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 40.0 |
| HEX C 1 (MM) | 41.0 |
| HEX C 2 (MM) | 41.0 |
| OVERALL LENGTH L1 (MM) | 110.0 |
| OVERALL LENGTH L2 (MM) | 88.0 |
| OVERALL LENGTH L3 (MM) | 73.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 1.554 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 11.284 |
D2700-WC-L28-L28-SS
$548.51Attribute: D2700-WC-L28-L28-SS (L28MBT-L28M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 40.0 |
| HEX C 1 (MM) | 41.0 |
| HEX C 2 (MM) | 41.0 |
| OVERALL LENGTH L1 (MM) | 110.0 |
| OVERALL LENGTH L2 (MM) | 88.0 |
| OVERALL LENGTH L3 (MM) | 73.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 1.554 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 11.284 |
D2700-WC-L35-L35
$192.79Attribute: D2700-WC-L35-L35 (L35MBT-L35MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M45X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M45X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 50.0 |
| HEX C 1 (MM) | 50.0 |
| HEX C 2 (MM) | 50.0 |
| OVERALL LENGTH L1 (MM) | 116.0 |
| OVERALL LENGTH L2 (MM) | 92.0 |
| OVERALL LENGTH L3 (MM) | 71.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 2.444 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 17.697 |
D2700-WC-L35-L35-SS
$768.96Attribute: D2700-WC-L35-L35-SS (L35MBT-L35M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M45X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M45X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 50.0 |
| HEX C 1 (MM) | 50.0 |
| HEX C 2 (MM) | 50.0 |
| OVERALL LENGTH L1 (MM) | 116.0 |
| OVERALL LENGTH L2 (MM) | 92.0 |
| OVERALL LENGTH L3 (MM) | 71.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 2.444 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 17.697 |
D2700-WC-L42-L42
$264.70Attribute: D2700-WC-L42-L42 (L42MBT-L42MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 60.0 |
| HEX C 1 (MM) | 60.0 |
| HEX C 2 (MM) | 60.0 |
| OVERALL LENGTH L1 (MM) | 116.0 |
| OVERALL LENGTH L2 (MM) | 92.0 |
| OVERALL LENGTH L3 (MM) | 70.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 3.492 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 25.484 |
D2700-WC-L42-L42-SS
$1,112.81Attribute: D2700-WC-L42-L42-SS (L42MBT-L42M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 60.0 |
| HEX C 1 (MM) | 60.0 |
| HEX C 2 (MM) | 60.0 |
| OVERALL LENGTH L1 (MM) | 116.0 |
| OVERALL LENGTH L2 (MM) | 92.0 |
| OVERALL LENGTH L3 (MM) | 70.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 3.492 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 25.484 |
D2700-WC-S06-S06-SS
$116.24Attribute: D2700-WC-S06-S06-SS (S06MBT-S06M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 20.0 |
| HEX C 1 (MM) | 17.0 |
| HEX C 2 (MM) | 17.0 |
| OVERALL LENGTH L1 (MM) | 90.0 |
| OVERALL LENGTH L2 (MM) | 74.0 |
| OVERALL LENGTH L3 (MM) | 60.0 |
| CENTERLINE LENGTH 1 (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.408 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.197 |
D2700-WC-S08-S08
$54.24Attribute: D2700-WC-S08-S08 (S08MBT-S08MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 22.0 |
| HEX C 1 (MM) | 19.0 |
| HEX C 2 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 90.0 |
| OVERALL LENGTH L2 (MM) | 74.0 |
| OVERALL LENGTH L3 (MM) | 60.0 |
| CENTERLINE LENGTH 1 (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.486 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.658 |
D2700-WC-S08-S08-SS
$133.77Attribute: D2700-WC-S08-S08-SS (S08MBT-S08M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 22.0 |
| HEX C 1 (MM) | 19.0 |
| HEX C 2 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 90.0 |
| OVERALL LENGTH L2 (MM) | 74.0 |
| OVERALL LENGTH L3 (MM) | 60.0 |
| CENTERLINE LENGTH 1 (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.486 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.658 |
D2700-WC-S10-S10
$58.25Attribute: D2700-WC-S10-S10 (S10MBT-S10MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 25.0 |
| HEX C 1 (MM) | 22.0 |
| HEX C 2 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 92.0 |
| OVERALL LENGTH L2 (MM) | 74.0 |
| OVERALL LENGTH L3 (MM) | 59.0 |
| CENTERLINE LENGTH 1 (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.629 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.509 |
D2700-WC-S10-S10-SS
$160.96Attribute: D2700-WC-S10-S10-SS (S10MBT-S10M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 25.0 |
| HEX C 1 (MM) | 22.0 |
| HEX C 2 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 92.0 |
| OVERALL LENGTH L2 (MM) | 74.0 |
| OVERALL LENGTH L3 (MM) | 59.0 |
| CENTERLINE LENGTH 1 (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.629 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.509 |
D2700-WC-S12-S12
$60.60Attribute: D2700-WC-S12-S12 (S12MBT-S12MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M20X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M20X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 28.0 |
| HEX C 1 (MM) | 24.0 |
| HEX C 2 (MM) | 24.0 |
| OVERALL LENGTH L1 (MM) | 92.0 |
| OVERALL LENGTH L2 (MM) | 74.0 |
| OVERALL LENGTH L3 (MM) | 59.0 |
| CENTERLINE LENGTH 1 (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 0.761 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.402 |
D2700-WC-S12-S12-SS
$191.85Attribute: D2700-WC-S12-S12-SS (S12MBT-S12M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M20X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M20X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 28.0 |
| HEX C 1 (MM) | 24.0 |
| HEX C 2 (MM) | 24.0 |
| OVERALL LENGTH L1 (MM) | 92.0 |
| OVERALL LENGTH L2 (MM) | 74.0 |
| OVERALL LENGTH L3 (MM) | 59.0 |
| CENTERLINE LENGTH 1 (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.761 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.402 |
D2700-WC-S14-S14-SS
$267.72Attribute: D2700-WC-S14-S14-SS (S14MBT-S14M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 30.0 |
| HEX C 1 (MM) | 27.0 |
| HEX C 2 (MM) | 27.0 |
| OVERALL LENGTH L1 (MM) | 108.0 |
| OVERALL LENGTH L2 (MM) | 88.0 |
| OVERALL LENGTH L3 (MM) | 72.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 1.048 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.932 |
D2700-WC-S16-S16
$89.22Attribute: D2700-WC-S16-S16 (S16MBT-S16MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M24X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M24X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 35.0 |
| HEX C 1 (MM) | 30.0 |
| HEX C 2 (MM) | 30.0 |
| OVERALL LENGTH L1 (MM) | 108.0 |
| OVERALL LENGTH L2 (MM) | 88.0 |
| OVERALL LENGTH L3 (MM) | 71.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 1.357 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 8.074 |
D2700-WC-S16-S16-SS
$325.81Attribute: D2700-WC-S16-S16-SS (S16MBT-S16M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M24X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M24X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 35.0 |
| HEX C 1 (MM) | 30.0 |
| HEX C 2 (MM) | 30.0 |
| OVERALL LENGTH L1 (MM) | 108.0 |
| OVERALL LENGTH L2 (MM) | 88.0 |
| OVERALL LENGTH L3 (MM) | 71.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 1.357 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 8.074 |
D2700-WC-S20-S20
$113.43Attribute: D2700-WC-S20-S20 (S20MBT-S20MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 38.0 |
| HEX C 1 (MM) | 36.0 |
| HEX C 2 (MM) | 36.0 |
| OVERALL LENGTH L1 (MM) | 116.0 |
| OVERALL LENGTH L2 (MM) | 92.0 |
| OVERALL LENGTH L3 (MM) | 71.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 1.732 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 10.222 |
D2700-WC-S20-S20-SS
$511.05Attribute: D2700-WC-S20-S20-SS (S20MBT-S20M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 38.0 |
| HEX C 1 (MM) | 36.0 |
| HEX C 2 (MM) | 36.0 |
| OVERALL LENGTH L1 (MM) | 116.0 |
| OVERALL LENGTH L2 (MM) | 92.0 |
| OVERALL LENGTH L3 (MM) | 71.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 1.732 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 10.222 |
D2700-WC-S25-S25
$150.47Attribute: D2700-WC-S25-S25 (S25MBT-S25MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 45.0 |
| HEX C 1 (MM) | 46.0 |
| HEX C 2 (MM) | 46.0 |
| OVERALL LENGTH L1 (MM) | 122.0 |
| OVERALL LENGTH L2 (MM) | 96.0 |
| OVERALL LENGTH L3 (MM) | 72.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 2.714 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 15.753 |
D2700-WC-S25-S25-SS
$622.85Attribute: D2700-WC-S25-S25-SS (S25MBT-S25M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 45.0 |
| HEX C 1 (MM) | 46.0 |
| HEX C 2 (MM) | 46.0 |
| OVERALL LENGTH L1 (MM) | 122.0 |
| OVERALL LENGTH L2 (MM) | 96.0 |
| OVERALL LENGTH L3 (MM) | 72.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 2.714 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 15.753 |
D2700-WC-S30-S30
$192.96Attribute: D2700-WC-S30-S30 (S30MBT-S30MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M42X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M42X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 50.0 |
| HEX C 1 (MM) | 50.0 |
| HEX C 2 (MM) | 50.0 |
| OVERALL LENGTH L1 (MM) | 128.5 |
| OVERALL LENGTH L2 (MM) | 100.0 |
| OVERALL LENGTH L3 (MM) | 73.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 3.183 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 19.604 |
D2700-WC-S30-S30-SS
$796.01Attribute: D2700-WC-S30-S30-SS (S30MBT-S30M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M42X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M42X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 50.0 |
| HEX C 1 (MM) | 50.0 |
| HEX C 2 (MM) | 50.0 |
| OVERALL LENGTH L1 (MM) | 128.5 |
| OVERALL LENGTH L2 (MM) | 100.0 |
| OVERALL LENGTH L3 (MM) | 73.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 3.183 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 19.604 |
D2700-WC-S38-S38
$297.35Attribute: D2700-WC-S38-S38 (S38MBT-S38MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 60.0 |
| HEX C 1 (MM) | 60.0 |
| HEX C 2 (MM) | 60.0 |
| OVERALL LENGTH L1 (MM) | 135.0 |
| OVERALL LENGTH L2 (MM) | 104.0 |
| OVERALL LENGTH L3 (MM) | 72.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | UNPLATED BODY/ZINC NICKEL NUTS |
| WEIGHT (LBS) | 4.566 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 29.658 |
D2700-WC-S38-S38-SS
$1,173.27Attribute: D2700-WC-S38-S38-SS (S38MBT-S38M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY DIAMETER (MM) | 60.0 |
| HEX C 1 (MM) | 60.0 |
| HEX C 2 (MM) | 60.0 |
| OVERALL LENGTH L1 (MM) | 135.0 |
| OVERALL LENGTH L2 (MM) | 104.0 |
| OVERALL LENGTH L3 (MM) | 72.0 |
| CENTERLINE LENGTH 1 (MM) | 60.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 4.566 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 29.658 |
General Attributes
No general attributes scraped.
PDF Documents
No PDF documents scraped.
