D2700-LN-X

D2700-LN-L06-L06-SS-X

$63.88

Attribute: D2700-LN-L06-L06-SS-X (L06MBT-L0...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M12X1.5-SS

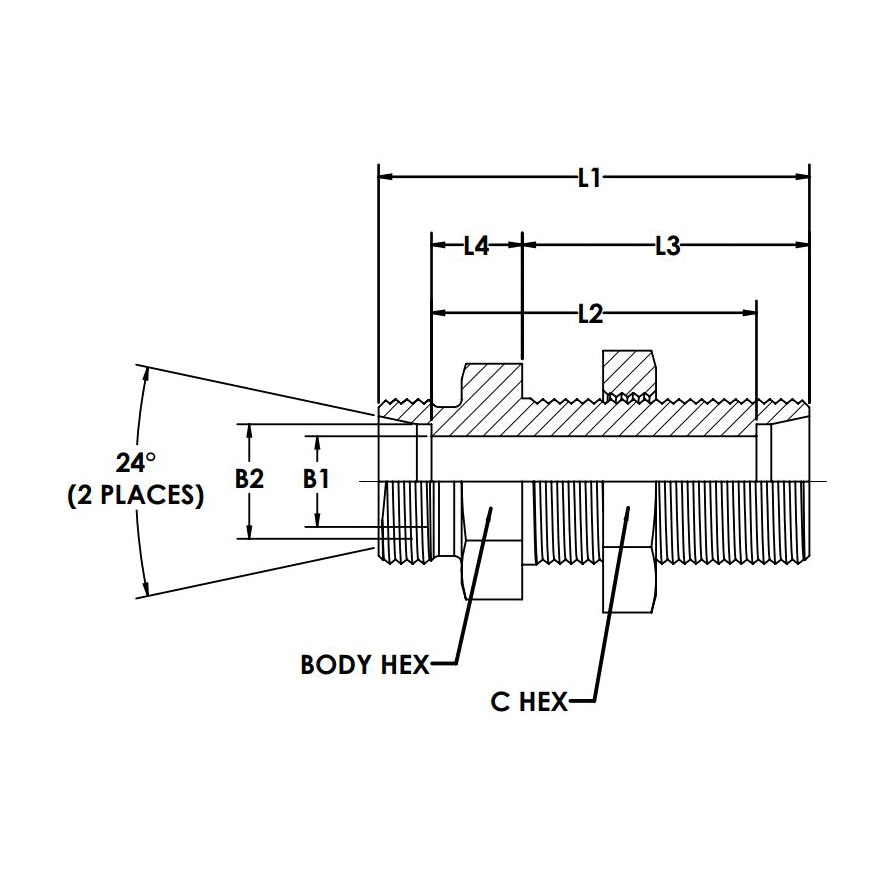

BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	7.0
OVERALL LENGTH L3 (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.104
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.847

D2700-LN-L06-L06-X

$12.85

Attribute: D2700-LN-L06-L06-X (L06MBT-L06MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M12X1.5
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	7.0
OVERALL LENGTH L3 (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.104
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.847

D2700-LN-L08-L08-SS-X

$75.87

Attribute: D2700-LN-L08-L08-SS-X (L08MBT-L0...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M14X1.5-SS
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	8.0
OVERALL LENGTH L3 (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.132
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.079

D2700-LN-L08-L08-X

$15.20

Attribute: D2700-LN-L08-L08-X (L08MBT-L08MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M14X1.5
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	8.0
OVERALL LENGTH L3 (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.132
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.079

D2700-LN-L10-L10-SS-X

$97.76

Attribute: D2700-LN-L10-L10-SS-X (L10MBT-L1...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M16X1.5-SS
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.174
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.536

D2700-LN-L10-L10-X

$19.24

Attribute: D2700-LN-L10-L10-X (L10MBT-L10MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M16X1.5
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.174
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.536

D2700-LN-L12-L12-SS-X

$102.03

Attribute: D2700-LN-L12-L12-SS-X (L12MBT-L1...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M18X1.5-SS
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.203
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.863

D2700-LN-L12-L12-X

$18.77

Attribute: D2700-LN-L12-L12-X (L12MBT-L12MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M18X1.5
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	10.0
OVERALL LENGTH L3 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.203
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.863

D2700-LN-L15-L15-SS-X

$134.00

Attribute: D2700-LN-L15-L15-SS-X (L15MBT-L1...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M22X1.5-SS
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	12.0
OVERALL LENGTH L3 (MM)	31.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.328
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.131

D2700-LN-L15-L15-X

$24.16

Attribute: D2700-LN-L15-L15-X (L15MBT-L15MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M22X1.5
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	12.0
OVERALL LENGTH L3 (MM)	31.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.328
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.131

D2700-LN-L18-L18-SS-X

$120.78

Attribute: D2700-LN-L18-L18-SS-X (L18MBT-L1...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M26X1.5-SS
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	61.0
OVERALL LENGTH L2 (MM)	13.5
OVERALL LENGTH L3 (MM)	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.493
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.824

D2700-LN-L18-L18-X

$40.45

Attribute: D2700-LN-L18-L18-X (L18MBT-L18MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M26X1.5
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	61.0
OVERALL LENGTH L2 (MM)	13.5
OVERALL LENGTH L3 (MM)	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.493
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.824

D2700-LN-L22-L22-SS-X

$264.70

Attribute: D2700-LN-L22-L22-SS-X (L22MBT-L2...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M30X2.0-SS
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.637
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.770

D2700-LN-L22-L22-X

$49.59

Attribute: D2700-LN-L22-L22-X (L22MBT-L22MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M30X2.0
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.637
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.770

D2700-LN-L28-L28-SS-X

$366.00

Attribute: D2700-LN-L28-L28-SS-X (L28MBT-L2...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M36X2.0-SS
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	69.0
OVERALL LENGTH L2 (MM)	18.5
OVERALL LENGTH L3 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.855
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.910

D2700-LN-L28-L28-X

$72.59

Attribute: D2700-LN-L28-L28-X (L28MBT-L28MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M36X2.0
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	69.0
OVERALL LENGTH L2 (MM)	18.5
OVERALL LENGTH L3 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.855
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.910

D2700-LN-L35-L35-SS-X

$530.29

Attribute: D2700-LN-L35-L35-SS-X (L35MBT-L3...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M45X2.0-SS
BODY HEX (MM)	50.0
HEX C 1 (MM)	55.0
OVERALL LENGTH L1 (MM)	76.0
OVERALL LENGTH L2 (MM)	18.5
OVERALL LENGTH L3 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.357
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.029

D2700-LN-L35-L35-X

$115.90

Attribute: D2700-LN-L35-L35-X (L35MBT-L35MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M45X2.0
BODY HEX (MM)	50.0
HEX C 1 (MM)	55.0
OVERALL LENGTH L1 (MM)	76.0
OVERALL LENGTH L2 (MM)	18.5
OVERALL LENGTH L3 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.357
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.029

D2700-LN-L42-L42-SS-X

$728.89

Attribute: D2700-LN-L42-L42-SS-X (L42MBT-L4...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M52X2.0-SS
BODY HEX (MM)	60.0
HEX C 1 (MM)	65.0
OVERALL LENGTH L1 (MM)	77.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.841
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.853

D2700-LN-L42-L42-X

$165.32

Attribute: D2700-LN-L42-L42-X (L42MBT-L42MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M52X2.0
BODY HEX (MM)	60.0
HEX C 1 (MM)	65.0
OVERALL LENGTH L1 (MM)	77.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.841
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.853

D2700-LN-S06-S06-SS-X

$115.47

Attribute: D2700-LN-S06-S06-SS-X (S06MBT-S0...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M14X1.5-SS
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	12.0
OVERALL LENGTH L3 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.167
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.212

D2700-LN-S06-S06-X

$14.85

Attribute: D2700-LN-S06-S06-X (S06MBT-S06MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M14X1.5
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	12.0
OVERALL LENGTH L3 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.167
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.212

D2700-LN-S08-S08-SS-X

$102.37

Attribute: D2700-LN-S08-S08-SS-X (S08MBT-S0...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M16X1.5-SS
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	56.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.222
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.654

D2700-LN-S08-S08-X

$19.63

Attribute: D2700-LN-S08-S08-X (S08MBT-S08MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M16X1.5
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	56.0
OVERALL LENGTH L2 (MM)	13.0
OVERALL LENGTH L3 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.222
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.654

D2700-LN-S10-S10-SS-X

$114.96

Attribute: D2700-LN-S10-S10-SS-X (S10MBT-S1...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M18X1.5-SS
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	29.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.280
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.074

D2700-LN-S10-S10-X

$21.85

Attribute: D2700-LN-S10-S10-X (S10MBT-S10MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M18X1.5
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	29.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.280
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.074

D2700-LN-S12-S12-SS-X

$143.25

Attribute: D2700-LN-S12-S12-SS-X (S12MBT-S1...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M20X1.5-SS
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	30.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.348
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.669

D2700-LN-S12-S12-X

$18.95

Attribute: D2700-LN-S12-S12-X (S12MBT-S12MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M20X1.5
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	14.5
OVERALL LENGTH L3 (MM)	30.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.348
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.669

D2700-LN-S14-S14-SS-X

$192.28

Attribute: D2700-LN-S14-S14-SS-X (S14MBT-S1...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M22X1.5-SS
BODY HEX (MM)	30.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	17.0
OVERALL LENGTH L3 (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.445
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.570

D2700-LN-S14-S14-X

$43.31

Attribute: D2700-LN-S14-S14-X (S14MBT-S14MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M22X1.5
BODY HEX (MM)	30.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	17.0
OVERALL LENGTH L3 (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.445
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.570

D2700-LN-S16-S16-SS-X

$203.25

Attribute: D2700-LN-S16-S16-SS-X (S16MBT-S1...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M24X1.5-SS
BODY HEX (MM)	32.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.496
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.062

D2700-LN-S16-S16-X

$39.30

Attribute: D2700-LN-S16-S16-X (S16MBT-S16MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M24X1.5
BODY HEX (MM)	32.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.496
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.062

D2700-LN-S20-S20-SS-X

$331.14

Attribute: D2700-LN-S20-S20-SS-X (S20MBT-S2...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M30X2.0-SS
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	72.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.850
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.386

D2700-LN-S20-S20-X

$62.94

Attribute: D2700-LN-S20-S20-X (S20MBT-S20MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M30X2.0
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	72.0
OVERALL LENGTH L2 (MM)	17.5
OVERALL LENGTH L3 (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.850
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.386

D2700-LN-S25-S25-SS-X

$467.52

Attribute: D2700-LN-S25-S25-SS-X (S25MBT-S2...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M36X2.0-SS
BODY HEX (MM)	46.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	79.0
OVERALL LENGTH L2 (MM)	20.0
OVERALL LENGTH L3 (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.220
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.201

D2700-LN-S25-S25-X

$98.11

Attribute: D2700-LN-S25-S25-X (S25MBT-S25MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M36X2.0
BODY HEX (MM)	46.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	79.0
OVERALL LENGTH L2 (MM)	20.0
OVERALL LENGTH L3 (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.220
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.201

D2700-LN-S30-S30-SS-X

$542.88

Attribute: D2700-LN-S30-S30-SS-X (S30MBT-S3...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M42X2.0-SS
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	86.0
OVERALL LENGTH L2 (MM)	21.5
OVERALL LENGTH L3 (MM)	37.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.562
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.120

D2700-LN-S30-S30-X

$115.59

Attribute: D2700-LN-S30-S30-X (S30MBT-S30MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M42X2.0
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	86.0
OVERALL LENGTH L2 (MM)	21.5
OVERALL LENGTH L3 (MM)	37.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.562
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.120

D2700-LN-S38-S38-SS-X

$922.96

Attribute: D2700-LN-S38-S38-SS-X (S38MBT-S3...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M52X2.0-SS
BODY HEX (MM)	65.0
HEX C 1 (MM)	65.0
OVERALL LENGTH L1 (MM)	91.0
OVERALL LENGTH L2 (MM)	22.0
OVERALL LENGTH L3 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.601
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	23.462

D2700-LN-S38-S38-X

$197.83

Attribute: D2700-LN-S38-S38-X (S38MBT-S38MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC BH 24 DEG DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
ASSEMBLED BULKHEAD LOCK NUT	D0306-M52X2.0
BODY HEX (MM)	65.0
HEX C 1 (MM)	65.0
OVERALL LENGTH L1 (MM)	91.0
OVERALL LENGTH L2 (MM)	22.0
OVERALL LENGTH L3 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.601
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	23.462

ID	10165157
Category	DIN Metric Tube Fittings

Description

Description

Variations (40)

D2700-LN-L06-L06-SS-X

D2700-LN-L06-L06-X

D2700-LN-L08-L08-SS-X

D2700-LN-L08-L08-X

D2700-LN-L10-L10-SS-X

D2700-LN-L10-L10-X

D2700-LN-L12-L12-SS-X

D2700-LN-L12-L12-X

D2700-LN-L15-L15-SS-X

D2700-LN-L15-L15-X

D2700-LN-L18-L18-SS-X

D2700-LN-L18-L18-X

D2700-LN-L22-L22-SS-X

D2700-LN-L22-L22-X

D2700-LN-L28-L28-SS-X

D2700-LN-L28-L28-X

D2700-LN-L35-L35-SS-X

D2700-LN-L35-L35-X

D2700-LN-L42-L42-SS-X

D2700-LN-L42-L42-X

D2700-LN-S06-S06-SS-X

D2700-LN-S06-S06-X

D2700-LN-S08-S08-SS-X

D2700-LN-S08-S08-X

D2700-LN-S10-S10-SS-X

D2700-LN-S10-S10-X

D2700-LN-S12-S12-SS-X

D2700-LN-S12-S12-X

D2700-LN-S14-S14-SS-X

D2700-LN-S14-S14-X

D2700-LN-S16-S16-SS-X

D2700-LN-S16-S16-X

D2700-LN-S20-S20-SS-X

D2700-LN-S20-S20-X

D2700-LN-S25-S25-SS-X

D2700-LN-S25-S25-X

D2700-LN-S30-S30-SS-X

D2700-LN-S30-S30-X

D2700-LN-S38-S38-SS-X

D2700-LN-S38-S38-X

General Attributes

PDF Documents
