Description

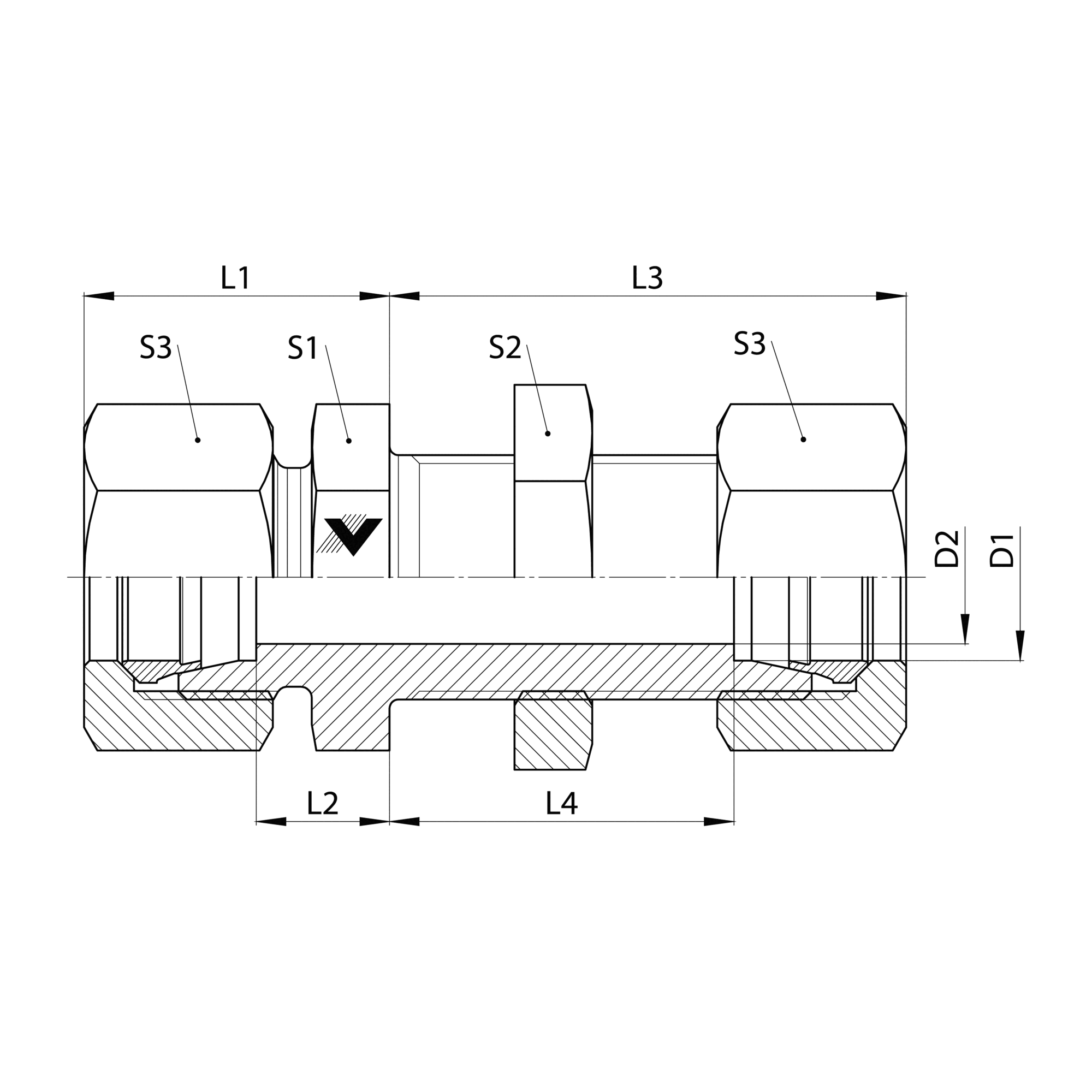

MBT-MBT BULKHEAD STRAIGHT WITH LOCK NUT. COMPLETE WITH DIN TUBE NUTS AND SLEEVES
Description
Variations (40)
D2700-LN-L06-L06
$15.27Attribute: D2700-LN-L06-L06 (L06MBT-L06MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M12X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M12X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M12X1.5 |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 17.0 |
| HEX C 2 (MM) | 14.0 |
| HEX C 3 (MM) | 14.0 |
| OVERALL LENGTH L1 (MM) | 22.0 |
| OVERALL LENGTH L2 (MM) | 42.0 |
| OVERALL LENGTH L3 (MM) | 48.0 |
| CENTERLINE LENGTH 1 (MM) | 7.0 |
| CENTERLINE LENGTH 2 (MM) | 27.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.160 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.129 |
D2700-LN-L06-L06-SS
$90.34Attribute: D2700-LN-L06-L06-SS (L06MBT-L06M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M12X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 06MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M12X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M12X1.5-SS |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 17.0 |
| HEX C 2 (MM) | 14.0 |
| HEX C 3 (MM) | 14.0 |
| OVERALL LENGTH L1 (MM) | 22.0 |
| OVERALL LENGTH L2 (MM) | 42.0 |
| OVERALL LENGTH L3 (MM) | 48.0 |
| CENTERLINE LENGTH 1 (MM) | 7.0 |
| CENTERLINE LENGTH 2 (MM) | 27.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.160 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.129 |
D2700-LN-L08-L08
$19.76Attribute: D2700-LN-L08-L08 (L08MBT-L08MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M14X1.5 |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 19.0 |
| HEX C 2 (MM) | 17.0 |
| HEX C 3 (MM) | 17.0 |
| OVERALL LENGTH L1 (MM) | 23.0 |
| OVERALL LENGTH L2 (MM) | 42.0 |
| OVERALL LENGTH L3 (MM) | 49.0 |
| CENTERLINE LENGTH 1 (MM) | 8.0 |
| CENTERLINE LENGTH 2 (MM) | 27.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.215 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.432 |
D2700-LN-L08-L08-SS
$104.30Attribute: D2700-LN-L08-L08-SS (L08MBT-L08M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M14X1.5-SS |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 19.0 |
| HEX C 2 (MM) | 17.0 |
| HEX C 3 (MM) | 17.0 |
| OVERALL LENGTH L1 (MM) | 23.0 |
| OVERALL LENGTH L2 (MM) | 42.0 |
| OVERALL LENGTH L3 (MM) | 49.0 |
| CENTERLINE LENGTH 1 (MM) | 8.0 |
| CENTERLINE LENGTH 2 (MM) | 27.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.215 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.432 |
D2700-LN-L10-L10
$24.45Attribute: D2700-LN-L10-L10 (L10MBT-L10MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M16X1.5 |
| BODY HEX (MM) | 22.0 |
| HEX C 1 (MM) | 22.0 |
| HEX C 2 (MM) | 19.0 |
| HEX C 3 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 25.0 |
| OVERALL LENGTH L2 (MM) | 43.0 |
| OVERALL LENGTH L3 (MM) | 52.0 |
| CENTERLINE LENGTH 1 (MM) | 10.0 |
| CENTERLINE LENGTH 2 (MM) | 28.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.276 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.008 |
D2700-LN-L10-L10-SS
$132.83Attribute: D2700-LN-L10-L10-SS (L10MBT-L10M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M16X1.5-SS |
| BODY HEX (MM) | 22.0 |
| HEX C 1 (MM) | 22.0 |
| HEX C 2 (MM) | 19.0 |
| HEX C 3 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 25.0 |
| OVERALL LENGTH L2 (MM) | 43.0 |
| OVERALL LENGTH L3 (MM) | 52.0 |
| CENTERLINE LENGTH 1 (MM) | 10.0 |
| CENTERLINE LENGTH 2 (MM) | 28.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.276 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.008 |
D2700-LN-L12-L12
$29.23Attribute: D2700-LN-L12-L12 (L12MBT-L12MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M18X1.5 |
| BODY HEX (MM) | 24.0 |
| HEX C 1 (MM) | 24.0 |
| HEX C 2 (MM) | 22.0 |
| HEX C 3 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 25.0 |
| OVERALL LENGTH L2 (MM) | 44.0 |
| OVERALL LENGTH L3 (MM) | 53.0 |
| CENTERLINE LENGTH 1 (MM) | 10.0 |
| CENTERLINE LENGTH 2 (MM) | 29.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.340 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.425 |
D2700-LN-L12-L12-SS
$149.95Attribute: D2700-LN-L12-L12-SS (L12MBT-L12M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M18X1.5-SS |
| BODY HEX (MM) | 24.0 |
| HEX C 1 (MM) | 24.0 |
| HEX C 2 (MM) | 22.0 |
| HEX C 3 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 25.0 |
| OVERALL LENGTH L2 (MM) | 44.0 |
| OVERALL LENGTH L3 (MM) | 53.0 |
| CENTERLINE LENGTH 1 (MM) | 10.0 |
| CENTERLINE LENGTH 2 (MM) | 29.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.340 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.425 |
D2700-LN-L15-L15
$34.77Attribute: D2700-LN-L15-L15 (L15MBT-L15MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M22X1.5 |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 30.0 |
| HEX C 2 (MM) | 27.0 |
| HEX C 3 (MM) | 27.0 |
| OVERALL LENGTH L1 (MM) | 27.5 |
| OVERALL LENGTH L2 (MM) | 46.5 |
| OVERALL LENGTH L3 (MM) | 57.0 |
| CENTERLINE LENGTH 1 (MM) | 12.0 |
| CENTERLINE LENGTH 2 (MM) | 31.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.546 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.064 |
D2700-LN-L15-L15-SS
$201.29Attribute: D2700-LN-L15-L15-SS (L15MBT-L15M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M22X1.5-SS |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 30.0 |
| HEX C 2 (MM) | 27.0 |
| HEX C 3 (MM) | 27.0 |
| OVERALL LENGTH L1 (MM) | 27.5 |
| OVERALL LENGTH L2 (MM) | 46.5 |
| OVERALL LENGTH L3 (MM) | 57.0 |
| CENTERLINE LENGTH 1 (MM) | 12.0 |
| CENTERLINE LENGTH 2 (MM) | 31.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.546 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.064 |
D2700-LN-L18-L18
$55.90Attribute: D2700-LN-L18-L18 (L18MBT-L18MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M26X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M26X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M26X1.5 |
| BODY HEX (MM) | 32.0 |
| HEX C 1 (MM) | 36.0 |
| HEX C 2 (MM) | 32.0 |
| HEX C 3 (MM) | 32.0 |
| OVERALL LENGTH L1 (MM) | 30.5 |
| OVERALL LENGTH L2 (MM) | 49.5 |
| OVERALL LENGTH L3 (MM) | 61.0 |
| CENTERLINE LENGTH 1 (MM) | 13.5 |
| CENTERLINE LENGTH 2 (MM) | 32.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.816 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.327 |
D2700-LN-L18-L18-SS
$309.88Attribute: D2700-LN-L18-L18-SS (L18MBT-L18M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M26X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M26X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M26X1.5-SS |
| BODY HEX (MM) | 32.0 |
| HEX C 1 (MM) | 36.0 |
| HEX C 2 (MM) | 32.0 |
| HEX C 3 (MM) | 32.0 |
| OVERALL LENGTH L1 (MM) | 30.5 |
| OVERALL LENGTH L2 (MM) | 49.5 |
| OVERALL LENGTH L3 (MM) | 61.0 |
| CENTERLINE LENGTH 1 (MM) | 13.5 |
| CENTERLINE LENGTH 2 (MM) | 32.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.816 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 400 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.327 |
D2700-LN-L22-L22
$71.65Attribute: D2700-LN-L22-L22 (L22MBT-L22MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M30X2.0 |
| BODY HEX (MM) | 36.0 |
| HEX C 1 (MM) | 41.0 |
| HEX C 2 (MM) | 36.0 |
| HEX C 3 (MM) | 36.0 |
| OVERALL LENGTH L1 (MM) | 34.5 |
| OVERALL LENGTH L2 (MM) | 52.5 |
| OVERALL LENGTH L3 (MM) | 66.0 |
| CENTERLINE LENGTH 1 (MM) | 16.5 |
| CENTERLINE LENGTH 2 (MM) | 34.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 1.066 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 8.924 |
D2700-LN-L22-L22-SS
$400.95Attribute: D2700-LN-L22-L22-SS (L22MBT-L22M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 22MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M30X2.0-SS |
| BODY HEX (MM) | 36.0 |
| HEX C 1 (MM) | 41.0 |
| HEX C 2 (MM) | 36.0 |
| HEX C 3 (MM) | 36.0 |
| OVERALL LENGTH L1 (MM) | 34.5 |
| OVERALL LENGTH L2 (MM) | 52.5 |
| OVERALL LENGTH L3 (MM) | 66.0 |
| CENTERLINE LENGTH 1 (MM) | 16.5 |
| CENTERLINE LENGTH 2 (MM) | 34.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 1.066 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 8.924 |
D2700-LN-L28-L28
$108.81Attribute: D2700-LN-L28-L28 (L28MBT-L28MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M36X2.0 |
| BODY HEX (MM) | 41.0 |
| HEX C 1 (MM) | 46.0 |
| HEX C 2 (MM) | 41.0 |
| HEX C 3 (MM) | 41.0 |
| OVERALL LENGTH L1 (MM) | 37.0 |
| OVERALL LENGTH L2 (MM) | 54.0 |
| OVERALL LENGTH L3 (MM) | 69.0 |
| CENTERLINE LENGTH 1 (MM) | 18.5 |
| CENTERLINE LENGTH 2 (MM) | 35.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 1.357 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 11.750 |
D2700-LN-L28-L28-SS
$560.55Attribute: D2700-LN-L28-L28-SS (L28MBT-L28M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 28MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M36X2.0-SS |
| BODY HEX (MM) | 41.0 |
| HEX C 1 (MM) | 46.0 |
| HEX C 2 (MM) | 41.0 |
| HEX C 3 (MM) | 41.0 |
| OVERALL LENGTH L1 (MM) | 37.0 |
| OVERALL LENGTH L2 (MM) | 54.0 |
| OVERALL LENGTH L3 (MM) | 69.0 |
| CENTERLINE LENGTH 1 (MM) | 18.5 |
| CENTERLINE LENGTH 2 (MM) | 35.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 1.357 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 11.750 |
D2700-LN-L35-L35
$182.00Attribute: D2700-LN-L35-L35 (L35MBT-L35MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M45X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M45X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M45X2.0 |
| BODY HEX (MM) | 50.0 |
| HEX C 1 (MM) | 55.0 |
| HEX C 2 (MM) | 50.0 |
| HEX C 3 (MM) | 50.0 |
| OVERALL LENGTH L1 (MM) | 41.0 |
| OVERALL LENGTH L2 (MM) | 59.0 |
| OVERALL LENGTH L3 (MM) | 76.0 |
| CENTERLINE LENGTH 1 (MM) | 18.5 |
| CENTERLINE LENGTH 2 (MM) | 36.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 2.123 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 18.460 |
D2700-LN-L35-L35-SS
$772.46Attribute: D2700-LN-L35-L35-SS (L35MBT-L35M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M45X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 35MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M45X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M45X2.0-SS |
| BODY HEX (MM) | 50.0 |
| HEX C 1 (MM) | 55.0 |
| HEX C 2 (MM) | 50.0 |
| HEX C 3 (MM) | 50.0 |
| OVERALL LENGTH L1 (MM) | 41.0 |
| OVERALL LENGTH L2 (MM) | 59.0 |
| OVERALL LENGTH L3 (MM) | 76.0 |
| CENTERLINE LENGTH 1 (MM) | 18.5 |
| CENTERLINE LENGTH 2 (MM) | 36.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 2.123 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 18.460 |
D2700-LN-L42-L42
$247.71Attribute: D2700-LN-L42-L42 (L42MBT-L42MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M52X2.0 |
| BODY HEX (MM) | 60.0 |
| HEX C 1 (MM) | 65.0 |
| HEX C 2 (MM) | 60.0 |
| HEX C 3 (MM) | 60.0 |
| OVERALL LENGTH L1 (MM) | 42.0 |
| OVERALL LENGTH L2 (MM) | 59.0 |
| OVERALL LENGTH L3 (MM) | 77.0 |
| CENTERLINE LENGTH 1 (MM) | 19.0 |
| CENTERLINE LENGTH 2 (MM) | 36.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 3.003 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 26.040 |
D2700-LN-L42-L42-SS
$1,140.72Attribute: D2700-LN-L42-L42-SS (L42MBT-L42M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | LIGHT 42MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M52X2.0-SS |
| BODY HEX (MM) | 60.0 |
| HEX C 1 (MM) | 65.0 |
| HEX C 2 (MM) | 60.0 |
| HEX C 3 (MM) | 60.0 |
| OVERALL LENGTH L1 (MM) | 42.0 |
| OVERALL LENGTH L2 (MM) | 59.0 |
| OVERALL LENGTH L3 (MM) | 77.0 |
| CENTERLINE LENGTH 1 (MM) | 19.0 |
| CENTERLINE LENGTH 2 (MM) | 36.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 3.003 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 250 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 26.040 |
D2700-LN-S06-S06
$24.54Attribute: D2700-LN-S06-S06 (S06MBT-S06MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M14X1.5 |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 19.0 |
| HEX C 2 (MM) | 17.0 |
| HEX C 3 (MM) | 17.0 |
| OVERALL LENGTH L1 (MM) | 27.0 |
| OVERALL LENGTH L2 (MM) | 44.0 |
| OVERALL LENGTH L3 (MM) | 55.0 |
| CENTERLINE LENGTH 1 (MM) | 12.0 |
| CENTERLINE LENGTH 2 (MM) | 29.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.261 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.564 |
D2700-LN-S06-S06-SS
$119.22Attribute: D2700-LN-S06-S06-SS (S06MBT-S06M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M14X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M14X1.5-SS |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 19.0 |
| HEX C 2 (MM) | 17.0 |
| HEX C 3 (MM) | 17.0 |
| OVERALL LENGTH L1 (MM) | 27.0 |
| OVERALL LENGTH L2 (MM) | 44.0 |
| OVERALL LENGTH L3 (MM) | 55.0 |
| CENTERLINE LENGTH 1 (MM) | 12.0 |
| CENTERLINE LENGTH 2 (MM) | 29.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.261 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.564 |
D2700-LN-S08-S08
$30.34Attribute: D2700-LN-S08-S08 (S08MBT-S08MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M16X1.5 |
| BODY HEX (MM) | 22.0 |
| HEX C 1 (MM) | 22.0 |
| HEX C 2 (MM) | 19.0 |
| HEX C 3 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 28.0 |
| OVERALL LENGTH L2 (MM) | 44.0 |
| OVERALL LENGTH L3 (MM) | 56.0 |
| CENTERLINE LENGTH 1 (MM) | 13.0 |
| CENTERLINE LENGTH 2 (MM) | 29.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.330 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.127 |
D2700-LN-S08-S08-SS
$141.33Attribute: D2700-LN-S08-S08-SS (S08MBT-S08M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 08MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M16X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M16X1.5-SS |
| BODY HEX (MM) | 22.0 |
| HEX C 1 (MM) | 22.0 |
| HEX C 2 (MM) | 19.0 |
| HEX C 3 (MM) | 19.0 |
| OVERALL LENGTH L1 (MM) | 28.0 |
| OVERALL LENGTH L2 (MM) | 44.0 |
| OVERALL LENGTH L3 (MM) | 56.0 |
| CENTERLINE LENGTH 1 (MM) | 13.0 |
| CENTERLINE LENGTH 2 (MM) | 29.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.330 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.127 |
D2700-LN-S10-S10
$27.61Attribute: D2700-LN-S10-S10 (S10MBT-S10MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M18X1.5 |
| BODY HEX (MM) | 24.0 |
| HEX C 1 (MM) | 24.0 |
| HEX C 2 (MM) | 22.0 |
| HEX C 3 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 31.0 |
| OVERALL LENGTH L2 (MM) | 46.0 |
| OVERALL LENGTH L3 (MM) | 59.0 |
| CENTERLINE LENGTH 1 (MM) | 14.5 |
| CENTERLINE LENGTH 2 (MM) | 29.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.439 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.707 |
D2700-LN-S10-S10-SS
$164.29Attribute: D2700-LN-S10-S10-SS (S10MBT-S10M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 10MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M18X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M18X1.5-SS |
| BODY HEX (MM) | 24.0 |
| HEX C 1 (MM) | 24.0 |
| HEX C 2 (MM) | 22.0 |
| HEX C 3 (MM) | 22.0 |
| OVERALL LENGTH L1 (MM) | 31.0 |
| OVERALL LENGTH L2 (MM) | 46.0 |
| OVERALL LENGTH L3 (MM) | 59.0 |
| CENTERLINE LENGTH 1 (MM) | 14.5 |
| CENTERLINE LENGTH 2 (MM) | 29.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.439 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.707 |
D2700-LN-S12-S12
$36.48Attribute: D2700-LN-S12-S12 (S12MBT-S12MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M20X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M20X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M20X1.5 |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 27.0 |
| HEX C 2 (MM) | 24.0 |
| HEX C 3 (MM) | 24.0 |
| OVERALL LENGTH L1 (MM) | 31.0 |
| OVERALL LENGTH L2 (MM) | 47.0 |
| OVERALL LENGTH L3 (MM) | 60.0 |
| CENTERLINE LENGTH 1 (MM) | 14.5 |
| CENTERLINE LENGTH 2 (MM) | 30.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.526 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.470 |
D2700-LN-S12-S12-SS
$184.94Attribute: D2700-LN-S12-S12-SS (S12MBT-S12M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M20X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 12MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M20X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M20X1.5-SS |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 27.0 |
| HEX C 2 (MM) | 24.0 |
| HEX C 3 (MM) | 24.0 |
| OVERALL LENGTH L1 (MM) | 31.0 |
| OVERALL LENGTH L2 (MM) | 47.0 |
| OVERALL LENGTH L3 (MM) | 60.0 |
| CENTERLINE LENGTH 1 (MM) | 14.5 |
| CENTERLINE LENGTH 2 (MM) | 30.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.526 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.470 |
D2700-LN-S14-S14
$58.58Attribute: D2700-LN-S14-S14 (S14MBT-S14MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M22X1.5 |
| BODY HEX (MM) | 30.0 |
| HEX C 1 (MM) | 30.0 |
| HEX C 2 (MM) | 27.0 |
| HEX C 3 (MM) | 27.0 |
| OVERALL LENGTH L1 (MM) | 35.0 |
| OVERALL LENGTH L2 (MM) | 50.0 |
| OVERALL LENGTH L3 (MM) | 65.0 |
| CENTERLINE LENGTH 1 (MM) | 17.0 |
| CENTERLINE LENGTH 2 (MM) | 32.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.716 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.668 |
D2700-LN-S14-S14-SS
$267.51Attribute: D2700-LN-S14-S14-SS (S14MBT-S14M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 14MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M22X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M22X1.5-SS |
| BODY HEX (MM) | 30.0 |
| HEX C 1 (MM) | 30.0 |
| HEX C 2 (MM) | 27.0 |
| HEX C 3 (MM) | 27.0 |
| OVERALL LENGTH L1 (MM) | 35.0 |
| OVERALL LENGTH L2 (MM) | 50.0 |
| OVERALL LENGTH L3 (MM) | 65.0 |
| CENTERLINE LENGTH 1 (MM) | 17.0 |
| CENTERLINE LENGTH 2 (MM) | 32.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.716 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.668 |
D2700-LN-S16-S16
$56.45Attribute: D2700-LN-S16-S16 (S16MBT-S16MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M24X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M24X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M24X1.5 |
| BODY HEX (MM) | 32.0 |
| HEX C 1 (MM) | 32.0 |
| HEX C 2 (MM) | 30.0 |
| HEX C 3 (MM) | 30.0 |
| OVERALL LENGTH L1 (MM) | 35.0 |
| OVERALL LENGTH L2 (MM) | 50.0 |
| OVERALL LENGTH L3 (MM) | 65.0 |
| CENTERLINE LENGTH 1 (MM) | 16.5 |
| CENTERLINE LENGTH 2 (MM) | 31.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.829 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.312 |
D2700-LN-S16-S16-SS
$306.48Attribute: D2700-LN-S16-S16-SS (S16MBT-S16M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M24X1.5 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 16MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M24X1.5 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M24X1.5-SS |
| BODY HEX (MM) | 32.0 |
| HEX C 1 (MM) | 32.0 |
| HEX C 2 (MM) | 30.0 |
| HEX C 3 (MM) | 30.0 |
| OVERALL LENGTH L1 (MM) | 35.0 |
| OVERALL LENGTH L2 (MM) | 50.0 |
| OVERALL LENGTH L3 (MM) | 65.0 |
| CENTERLINE LENGTH 1 (MM) | 16.5 |
| CENTERLINE LENGTH 2 (MM) | 31.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 0.829 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.312 |
D2700-LN-S20-S20
$87.13Attribute: D2700-LN-S20-S20 (S20MBT-S20MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M30X2.0 |
| BODY HEX (MM) | 41.0 |
| HEX C 1 (MM) | 41.0 |
| HEX C 2 (MM) | 36.0 |
| HEX C 3 (MM) | 36.0 |
| OVERALL LENGTH L1 (MM) | 40.0 |
| OVERALL LENGTH L2 (MM) | 56.0 |
| OVERALL LENGTH L3 (MM) | 72.0 |
| CENTERLINE LENGTH 1 (MM) | 17.5 |
| CENTERLINE LENGTH 2 (MM) | 33.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 1.384 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 9.848 |
D2700-LN-S20-S20-SS
$478.15Attribute: D2700-LN-S20-S20-SS (S20MBT-S20M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M30X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 20MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M30X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M30X2.0-SS |
| BODY HEX (MM) | 41.0 |
| HEX C 1 (MM) | 41.0 |
| HEX C 2 (MM) | 36.0 |
| HEX C 3 (MM) | 36.0 |
| OVERALL LENGTH L1 (MM) | 40.0 |
| OVERALL LENGTH L2 (MM) | 56.0 |
| OVERALL LENGTH L3 (MM) | 72.0 |
| CENTERLINE LENGTH 1 (MM) | 17.5 |
| CENTERLINE LENGTH 2 (MM) | 33.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 1.384 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 9.848 |
D2700-LN-S25-S25
$141.55Attribute: D2700-LN-S25-S25 (S25MBT-S25MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M36X2.0 |
| BODY HEX (MM) | 46.0 |
| HEX C 1 (MM) | 46.0 |
| HEX C 2 (MM) | 46.0 |
| HEX C 3 (MM) | 46.0 |
| OVERALL LENGTH L1 (MM) | 45.0 |
| OVERALL LENGTH L2 (MM) | 60.0 |
| OVERALL LENGTH L3 (MM) | 79.0 |
| CENTERLINE LENGTH 1 (MM) | 20.0 |
| CENTERLINE LENGTH 2 (MM) | 35.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 2.251 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 13.558 |
D2700-LN-S25-S25-SS
$724.92Attribute: D2700-LN-S25-S25-SS (S25MBT-S25M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M36X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 25MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M36X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M36X2.0-SS |
| BODY HEX (MM) | 46.0 |
| HEX C 1 (MM) | 46.0 |
| HEX C 2 (MM) | 46.0 |
| HEX C 3 (MM) | 46.0 |
| OVERALL LENGTH L1 (MM) | 45.0 |
| OVERALL LENGTH L2 (MM) | 60.0 |
| OVERALL LENGTH L3 (MM) | 79.0 |
| CENTERLINE LENGTH 1 (MM) | 20.0 |
| CENTERLINE LENGTH 2 (MM) | 35.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 2.251 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 13.558 |
D2700-LN-S30-S30
$173.89Attribute: D2700-LN-S30-S30 (S30MBT-S30MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M42X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M42X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M42X2.0 |
| BODY HEX (MM) | 50.0 |
| HEX C 1 (MM) | 50.0 |
| HEX C 2 (MM) | 50.0 |
| HEX C 3 (MM) | 50.0 |
| OVERALL LENGTH L1 (MM) | 49.2 |
| OVERALL LENGTH L2 (MM) | 65.2 |
| OVERALL LENGTH L3 (MM) | 86.0 |
| CENTERLINE LENGTH 1 (MM) | 21.5 |
| CENTERLINE LENGTH 2 (MM) | 37.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 2.707 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 17.468 |
D2700-LN-S30-S30-SS
$872.31Attribute: D2700-LN-S30-S30-SS (S30MBT-S30M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M42X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 30MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M42X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M42X2.0-SS |
| BODY HEX (MM) | 50.0 |
| HEX C 1 (MM) | 50.0 |
| HEX C 2 (MM) | 50.0 |
| HEX C 3 (MM) | 50.0 |
| OVERALL LENGTH L1 (MM) | 49.2 |
| OVERALL LENGTH L2 (MM) | 65.2 |
| OVERALL LENGTH L3 (MM) | 86.0 |
| CENTERLINE LENGTH 1 (MM) | 21.5 |
| CENTERLINE LENGTH 2 (MM) | 37.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 2.707 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 17.468 |
D2700-LN-S38-S38
$276.26Attribute: D2700-LN-S38-S38 (S38MBT-S38MBT ...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M52X2.0 |
| BODY HEX (MM) | 65.0 |
| HEX C 1 (MM) | 65.0 |
| HEX C 2 (MM) | 60.0 |
| HEX C 3 (MM) | 60.0 |
| OVERALL LENGTH L1 (MM) | 53.5 |
| OVERALL LENGTH L2 (MM) | 68.5 |
| OVERALL LENGTH L3 (MM) | 91.0 |
| CENTERLINE LENGTH 1 (MM) | 22.0 |
| CENTERLINE LENGTH 2 (MM) | 37.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 4.255 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 31.455 |
D2700-LN-S38-S38-SS
$1,399.19Attribute: D2700-LN-S38-S38-SS (S38MBT-S38M...)
Stock Status: True
| CONNECTION 1 TYPE | DIN METRIC TUBE COMPRESSION |
|---|---|
| CONNECTION 1 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 1 THREAD SIZE | M52X2.0 |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | DIN METRIC TUBE COMPRESSION BH |
| CONNECTION 2 TUBE SIZE | HEAVY 38MM TUBE OD |
| CONNECTION 2 THREAD SIZE | M52X2.0 |
| CONNECTION 2 SPECIFICATION | DIN 2353, ISO 8434-1 |
| ASSEMBLED BULKHEAD LOCK NUT | D0306-M52X2.0-SS |
| BODY HEX (MM) | 65.0 |
| HEX C 1 (MM) | 65.0 |
| HEX C 2 (MM) | 60.0 |
| HEX C 3 (MM) | 60.0 |
| OVERALL LENGTH L1 (MM) | 53.5 |
| OVERALL LENGTH L2 (MM) | 68.5 |
| OVERALL LENGTH L3 (MM) | 91.0 |
| CENTERLINE LENGTH 1 (MM) | 22.0 |
| CENTERLINE LENGTH 2 (MM) | 37.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT (LBS) | 4.255 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 420 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 31.455 |
General Attributes
No general attributes scraped.
PDF Documents
No PDF documents scraped.
