D2650

D2650-E04-E04-E04-E04-SS

$211.53

Attribute: D2650-E04-E04-E04-E04-SS (E04MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 3 THREAD SIZE	M08X1.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 4 THREAD SIZE	M08X1.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D2650-E06-E06-E06-E06-SS

$211.27

Attribute: D2650-E06-E06-E06-E06-SS (E06MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M10X1.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 4 THREAD SIZE	M10X1.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D2650-E08-E08-E08-E08-SS

$215.58

Attribute: D2650-E08-E08-E08-E08-SS (E08MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M12X1.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 4 THREAD SIZE	M12X1.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D2650-L06-L06-L06-L06

$85.89

Attribute: D2650-L06-L06-L06-L06 (L06MBT-L0...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 4 THREAD SIZE	M12X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1

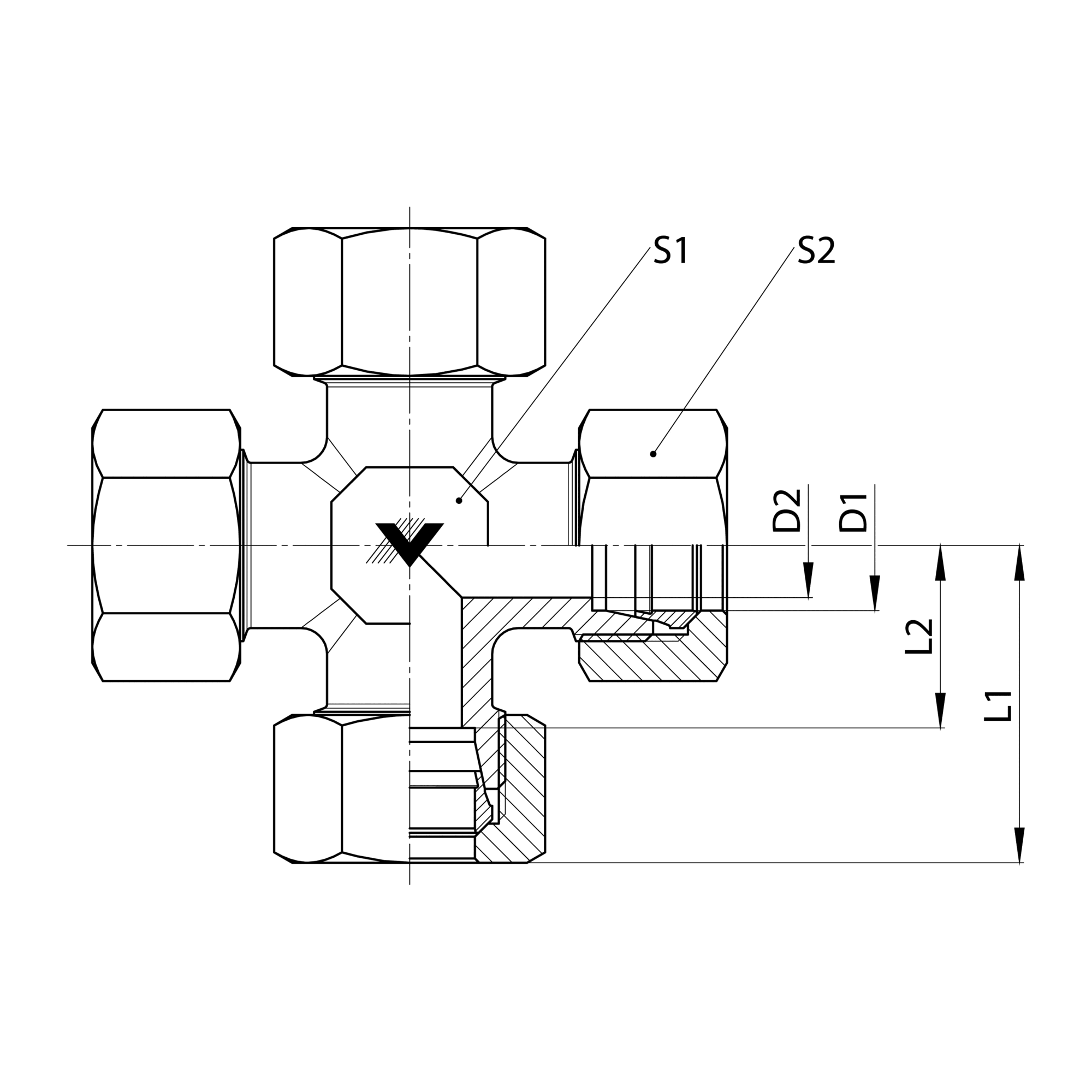

BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
HEX C 3 (MM)	14.0
HEX C 4 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	19.0
CENTERLINE LENGTH M3 (MM)	27.0
CENTERLINE LENGTH M4 (MM)	19.0
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	19.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.200
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.491

D2650-L06-L06-L06-L06-SS

$215.33

Attribute: D2650-L06-L06-L06-L06-SS (L06MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 4 THREAD SIZE	M12X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
HEX C 3 (MM)	14.0
HEX C 4 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	19.0
CENTERLINE LENGTH M3 (MM)	27.0
CENTERLINE LENGTH M4 (MM)	19.0
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	19.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.200
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.491

D2650-L08-L08-L08-L08

$94.69

Attribute: D2650-L08-L08-L08-L08 (L08MBT-L0...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 4 THREAD SIZE	M14X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
HEX C 4 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH M3 (MM)	29.0
CENTERLINE LENGTH M4 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.267
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.249

D2650-L08-L08-L08-L08-SS

$241.91

Attribute: D2650-L08-L08-L08-L08-SS (L08MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 4 THREAD SIZE	M14X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
HEX C 4 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH M3 (MM)	29.0
CENTERLINE LENGTH M4 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.267
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.490

D2650-L10-L10-L10-L10

$102.50

Attribute: D2650-L10-L10-L10-L10 (L10MBT-L1...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 4 THREAD SIZE	M16X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
HEX C 4 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.335
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.035

D2650-L10-L10-L10-L10-SS

$311.59

Attribute: D2650-L10-L10-L10-L10-SS (L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 4 THREAD SIZE	M16X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
HEX C 4 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.335
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.174

D2650-L12-L12-L12-L12

$113.34

Attribute: D2650-L12-L12-L12-L12 (L12MBT-L1...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 4 THREAD SIZE	M18X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
HEX C 4 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.441
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.155

D2650-L12-L12-L12-L12-SS

$332.71

Attribute: D2650-L12-L12-L12-L12-SS (L12MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 4 THREAD SIZE	M18X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
HEX C 4 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.441
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.499

D2650-L15-L15-L15-L15

$120.63

Attribute: D2650-L15-L15-L15-L15 (L15MBT-L1...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 4 THREAD SIZE	M22X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
HEX C 4 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.5
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.5
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.736
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.698

D2650-L15-L15-L15-L15-SS

$420.75

Attribute: D2650-L15-L15-L15-L15-SS (L15MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 4 THREAD SIZE	M22X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
HEX C 4 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.5
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.5
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.736
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.781

D2650-L18-L18-L18-L18

$172.61

Attribute: D2650-L18-L18-L18-L18 (L18MBT-L1...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 4 THREAD SIZE	M26X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	32.0
HEX C 4 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	40.5
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	40.5
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.073
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.547

D2650-L18-L18-L18-L18-SS

$596.09

Attribute: D2650-L18-L18-L18-L18-SS (L18MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 4 THREAD SIZE	M26X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	32.0
HEX C 4 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	40.5
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	40.5
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.073
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.812

D2650-L22-L22-L22-L22

$223.86

Attribute: D2650-L22-L22-L22-L22 (L22MBT-L2...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 4 THREAD SIZE	M30X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
HEX C 4 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	45.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	45.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.427
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.193

D2650-L22-L22-L22-L22-SS

$801.81

Attribute: D2650-L22-L22-L22-L22-SS (L22MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 4 THREAD SIZE	M30X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
HEX C 4 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	45.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	45.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.427
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.192

D2650-L28-L28-L28-L28

$329.26

Attribute: D2650-L28-L28-L28-L28 (L28MBT-L2...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 4 THREAD SIZE	M36X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	41.0
HEX C 4 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.888
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	22.312

D2650-L28-L28-L28-L28-SS

$1,177.84

Attribute: D2650-L28-L28-L28-L28-SS (L28MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 4 THREAD SIZE	M36X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	41.0
HEX C 4 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.888
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	24.029

D2650-L35-L35-L35-L35

$462.83

Attribute: D2650-L35-L35-L35-L35 (L35MBT-L3...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 3 THREAD SIZE	M45X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 4 THREAD SIZE	M45X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
HEX C 4 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	57.0
CENTERLINE LENGTH M2 (MM)	45.0
CENTERLINE LENGTH M3 (MM)	57.0
CENTERLINE LENGTH M4 (MM)	45.0
CENTERLINE LENGTH L1 (MM)	57.0
CENTERLINE LENGTH L2 (MM)	45.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.874
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	34.088

D2650-L35-L35-L35-L35-SS

$1,415.79

Attribute: D2650-L35-L35-L35-L35-SS (L35MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 3 THREAD SIZE	M45X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 4 THREAD SIZE	M45X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
HEX C 4 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	57.0
CENTERLINE LENGTH M2 (MM)	45.0
CENTERLINE LENGTH M3 (MM)	57.0
CENTERLINE LENGTH M4 (MM)	45.0
CENTERLINE LENGTH L1 (MM)	57.0
CENTERLINE LENGTH L2 (MM)	45.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.874
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	39.653

D2650-L42-L42-L42-L42

$706.02

Attribute: D2650-L42-L42-L42-L42 (L42MBT-L4...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 4 THREAD SIZE	M52X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
HEX C 4 (MM)	60.0
CENTERLINE LENGTH M1 (MM)	63.0
CENTERLINE LENGTH M2 (MM)	51.0
CENTERLINE LENGTH M3 (MM)	63.0
CENTERLINE LENGTH M4 (MM)	51.0
CENTERLINE LENGTH L1 (MM)	63.0
CENTERLINE LENGTH L2 (MM)	51.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	4.260
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	52.593

D2650-L42-L42-L42-L42-SS

$2,539.73

Attribute: D2650-L42-L42-L42-L42-SS (L42MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 4 THREAD SIZE	M52X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
HEX C 4 (MM)	60.0
CENTERLINE LENGTH M1 (MM)	63.0
CENTERLINE LENGTH M2 (MM)	51.0
CENTERLINE LENGTH M3 (MM)	63.0
CENTERLINE LENGTH M4 (MM)	51.0
CENTERLINE LENGTH L1 (MM)	63.0
CENTERLINE LENGTH L2 (MM)	51.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	4.260
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	58.129

D2650-S06-S06-S06-S06

$105.45

Attribute: D2650-S06-S06-S06-S06 (S06MBT-S0...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 4 THREAD SIZE	M14X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
HEX C 4 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	23.0
CENTERLINE LENGTH M3 (MM)	31.0
CENTERLINE LENGTH M4 (MM)	23.0
CENTERLINE LENGTH L1 (MM)	31.0
CENTERLINE LENGTH L2 (MM)	23.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.335
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.104

D2650-S06-S06-S06-S06-SS

$250.45

Attribute: D2650-S06-S06-S06-S06-SS (S06MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 4 THREAD SIZE	M14X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
HEX C 4 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	23.0
CENTERLINE LENGTH M3 (MM)	31.0
CENTERLINE LENGTH M4 (MM)	23.0
CENTERLINE LENGTH L1 (MM)	31.0
CENTERLINE LENGTH L2 (MM)	23.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.335
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.988

D2650-S08-S08-S08-S08

$114.53

Attribute: D2650-S08-S08-S08-S08 (S08MBT-S0...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 4 THREAD SIZE	M16X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
HEX C 4 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.410
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.601

D2650-S08-S08-S08-S08-SS

$320.43

Attribute: D2650-S08-S08-S08-S08-SS (S08MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 4 THREAD SIZE	M16X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
HEX C 4 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.410
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.749

D2650-S10-S10-S10-S10

$120.98

Attribute: D2650-S10-S10-S10-S10 (S10MBT-S1...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 4 THREAD SIZE	M18X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
HEX C 4 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	25.0
CENTERLINE LENGTH M3 (MM)	34.0
CENTERLINE LENGTH M4 (MM)	25.0
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	25.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.559
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.843

D2650-S10-S10-S10-S10-SS

$354.74

Attribute: D2650-S10-S10-S10-S10-SS (S10MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 4 THREAD SIZE	M18X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
HEX C 4 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	25.0
CENTERLINE LENGTH M3 (MM)	34.0
CENTERLINE LENGTH M4 (MM)	25.0
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	25.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.559
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.208

D2650-S12-S12-S12-S12

$128.02

Attribute: D2650-S12-S12-S12-S12 (S12MBT-S1...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M20X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 4 THREAD SIZE	M20X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
HEX C 3 (MM)	24.0
HEX C 4 (MM)	24.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGTH M3 (MM)	38.0
CENTERLINE LENGTH M4 (MM)	29.0
CENTERLINE LENGTH L1 (MM)	38.0
CENTERLINE LENGTH L2 (MM)	29.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.685
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.569

D2650-S12-S12-S12-S12-SS

$433.34

Attribute: D2650-S12-S12-S12-S12-SS (S12MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M20X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 4 THREAD SIZE	M20X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
HEX C 3 (MM)	24.0
HEX C 4 (MM)	24.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGTH M3 (MM)	38.0
CENTERLINE LENGTH M4 (MM)	29.0
CENTERLINE LENGTH L1 (MM)	38.0
CENTERLINE LENGTH L2 (MM)	29.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.685
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.459

D2650-S14-S14-S14-S14

$113.85

Attribute: D2650-S14-S14-S14-S14 (S14MBT-S1...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 4 THREAD SIZE	M22X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
HEX C 4 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGTH M3 (MM)	40.0
CENTERLINE LENGTH M4 (MM)	30.0
CENTERLINE LENGTH L1 (MM)	40.0
CENTERLINE LENGTH L2 (MM)	30.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.930
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.018

D2650-S14-S14-S14-S14-SS

$418.02

Attribute: D2650-S14-S14-S14-S14-SS (S14MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 4 THREAD SIZE	M22X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
HEX C 4 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGTH M3 (MM)	40.0
CENTERLINE LENGTH M4 (MM)	30.0
CENTERLINE LENGTH L1 (MM)	40.0
CENTERLINE LENGTH L2 (MM)	30.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.930
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.545

D2650-S16-S16-S16-S16

$185.41

Attribute: D2650-S16-S16-S16-S16 (S16MBT-S1...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 4 THREAD SIZE	M24X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
HEX C 3 (MM)	30.0
HEX C 4 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGTH M3 (MM)	43.0
CENTERLINE LENGTH M4 (MM)	33.0
CENTERLINE LENGTH L1 (MM)	43.0
CENTERLINE LENGTH L2 (MM)	33.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.198
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.596

D2650-S16-S16-S16-S16-SS

$589.01

Attribute: D2650-S16-S16-S16-S16-SS (S16MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 4 THREAD SIZE	M24X1.5
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
HEX C 3 (MM)	30.0
HEX C 4 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGTH M3 (MM)	43.0
CENTERLINE LENGTH M4 (MM)	33.0
CENTERLINE LENGTH L1 (MM)	43.0
CENTERLINE LENGTH L2 (MM)	33.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.198
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.540

D2650-S20-S20-S20-S20

$273.40

Attribute: D2650-S20-S20-S20-S20 (S20MBT-S2...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 4 THREAD SIZE	M30X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
HEX C 4 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	37.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	37.0
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	37.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.828
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.515

D2650-S20-S20-S20-S20-SS

$869.62

Attribute: D2650-S20-S20-S20-S20-SS (S20MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 4 THREAD SIZE	M30X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
HEX C 4 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	37.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	37.0
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	37.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.828
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.098

D2650-S25-S25-S25-S25

$329.47

Attribute: D2650-S25-S25-S25-S25 (S25MBT-S2...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 4 THREAD SIZE	M36X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	46.0
HEX C 4 (MM)	46.0
CENTERLINE LENGTH M1 (MM)	55.0
CENTERLINE LENGTH M2 (MM)	42.0
CENTERLINE LENGTH M3 (MM)	55.0
CENTERLINE LENGTH M4 (MM)	42.0
CENTERLINE LENGTH L1 (MM)	55.0
CENTERLINE LENGTH L2 (MM)	42.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	3.377
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	30.260

D2650-S25-S25-S25-S25-SS

$1,399.19

Attribute: D2650-S25-S25-S25-S25-SS (S25MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 4 THREAD SIZE	M36X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	46.0
HEX C 4 (MM)	46.0
CENTERLINE LENGTH M1 (MM)	55.0
CENTERLINE LENGTH M2 (MM)	42.0
CENTERLINE LENGTH M3 (MM)	55.0
CENTERLINE LENGTH M4 (MM)	42.0
CENTERLINE LENGTH L1 (MM)	55.0
CENTERLINE LENGTH L2 (MM)	42.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	3.377
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	33.965

D2650-S30-S30-S30-S30

$400.69

Attribute: D2650-S30-S30-S30-S30 (S30MBT-S3...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 3 THREAD SIZE	M42X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 4 THREAD SIZE	M42X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
HEX C 4 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	63.2
CENTERLINE LENGTH M2 (MM)	49.0
CENTERLINE LENGTH M3 (MM)	63.2
CENTERLINE LENGTH M4 (MM)	49.0
CENTERLINE LENGTH L1 (MM)	63.2
CENTERLINE LENGTH L2 (MM)	49.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	4.256
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	42.457

D2650-S30-S30-S30-S30-SS

$2,338.19

Attribute: D2650-S30-S30-S30-S30-SS (S30MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 3 THREAD SIZE	M42X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 4 THREAD SIZE	M42X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
HEX C 4 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	63.2
CENTERLINE LENGTH M2 (MM)	49.0
CENTERLINE LENGTH M3 (MM)	63.2
CENTERLINE LENGTH M4 (MM)	49.0
CENTERLINE LENGTH L1 (MM)	63.2
CENTERLINE LENGTH L2 (MM)	49.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	4.256
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	48.826

D2650-S38-S38-S38-S38

$721.67

Attribute: D2650-S38-S38-S38-S38 (S38MBT-S3...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 4 THREAD SIZE	M52X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
HEX C 4 (MM)	60.0
CENTERLINE LENGTH M1 (MM)	72.5
CENTERLINE LENGTH M2 (MM)	57.0
CENTERLINE LENGTH M3 (MM)	72.5
CENTERLINE LENGTH M4 (MM)	57.0
CENTERLINE LENGTH L1 (MM)	72.5
CENTERLINE LENGTH L2 (MM)	57.0
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	6.322
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	67.160

D2650-S38-S38-S38-S38-SS

$2,454.09

Attribute: D2650-S38-S38-S38-S38-SS (S38MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 4 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 4 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 4 THREAD SIZE	M52X2.0
CONNECTION 4 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
HEX C 4 (MM)	60.0
CENTERLINE LENGTH M1 (MM)	72.5
CENTERLINE LENGTH M2 (MM)	57.0
CENTERLINE LENGTH M3 (MM)	72.5
CENTERLINE LENGTH M4 (MM)	57.0
CENTERLINE LENGTH L1 (MM)	72.5
CENTERLINE LENGTH L2 (MM)	57.0
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	6.322
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	76.981

ID	10165068
Category	DIN Metric Tube Fittings

Description

Description

Variations (43)

D2650-E04-E04-E04-E04-SS

D2650-E06-E06-E06-E06-SS

D2650-E08-E08-E08-E08-SS

D2650-L06-L06-L06-L06

D2650-L06-L06-L06-L06-SS

D2650-L08-L08-L08-L08

D2650-L08-L08-L08-L08-SS

D2650-L10-L10-L10-L10

D2650-L10-L10-L10-L10-SS

D2650-L12-L12-L12-L12

D2650-L12-L12-L12-L12-SS

D2650-L15-L15-L15-L15

D2650-L15-L15-L15-L15-SS

D2650-L18-L18-L18-L18

D2650-L18-L18-L18-L18-SS

D2650-L22-L22-L22-L22

D2650-L22-L22-L22-L22-SS

D2650-L28-L28-L28-L28

D2650-L28-L28-L28-L28-SS

D2650-L35-L35-L35-L35

D2650-L35-L35-L35-L35-SS

D2650-L42-L42-L42-L42

D2650-L42-L42-L42-L42-SS

D2650-S06-S06-S06-S06

D2650-S06-S06-S06-S06-SS

D2650-S08-S08-S08-S08

D2650-S08-S08-S08-S08-SS

D2650-S10-S10-S10-S10

D2650-S10-S10-S10-S10-SS

D2650-S12-S12-S12-S12

D2650-S12-S12-S12-S12-SS

D2650-S14-S14-S14-S14

D2650-S14-S14-S14-S14-SS

D2650-S16-S16-S16-S16

D2650-S16-S16-S16-S16-SS

D2650-S20-S20-S20-S20

D2650-S20-S20-S20-S20-SS

D2650-S25-S25-S25-S25

D2650-S25-S25-S25-S25-SS

D2650-S30-S30-S30-S30

D2650-S30-S30-S30-S30-SS

D2650-S38-S38-S38-S38

D2650-S38-S38-S38-S38-SS

General Attributes

PDF Documents
