Description

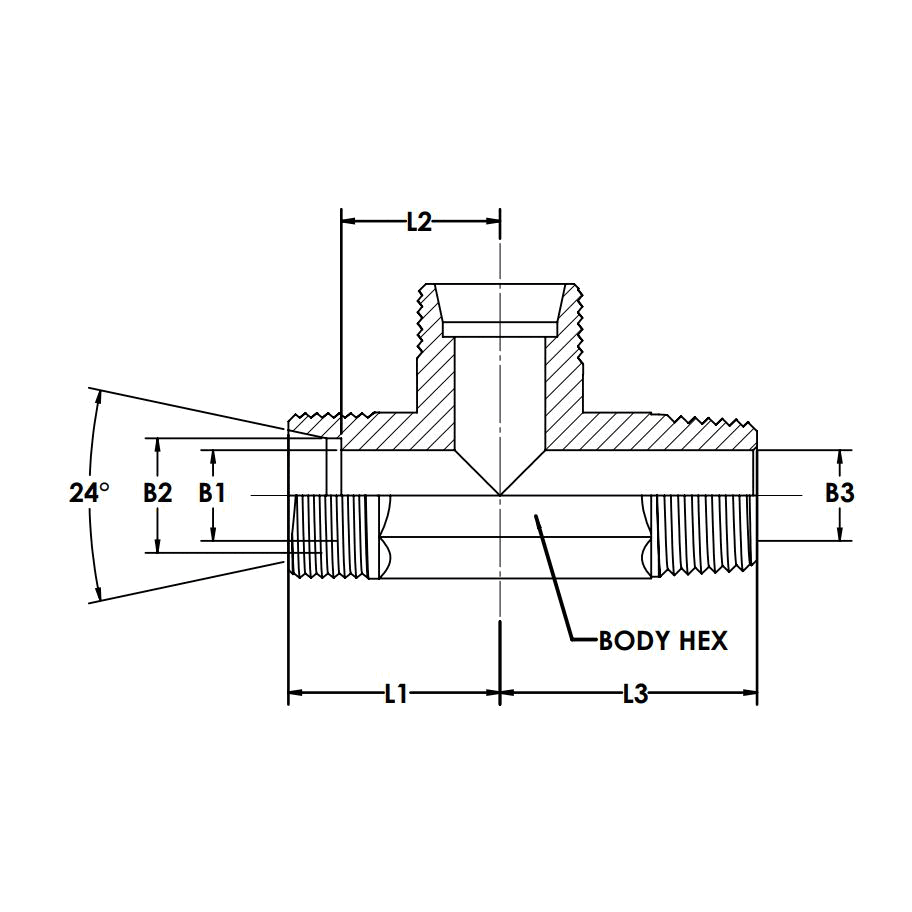

MBT-MP-MBT TEE (BODY ONLY).
Description
Variations (9)
D2605-L08-04-L08-SS-X
$137.36Attribute: D2605-L08-04-L08-SS-X (L08MBT-04...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE NPT |
| CONNECTION 2 THREAD SIZE | 1/4-18 |
| CONNECTION 2 THREAD ID (MM) | 6.0 |
| CONNECTION 2 SPECIFICATION | ANSI B1.20.1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M14X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 08MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 12.0 |
| CENTERLINE LENGTH M1 (MM) | 21.0 |
| CENTERLINE LENGTH M2 (MM) | 27.0 |
| CENTERLINE LENGHT M3 (MM) | 14.0 |
| CENTERLINE LENGTH M4 (MM) | 15.0 |
| CENTERLINE LENGTH L1 (MM) | 21.0 |
| CENTERLINE LENGTH L2 (MM) | 14.0 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.097 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.949 |
D2605-L10-04-L10-SS-X
$149.01Attribute: D2605-L10-04-L10-SS-X (L10MBT-04...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE NPT |
| CONNECTION 2 THREAD SIZE | 1/4-18 |
| CONNECTION 2 THREAD ID (MM) | 7.0 |
| CONNECTION 2 SPECIFICATION | ANSI B1.20.1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M16X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 10MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 14.0 |
| CENTERLINE LENGTH M1 (MM) | 22.0 |
| CENTERLINE LENGTH M2 (MM) | 27.0 |
| CENTERLINE LENGHT M3 (MM) | 15.0 |
| CENTERLINE LENGTH M4 (MM) | 15.0 |
| CENTERLINE LENGTH L1 (MM) | 22.0 |
| CENTERLINE LENGTH L2 (MM) | 15.0 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.117 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.214 |
D2605-L12-06-L12-SS-X
$181.44Attribute: D2605-L12-06-L12-SS-X (L12MBT-06...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE NPT |
| CONNECTION 2 THREAD SIZE | 3/8-18 |
| CONNECTION 2 THREAD ID (MM) | 9.0 |
| CONNECTION 2 SPECIFICATION | ANSI B1.20.1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M18X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 12MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 17.0 |
| CENTERLINE LENGTH M1 (MM) | 24.0 |
| CENTERLINE LENGTH M2 (MM) | 28.0 |
| CENTERLINE LENGHT M3 (MM) | 17.0 |
| CENTERLINE LENGTH M4 (MM) | 15.5 |
| CENTERLINE LENGTH L1 (MM) | 24.0 |
| CENTERLINE LENGTH L2 (MM) | 17.0 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.148 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.753 |
D2605-L15-08-L15-SS-X
$251.25Attribute: D2605-L15-08-L15-SS-X (L15MBT-08...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE NPT |
| CONNECTION 2 THREAD SIZE | 1/2-14 |
| CONNECTION 2 THREAD ID (MM) | 11.0 |
| CONNECTION 2 SPECIFICATION | ANSI B1.20.1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M22X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 15MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 19.0 |
| CENTERLINE LENGTH M1 (MM) | 28.0 |
| CENTERLINE LENGTH M2 (MM) | 34.0 |
| CENTERLINE LENGHT M3 (MM) | 21.0 |
| CENTERLINE LENGTH M4 (MM) | 13.5 |
| CENTERLINE LENGTH L1 (MM) | 28.0 |
| CENTERLINE LENGTH L2 (MM) | 21.0 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.284 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.696 |
D2605-L18-08-L18-SS-X
$403.39Attribute: D2605-L18-08-L18-SS-X (L18MBT-08...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M26X1.5 |
| CONNECTION 1 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE NPT |
| CONNECTION 2 THREAD SIZE | 1/2-14 |
| CONNECTION 2 THREAD ID (MM) | 11.0 |
| CONNECTION 2 SPECIFICATION | ANSI B1.20.1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M26X1.5 |
| CONNECTION 3 TUBE SIZE | LIGHT 18MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 24.0 |
| CENTERLINE LENGTH M1 (MM) | 31.0 |
| CENTERLINE LENGTH M2 (MM) | 36.0 |
| CENTERLINE LENGHT M3 (MM) | 23.5 |
| CENTERLINE LENGTH M4 (MM) | 13.5 |
| CENTERLINE LENGTH L1 (MM) | 31.0 |
| CENTERLINE LENGTH L2 (MM) | 23.5 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.379 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 315 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.219 |
D2605-S08-04-S08-SS-X
$141.84Attribute: D2605-S08-04-S08-SS-X (S08MBT-04...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M16X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY08MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE NPT |
| CONNECTION 2 THREAD SIZE | 1/4-18 |
| CONNECTION 2 THREAD ID (MM) | 5.0 |
| CONNECTION 2 SPECIFICATION | ANSI B1.20.1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M16X1.5 |
| CONNECTION 3 TUBE SIZE | HEAVY08MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 14.0 |
| CENTERLINE LENGTH M1 (MM) | 24.0 |
| CENTERLINE LENGTH M2 (MM) | 27.0 |
| CENTERLINE LENGHT M3 (MM) | 17.0 |
| CENTERLINE LENGTH M4 (MM) | 13.0 |
| CENTERLINE LENGTH L1 (MM) | 24.0 |
| CENTERLINE LENGTH L2 (MM) | 17.0 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.156 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.351 |
D2605-S10-06-S10-SS-X
$172.69Attribute: D2605-S10-06-S10-SS-X (S10MBT-06...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M18X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY10MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE NPT |
| CONNECTION 2 THREAD SIZE | 3/8-18 |
| CONNECTION 2 THREAD ID (MM) | 7.0 |
| CONNECTION 2 SPECIFICATION | ANSI B1.20.1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M18X1.5 |
| CONNECTION 3 TUBE SIZE | HEAVY10MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 17.0 |
| CENTERLINE LENGTH M1 (MM) | 25.0 |
| CENTERLINE LENGTH M2 (MM) | 28.0 |
| CENTERLINE LENGHT M3 (MM) | 17.5 |
| CENTERLINE LENGTH M4 (MM) | 14.0 |
| CENTERLINE LENGTH L1 (MM) | 25.0 |
| CENTERLINE LENGTH L2 (MM) | 17.5 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.205 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.842 |
D2605-S12-06-S12-SS-X
$203.59Attribute: D2605-S12-06-S12-SS-X (S12MBT-06...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M20X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY12MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE NPT |
| CONNECTION 2 THREAD SIZE | 3/8-18 |
| CONNECTION 2 THREAD ID (MM) | 8.0 |
| CONNECTION 2 SPECIFICATION | ANSI B1.20.1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M20X1.5 |
| CONNECTION 3 TUBE SIZE | HEAVY12MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 17.0 |
| CENTERLINE LENGTH M1 (MM) | 29.0 |
| CENTERLINE LENGTH M2 (MM) | 28.0 |
| CENTERLINE LENGHT M3 (MM) | 21.5 |
| CENTERLINE LENGTH M4 (MM) | 15.5 |
| CENTERLINE LENGTH L1 (MM) | 29.0 |
| CENTERLINE LENGTH L2 (MM) | 21.5 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.256 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.217 |
D2605-S14-08-S14-SS-X
$249.33Attribute: D2605-S14-08-S14-SS-X (S14MBT-08...)
Stock Status: True
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
|---|---|
| CONNECTION 1 THREAD SIZE | M22X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY14MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| CONNECTION 2 TYPE | MALE NPT |
| CONNECTION 2 THREAD SIZE | 1/2-14 |
| CONNECTION 2 THREAD ID (MM) | 10.0 |
| CONNECTION 2 SPECIFICATION | ANSI B1.20.1 |
| CONNECTION 3 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 3 THREAD SIZE | M22X1.5 |
| CONNECTION 3 TUBE SIZE | HEAVY14MM TUBE OD |
| CONNECTION 3 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 19.0 |
| CENTERLINE LENGTH M1 (MM) | 30.0 |
| CENTERLINE LENGTH M2 (MM) | 34.0 |
| CENTERLINE LENGHT M3 (MM) | 22.0 |
| CENTERLINE LENGTH M4 (MM) | 14.5 |
| CENTERLINE LENGTH L1 (MM) | 30.0 |
| CENTERLINE LENGTH L2 (MM) | 22.0 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.335 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 630 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.931 |
