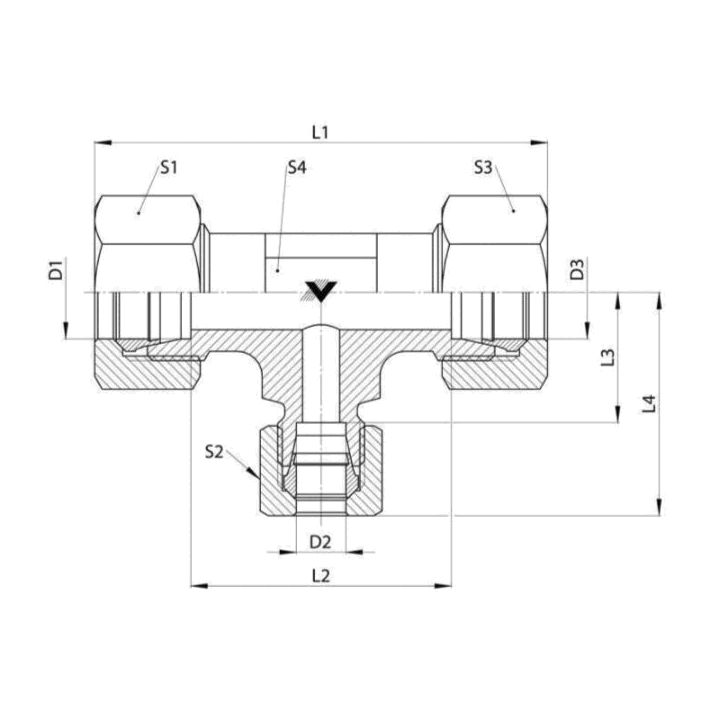

D2603-REDUCER

D2603-L06-L06-L08-SS

$187.84

Attribute: D2603-L06-L06-L08-SS (L06MBT-L06...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH M3 (MM)	29.0
CENTERLINE LENGTH M4 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.179
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.166

D2603-L06-L06-L10

$131.56

Attribute: D2603-L06-L06-L10 (L06MBT-L06MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.212
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.574

D2603-L06-L06-L10-SS

$205.34

Attribute: D2603-L06-L06-L10-SS (L06MBT-L06...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.212
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.574

D2603-L08-L08-L06

$53.39

Attribute: D2603-L08-L08-L06 (L08MBT-L08MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH M3 (MM)	29.0
CENTERLINE LENGTH M4 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.192
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.256

D2603-L08-L08-L06-SS

$187.54

Attribute: D2603-L08-L08-L06-SS (L08MBT-L08...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH M3 (MM)	29.0
CENTERLINE LENGTH M4 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.192
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.256

D2603-L08-L08-L10

$105.36

Attribute: D2603-L08-L08-L10 (L08MBT-L08MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.239
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.678

D2603-L08-L08-L10-SS

$213.02

Attribute: D2603-L08-L08-L10-SS (L08MBT-L08...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.239
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.678

D2603-L08-L08-L12

$93.16

Attribute: D2603-L08-L08-L12 (L08MBT-L08MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.294
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.480

D2603-L10-L06-L10

$77.54

Attribute: D2603-L10-L06-L10 (L10MBT-L06MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	14.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	29.0
CENTERLINE LENGTH M4 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.230
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.702

D2603-L10-L10-L06

$63.20

Attribute: D2603-L10-L10-L06 (L10MBT-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.748

D2603-L10-L10-L06-SS

$211.91

Attribute: D2603-L10-L10-L06-SS (L10MBT-L10...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.748

D2603-L10-L10-L08

$80.65

Attribute: D2603-L10-L10-L08 (L10MBT-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.247
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.748

D2603-L10-L10-L08-SS

$206.58

Attribute: D2603-L10-L10-L08-SS (L10MBT-L10...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.247
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.748

D2603-L10-L10-L12-SS

$223.57

Attribute: D2603-L10-L10-L12-SS (L10MBT-L10...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.311
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.566

D2603-L10-L10-L15

$135.15

Attribute: D2603-L10-L10-L15 (L10MBT-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.0
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.5
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.447
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.457

D2603-L10-L10-L15-SS

$351.66

Attribute: D2603-L10-L10-L15-SS (L10MBT-L10...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.0
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.5
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.447
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.457

D2603-L12-L08-L08

$136.77

Attribute: D2603-L12-L08-L08 (L12MBT-L08MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.290
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.695

D2603-L12-L08-L08-SS

$221.48

Attribute: D2603-L12-L08-L08-SS (L12MBT-L08...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.290
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.695

D2603-L12-L08-L12-SS

$227.91

Attribute: D2603-L12-L08-L12-SS (L12MBT-L08...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.313
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.695

D2603-L12-L10-L10

$91.49

Attribute: D2603-L12-L10-L10 (L12MBT-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.308
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.695

D2603-L12-L10-L10-SS

$226.25

Attribute: D2603-L12-L10-L10-SS (L12MBT-L10...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.308
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.695

D2603-L12-L10-L12

$195.14

Attribute: D2603-L12-L10-L12 (L12MBT-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.323
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.695

D2603-L12-L10-L12-SS

$223.86

Attribute: D2603-L12-L10-L12-SS (L12MBT-L10...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.323
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.695

D2603-L12-L12-L06

$73.36

Attribute: D2603-L12-L12-L06 (L12MBT-L12MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.301
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.695

D2603-L12-L12-L06-SS

$233.00

Attribute: D2603-L12-L12-L06-SS (L12MBT-L12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.301
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.695

D2603-L12-L12-L08

$68.66

Attribute: D2603-L12-L12-L08 (L12MBT-L12MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.315
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.695

D2603-L12-L12-L08-SS

$235.34

Attribute: D2603-L12-L12-L08-SS (L12MBT-L12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.315
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.695

D2603-L12-L12-L10

$71.04

Attribute: D2603-L12-L12-L10 (L12MBT-L12MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.324
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.695

D2603-L12-L12-L10-SS

$226.50

Attribute: D2603-L12-L12-L10-SS (L12MBT-L12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.324
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.695

D2603-L12-L12-L15

$115.90

Attribute: D2603-L12-L12-L15 (L12MBT-L12MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.0
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.5
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.475
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.635

D2603-L12-L12-L15-SS

$337.75

Attribute: D2603-L12-L12-L15-SS (L12MBT-L12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.0
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.0
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.5
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.475
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.635

D2603-L12-L12-L18-SS

$447.00

Attribute: D2603-L12-L12-L18-SS (L12MBT-L12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	39.0
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	39.0
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	40.5
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.647
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.844

D2603-L15-L08-L15-SS

$355.63

Attribute: D2603-L15-L08-L15-SS (L15MBT-L08...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.0
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.5
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.492
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.973

D2603-L15-L12-L12

$132.80

Attribute: D2603-L15-L12-L12 (L15MBT-L12MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.0
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.471
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.913

D2603-L15-L12-L12-SS

$339.81

Attribute: D2603-L15-L12-L12-SS (L15MBT-L12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.0
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.471
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.913

D2603-L15-L12-L15

$78.09

Attribute: D2603-L15-L12-L15 (L15MBT-L12MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.0
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.5
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.517
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.973

D2603-L15-L12-L15-SS

$341.93

Attribute: D2603-L15-L12-L15-SS (L15MBT-L12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.0
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.5
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.517
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.973

D2603-L15-L15-L06

$167.36

Attribute: D2603-L15-L15-L06 (L15MBT-L15MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.5
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.484
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.954

D2603-L15-L15-L08-SS

$341.93

Attribute: D2603-L15-L15-L08-SS (L15MBT-L15...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.5
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.497
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.954

D2603-L15-L15-L10

$115.47

Attribute: D2603-L15-L15-L10 (L15MBT-L15MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.5
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.504
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.954

D2603-L15-L15-L10-SS

$357.22

Attribute: D2603-L15-L15-L10-SS (L15MBT-L15...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.5
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.504
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.954

D2603-L15-L15-L12

$105.48

Attribute: D2603-L15-L15-L12 (L15MBT-L15MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.5
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.519
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.954

D2603-L15-L15-L12-SS

$372.36

Attribute: D2603-L15-L15-L12-SS (L15MBT-L15...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.5
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.519
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.954

D2603-L18-L10-L10

$192.54

Attribute: D2603-L18-L10-L10 (L18MBT-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	39.0
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	39.0
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.608
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.539

D2603-L18-L10-L10-SS

$454.98

Attribute: D2603-L18-L10-L10-SS (L18MBT-L10...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	39.0
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	39.0
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.608
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.539

D2603-L18-L10-L18

$131.18

Attribute: D2603-L18-L10-L18 (L18MBT-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	39.0
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	40.5
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.708
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.771

D2603-L18-L10-L18-SS

$450.33

Attribute: D2603-L18-L10-L18-SS (L18MBT-L10...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	39.0
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	40.5
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.708
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.771

D2603-L18-L12-L12-SS

$536.99

Attribute: D2603-L18-L12-L12-SS (L18MBT-L12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	39.0
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	39.0
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.636
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.539

D2603-L18-L12-L18-SS

$569.60

Attribute: D2603-L18-L12-L18-SS (L18MBT-L12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	39.0
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	40.5
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.725
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.771

D2603-L18-L18-L08

$135.57

Attribute: D2603-L18-L18-L08 (L18MBT-L18MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	40.5
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	39.0
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.713
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.700

D2603-L18-L18-L08-SS

$450.07

Attribute: D2603-L18-L18-L08-SS (L18MBT-L18...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	40.5
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	39.0
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.713
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.700

D2603-L18-L18-L10

$138.25

Attribute: D2603-L18-L18-L10 (L18MBT-L18MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	40.5
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	39.0
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.717
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.700

D2603-L18-L18-L10-SS

$454.58

Attribute: D2603-L18-L18-L10-SS (L18MBT-L18...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	40.5
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	39.0
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.717
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.700

D2603-L18-L18-L12

$143.38

Attribute: D2603-L18-L18-L12 (L18MBT-L18MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	40.5
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	39.0
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.732
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.700

D2603-L18-L18-L12-SS

$456.93

Attribute: D2603-L18-L18-L12-SS (L18MBT-L18...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	40.5
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	39.0
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.732
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.700

D2603-L18-L18-L15

$151.83

Attribute: D2603-L18-L18-L15 (L18MBT-L18MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	40.5
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	39.5
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.778
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.779

D2603-L18-L18-L15-SS

$465.34

Attribute: D2603-L18-L18-L15-SS (L18MBT-L18...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	40.5
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	39.5
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.778
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.779

D2603-L18-L18-L22-SS

$616.15

Attribute: D2603-L18-L18-L22-SS (L18MBT-L18...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	44.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	44.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	45.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.043
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.025

D2603-L22-L12-L12-SS

$558.67

Attribute: D2603-L22-L12-L12-SS (L22MBT-L12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	43.0
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	43.0
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.844
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.860

D2603-L22-L12-L22-SS

$596.30

Attribute: D2603-L22-L12-L22-SS (L22MBT-L12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	43.0
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	45.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.957
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.346

D2603-L22-L15-L15

$325.34

Attribute: D2603-L22-L15-L15 (L22MBT-L15MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	43.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	43.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.928
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.025

D2603-L22-L15-L15-SS

$547.19

Attribute: D2603-L22-L15-L15-SS (L22MBT-L15...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	43.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	43.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.928
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.025

D2603-L22-L18-L18-SS

$614.15

Attribute: D2603-L22-L18-L18-SS (L22MBT-L18...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	44.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	44.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.027
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.357

D2603-L22-L18-L22-SS

$623.11

Attribute: D2603-L22-L18-L22-SS (L22MBT-L18...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	44.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	45.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.058
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.555

D2603-L22-L22-L08-SS

$612.06

Attribute: D2603-L22-L22-L08-SS (L22MBT-L22...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	45.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	43.0
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.956
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.195

D2603-L22-L22-L10

$273.31

Attribute: D2603-L22-L22-L10 (L22MBT-L22MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	45.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	43.0
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.957
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.195

D2603-L22-L22-L10-SS

$564.81

Attribute: D2603-L22-L22-L10-SS (L22MBT-L22...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	45.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	43.0
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.957
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.195

D2603-L22-L22-L12

$191.99

Attribute: D2603-L22-L22-L12 (L22MBT-L22MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	45.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	43.0
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.972
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.195

D2603-L22-L22-L12-SS

$586.23

Attribute: D2603-L22-L22-L12-SS (L22MBT-L22...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	45.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	43.0
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.972
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.195

D2603-L22-L22-L15

$182.26

Attribute: D2603-L22-L22-L15 (L22MBT-L22MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	45.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	43.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.015
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.295

D2603-L22-L22-L15-SS

$594.04

Attribute: D2603-L22-L22-L15-SS (L22MBT-L22...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	45.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	43.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.015
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.295

D2603-L22-L22-L18

$231.92

Attribute: D2603-L22-L22-L18 (L22MBT-L22MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	45.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	44.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.065
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.495

D2603-L22-L22-L18-SS

$613.29

Attribute: D2603-L22-L22-L18-SS (L22MBT-L22...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	45.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	44.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.065
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.495

D2603-L22-L22-L28

$249.07

Attribute: D2603-L22-L22-L28 (L22MBT-L22MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	48.5
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH M3 (MM)	48.5
CENTERLINE LENGTH M4 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.485
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.260

D2603-L28-L22-L22-SS

$881.95

Attribute: D2603-L28-L22-L22-SS (L28MBT-L22...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH M3 (MM)	48.5
CENTERLINE LENGTH M4 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	48.5
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.448
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.832

D2603-L28-L28-L10-SS

$884.69

Attribute: D2603-L28-L28-L10-SS (L28MBT-L28...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	46.0
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.341
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.305

D2603-L28-L28-L12

$276.00

Attribute: D2603-L28-L28-L12 (L28MBT-L28MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	46.0
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.356
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.305

D2603-L28-L28-L12-SS

$890.65

Attribute: D2603-L28-L28-L12-SS (L28MBT-L28...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	46.0
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.356
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.305

D2603-L28-L28-L15

$311.50

Attribute: D2603-L28-L28-L15 (L28MBT-L28MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	46.5
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.395
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.428

D2603-L28-L28-L15-SS

$897.06

Attribute: D2603-L28-L28-L15-SS (L28MBT-L28...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	46.5
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.395
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.428

D2603-L28-L28-L18

$341.13

Attribute: D2603-L28-L28-L18 (L28MBT-L28MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	47.5
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.448
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.673

D2603-L28-L28-L18-SS

$941.35

Attribute: D2603-L28-L28-L18-SS (L28MBT-L28...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	47.5
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.448
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.673

D2603-L28-L28-L22

$304.60

Attribute: D2603-L28-L28-L22 (L28MBT-L28MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	48.5
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.476
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.918

D2603-L28-L28-L22-SS

$925.74

Attribute: D2603-L28-L28-L22-SS (L28MBT-L28...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	48.5
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.476
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.918

D2603-L28-L28-L35-SS

$1,141.45

Attribute: D2603-L28-L28-L35-SS (L28MBT-L28...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 3 THREAD SIZE	M45X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	56.0
CENTERLINE LENGTH M2 (MM)	45.0
CENTERLINE LENGTH M3 (MM)	56.0
CENTERLINE LENGTH M4 (MM)	45.0
CENTERLINE LENGTH L1 (MM)	57.0
CENTERLINE LENGTH L2 (MM)	45.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.137
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	26.484

D2603-L35-L35-L12-SS

$1,207.92

Attribute: D2603-L35-L35-L12-SS (L35MBT-L35...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	57.0
CENTERLINE LENGTH M2 (MM)	45.0
CENTERLINE LENGTH M3 (MM)	57.0
CENTERLINE LENGTH M4 (MM)	45.0
CENTERLINE LENGTH L1 (MM)	57.0
CENTERLINE LENGTH L2 (MM)	49.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.152
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	28.522

D2603-L35-L35-L18-SS

$1,227.13

Attribute: D2603-L35-L35-L18-SS (L35MBT-L35...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	57.0
CENTERLINE LENGTH M2 (MM)	45.0
CENTERLINE LENGTH M3 (MM)	57.0
CENTERLINE LENGTH M4 (MM)	45.0
CENTERLINE LENGTH L1 (MM)	54.5
CENTERLINE LENGTH L2 (MM)	45.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.159
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	27.653

D2603-L35-L35-L22-SS

$1,250.35

Attribute: D2603-L35-L35-L22-SS (L35MBT-L35...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	57.0
CENTERLINE LENGTH M2 (MM)	45.0
CENTERLINE LENGTH M3 (MM)	57.0
CENTERLINE LENGTH M4 (MM)	45.0
CENTERLINE LENGTH L1 (MM)	55.5
CENTERLINE LENGTH L2 (MM)	45.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.170
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	28.001

D2603-L35-L35-L28-SS

$1,315.12

Attribute: D2603-L35-L35-L28-SS (L35MBT-L35...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	57.0
CENTERLINE LENGTH M2 (MM)	45.0
CENTERLINE LENGTH M3 (MM)	57.0
CENTERLINE LENGTH M4 (MM)	45.0
CENTERLINE LENGTH L1 (MM)	56.0
CENTERLINE LENGTH L2 (MM)	45.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.180
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	28.175

D2603-L35-L35-L42-SS

$1,560.40

Attribute: D2603-L35-L35-L42-SS (L35MBT-L35...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	60.0
CENTERLINE LENGTH M1 (MM)	63.0
CENTERLINE LENGTH M2 (MM)	51.0
CENTERLINE LENGTH M3 (MM)	63.0
CENTERLINE LENGTH M4 (MM)	51.0
CENTERLINE LENGTH L1 (MM)	63.0
CENTERLINE LENGTH L2 (MM)	51.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	3.261
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	40.598

D2603-L42-L42-L15-SS

$1,607.17

Attribute: D2603-L42-L42-L15-SS (L42MBT-L42...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	63.0
CENTERLINE LENGTH M2 (MM)	51.0
CENTERLINE LENGTH M3 (MM)	63.0
CENTERLINE LENGTH M4 (MM)	51.0
CENTERLINE LENGTH L1 (MM)	59.5
CENTERLINE LENGTH L2 (MM)	51.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	3.162
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	41.290

D2603-L42-L42-L18-SS

$1,616.82

Attribute: D2603-L42-L42-L18-SS (L42MBT-L42...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	63.0
CENTERLINE LENGTH M2 (MM)	51.0
CENTERLINE LENGTH M3 (MM)	63.0
CENTERLINE LENGTH M4 (MM)	51.0
CENTERLINE LENGTH L1 (MM)	60.5
CENTERLINE LENGTH L2 (MM)	51.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	3.212
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	41.752

D2603-L42-L42-L22-SS

$1,553.62

Attribute: D2603-L42-L42-L22-SS (L42MBT-L42...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	63.0
CENTERLINE LENGTH M2 (MM)	51.0
CENTERLINE LENGTH M3 (MM)	63.0
CENTERLINE LENGTH M4 (MM)	51.0
CENTERLINE LENGTH L1 (MM)	61.5
CENTERLINE LENGTH L2 (MM)	51.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	3.204
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	42.212

D2603-L42-L42-L35-SS

$1,803.54

Attribute: D2603-L42-L42-L35-SS (L42MBT-L42...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 3 THREAD SIZE	M45X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	63.0
CENTERLINE LENGTH M2 (MM)	51.0
CENTERLINE LENGTH M3 (MM)	63.0
CENTERLINE LENGTH M4 (MM)	51.0
CENTERLINE LENGTH L1 (MM)	63.0
CENTERLINE LENGTH L2 (MM)	51.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	3.294
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	42.905

D2603-S10-S10-S06

$85.68

Attribute: D2603-S10-S10-S06 (S10MBT-S10MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	25.0
CENTERLINE LENGTH M3 (MM)	34.0
CENTERLINE LENGTH M4 (MM)	25.0
CENTERLINE LENGTH L1 (MM)	33.0
CENTERLINE LENGTH L2 (MM)	25.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.391
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.017

D2603-S10-S10-S06-SS

$226.29

Attribute: D2603-S10-S10-S06-SS (S10MBT-S10...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	25.0
CENTERLINE LENGTH M3 (MM)	34.0
CENTERLINE LENGTH M4 (MM)	25.0
CENTERLINE LENGTH L1 (MM)	33.0
CENTERLINE LENGTH L2 (MM)	25.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.391
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.017

D2603-S12-S08-S08-SS

$277.76

Attribute: D2603-S12-S08-S08-SS (S12MBT-S08...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGTH M3 (MM)	37.0
CENTERLINE LENGTH M4 (MM)	29.0
CENTERLINE LENGTH L1 (MM)	37.0
CENTERLINE LENGTH L2 (MM)	29.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.449
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.382

D2603-S12-S12-S06

$83.26

Attribute: D2603-S12-S12-S06 (S12MBT-S12MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGTH M3 (MM)	38.0
CENTERLINE LENGTH M4 (MM)	29.0
CENTERLINE LENGTH L1 (MM)	37.0
CENTERLINE LENGTH L2 (MM)	29.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.473
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.454

D2603-S12-S12-S06-SS

$286.59

Attribute: D2603-S12-S12-S06-SS (S12MBT-S12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGTH M3 (MM)	38.0
CENTERLINE LENGTH M4 (MM)	29.0
CENTERLINE LENGTH L1 (MM)	37.0
CENTERLINE LENGTH L2 (MM)	29.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.473
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.454

D2603-S12-S12-S08

$94.56

Attribute: D2603-S12-S12-S08 (S12MBT-S12MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGTH M3 (MM)	38.0
CENTERLINE LENGTH M4 (MM)	29.0
CENTERLINE LENGTH L1 (MM)	38.0
CENTERLINE LENGTH L2 (MM)	29.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.511
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.565

D2603-S12-S12-S08-SS

$280.32

Attribute: D2603-S12-S12-S08-SS (S12MBT-S12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGTH M3 (MM)	38.0
CENTERLINE LENGTH M4 (MM)	29.0
CENTERLINE LENGTH L1 (MM)	38.0
CENTERLINE LENGTH L2 (MM)	29.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.511
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.565

D2603-S12-S12-S10

$95.76

Attribute: D2603-S12-S12-S10 (S12MBT-S12MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGTH M3 (MM)	38.0
CENTERLINE LENGTH M4 (MM)	29.0
CENTERLINE LENGTH L1 (MM)	37.0
CENTERLINE LENGTH L2 (MM)	29.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.486
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.454

D2603-S12-S12-S10-SS

$284.28

Attribute: D2603-S12-S12-S10-SS (S12MBT-S12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGTH M3 (MM)	38.0
CENTERLINE LENGTH M4 (MM)	29.0
CENTERLINE LENGTH L1 (MM)	37.0
CENTERLINE LENGTH L2 (MM)	29.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.486
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.454

D2603-S12-S12-S16-SS

$437.90

Attribute: D2603-S12-S12-S16-SS (S12MBT-S12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
HEX C 3 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	42.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGTH M3 (MM)	42.0
CENTERLINE LENGTH M4 (MM)	33.0
CENTERLINE LENGTH L1 (MM)	43.0
CENTERLINE LENGTH L2 (MM)	33.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.786
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.458

D2603-S14-S14-S08-SS

$386.87

Attribute: D2603-S14-S14-S08-SS (S14MBT-S14...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGTH M3 (MM)	40.0
CENTERLINE LENGTH M4 (MM)	30.0
CENTERLINE LENGTH L1 (MM)	38.0
CENTERLINE LENGTH L2 (MM)	30.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.628
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.788

D2603-S14-S14-S10

$116.82

Attribute: D2603-S14-S14-S10 (S14MBT-S14MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGTH M3 (MM)	40.0
CENTERLINE LENGTH M4 (MM)	30.0
CENTERLINE LENGTH L1 (MM)	39.0
CENTERLINE LENGTH L2 (MM)	30.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.653
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.920

D2603-S14-S14-S10-SS

$405.17

Attribute: D2603-S14-S14-S10-SS (S14MBT-S14...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGTH M3 (MM)	40.0
CENTERLINE LENGTH M4 (MM)	30.0
CENTERLINE LENGTH L1 (MM)	39.0
CENTERLINE LENGTH L2 (MM)	30.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.653
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.920

D2603-S16-S16-S06

$142.52

Attribute: D2603-S16-S16-S06 (S16MBT-S16MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGTH M3 (MM)	43.0
CENTERLINE LENGTH M4 (MM)	33.0
CENTERLINE LENGTH L1 (MM)	41.0
CENTERLINE LENGTH L2 (MM)	33.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.803
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.817

D2603-S16-S16-S06-SS

$450.92

Attribute: D2603-S16-S16-S06-SS (S16MBT-S16...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGTH M3 (MM)	43.0
CENTERLINE LENGTH M4 (MM)	33.0
CENTERLINE LENGTH L1 (MM)	41.0
CENTERLINE LENGTH L2 (MM)	33.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.803
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.817

D2603-S16-S16-S08

$187.72

Attribute: D2603-S16-S16-S08 (S16MBT-S16MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGTH M3 (MM)	43.0
CENTERLINE LENGTH M4 (MM)	33.0
CENTERLINE LENGTH L1 (MM)	41.0
CENTERLINE LENGTH L2 (MM)	33.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.816
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.817

D2603-S16-S16-S08-SS

$468.25

Attribute: D2603-S16-S16-S08-SS (S16MBT-S16...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGTH M3 (MM)	43.0
CENTERLINE LENGTH M4 (MM)	33.0
CENTERLINE LENGTH L1 (MM)	41.0
CENTERLINE LENGTH L2 (MM)	33.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.816
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.817

D2603-S16-S16-S10-SS

$471.49

Attribute: D2603-S16-S16-S10-SS (S16MBT-S16...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGTH M3 (MM)	43.0
CENTERLINE LENGTH M4 (MM)	33.0
CENTERLINE LENGTH L1 (MM)	42.0
CENTERLINE LENGTH L2 (MM)	33.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.841
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.974

D2603-S16-S16-S12-SS

$465.86

Attribute: D2603-S16-S16-S12-SS (S16MBT-S16...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M20X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
HEX C 3 (MM)	24.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGTH M3 (MM)	43.0
CENTERLINE LENGTH M4 (MM)	33.0
CENTERLINE LENGTH L1 (MM)	42.0
CENTERLINE LENGTH L2 (MM)	33.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.854
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.974

D2603-S16-S16-S20-SS

$576.85

Attribute: D2603-S16-S16-S20-SS (S16MBT-S16...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
HEX C 3 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	47.0
CENTERLINE LENGTH M2 (MM)	37.0
CENTERLINE LENGTH M3 (MM)	47.0
CENTERLINE LENGTH M4 (MM)	37.0
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	37.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.215
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.216

D2603-S20-S20-S08-SS

$603.60

Attribute: D2603-S20-S20-S08-SS (S20MBT-S20...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	37.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	37.0
CENTERLINE LENGTH L1 (MM)	45.0
CENTERLINE LENGTH L2 (MM)	37.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.204
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.563

D2603-S20-S20-S10

$388.02

Attribute: D2603-S20-S20-S10 (S20MBT-S20MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	37.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	37.0
CENTERLINE LENGTH L1 (MM)	46.0
CENTERLINE LENGTH L2 (MM)	37.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.230
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.779

D2603-S20-S20-S10-SS

$594.73

Attribute: D2603-S20-S20-S10-SS (S20MBT-S20...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	37.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	37.0
CENTERLINE LENGTH L1 (MM)	46.0
CENTERLINE LENGTH L2 (MM)	37.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.230
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.779

D2603-S20-S20-S12-SS

$568.31

Attribute: D2603-S20-S20-S12-SS (S20MBT-S20...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M20X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	24.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	37.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	37.0
CENTERLINE LENGTH L1 (MM)	46.0
CENTERLINE LENGTH L2 (MM)	37.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.243
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.779

D2603-S20-S20-S14-SS

$580.26

Attribute: D2603-S20-S20-S14-SS (S20MBT-S20...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	37.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	37.0
CENTERLINE LENGTH L1 (MM)	47.0
CENTERLINE LENGTH L2 (MM)	37.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.280
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.994

D2603-S20-S20-S16

$176.32

Attribute: D2603-S20-S20-S16 (S20MBT-S20MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	37.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	37.0
CENTERLINE LENGTH L1 (MM)	47.0
CENTERLINE LENGTH L2 (MM)	37.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.313
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.994

D2603-S20-S20-S16-SS

$617.90

Attribute: D2603-S20-S20-S16-SS (S20MBT-S20...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	37.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	37.0
CENTERLINE LENGTH L1 (MM)	47.0
CENTERLINE LENGTH L2 (MM)	37.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.313
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.994

D2603-S20-S20-S25-SS

$906.15

Attribute: D2603-S20-S20-S25-SS (S20MBT-S20...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	46.0
CENTERLINE LENGTH M1 (MM)	54.0
CENTERLINE LENGTH M2 (MM)	42.0
CENTERLINE LENGTH M3 (MM)	54.0
CENTERLINE LENGTH M4 (MM)	42.0
CENTERLINE LENGTH L1 (MM)	55.0
CENTERLINE LENGTH L2 (MM)	42.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.120
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	22.131

D2603-S25-S25-S10-SS

$932.10

Attribute: D2603-S25-S25-S10-SS (S25MBT-S25...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	55.0
CENTERLINE LENGTH M2 (MM)	42.0
CENTERLINE LENGTH M3 (MM)	55.0
CENTERLINE LENGTH M4 (MM)	42.0
CENTERLINE LENGTH L1 (MM)	51.0
CENTERLINE LENGTH L2 (MM)	42.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.202
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	22.850

D2603-S25-S25-S12-SS

$932.69

Attribute: D2603-S25-S25-S12-SS (S25MBT-S25...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M20X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	24.0
CENTERLINE LENGTH M1 (MM)	55.0
CENTERLINE LENGTH M2 (MM)	42.0
CENTERLINE LENGTH M3 (MM)	55.0
CENTERLINE LENGTH M4 (MM)	42.0
CENTERLINE LENGTH L1 (MM)	51.0
CENTERLINE LENGTH L2 (MM)	42.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.215
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	22.850

D2603-S25-S25-S14-SS

$942.33

Attribute: D2603-S25-S25-S14-SS (S25MBT-S25...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	55.0
CENTERLINE LENGTH M2 (MM)	42.0
CENTERLINE LENGTH M3 (MM)	55.0
CENTERLINE LENGTH M4 (MM)	42.0
CENTERLINE LENGTH L1 (MM)	52.0
CENTERLINE LENGTH L2 (MM)	42.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.241
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	23.159

D2603-S25-S25-S16

$405.17

Attribute: D2603-S25-S25-S16 (S25MBT-S25MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	55.0
CENTERLINE LENGTH M2 (MM)	42.0
CENTERLINE LENGTH M3 (MM)	55.0
CENTERLINE LENGTH M4 (MM)	42.0
CENTERLINE LENGTH L1 (MM)	52.0
CENTERLINE LENGTH L2 (MM)	42.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.268
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	23.159

D2603-S25-S25-S16-SS

$980.10

Attribute: D2603-S25-S25-S16-SS (S25MBT-S25...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	55.0
CENTERLINE LENGTH M2 (MM)	42.0
CENTERLINE LENGTH M3 (MM)	55.0
CENTERLINE LENGTH M4 (MM)	42.0
CENTERLINE LENGTH L1 (MM)	52.0
CENTERLINE LENGTH L2 (MM)	42.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.268
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	23.159

D2603-S25-S25-S20-SS

$949.04

Attribute: D2603-S25-S25-S20-SS (S25MBT-S25...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	55.0
CENTERLINE LENGTH M2 (MM)	42.0
CENTERLINE LENGTH M3 (MM)	55.0
CENTERLINE LENGTH M4 (MM)	42.0
CENTERLINE LENGTH L1 (MM)	54.0
CENTERLINE LENGTH L2 (MM)	42.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.361
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	23.776

D2603-S25-S25-S30

$949.46

Attribute: D2603-S25-S25-S30 (S25MBT-S25MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 3 THREAD SIZE	M42X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	62.0
CENTERLINE LENGTH M2 (MM)	49.0
CENTERLINE LENGTH M3 (MM)	62.0
CENTERLINE LENGTH M4 (MM)	49.0
CENTERLINE LENGTH L1 (MM)	63.2
CENTERLINE LENGTH L2 (MM)	49.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	3.269
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	32.632

D2603-S25-S25-S30-SS

$1,205.20

Attribute: D2603-S25-S25-S30-SS (S25MBT-S25...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 3 THREAD SIZE	M42X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	62.0
CENTERLINE LENGTH M2 (MM)	49.0
CENTERLINE LENGTH M3 (MM)	62.0
CENTERLINE LENGTH M4 (MM)	49.0
CENTERLINE LENGTH L1 (MM)	63.2
CENTERLINE LENGTH L2 (MM)	49.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	3.269
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	32.632

D2603-S30-S30-S10-SS

$1,204.47

Attribute: D2603-S30-S30-S10-SS (S30MBT-S30...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	63.2
CENTERLINE LENGTH M2 (MM)	49.0
CENTERLINE LENGTH M3 (MM)	63.2
CENTERLINE LENGTH M4 (MM)	49.0
CENTERLINE LENGTH L1 (MM)	58.0
CENTERLINE LENGTH L2 (MM)	49.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.913
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	32.036

D2603-S30-S30-S12-SS

$1,238.48

Attribute: D2603-S30-S30-S12-SS (S30MBT-S30...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M20X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	24.0
CENTERLINE LENGTH M1 (MM)	63.2
CENTERLINE LENGTH M2 (MM)	49.0
CENTERLINE LENGTH M3 (MM)	63.2
CENTERLINE LENGTH M4 (MM)	49.0
CENTERLINE LENGTH L1 (MM)	58.0
CENTERLINE LENGTH L2 (MM)	49.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.927
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	32.036

D2603-S30-S30-S16-SS

$1,139.32

Attribute: D2603-S30-S30-S16-SS (S30MBT-S30...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	63.2
CENTERLINE LENGTH M2 (MM)	49.0
CENTERLINE LENGTH M3 (MM)	63.2
CENTERLINE LENGTH M4 (MM)	49.0
CENTERLINE LENGTH L1 (MM)	59.0
CENTERLINE LENGTH L2 (MM)	49.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.966
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	32.422

D2603-S30-S30-S20-SS

$1,145.96

Attribute: D2603-S30-S30-S20-SS (S30MBT-S30...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	63.2
CENTERLINE LENGTH M2 (MM)	49.0
CENTERLINE LENGTH M3 (MM)	63.2
CENTERLINE LENGTH M4 (MM)	49.0
CENTERLINE LENGTH L1 (MM)	61.0
CENTERLINE LENGTH L2 (MM)	49.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	3.043
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	33.194

D2603-S30-S30-S25-SS

$1,325.71

Attribute: D2603-S30-S30-S25-SS (S30MBT-S30...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	46.0
CENTERLINE LENGTH M1 (MM)	63.2
CENTERLINE LENGTH M2 (MM)	49.0
CENTERLINE LENGTH M3 (MM)	63.2
CENTERLINE LENGTH M4 (MM)	49.0
CENTERLINE LENGTH L1 (MM)	62.0
CENTERLINE LENGTH L2 (MM)	49.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	3.282
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	33.580

D2603-S30-S30-S38-SS

$1,618.65

Attribute: D2603-S30-S30-S38-SS (S30MBT-S30...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	60.0
CENTERLINE LENGTH M1 (MM)	71.2
CENTERLINE LENGTH M2 (MM)	57.0
CENTERLINE LENGTH M3 (MM)	71.2
CENTERLINE LENGTH M4 (MM)	57.0
CENTERLINE LENGTH L1 (MM)	72.5
CENTERLINE LENGTH L2 (MM)	57.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	4.579
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	50.871

D2603-S38-S38-S16-SS

$1,781.15

Attribute: D2603-S38-S38-S16-SS (S38MBT-S38...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	72.5
CENTERLINE LENGTH M2 (MM)	57.0
CENTERLINE LENGTH M3 (MM)	72.5
CENTERLINE LENGTH M4 (MM)	57.0
CENTERLINE LENGTH L1 (MM)	67.0
CENTERLINE LENGTH L2 (MM)	57.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	4.443
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	51.498

D2603-S38-S38-S25-SS

$1,876.73

Attribute: D2603-S38-S38-S25-SS (S38MBT-S38...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	46.0
CENTERLINE LENGTH M1 (MM)	72.5
CENTERLINE LENGTH M2 (MM)	57.0
CENTERLINE LENGTH M3 (MM)	72.5
CENTERLINE LENGTH M4 (MM)	57.0
CENTERLINE LENGTH L1 (MM)	70.0
CENTERLINE LENGTH L2 (MM)	57.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	4.721
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	53.090

D2603-S38-S38-S30-SS

$1,891.46

Attribute: D2603-S38-S38-S30-SS (S38MBT-S38...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 3 THREAD SIZE	M42X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	72.5
CENTERLINE LENGTH M2 (MM)	57.0
CENTERLINE LENGTH M3 (MM)	72.5
CENTERLINE LENGTH M4 (MM)	57.0
CENTERLINE LENGTH L1 (MM)	71.2
CENTERLINE LENGTH L2 (MM)	57.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	4.739
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	53.754

Description

Description

Variations (139)

D2603-L06-L06-L08-SS

D2603-L06-L06-L10

D2603-L06-L06-L10-SS

D2603-L08-L08-L06

D2603-L08-L08-L06-SS

D2603-L08-L08-L10

D2603-L08-L08-L10-SS

D2603-L08-L08-L12

D2603-L10-L06-L10

D2603-L10-L10-L06

D2603-L10-L10-L06-SS

D2603-L10-L10-L08

D2603-L10-L10-L08-SS

D2603-L10-L10-L12-SS

D2603-L10-L10-L15

D2603-L10-L10-L15-SS

D2603-L12-L08-L08

D2603-L12-L08-L08-SS

D2603-L12-L08-L12-SS

D2603-L12-L10-L10

D2603-L12-L10-L10-SS

D2603-L12-L10-L12

D2603-L12-L10-L12-SS

D2603-L12-L12-L06

D2603-L12-L12-L06-SS

D2603-L12-L12-L08

D2603-L12-L12-L08-SS

D2603-L12-L12-L10

D2603-L12-L12-L10-SS

D2603-L12-L12-L15

D2603-L12-L12-L15-SS

D2603-L12-L12-L18-SS

D2603-L15-L08-L15-SS

D2603-L15-L12-L12

D2603-L15-L12-L12-SS

D2603-L15-L12-L15

D2603-L15-L12-L15-SS

D2603-L15-L15-L06

D2603-L15-L15-L08-SS

D2603-L15-L15-L10

D2603-L15-L15-L10-SS

D2603-L15-L15-L12

D2603-L15-L15-L12-SS

D2603-L18-L10-L10

D2603-L18-L10-L10-SS

D2603-L18-L10-L18

D2603-L18-L10-L18-SS

D2603-L18-L12-L12-SS

D2603-L18-L12-L18-SS

D2603-L18-L18-L08

D2603-L18-L18-L08-SS

D2603-L18-L18-L10

D2603-L18-L18-L10-SS

D2603-L18-L18-L12

D2603-L18-L18-L12-SS

D2603-L18-L18-L15

D2603-L18-L18-L15-SS

D2603-L18-L18-L22-SS

D2603-L22-L12-L12-SS

D2603-L22-L12-L22-SS

D2603-L22-L15-L15

D2603-L22-L15-L15-SS

D2603-L22-L18-L18-SS

D2603-L22-L18-L22-SS

D2603-L22-L22-L08-SS

D2603-L22-L22-L10

D2603-L22-L22-L10-SS

D2603-L22-L22-L12

D2603-L22-L22-L12-SS

D2603-L22-L22-L15

D2603-L22-L22-L15-SS

D2603-L22-L22-L18

D2603-L22-L22-L18-SS

D2603-L22-L22-L28

D2603-L28-L22-L22-SS

D2603-L28-L28-L10-SS
